Diagram Set 80 (Gauges And Indicators)

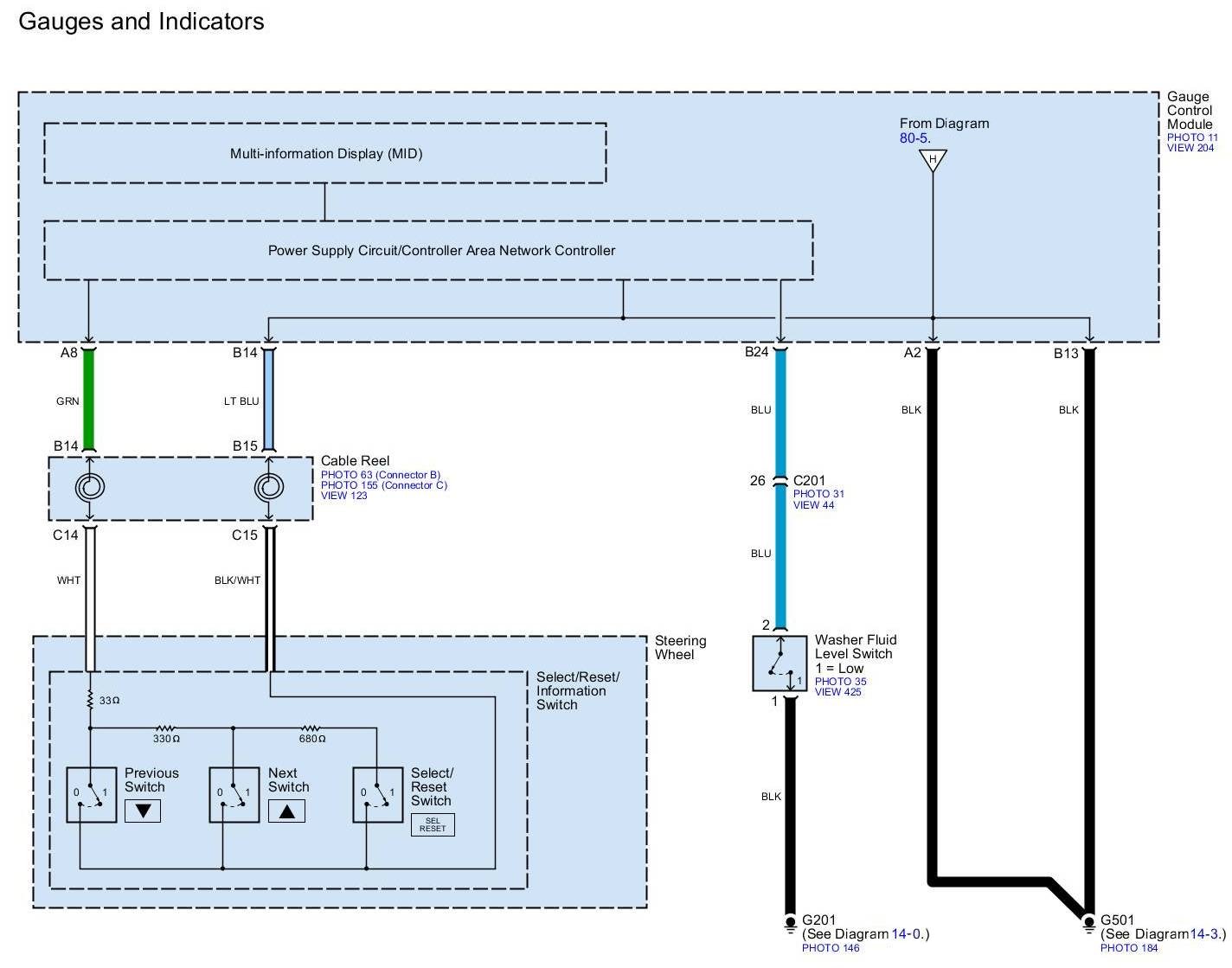

Diagram 80-0:

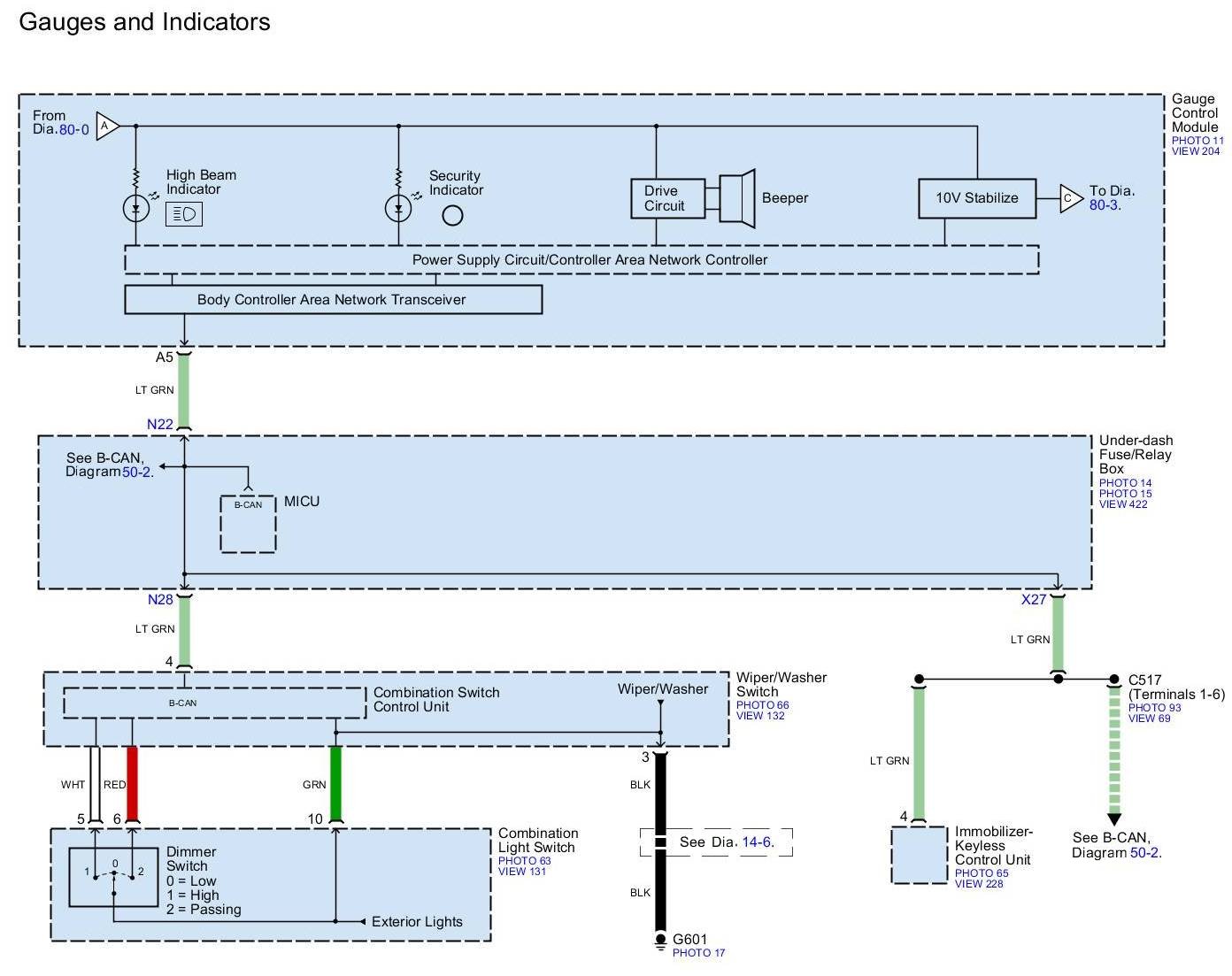

Diagram 80-1:

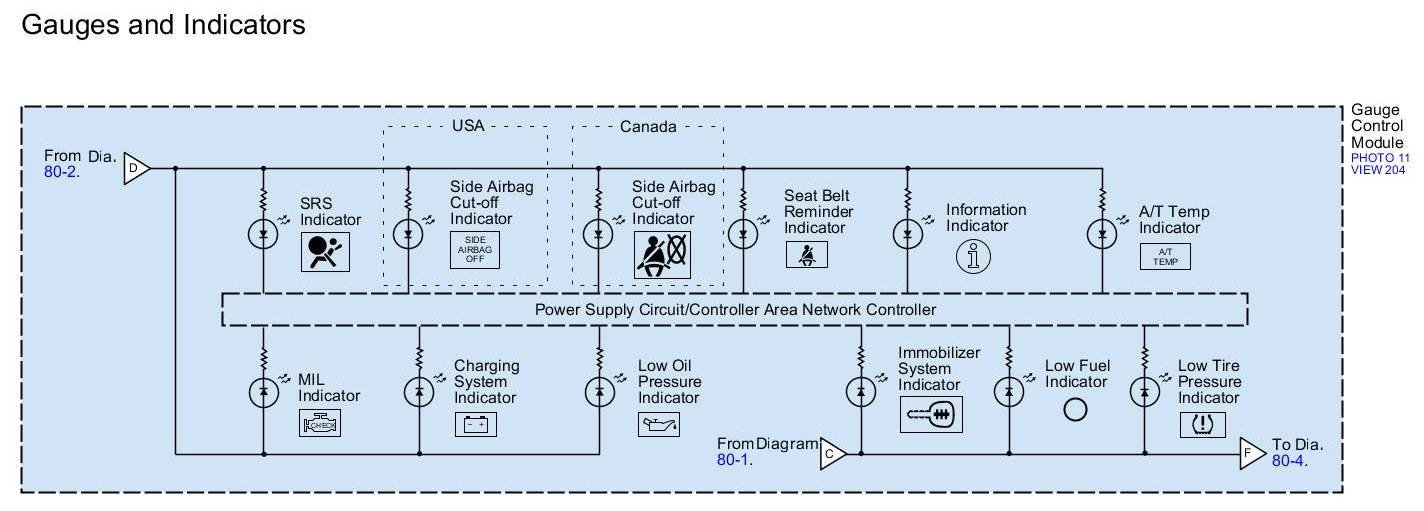

Diagram 80-2:

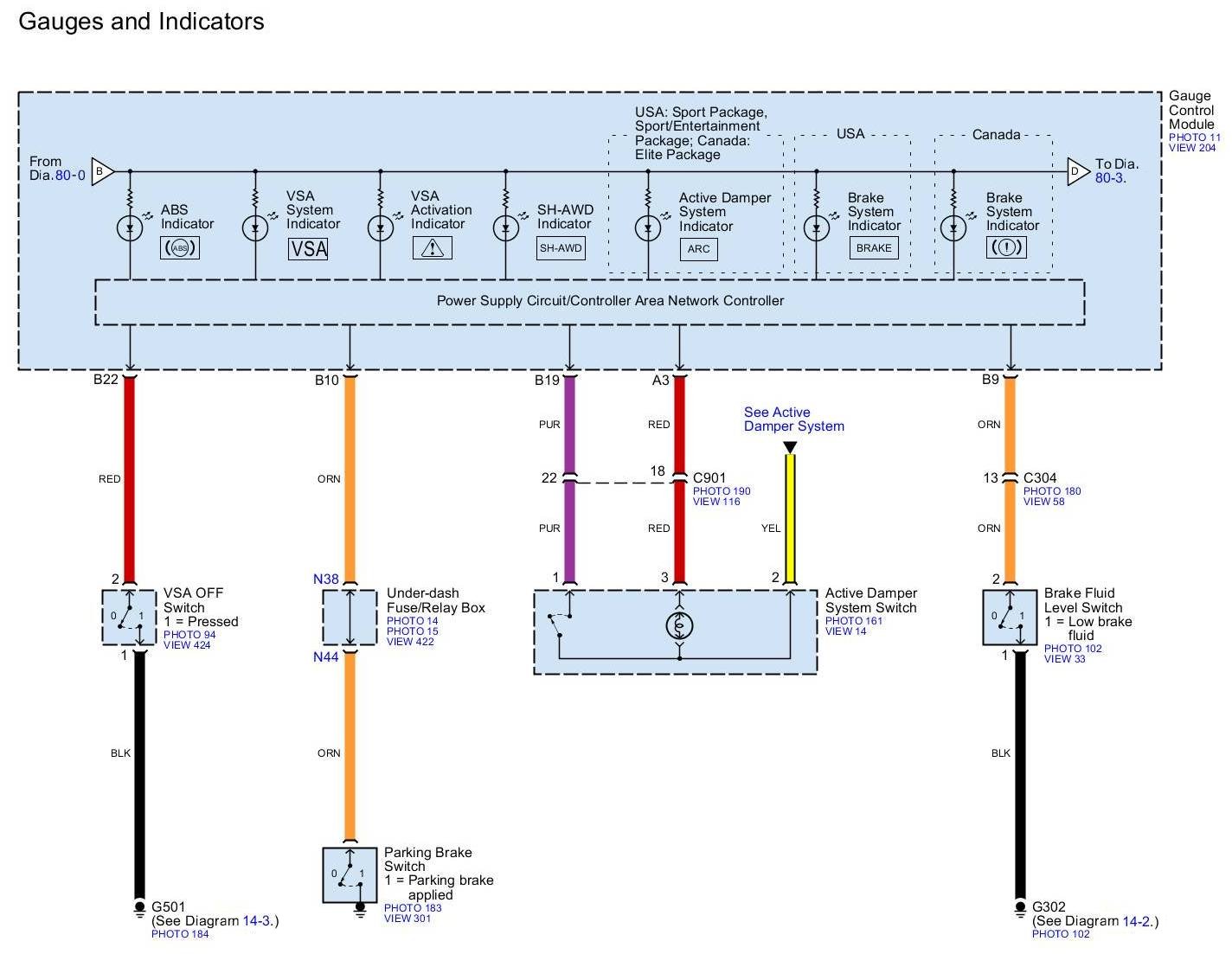

Diagram 80-3:

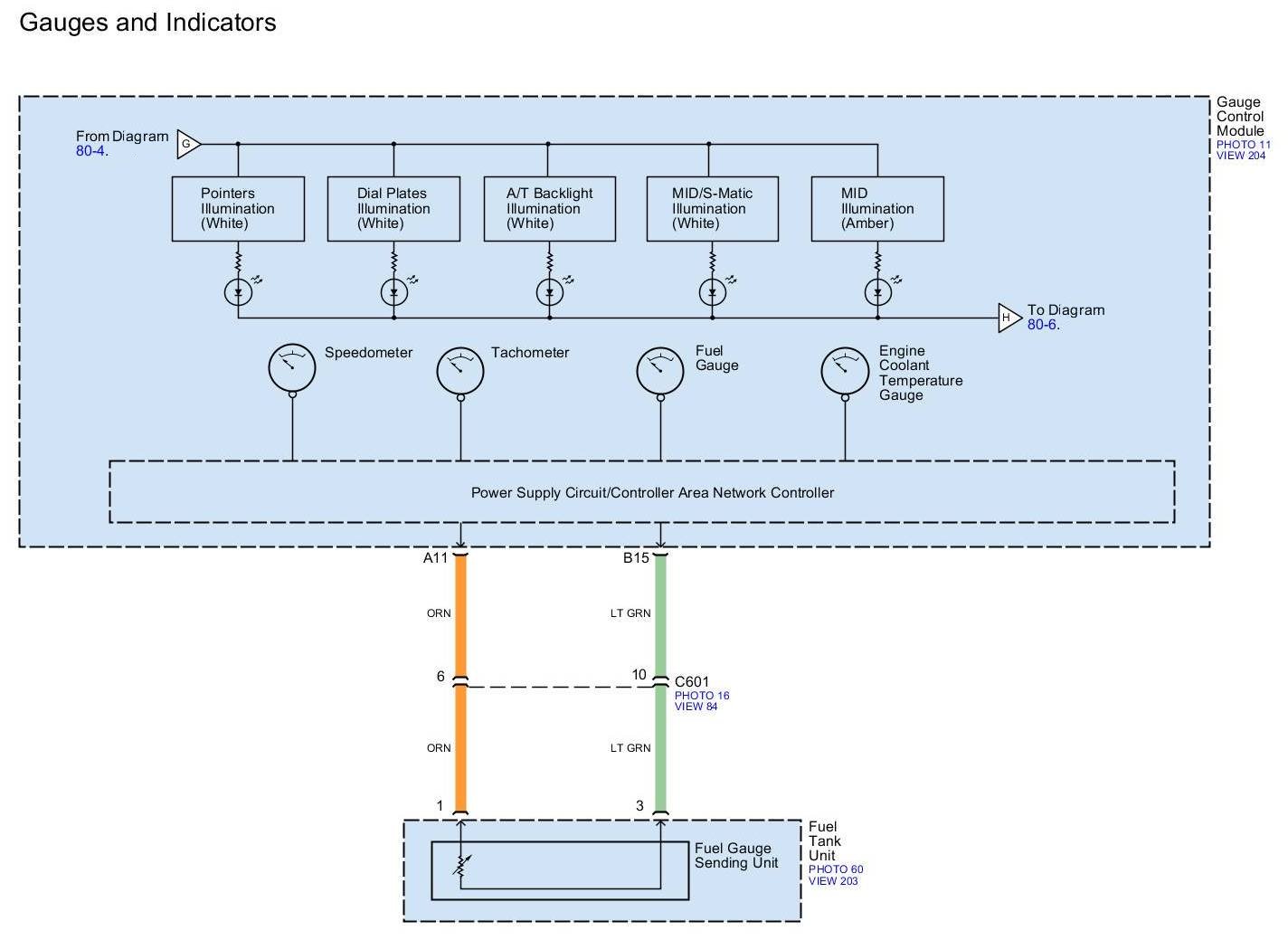

Diagram 80-4:

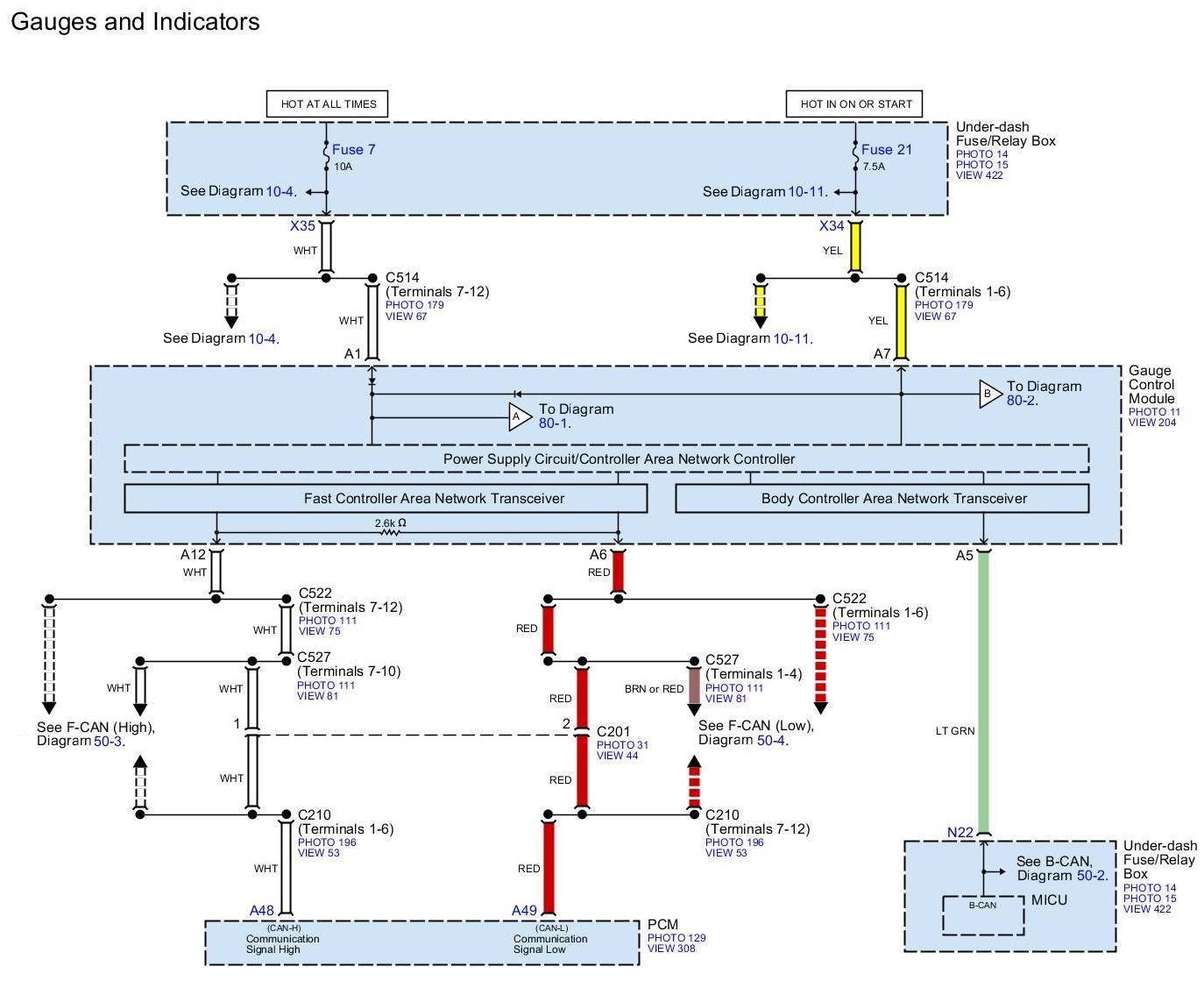

Diagram 80-5:

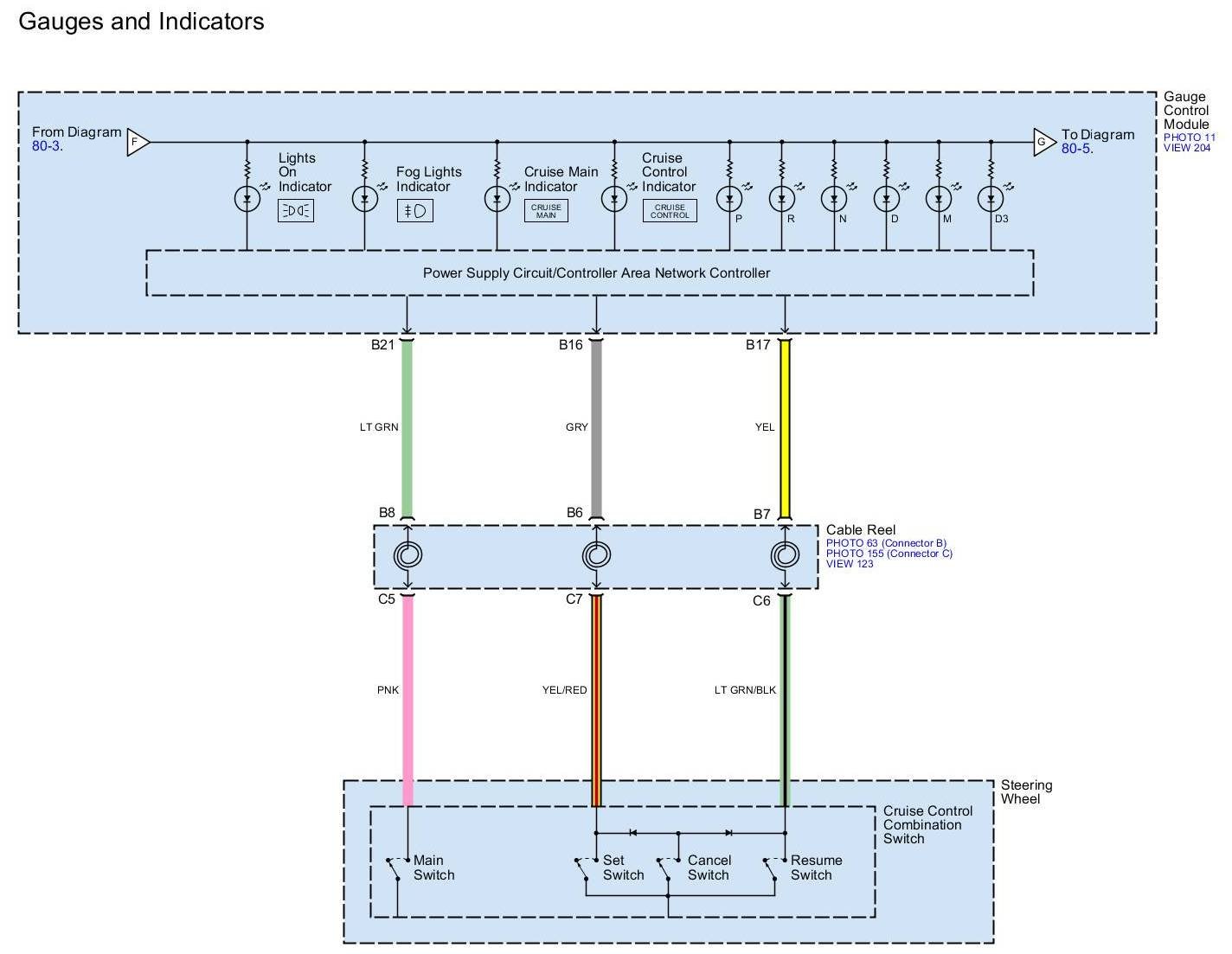

Diagram 80-6:
