Diagram Set 23 (Fuel And Emissions)

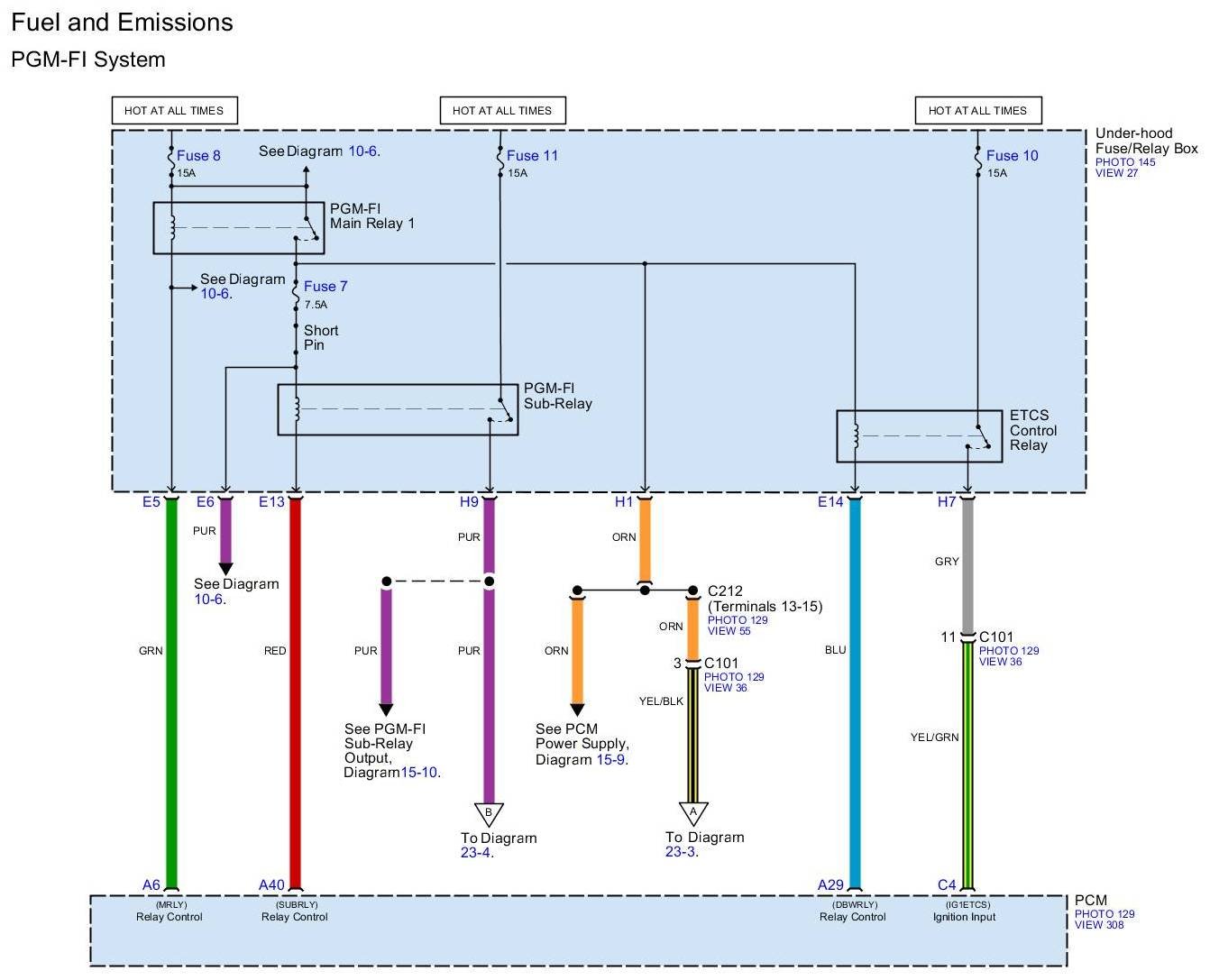

Diagram 23-0:

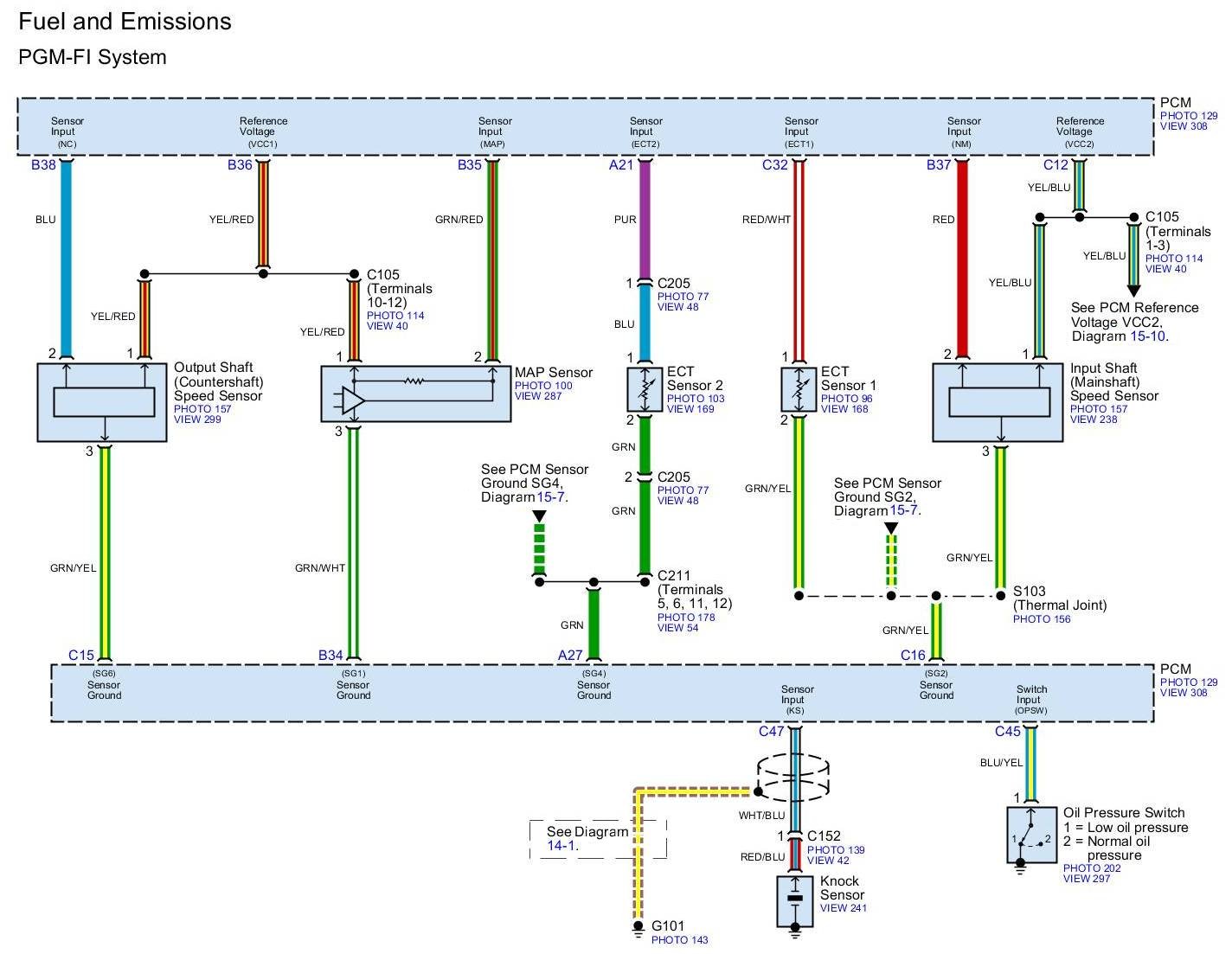

Diagram 23-1:



Diagram 23-2:



Diagram 23-3:



Diagram 23-4:



Diagram 23-5:



Diagram 23-6:



Diagram 23-7:



Diagram 23-8:



Diagram 23-9:



Diagram 23-10:



Diagram 23-11:



Diagram 23-12:
