Diagram Set 21 (Starting System)

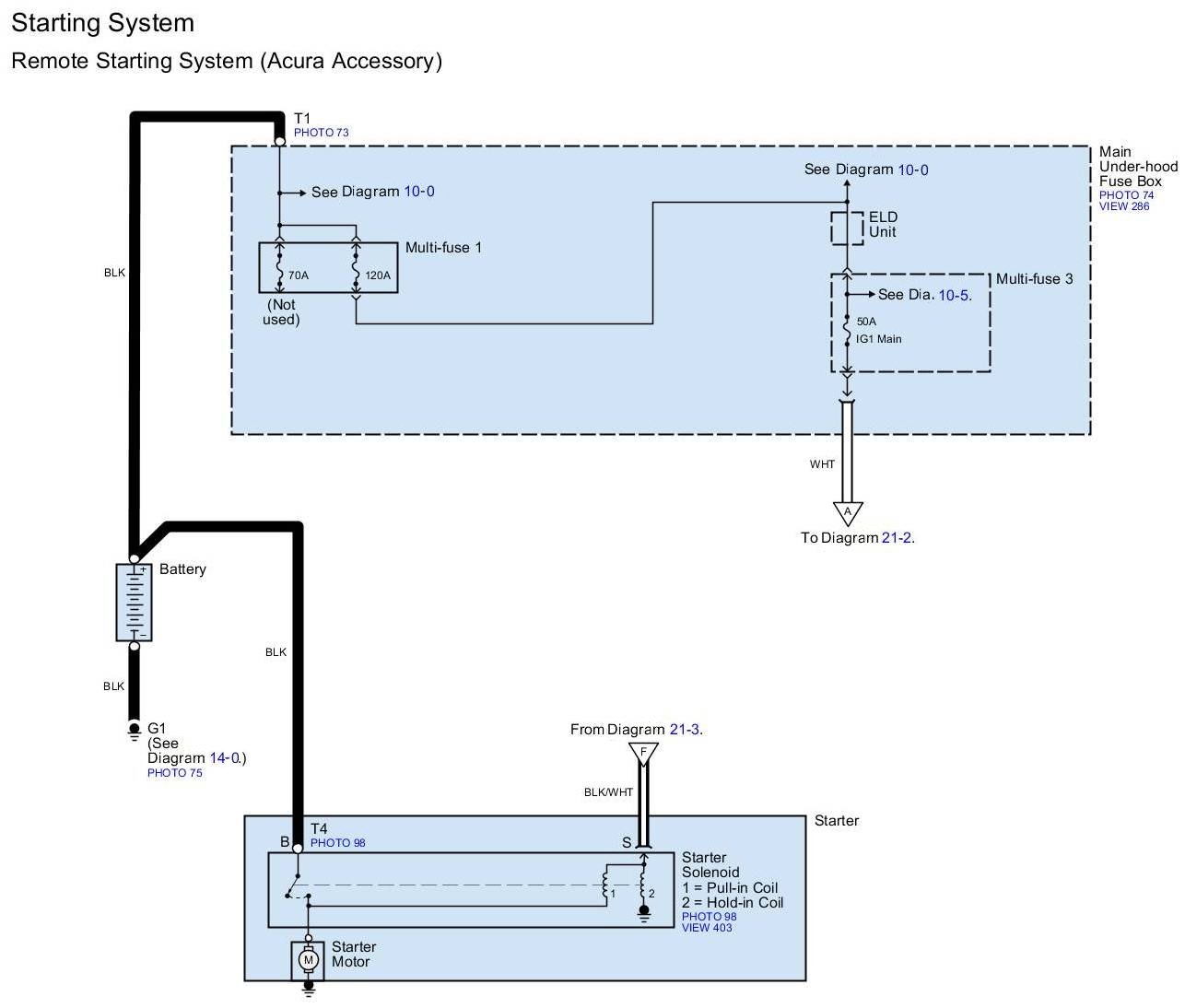

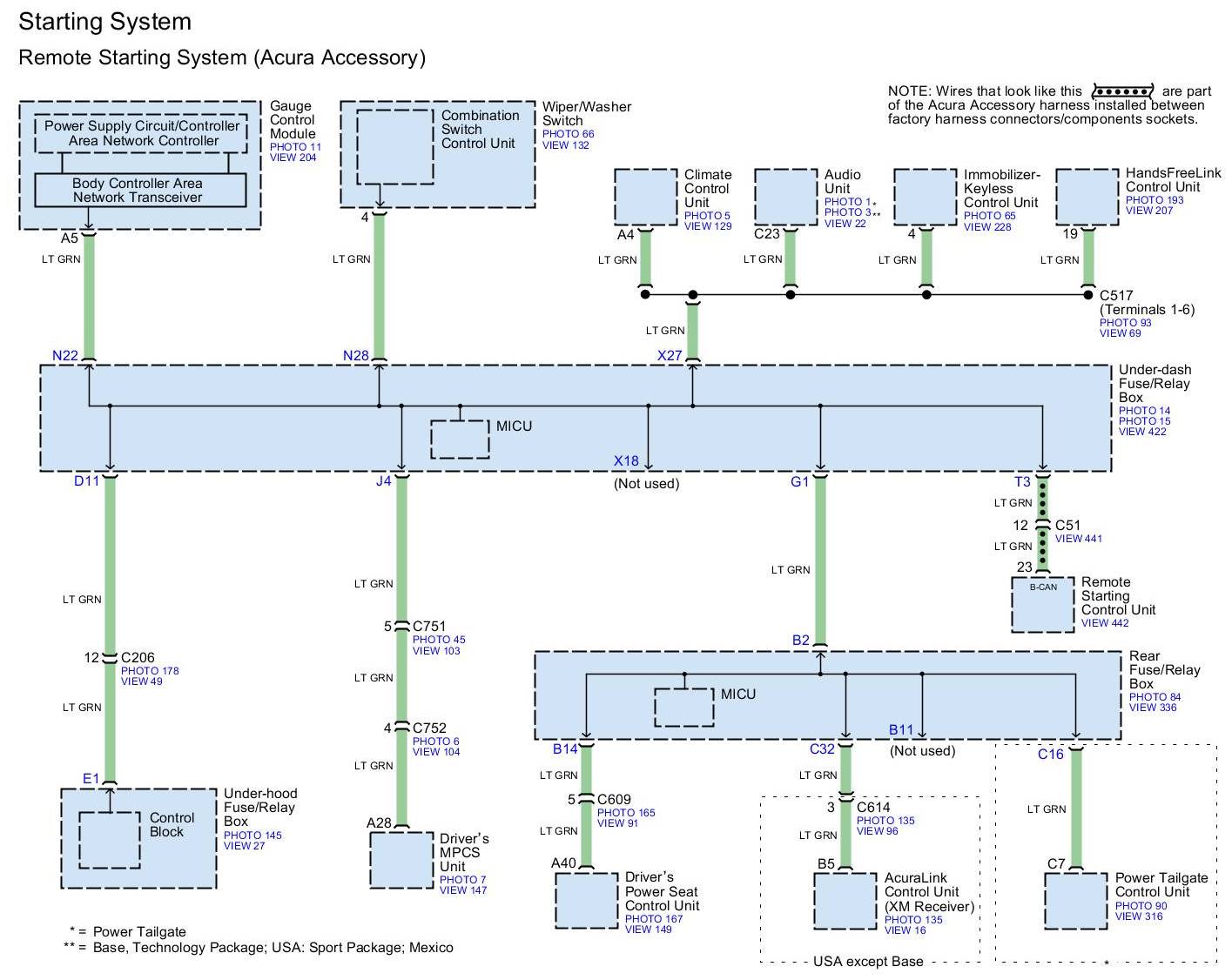

Diagram 21-0:

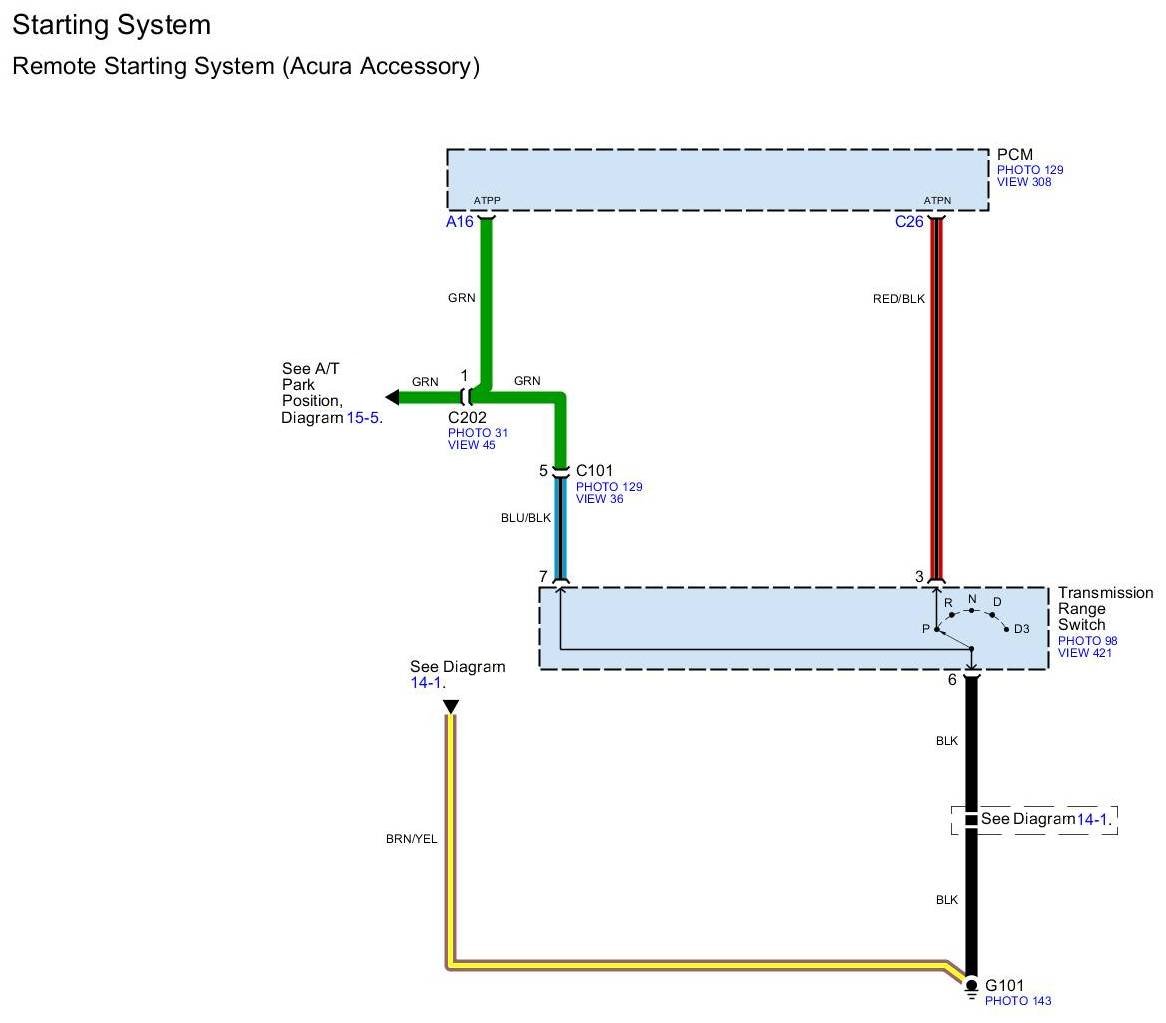

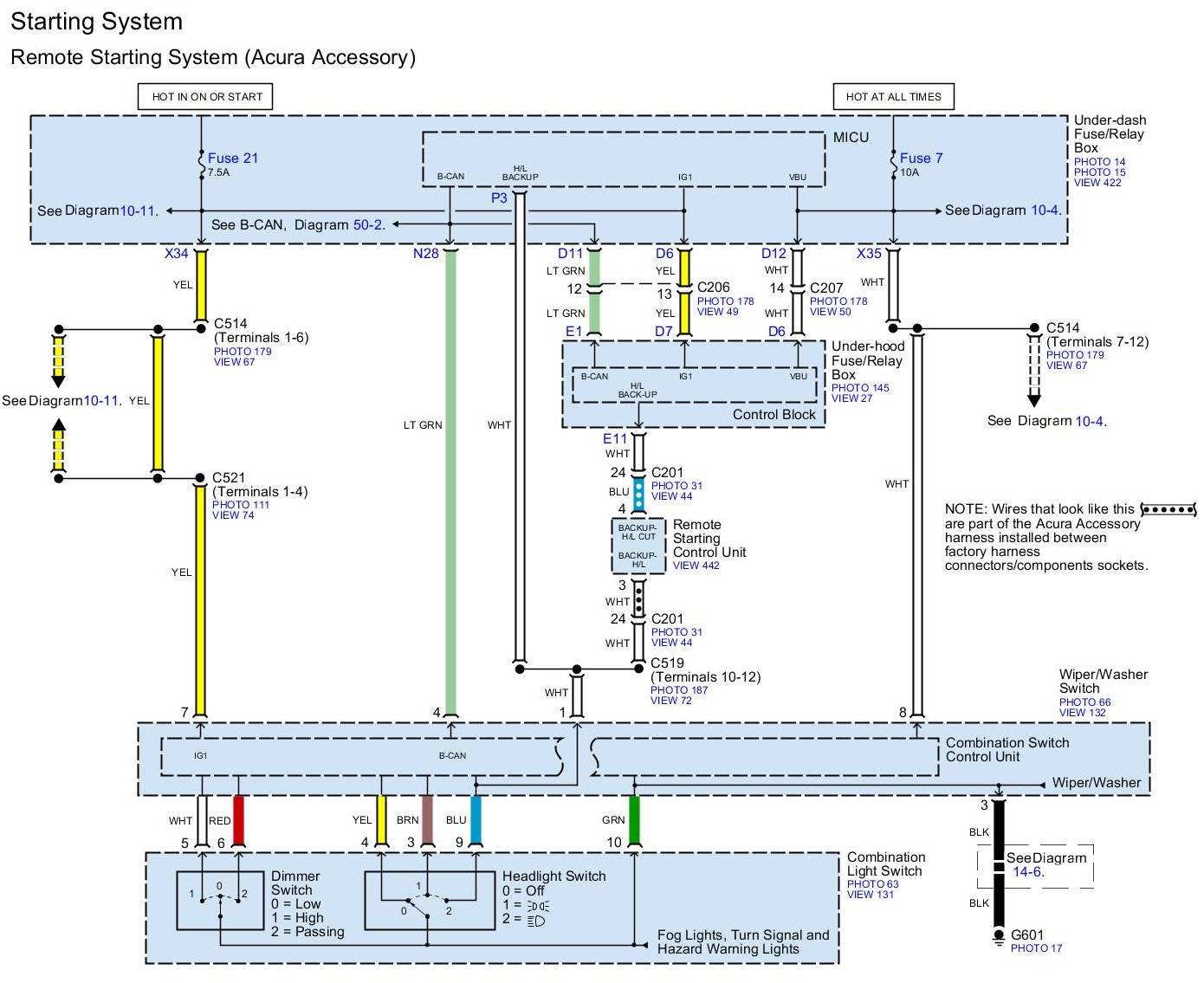

Diagram 21-1:

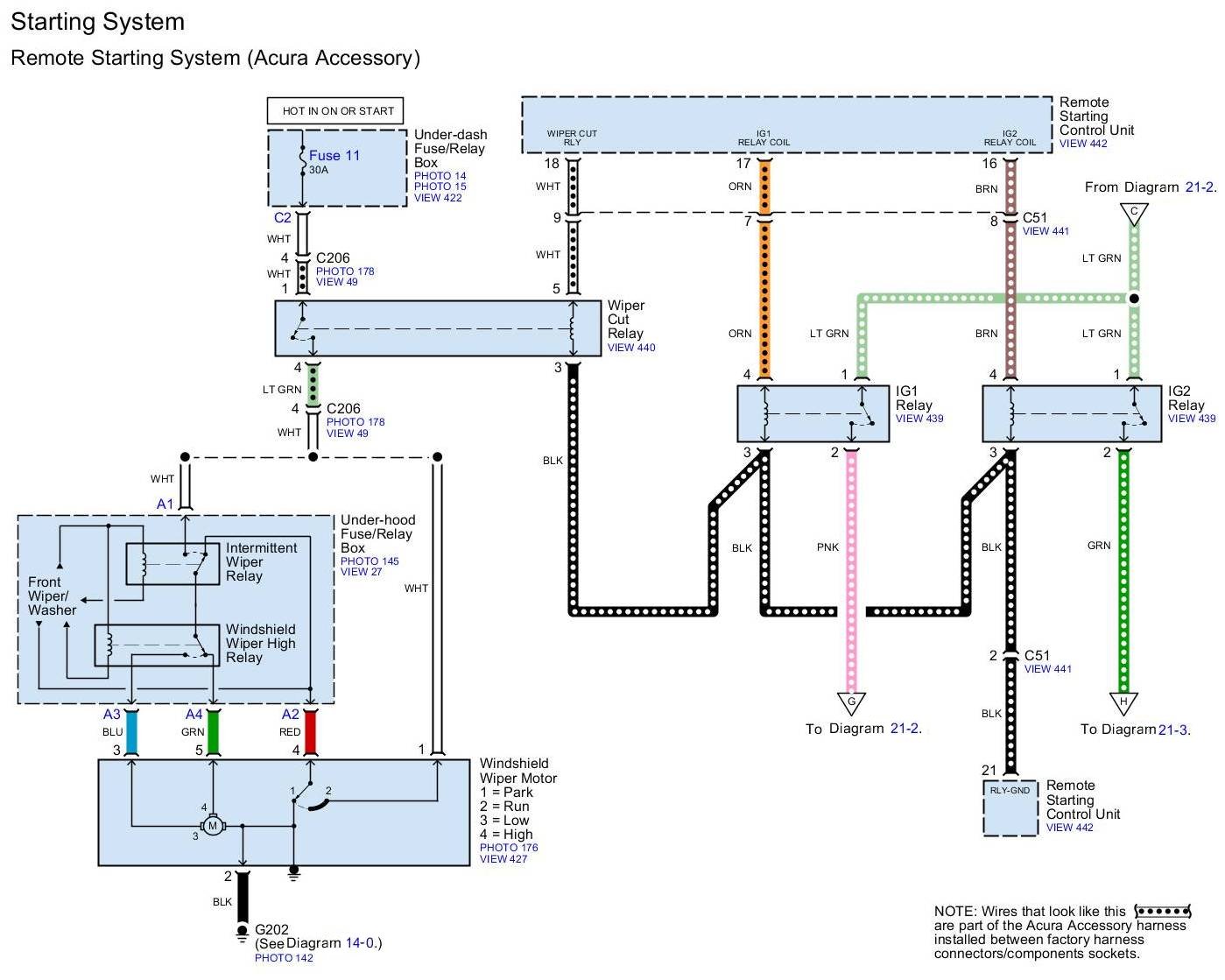

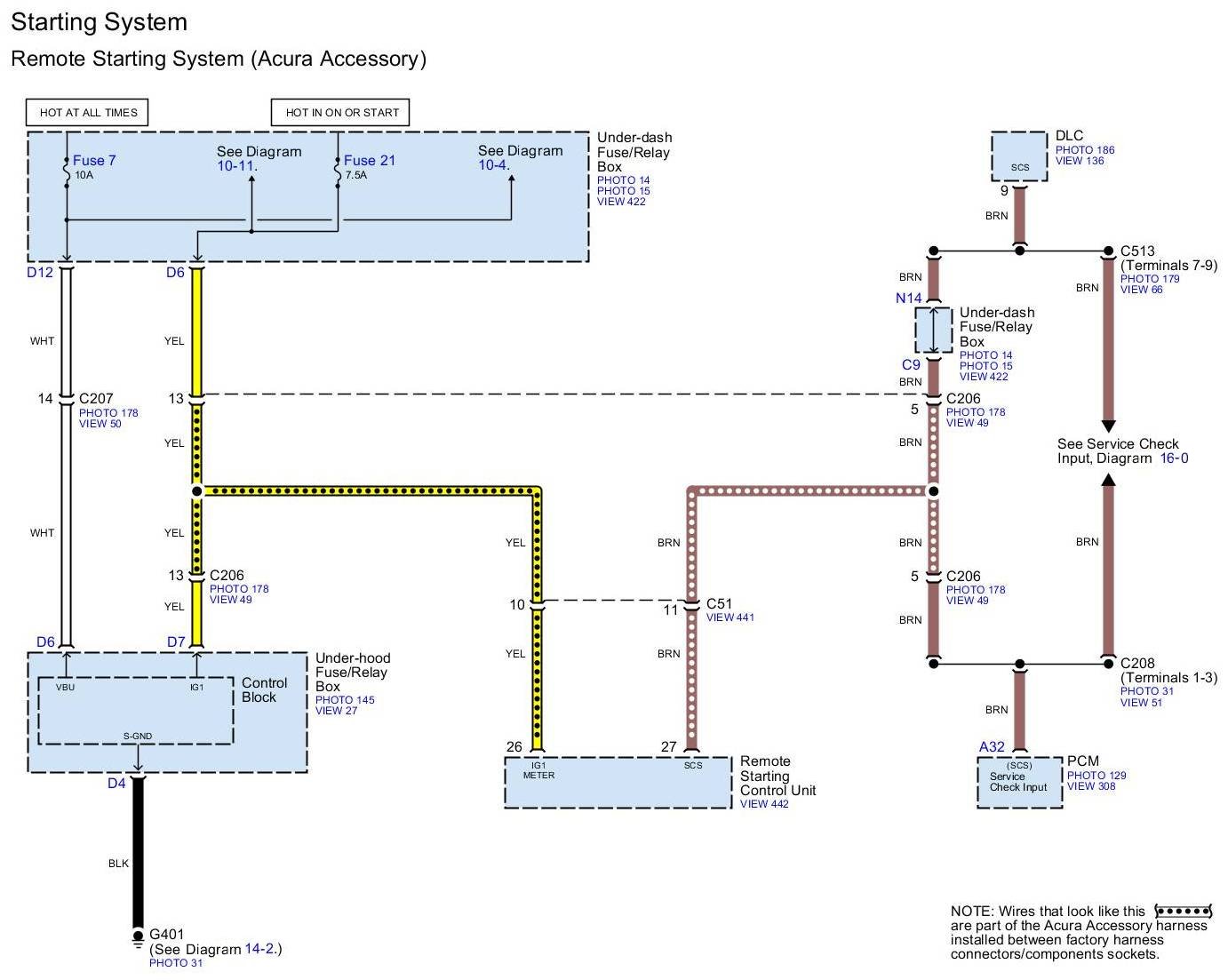

Diagram 21-2:

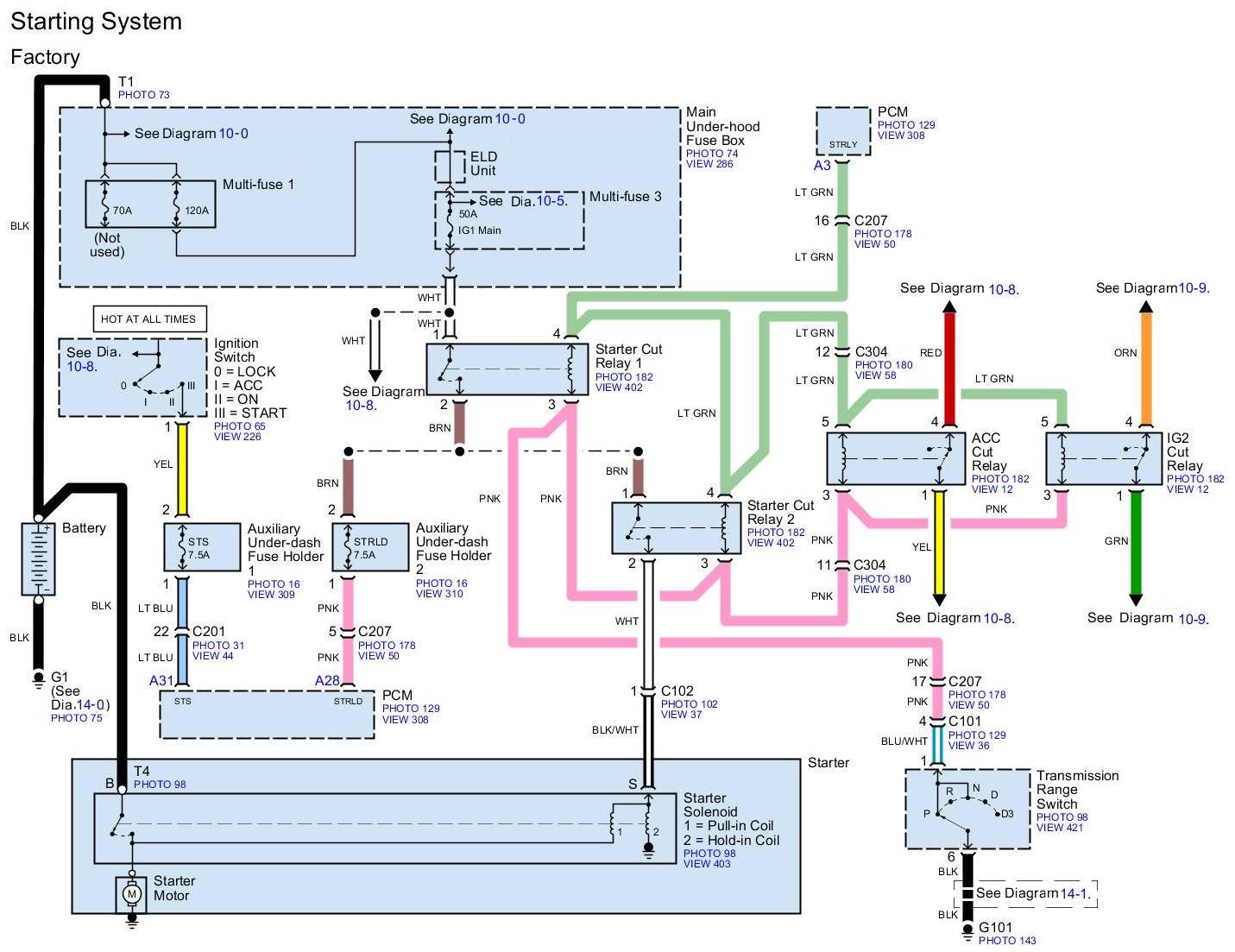

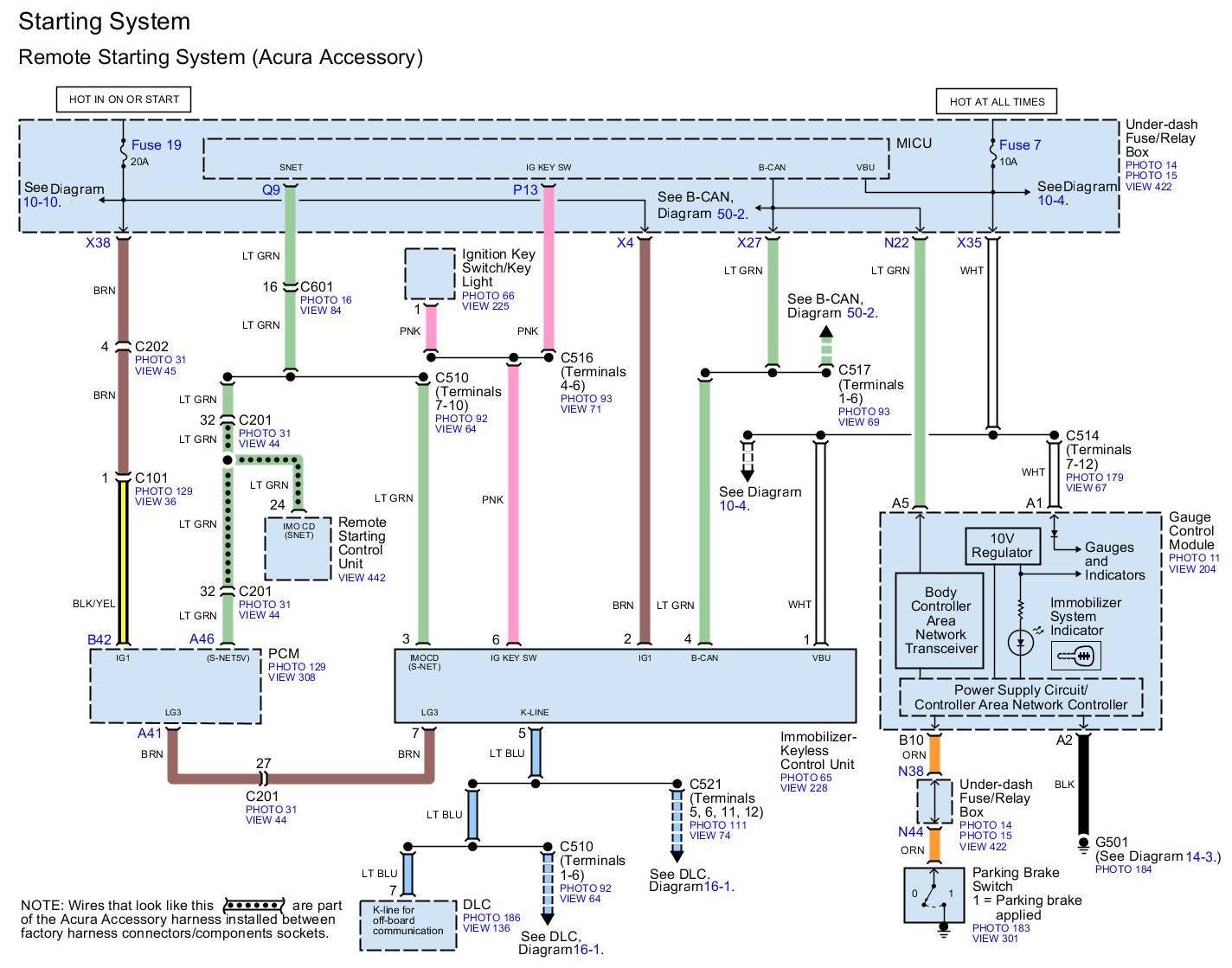

Diagram 21-3:

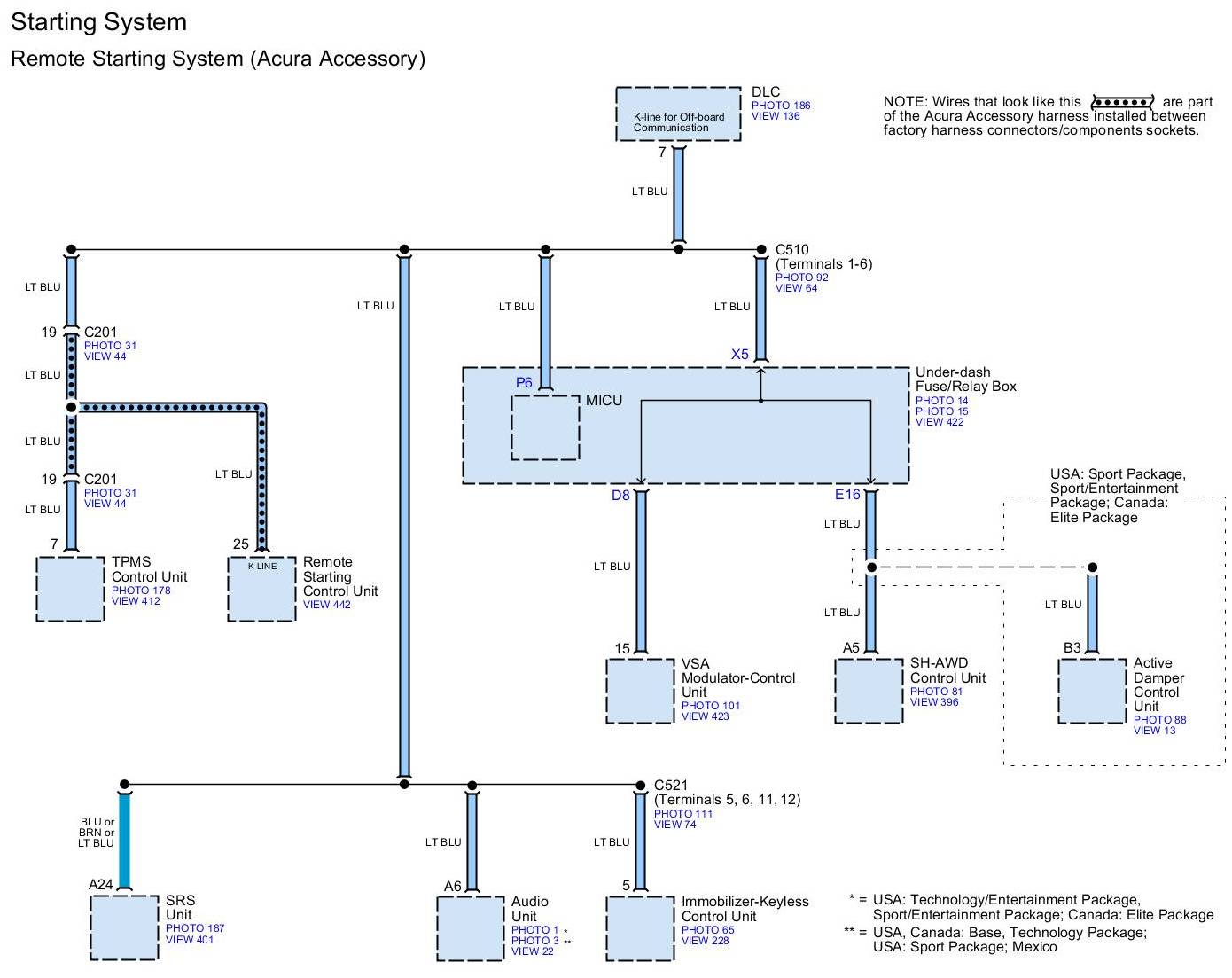

Diagram 21-4:

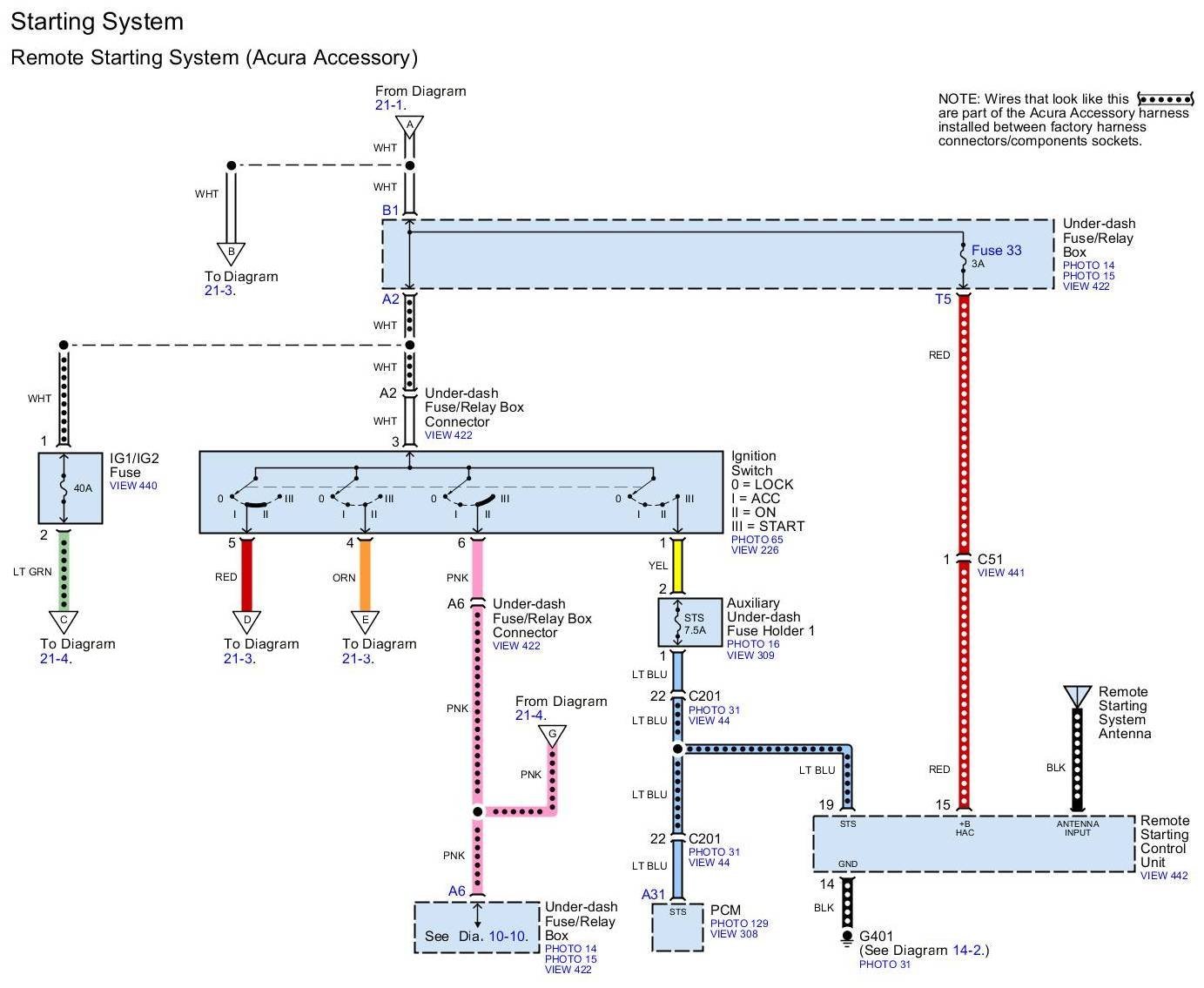

Diagram 21-5:

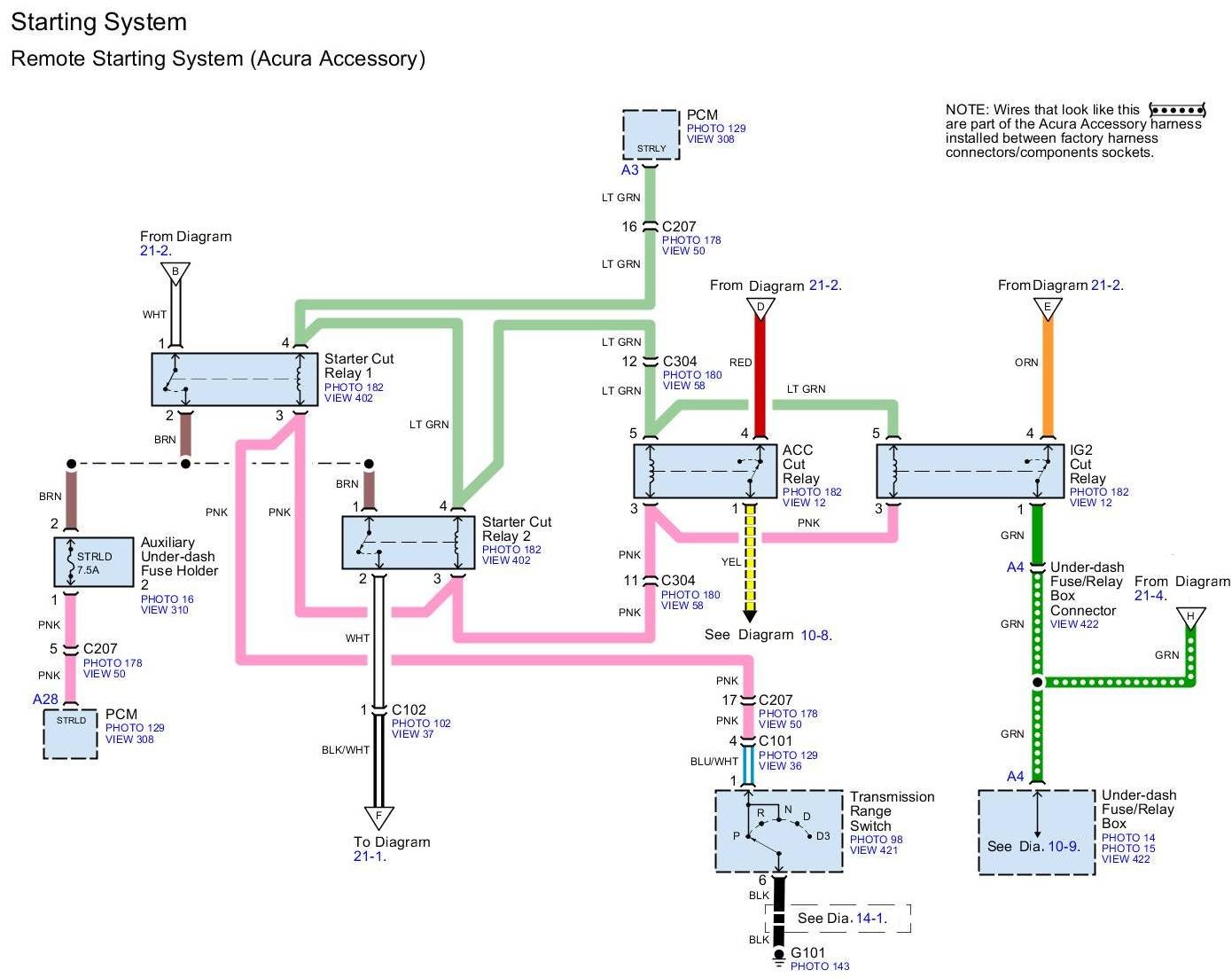

Diagram 21-6:

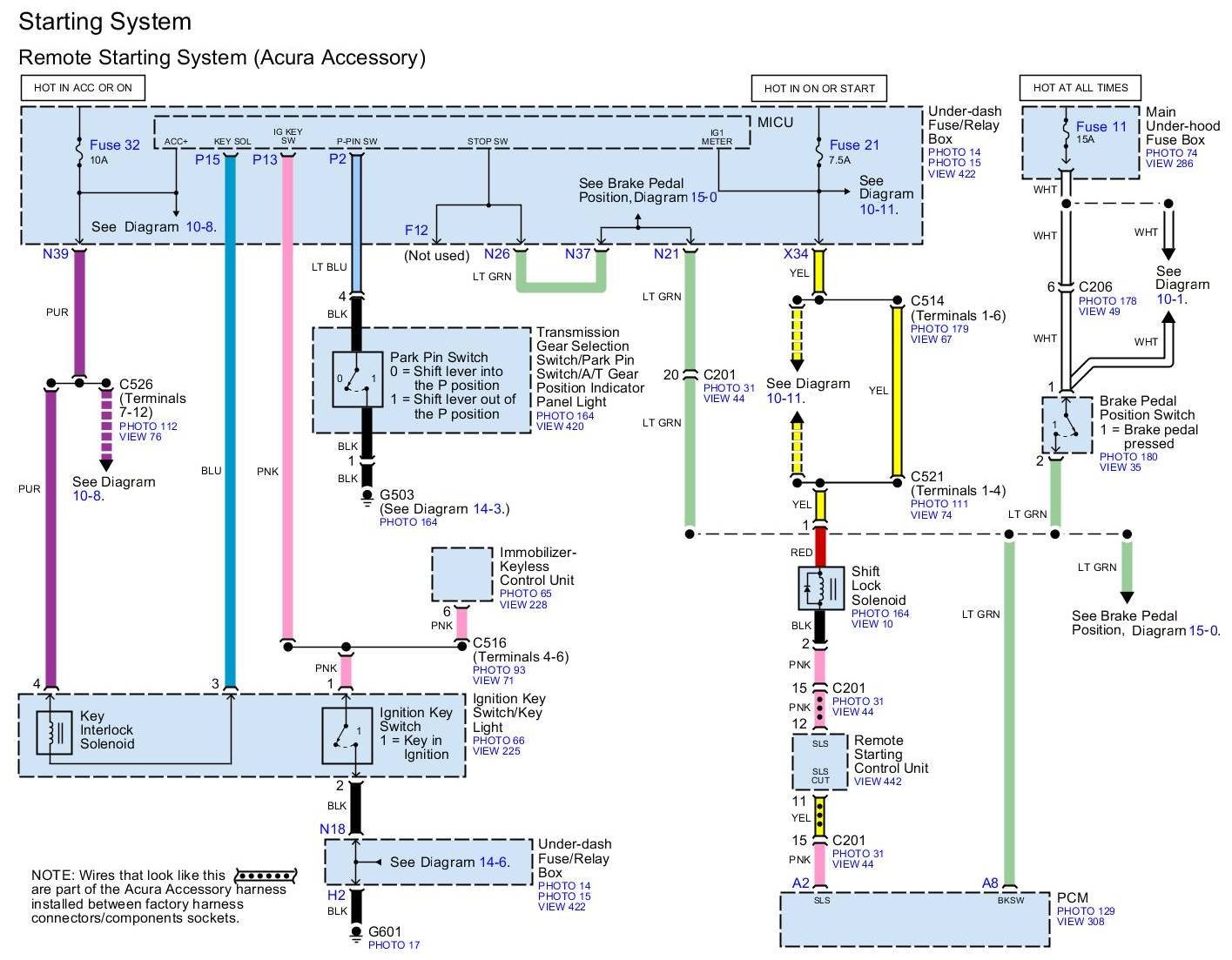

Diagram 21-7:



Diagram 21-8:



Diagram 21-9:



Diagram 21-10:



Diagram 21-11:
