Diagram Set 153 (AcuraLink)

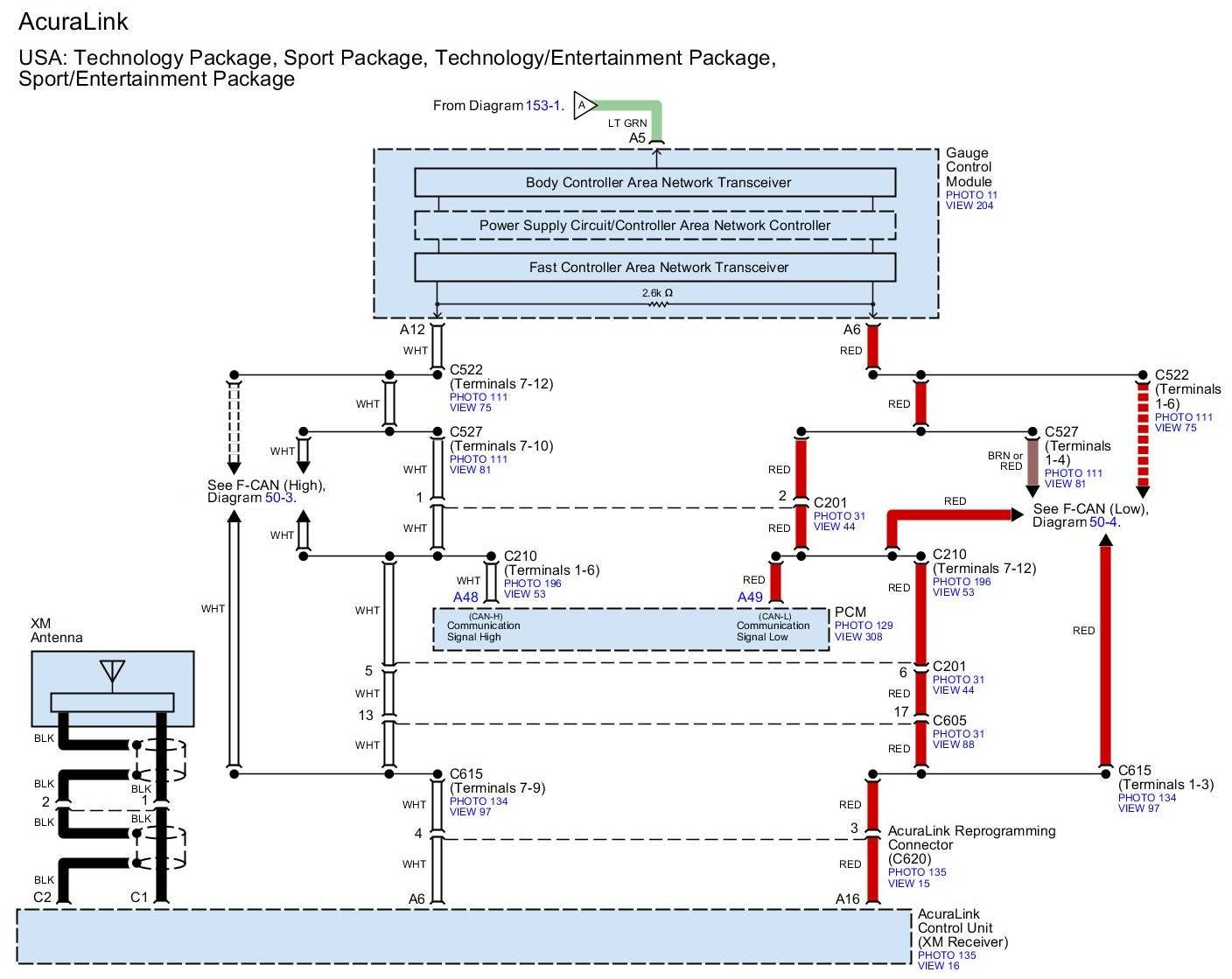

Diagram 153-0:

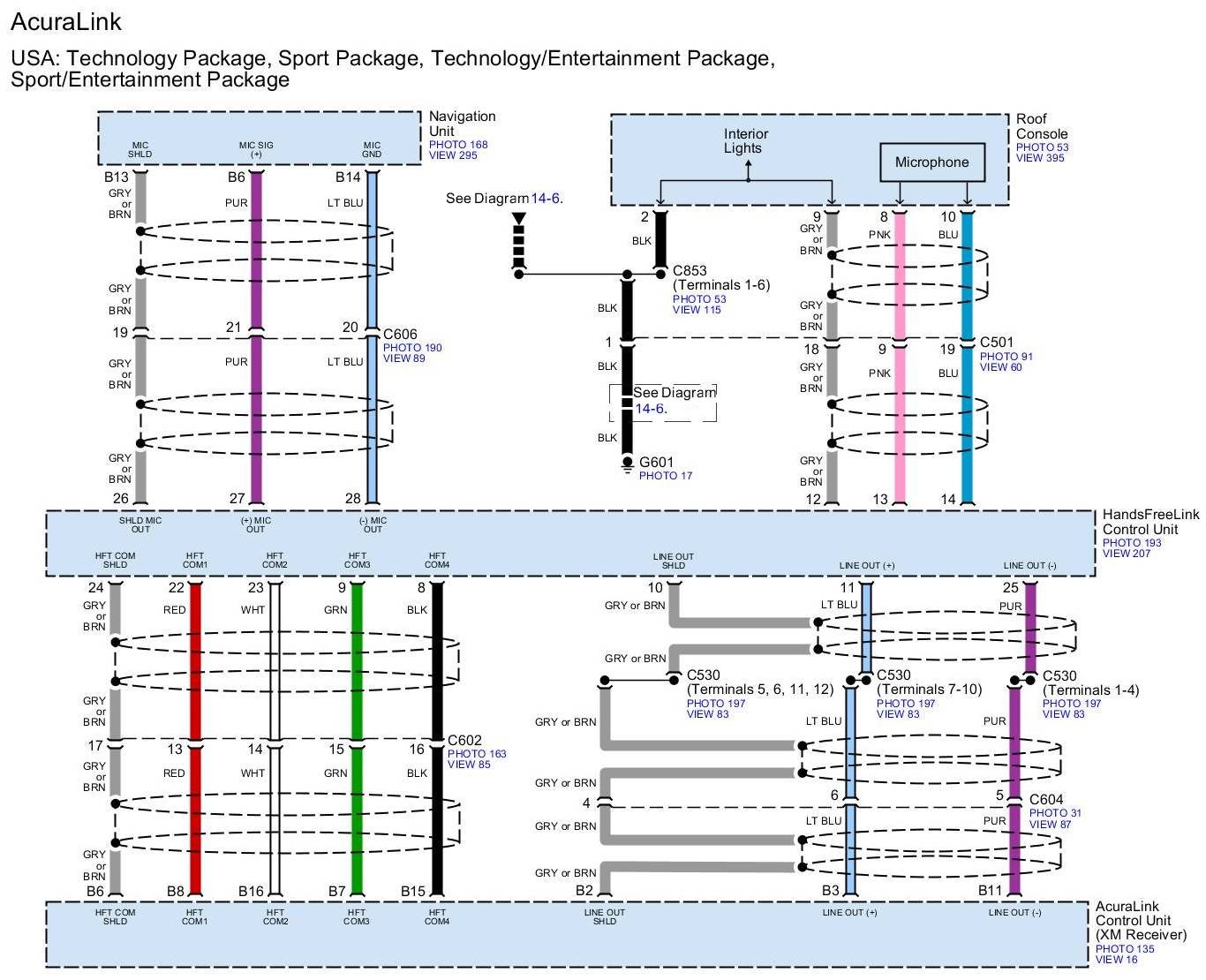

Diagram 153-1:

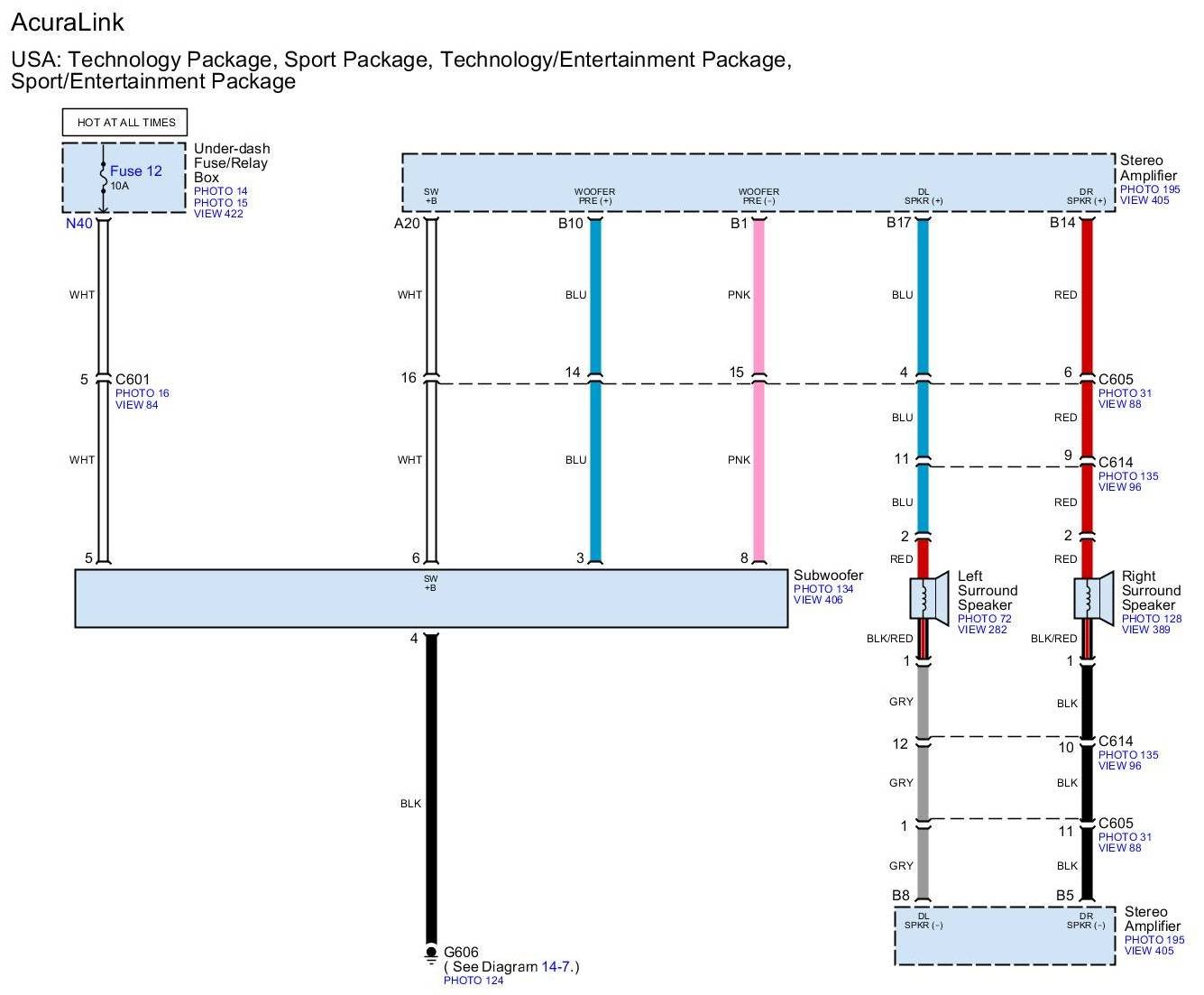

Diagram 153-2:

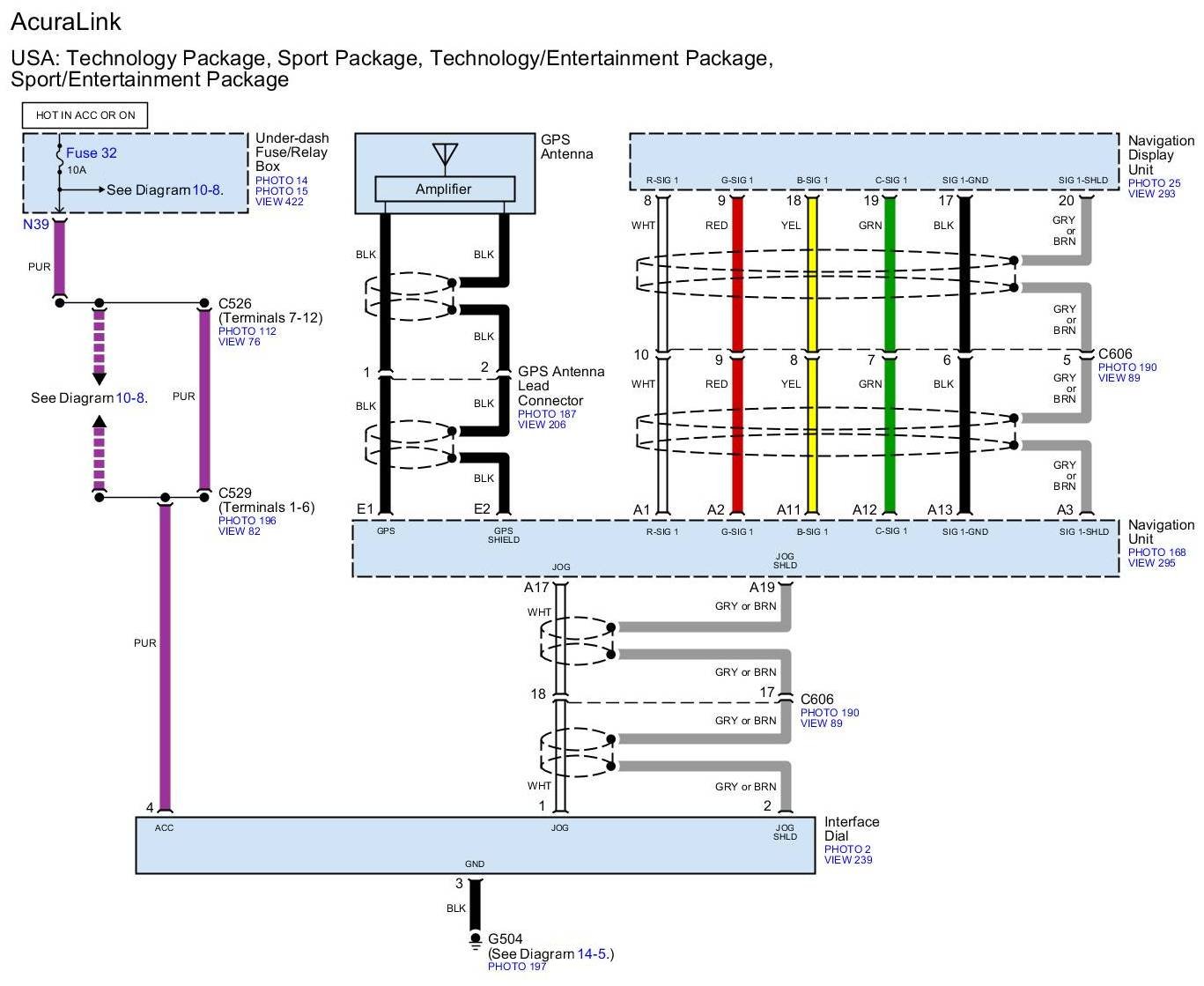

Diagram 153-3:

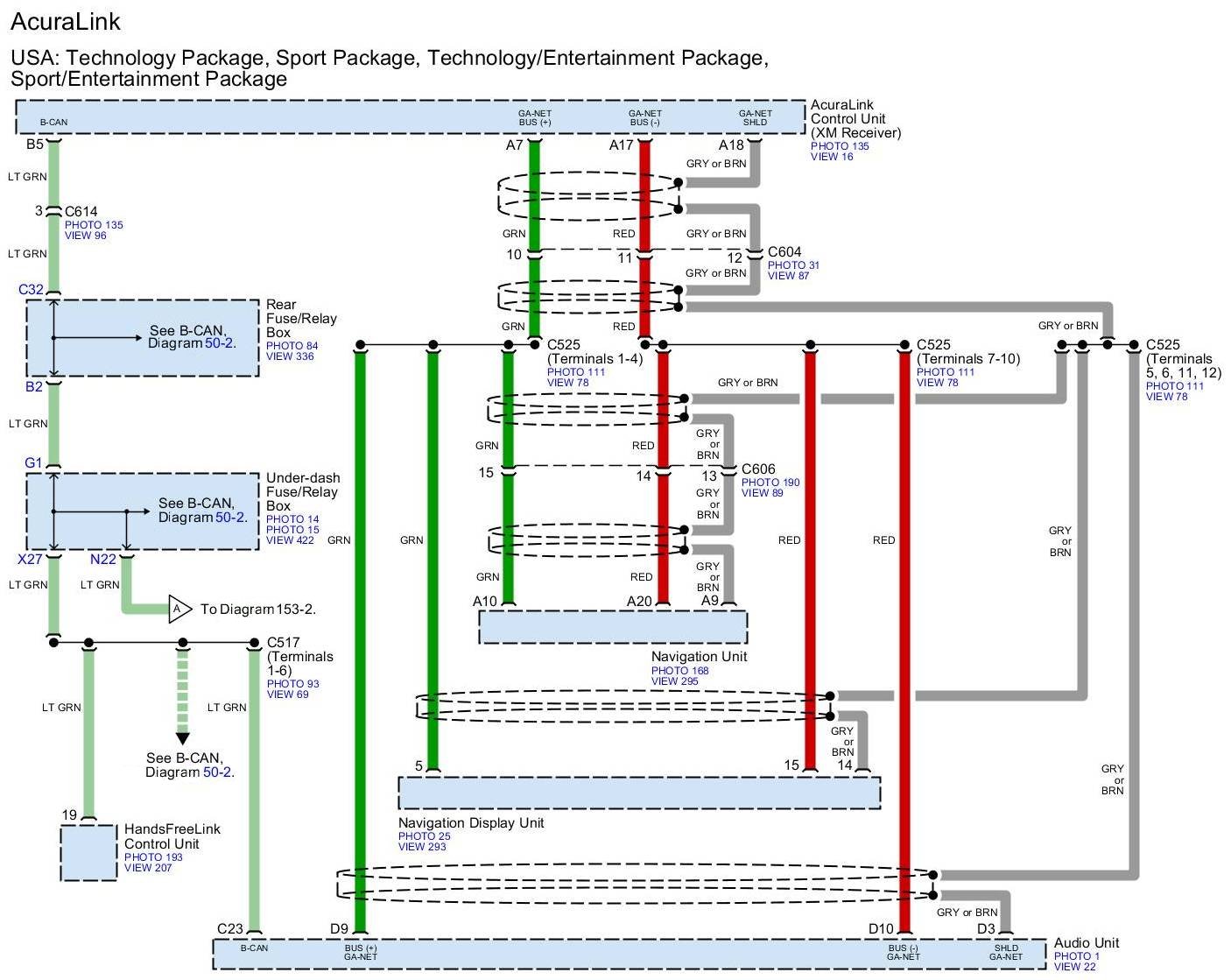

Diagram 153-4:

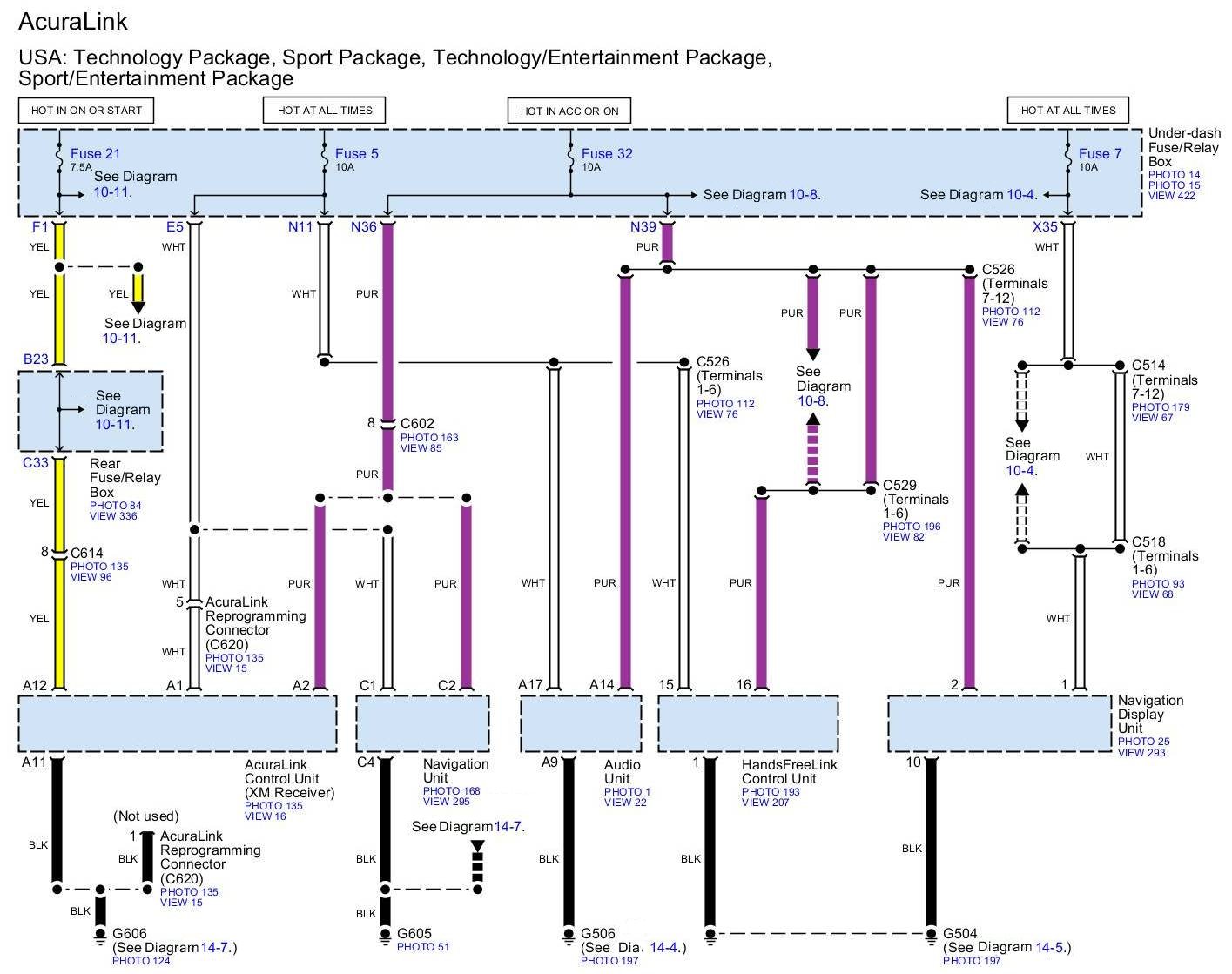

Diagram 153-5:

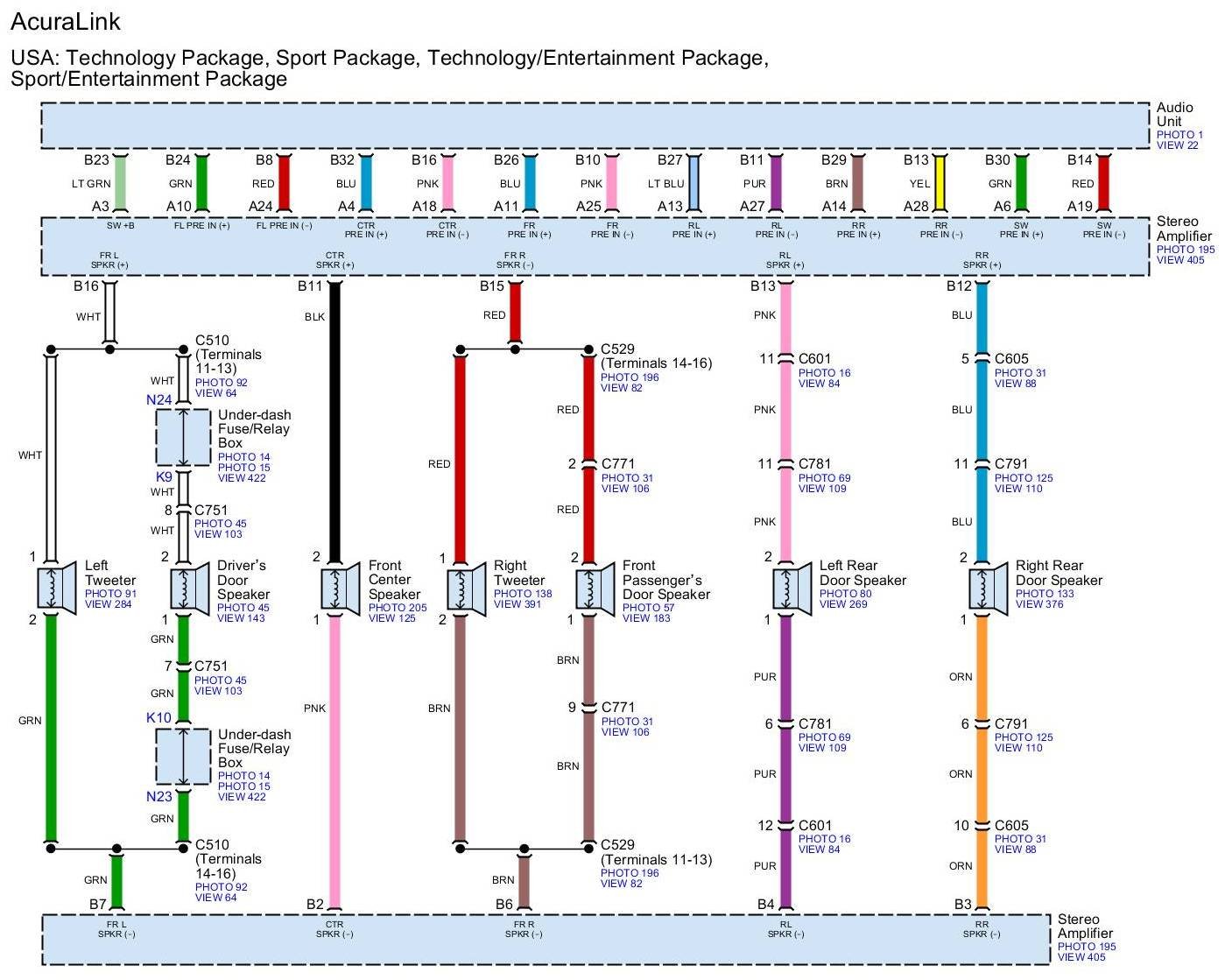

Diagram 153-6:
