Diagram Set 15 (Splice And Junction Connector Details)

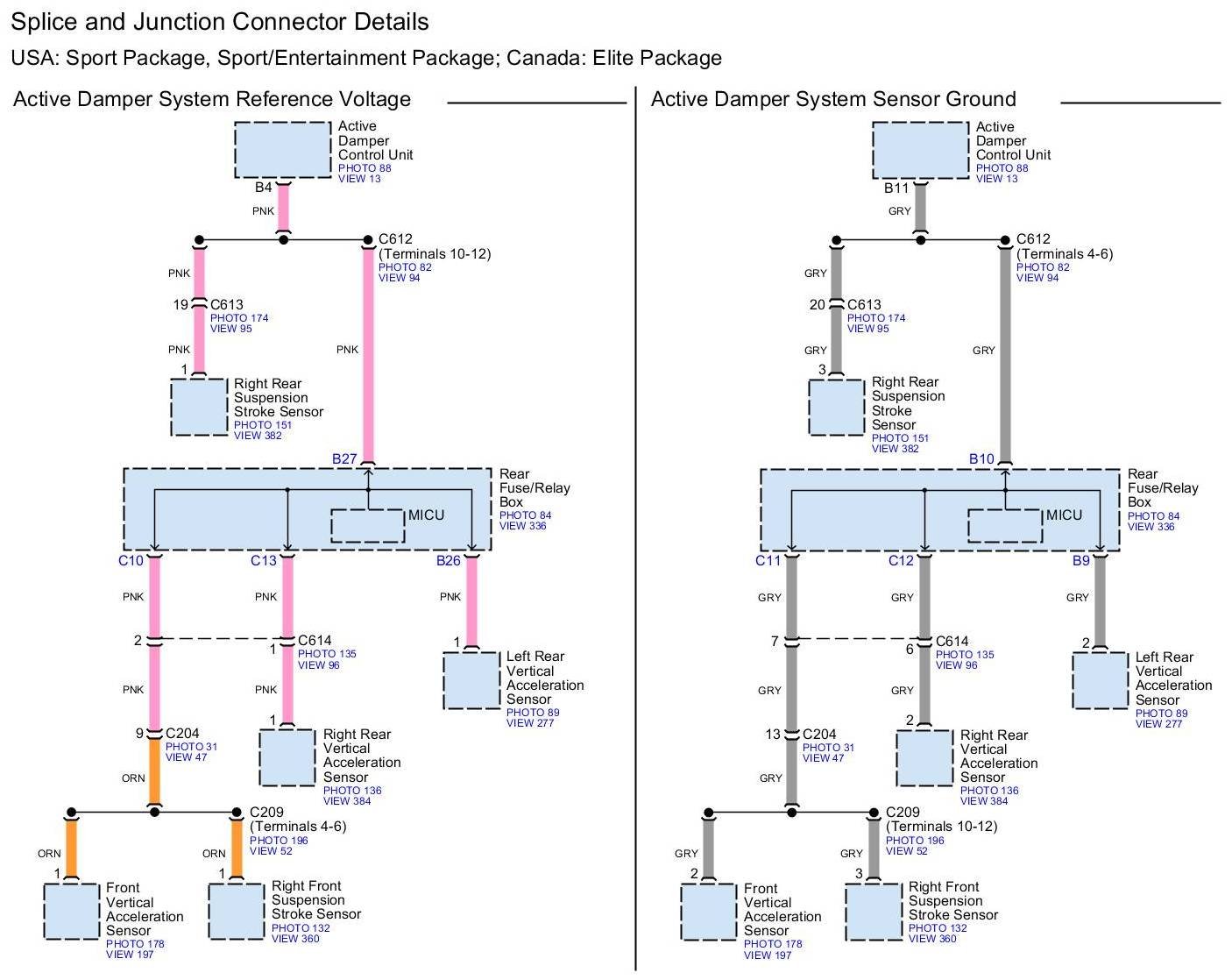

Diagram 15-0:

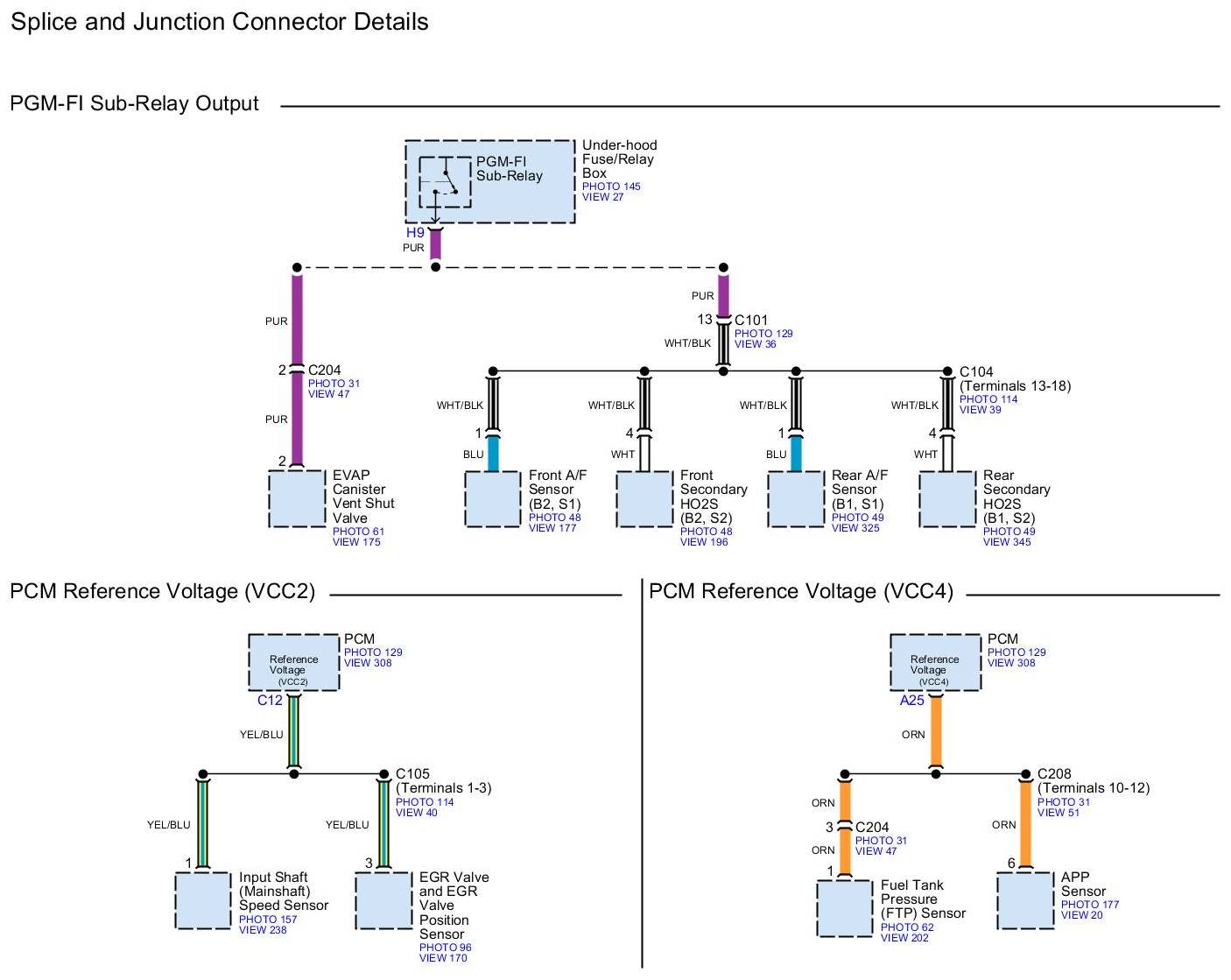

Diagram 15-1:

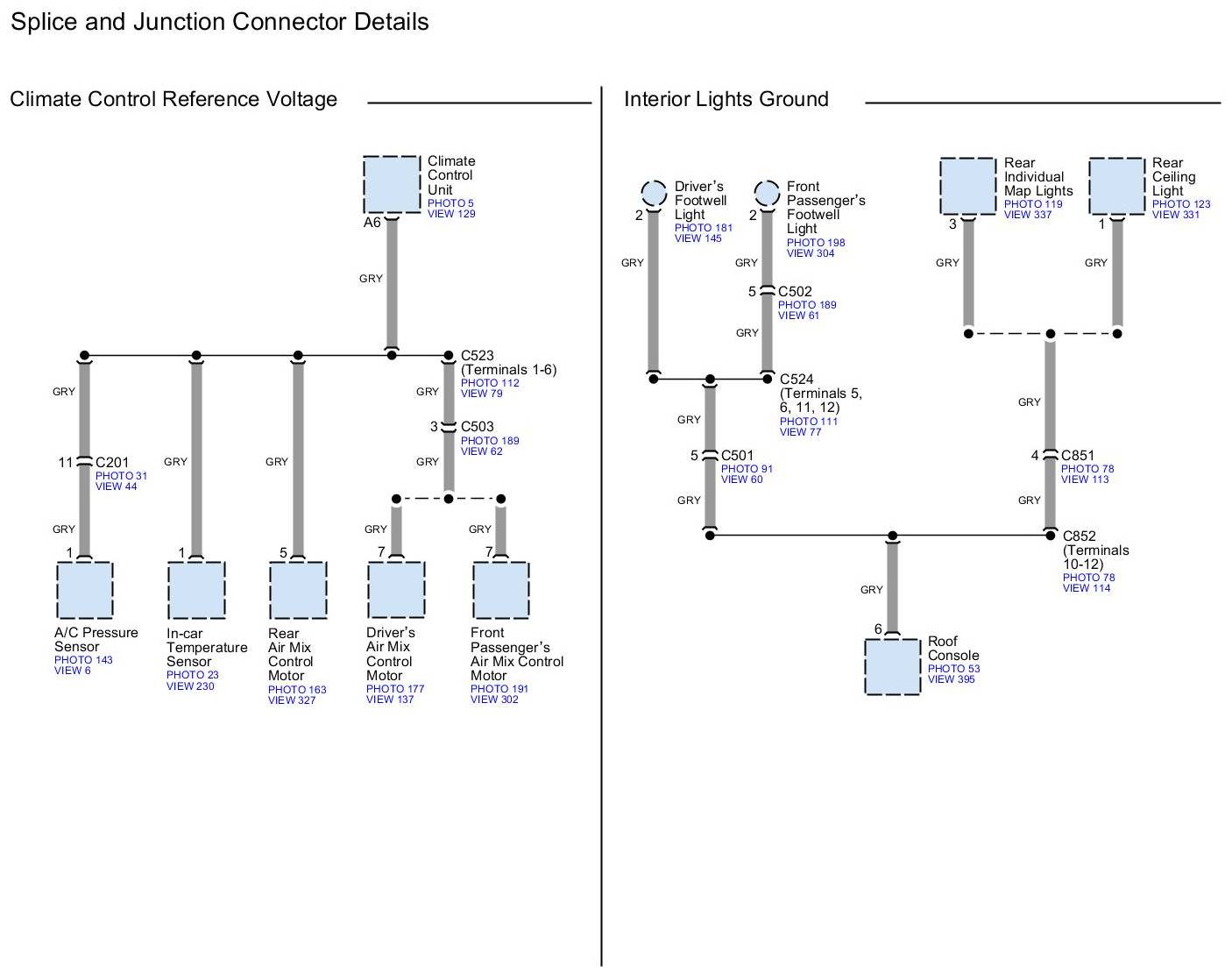

Diagram 15-2:

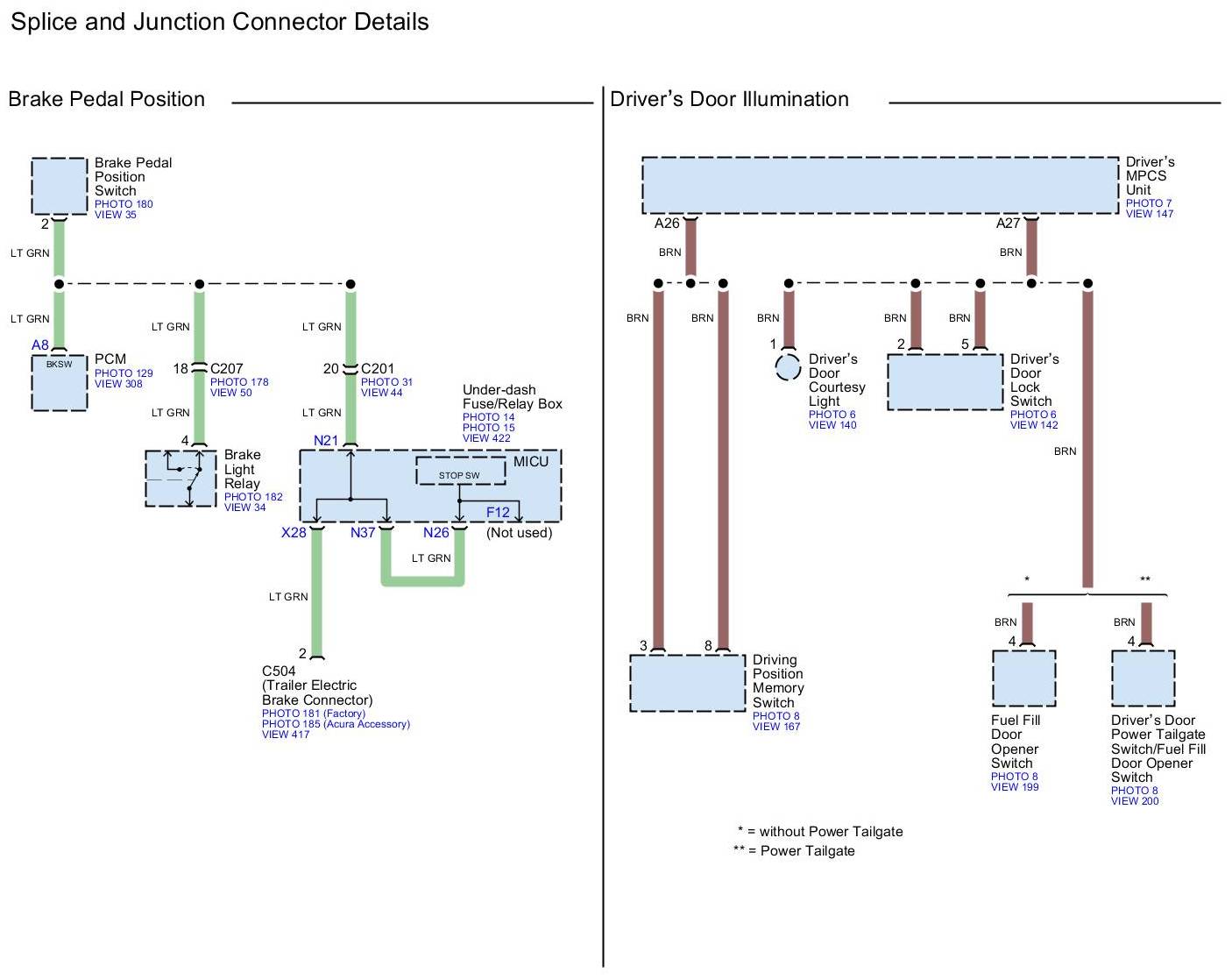

Diagram 15-3:

Diagram 15-4:

Diagram 15-5:

Diagram 15-6:

Diagram 15-7:

Diagram 15-8:

Diagram 15-9:

Diagram 15-10:
