Diagram Set 143 (DPMS)

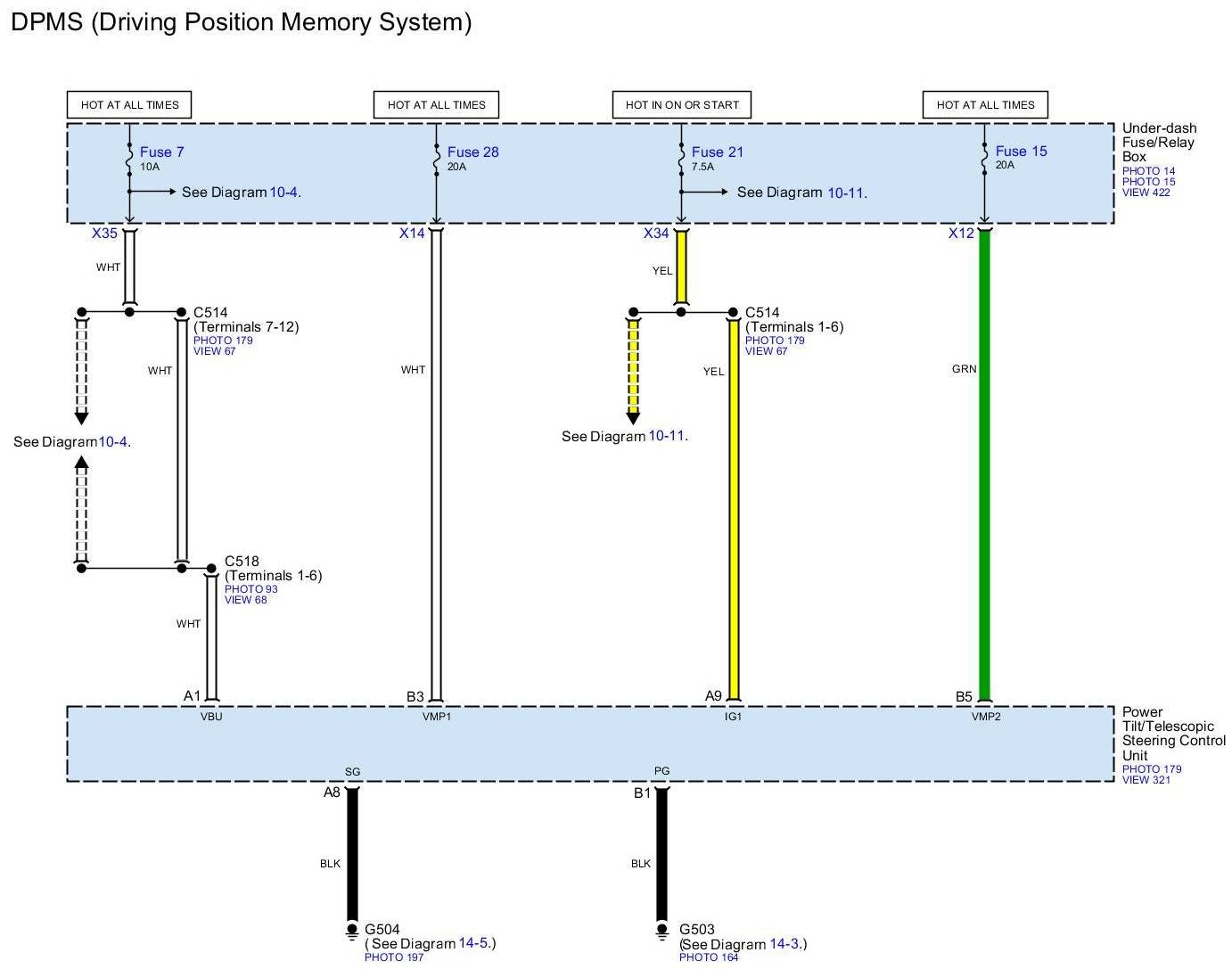

Diagram 143-0:

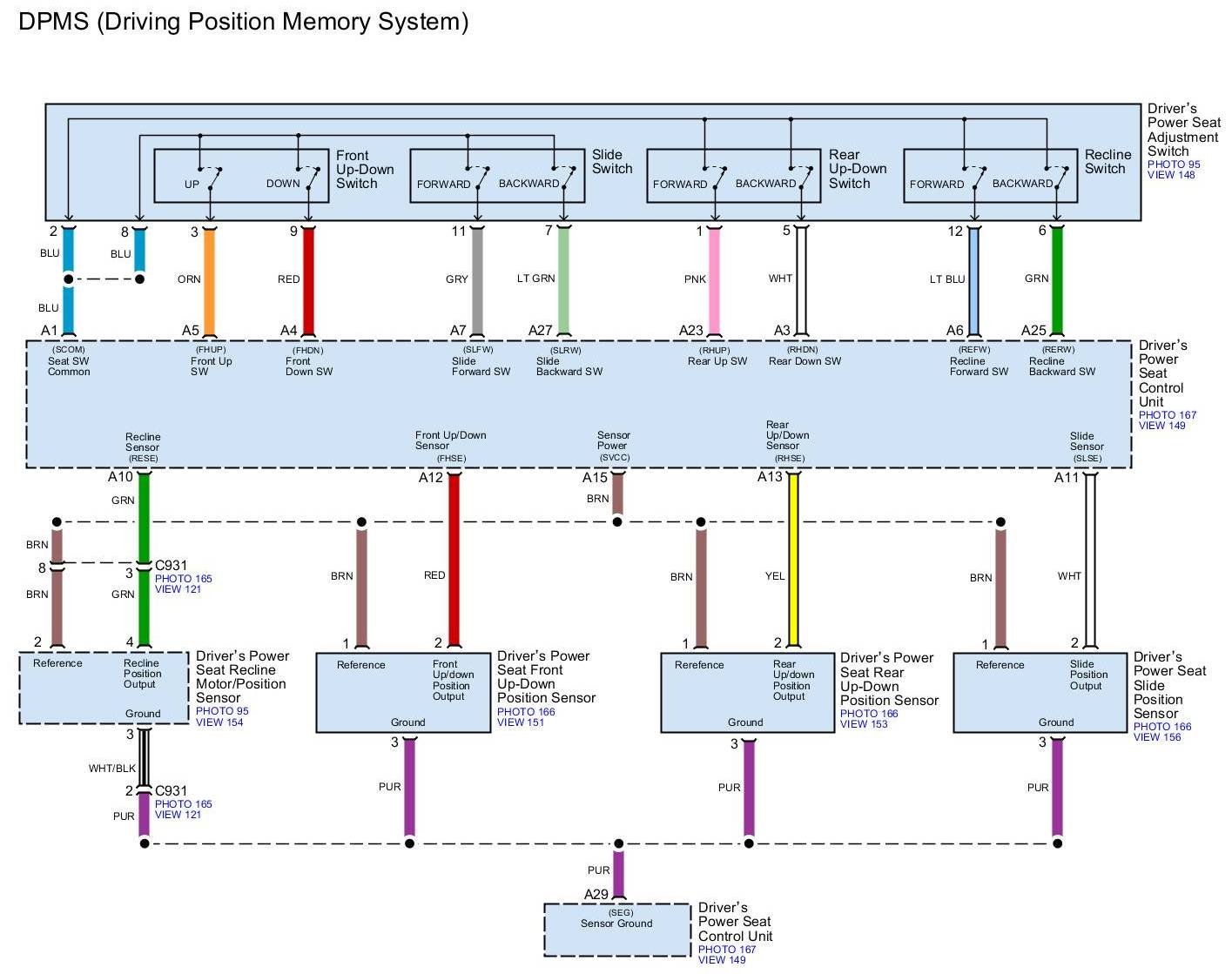

Diagram 143-1:

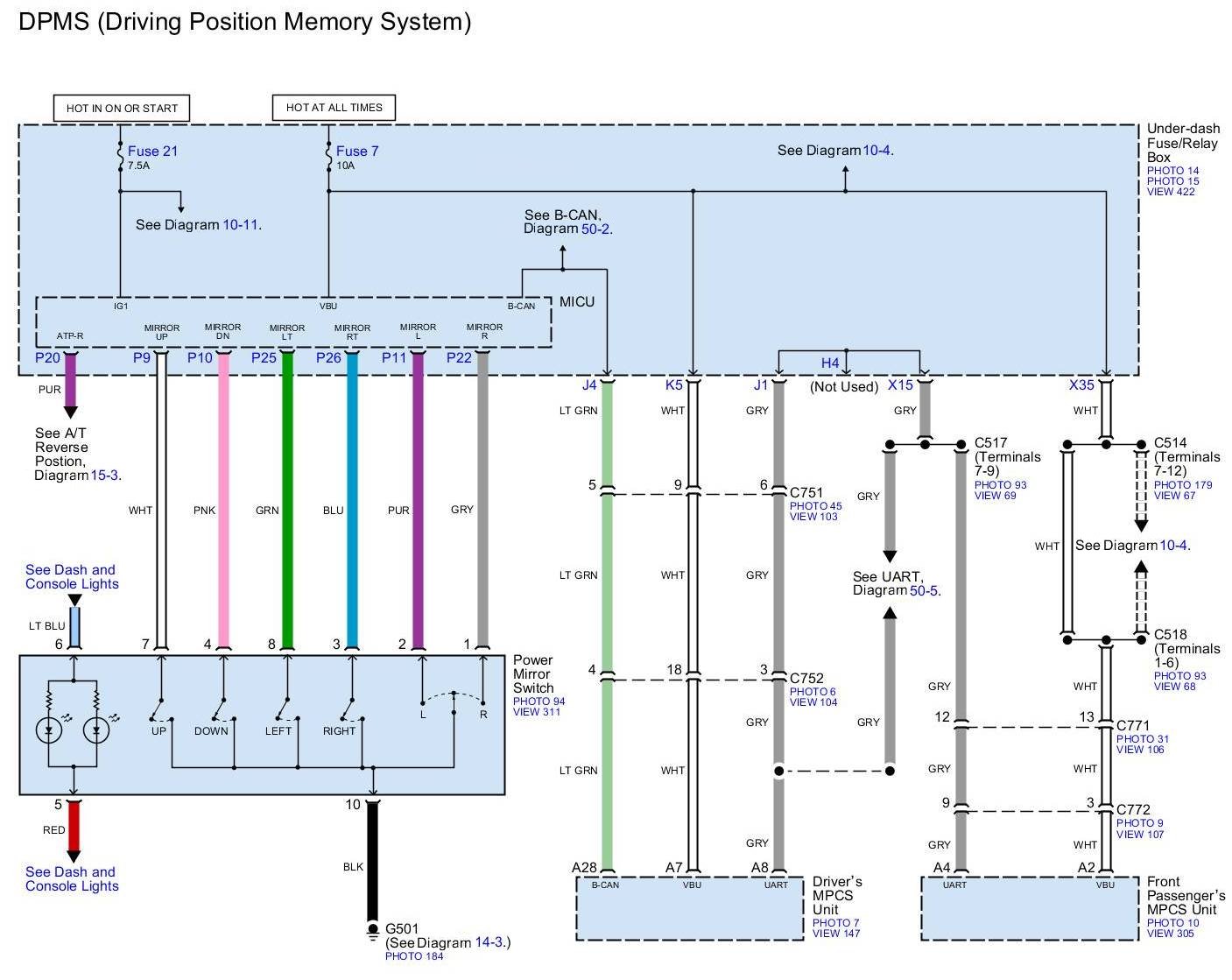

Diagram 143-2:

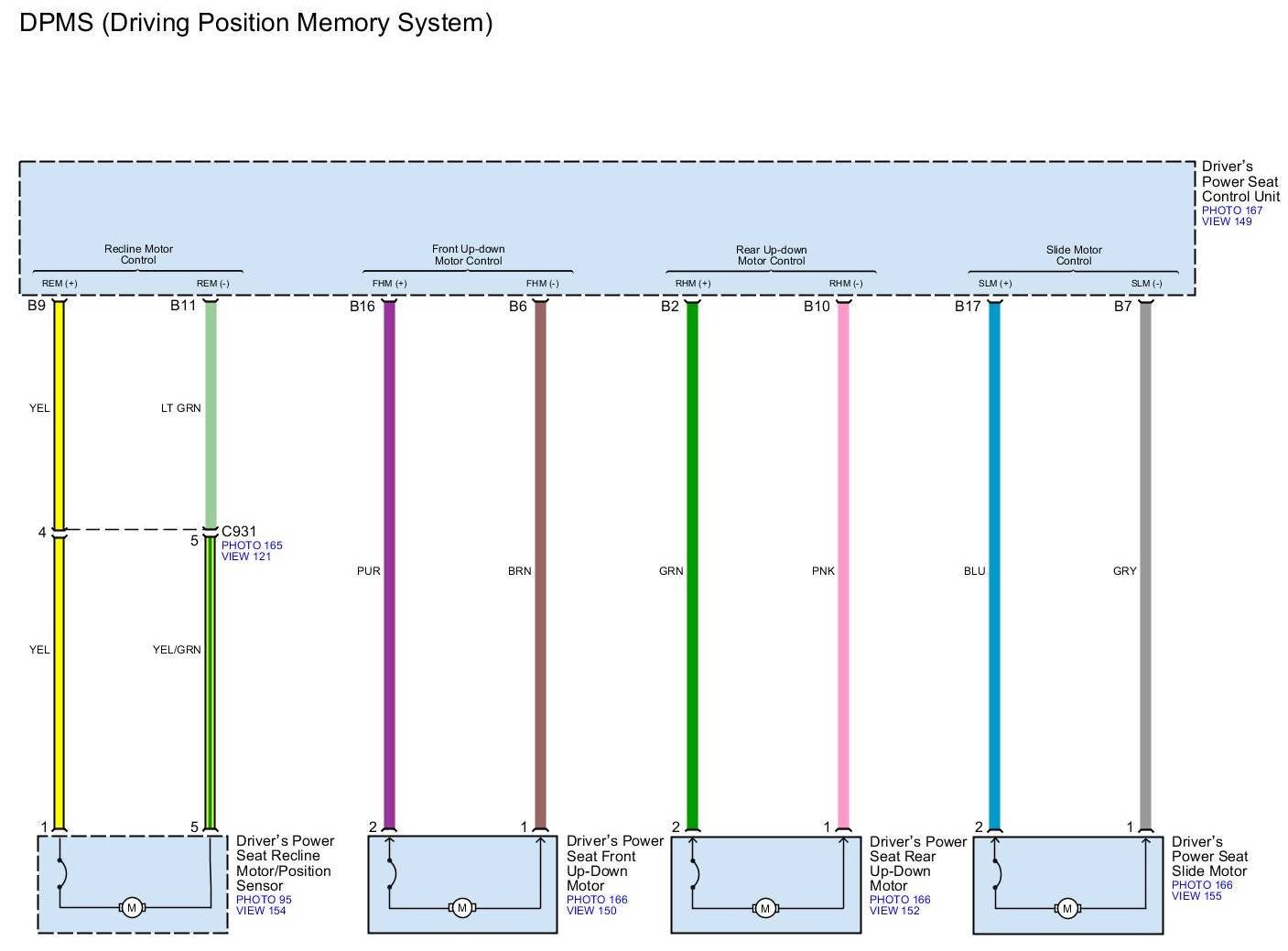

Diagram 143-3:

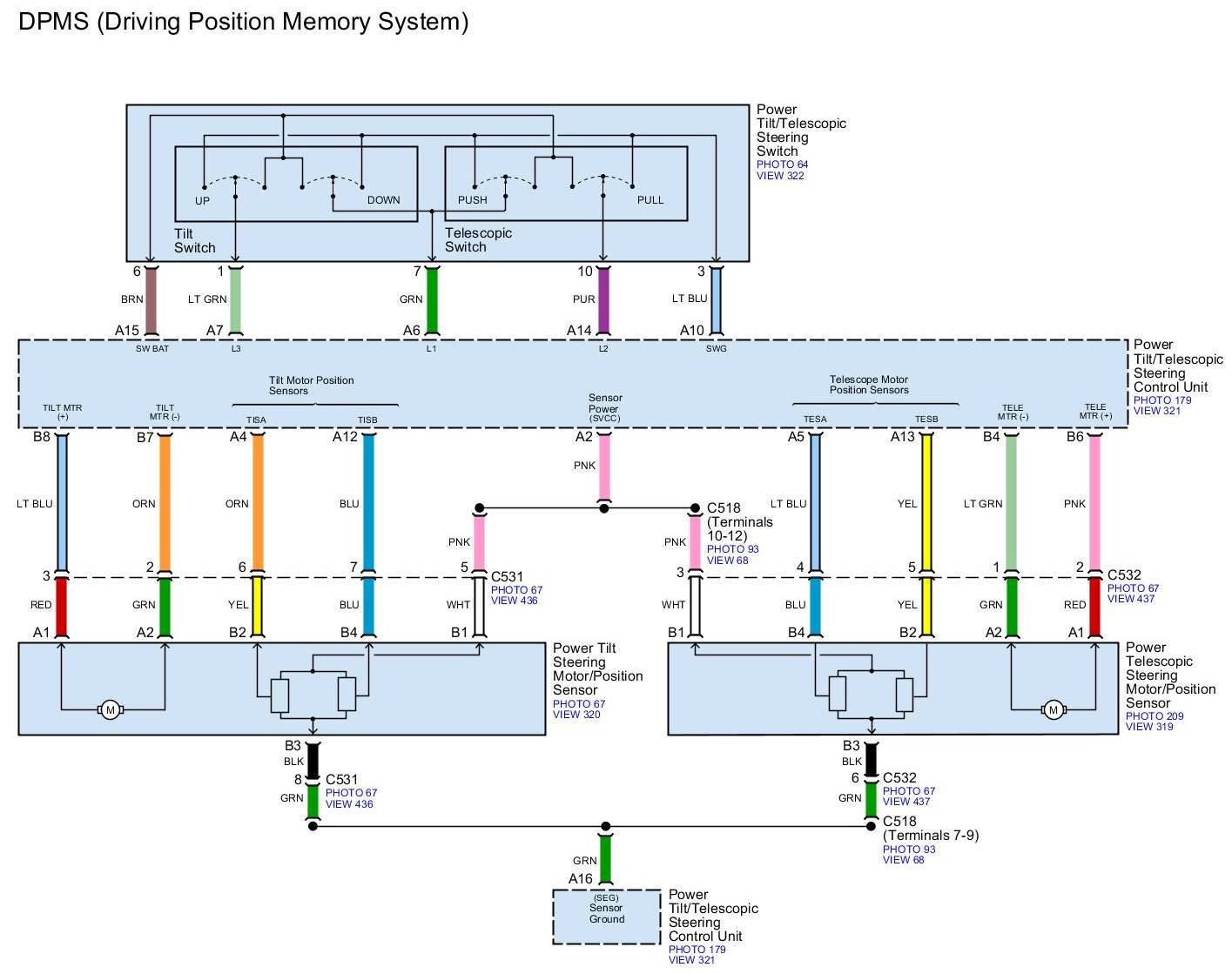

Diagram 143-4:

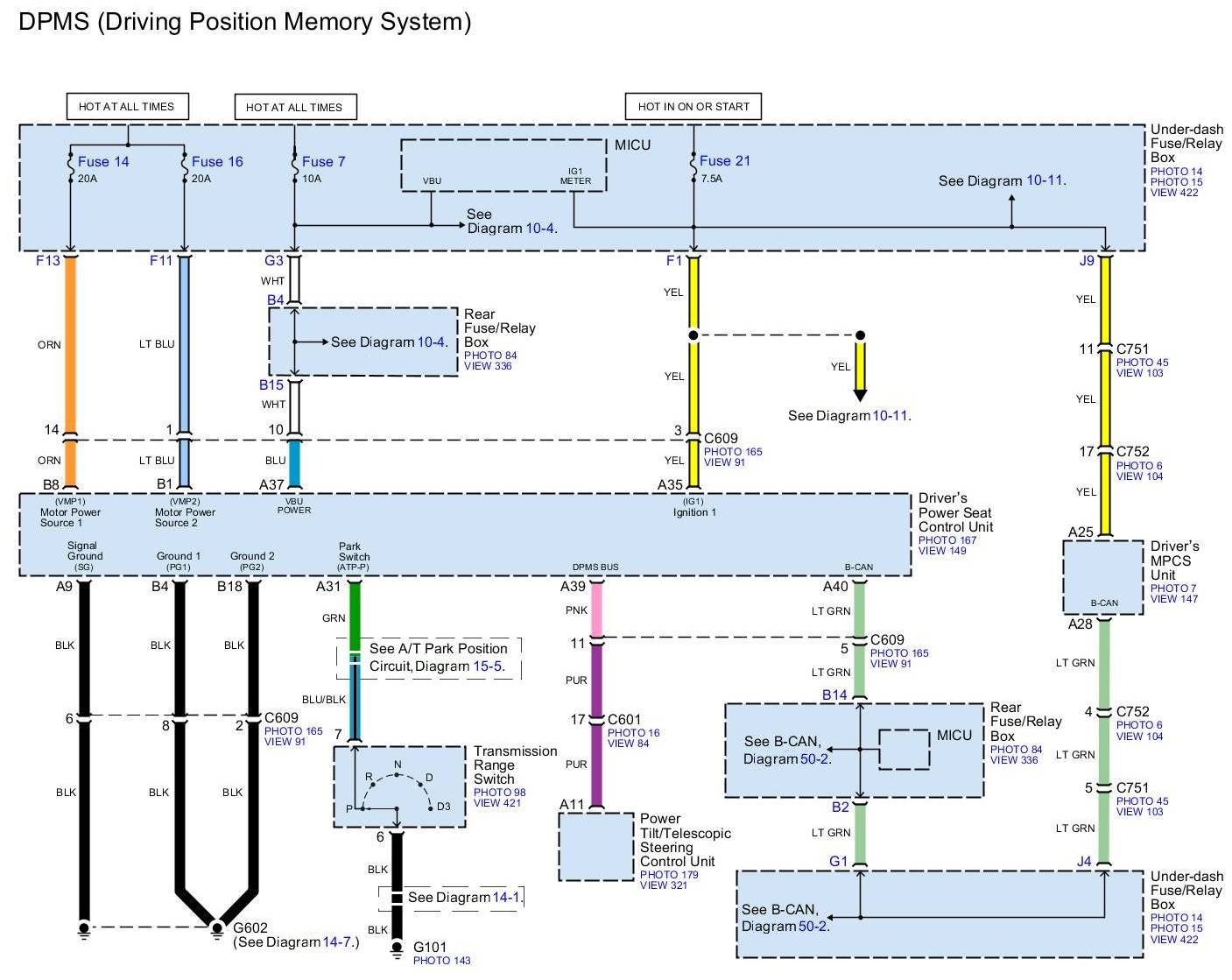

Diagram 143-5:

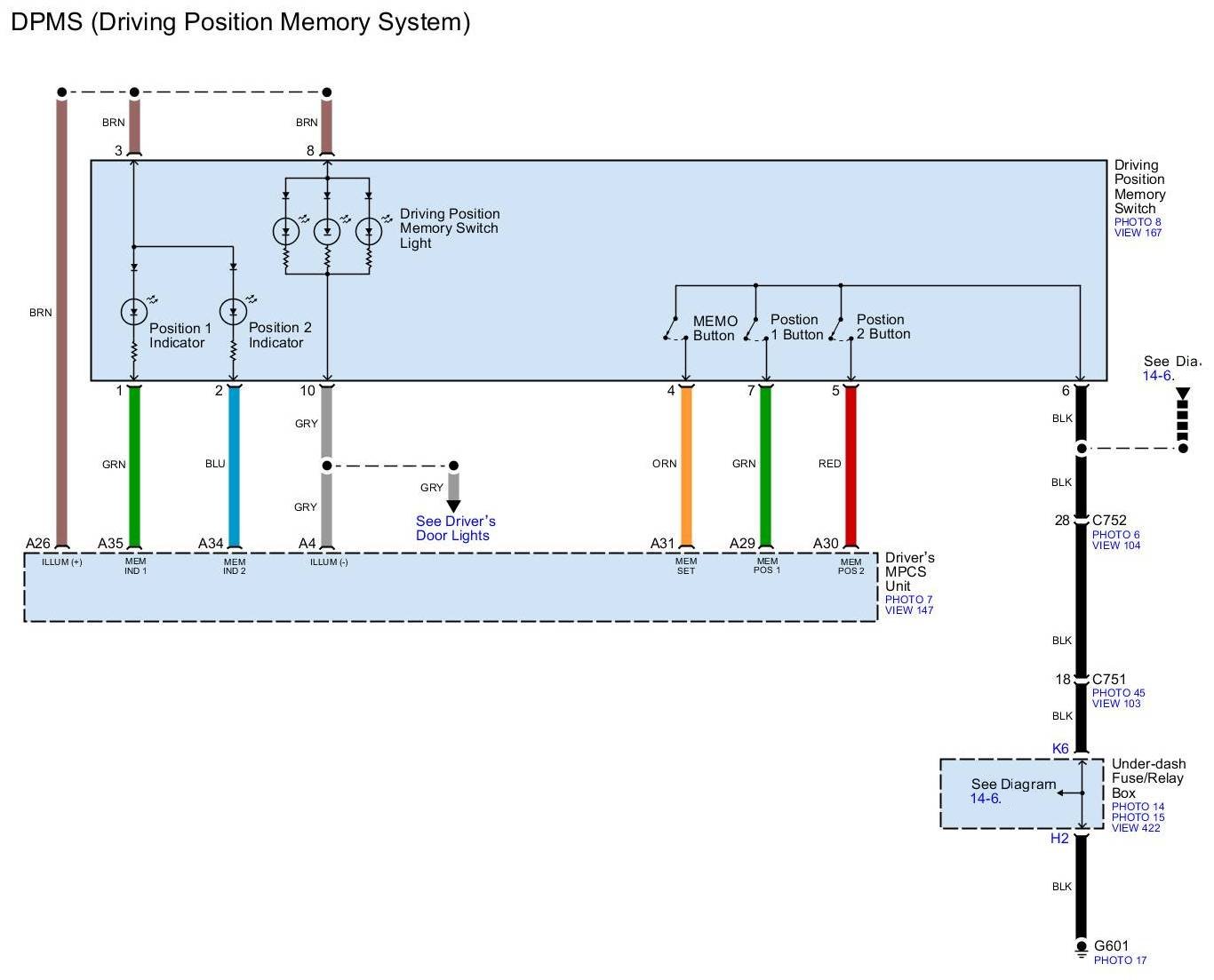

Diagram 143-6:

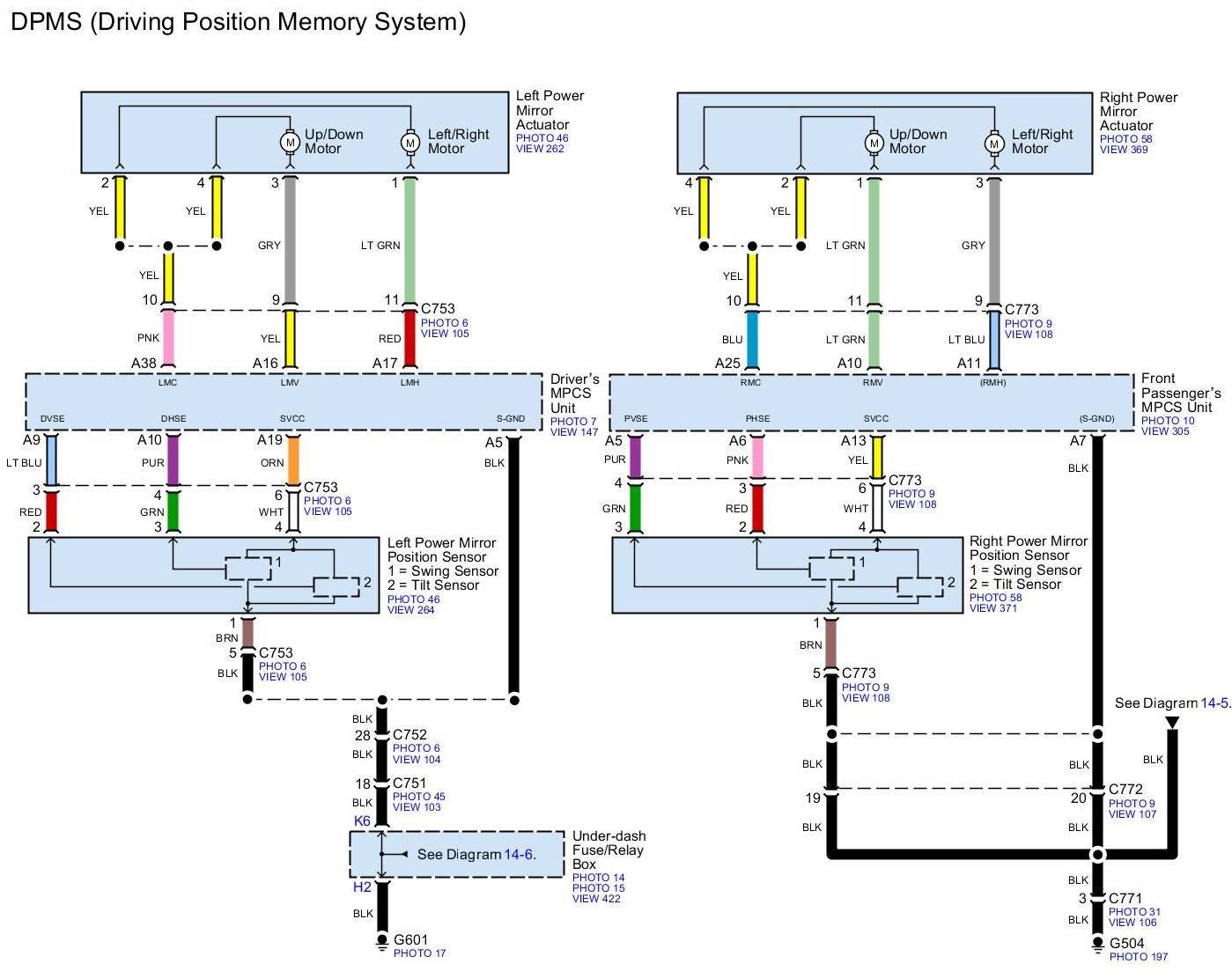

Diagram 143-7:
