Diagram Set 14 (Ground Distribution)

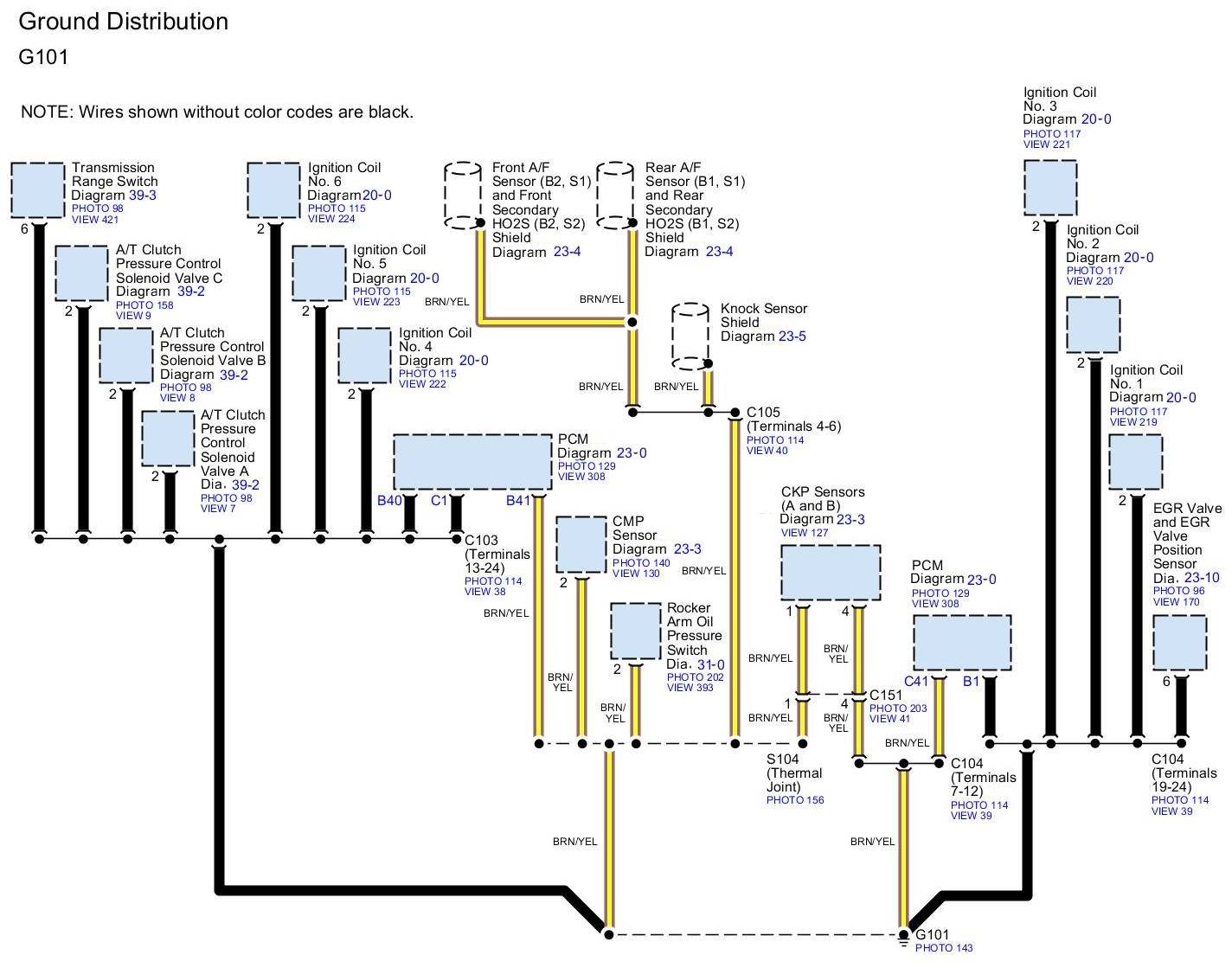

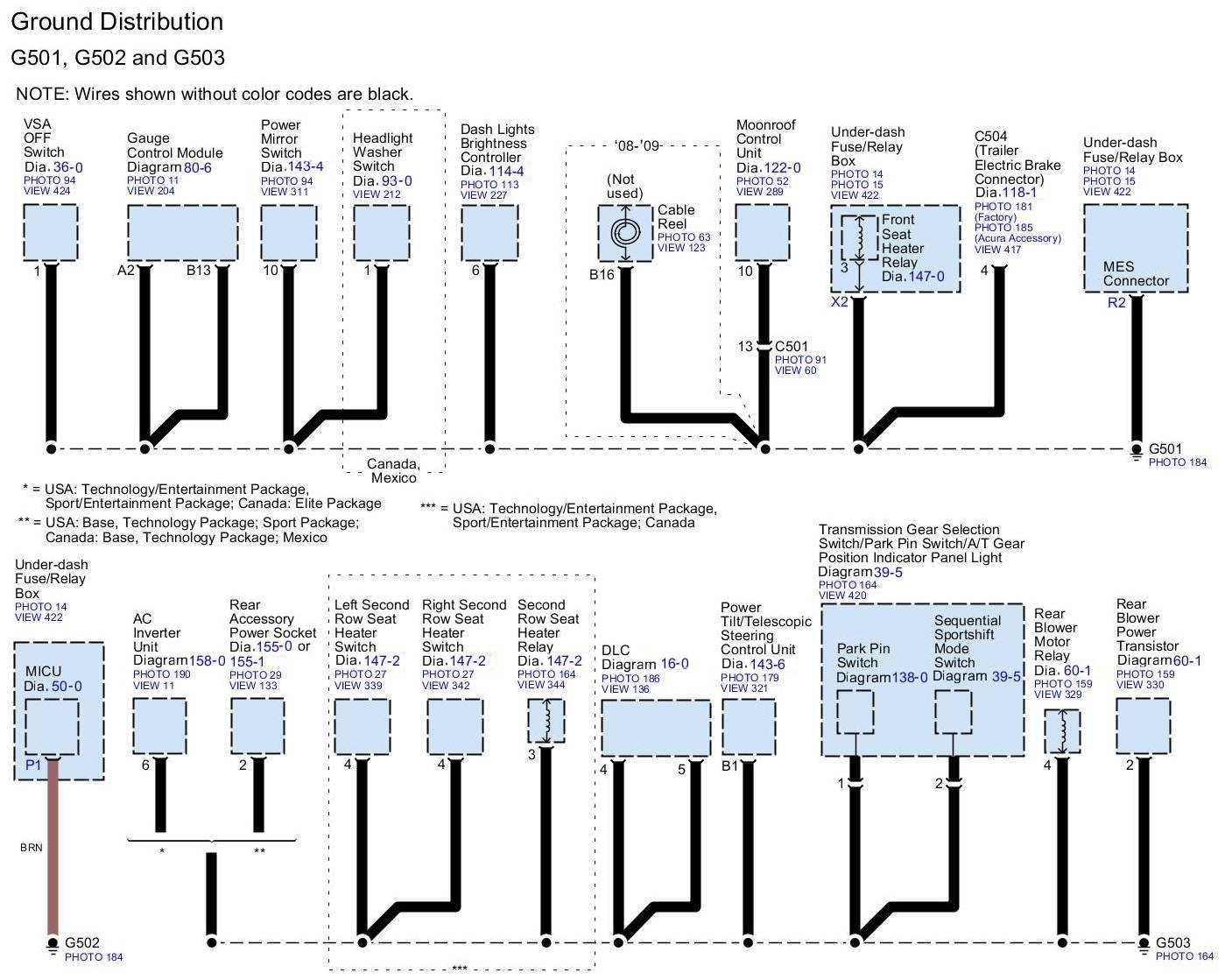

Diagram 14-0:



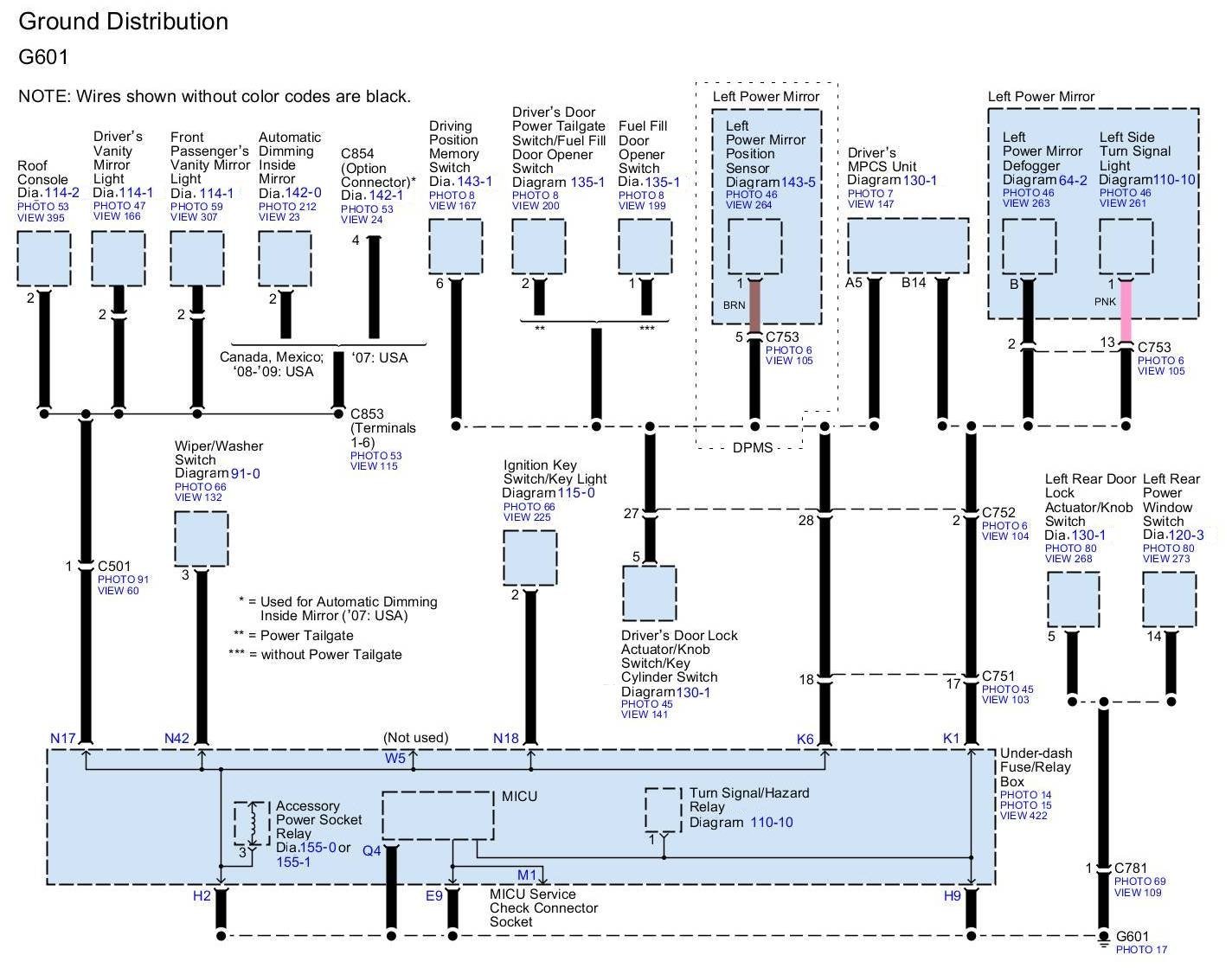

Diagram 14-1:



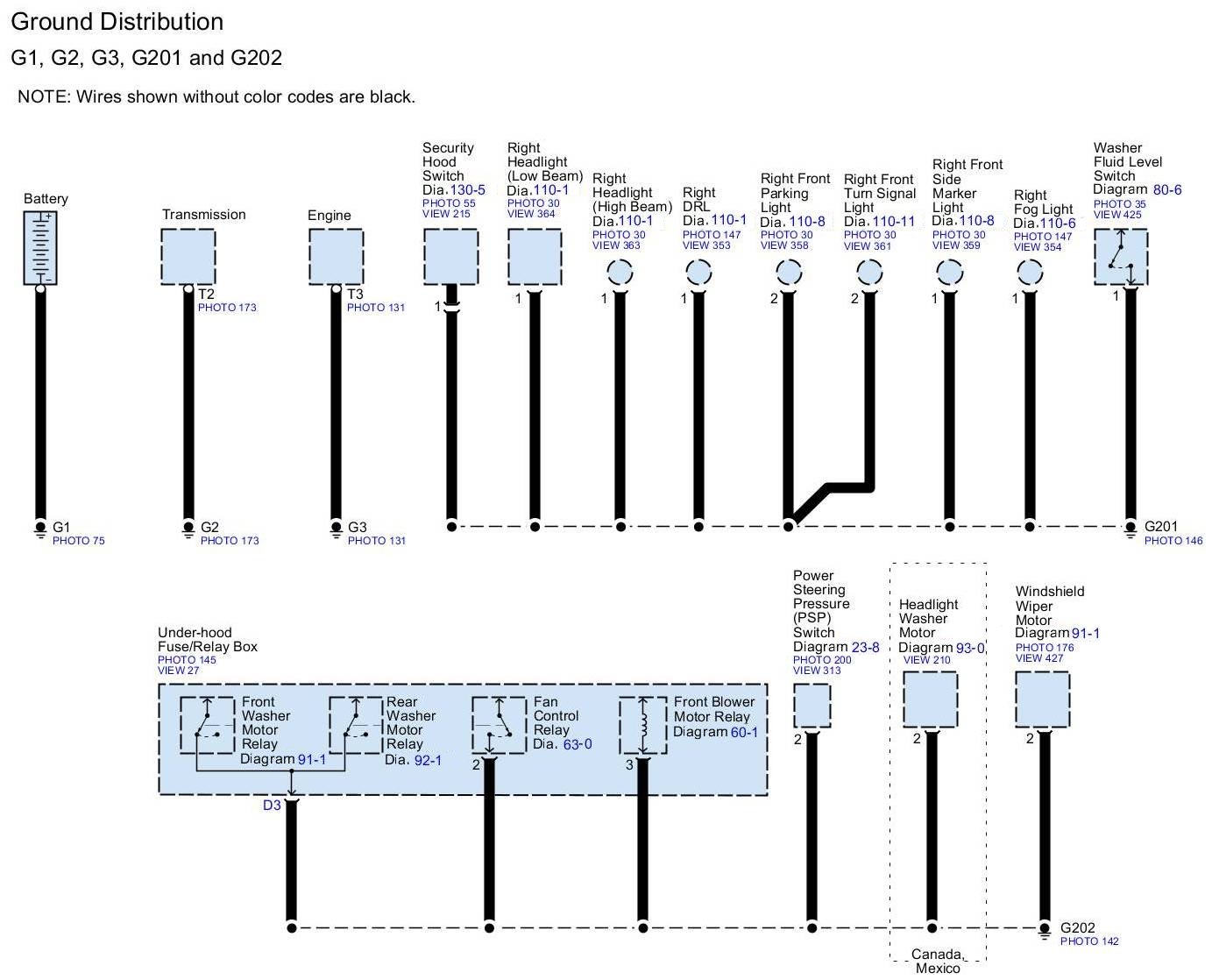

Diagram 14-2:



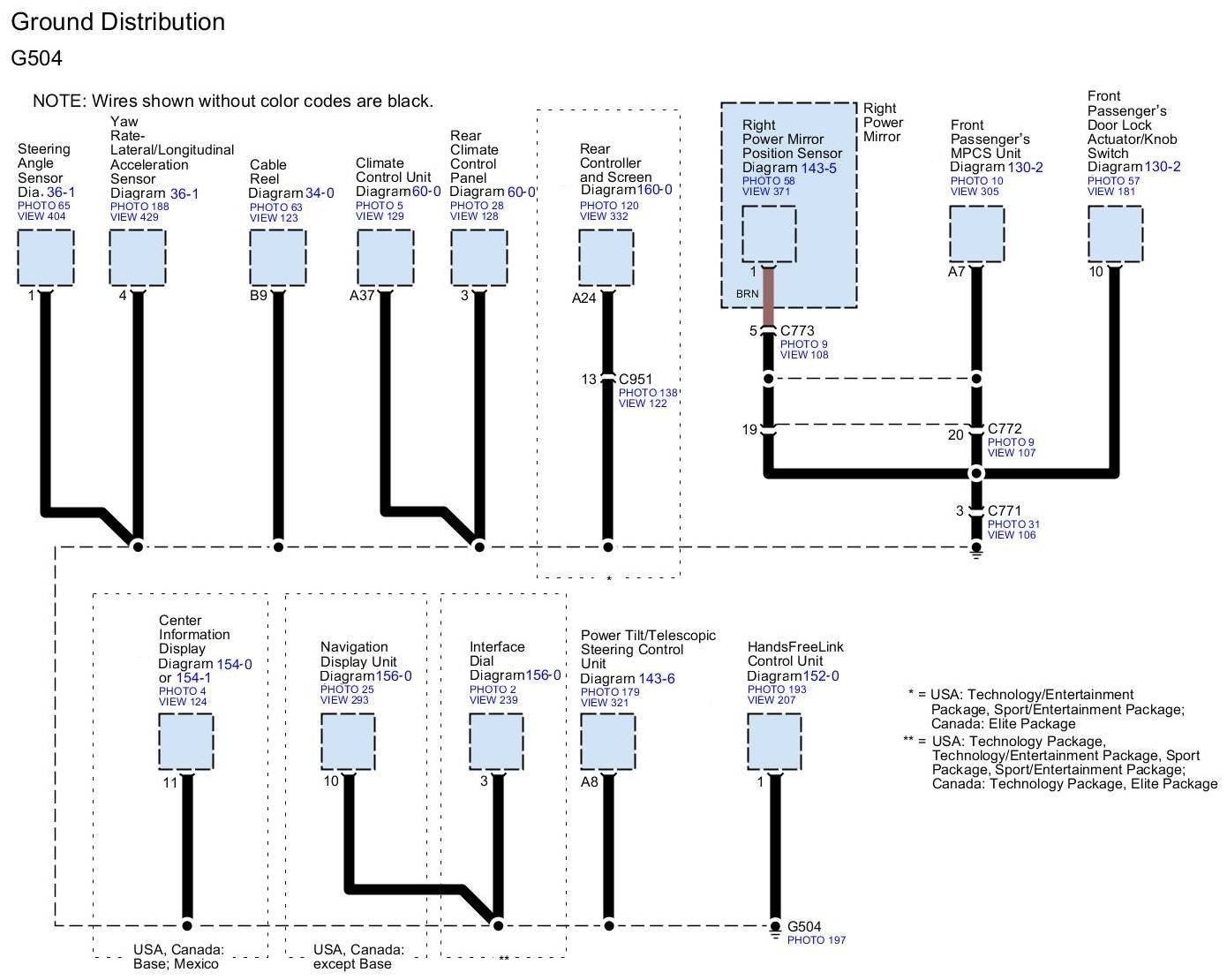

Diagram 14-3:



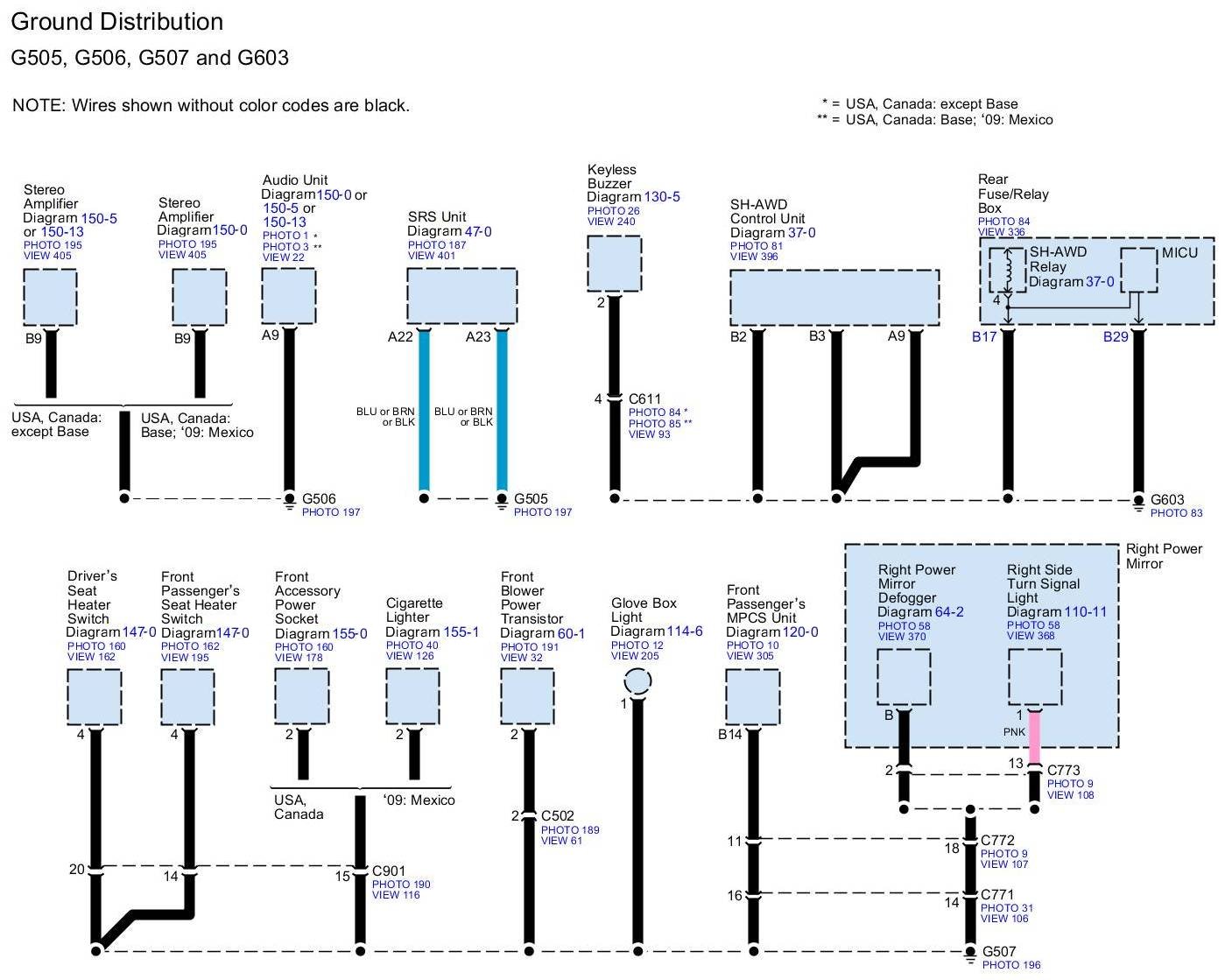

Diagram 14-4:



Diagram 14-5:



Diagram 14-6:



Diagram 14-7:

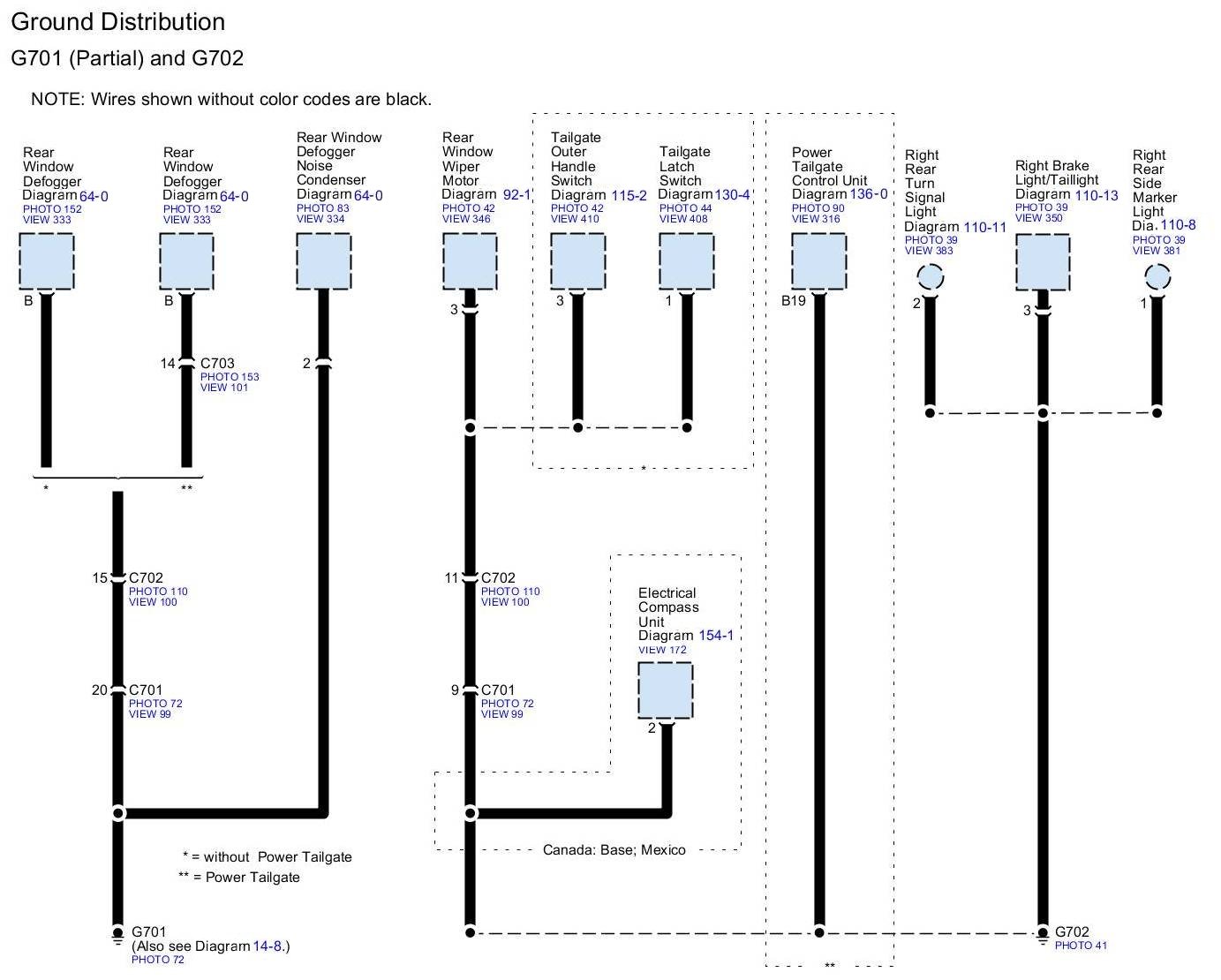

Diagram 14-8:

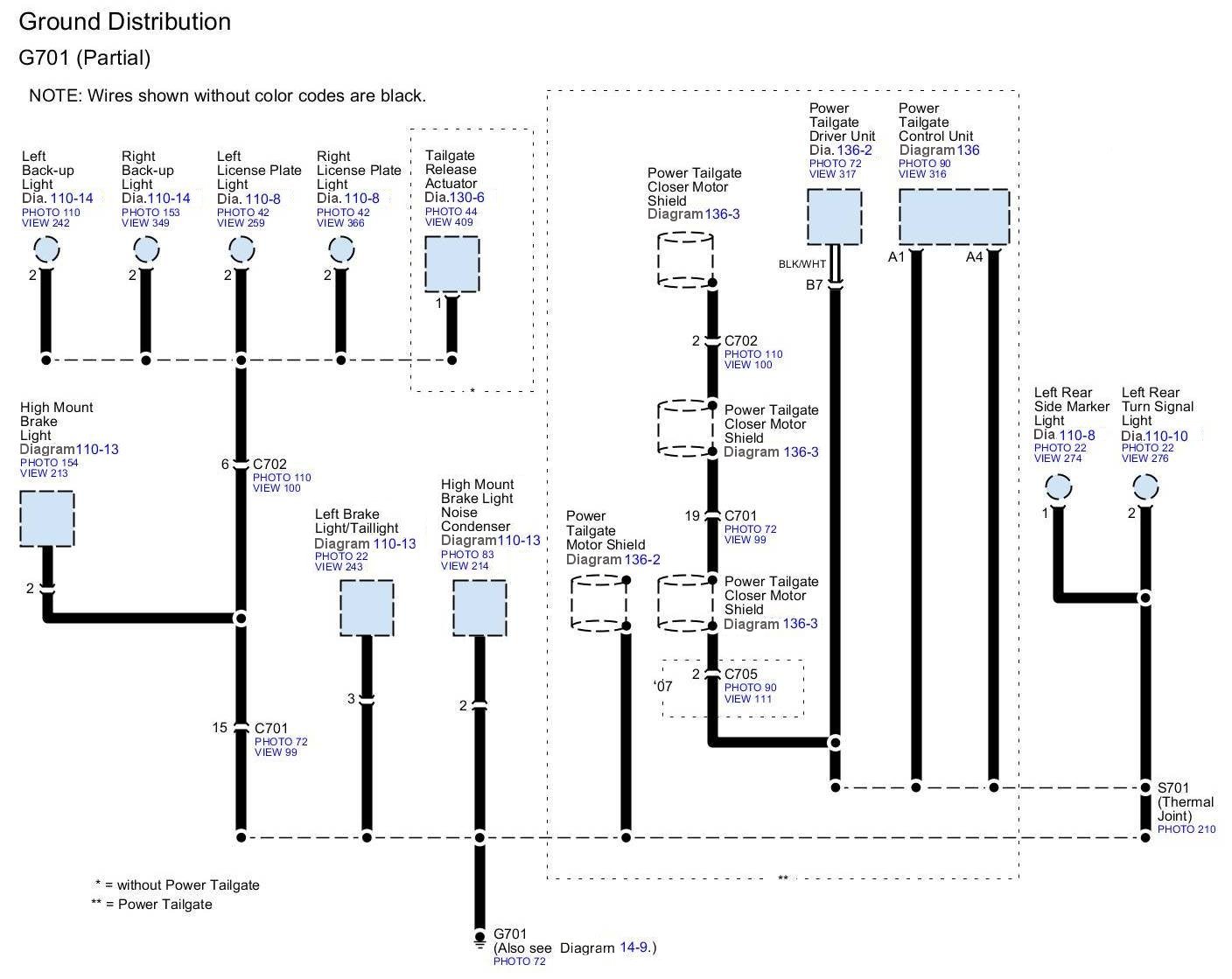

Diagram 14-9:
