Acura
>>
2009
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 130 (Power Door Locks/Keyless Entry/Security System)
Diagram Set 130 (Power Door Locks/Keyless Entry/Security System)

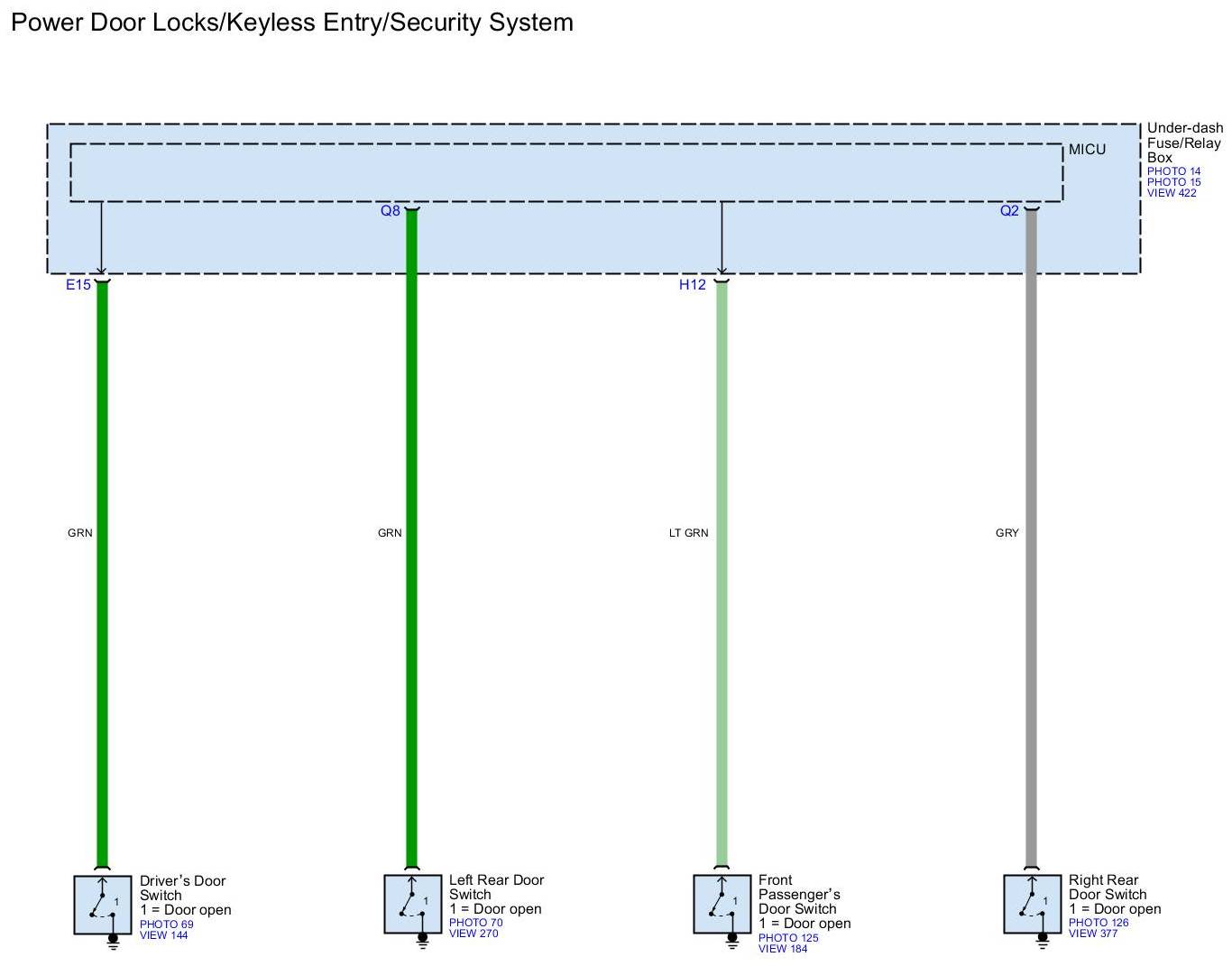

Diagram 130-0:

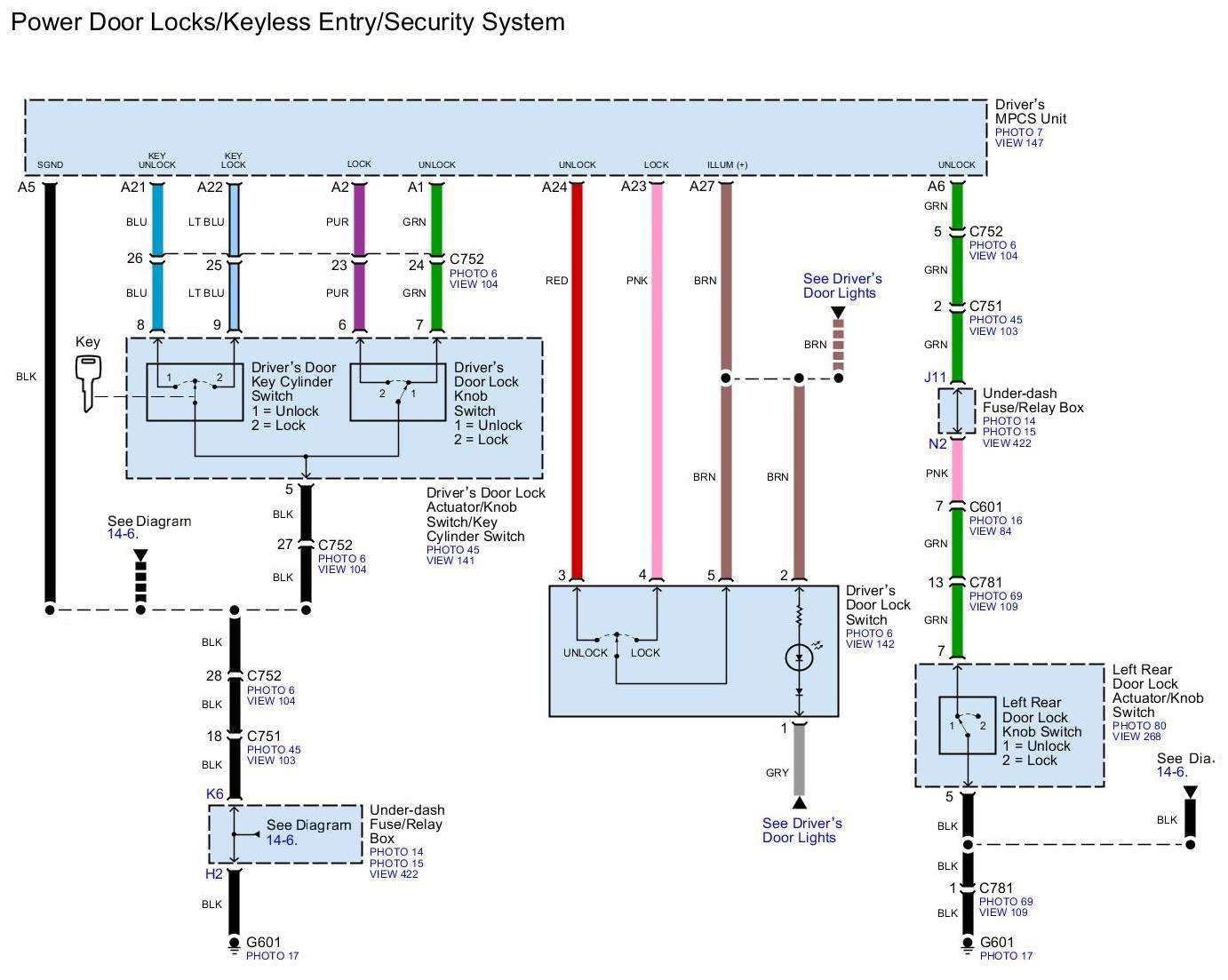

Diagram 130-1:

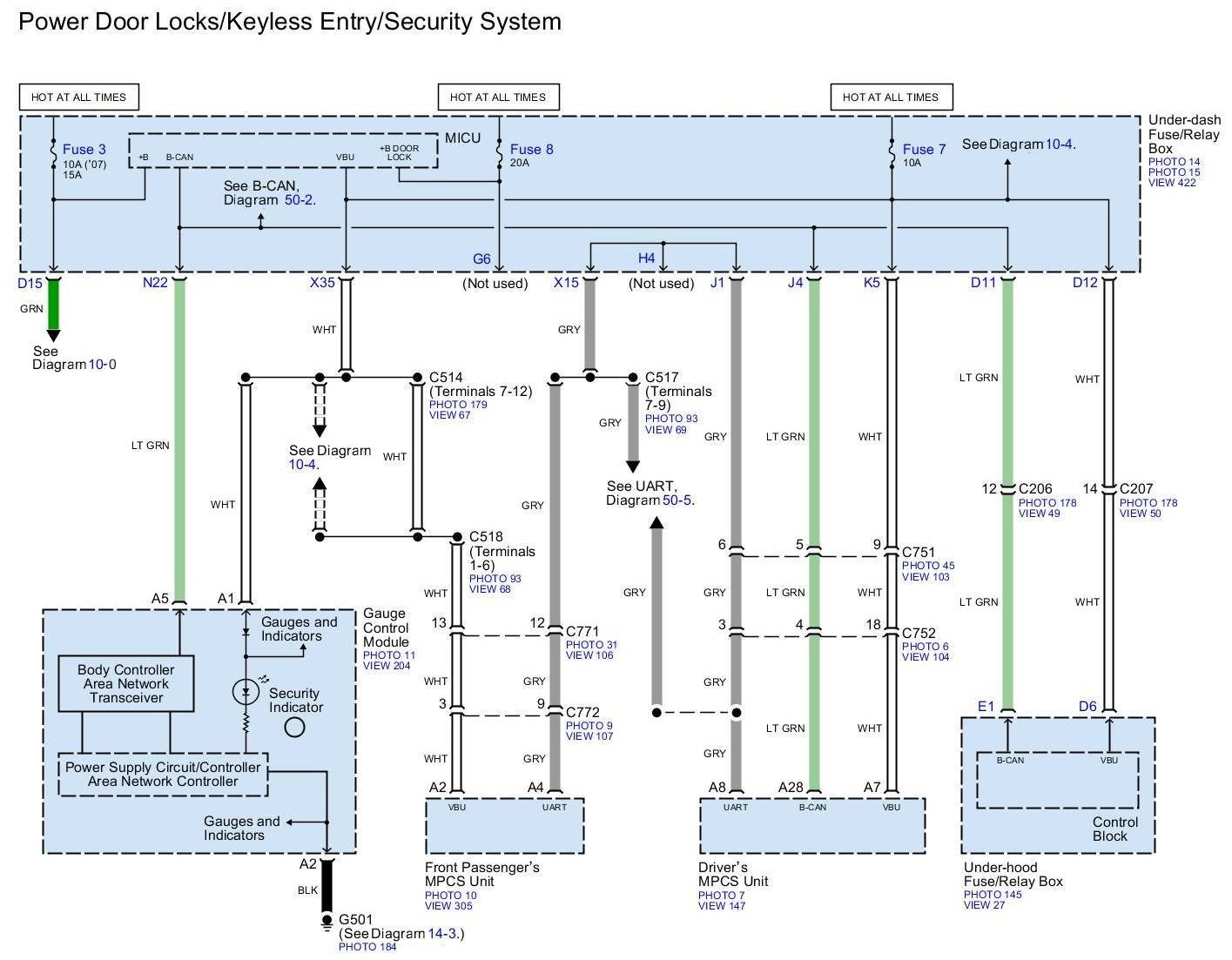

Diagram 130-2:

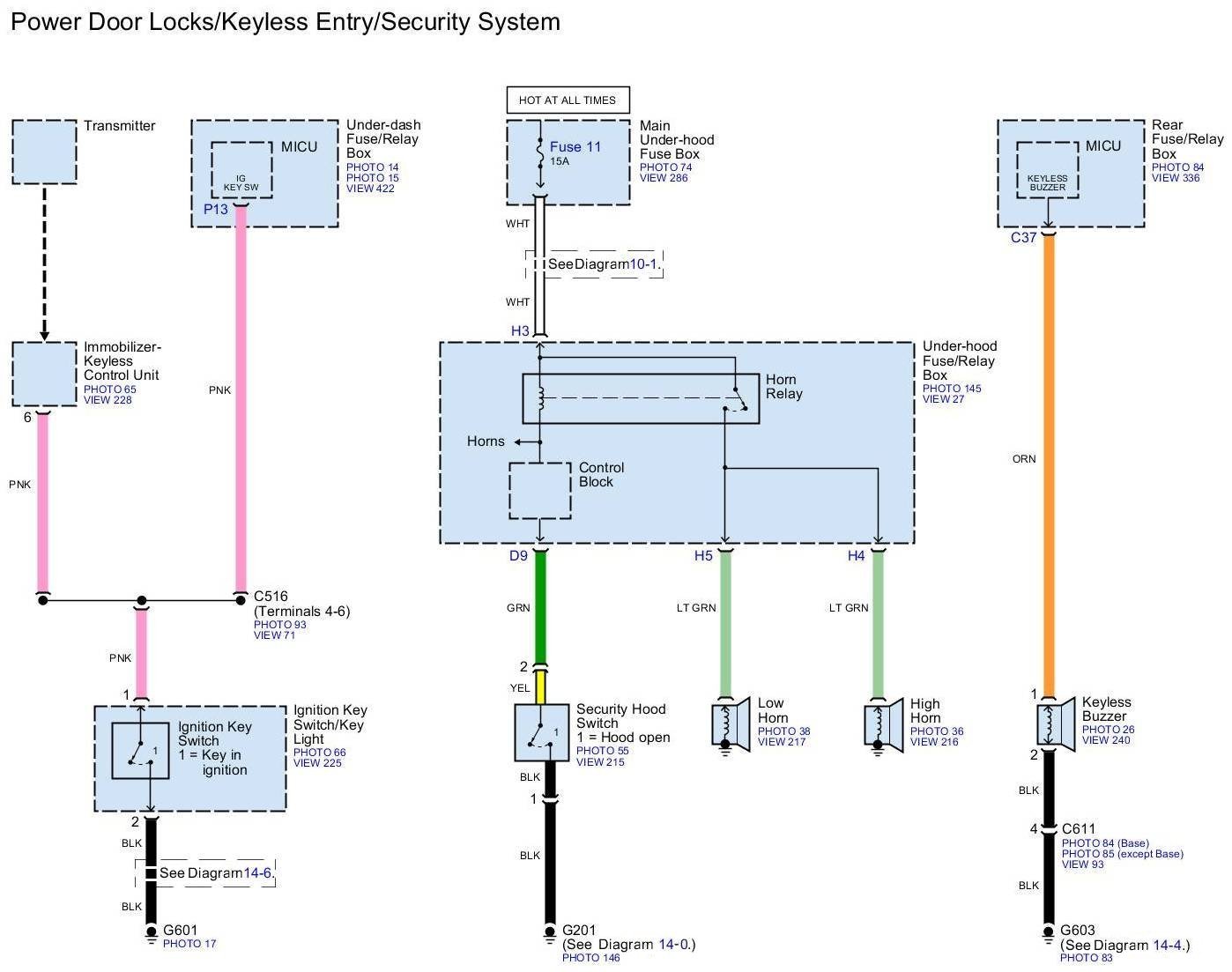

Diagram 130-3:

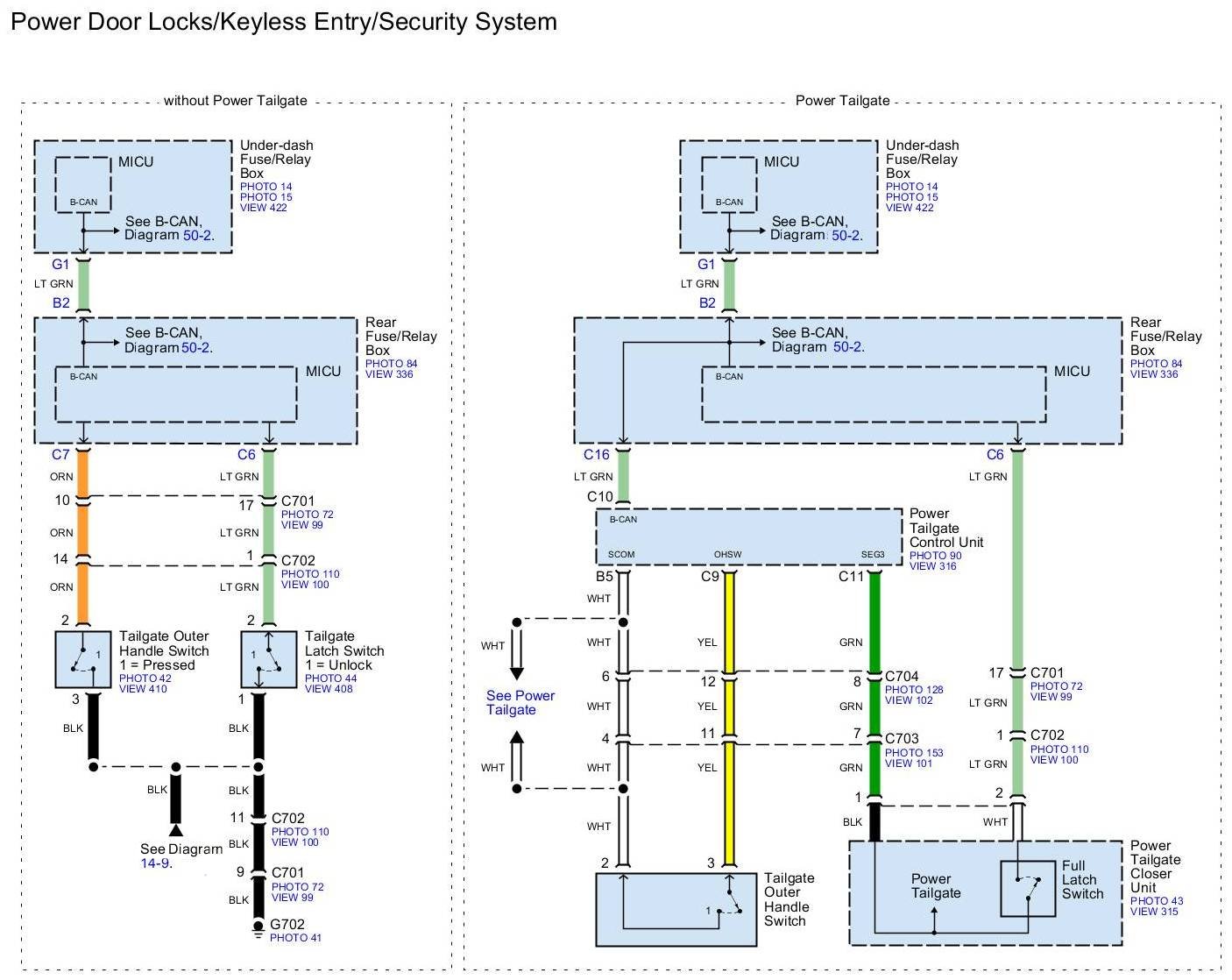

Diagram 130-4:

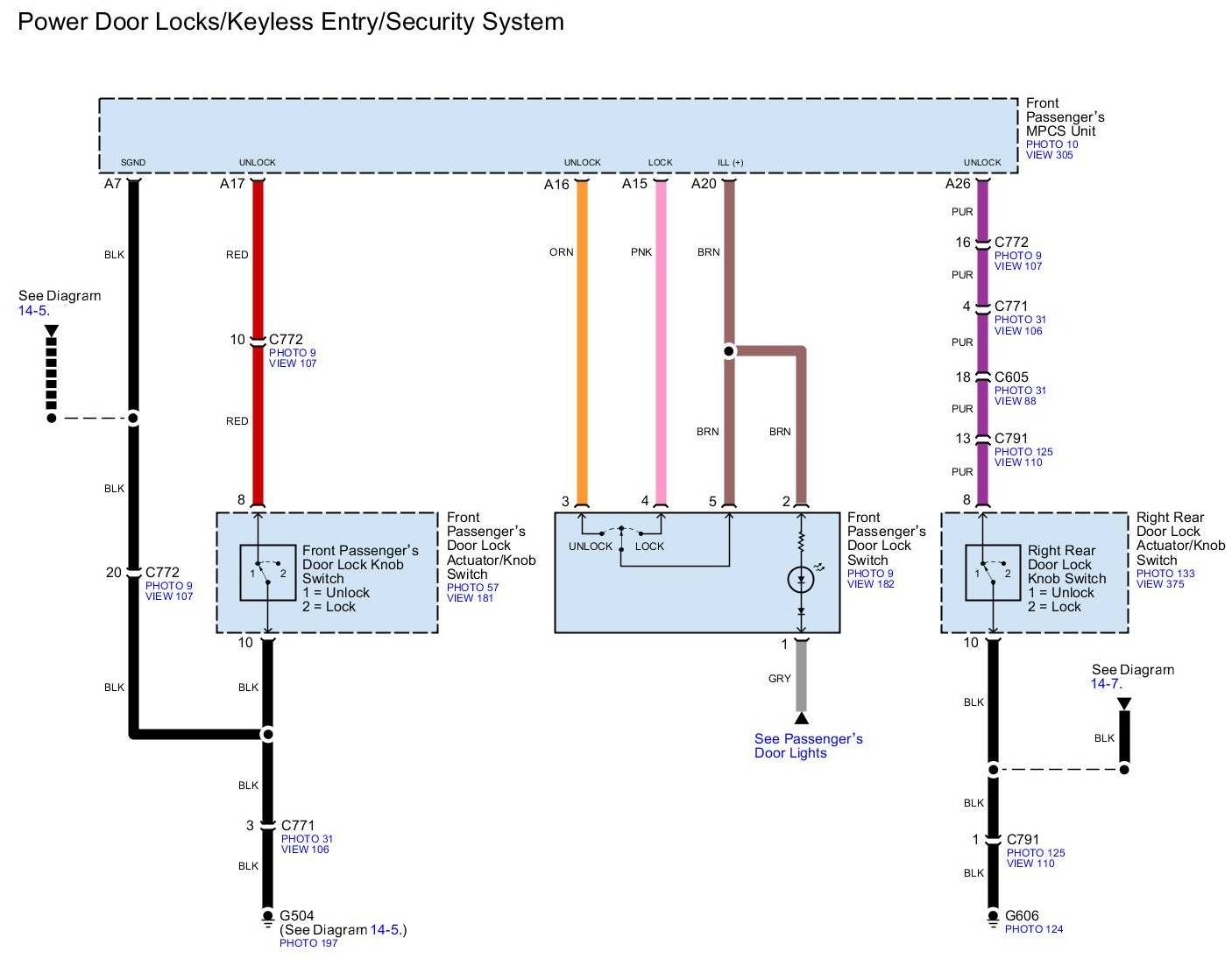

Diagram 130-5:

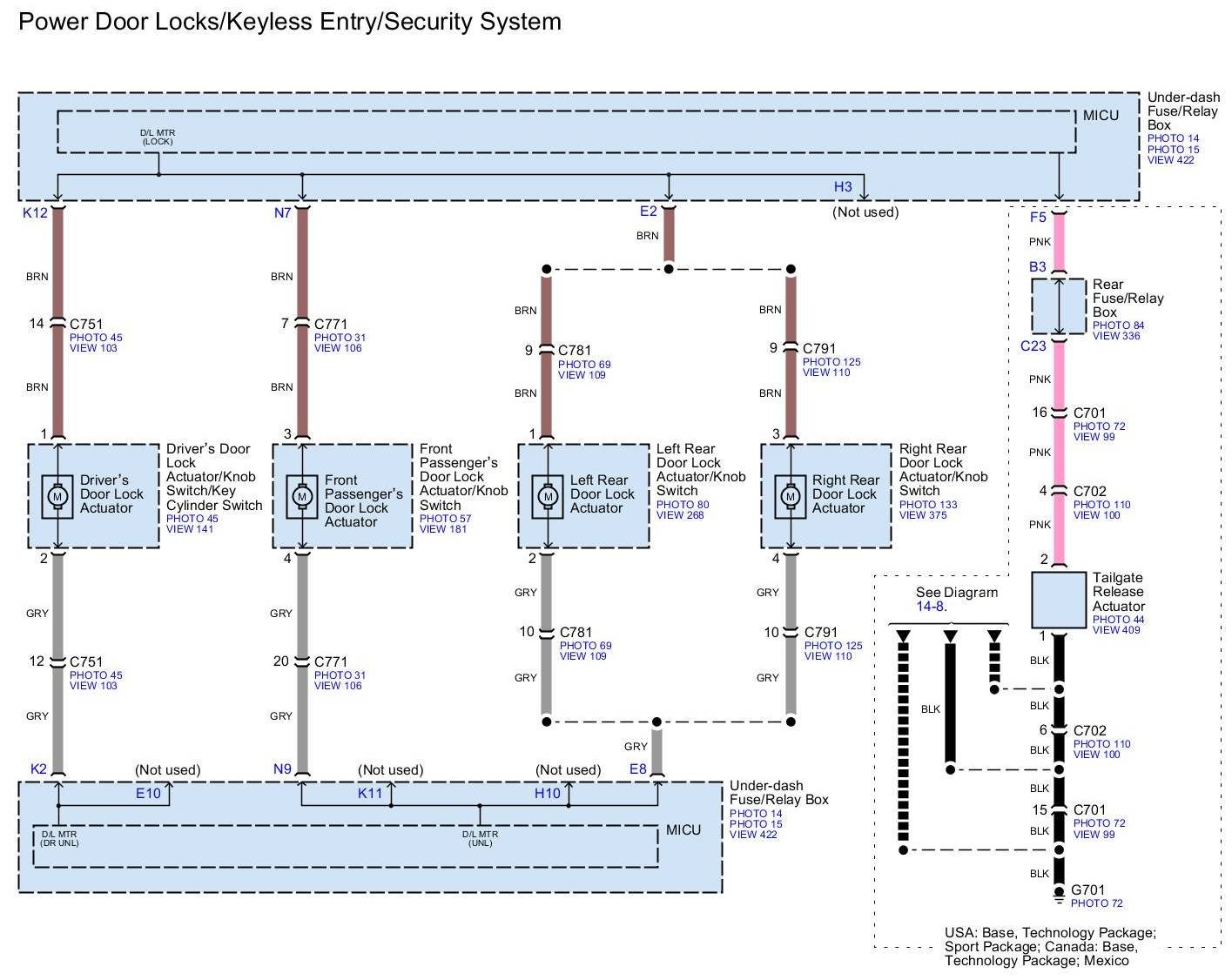

Diagram 130-6:
