Diagram Set 110 (Exterior Lights)

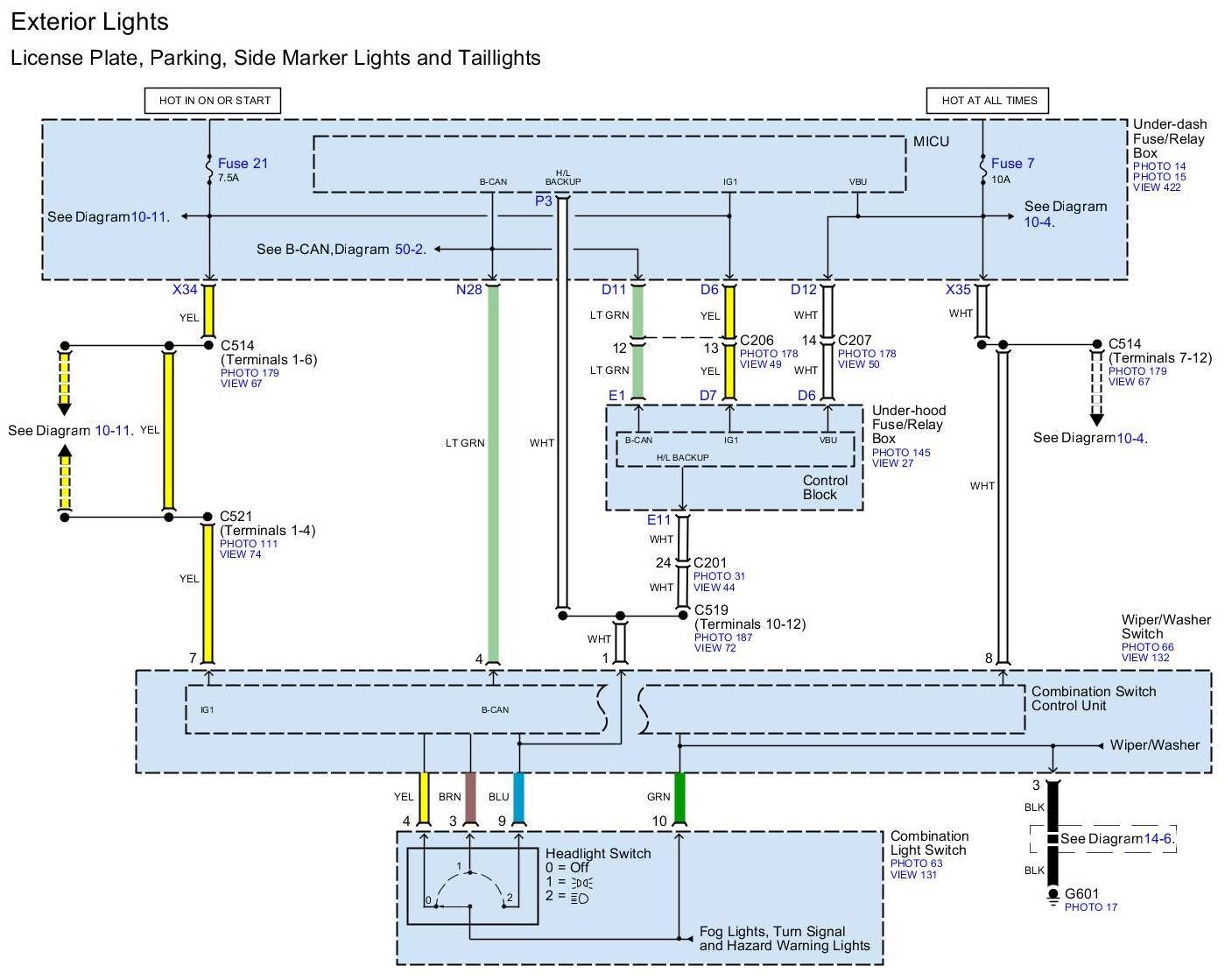

Diagram 110-0:

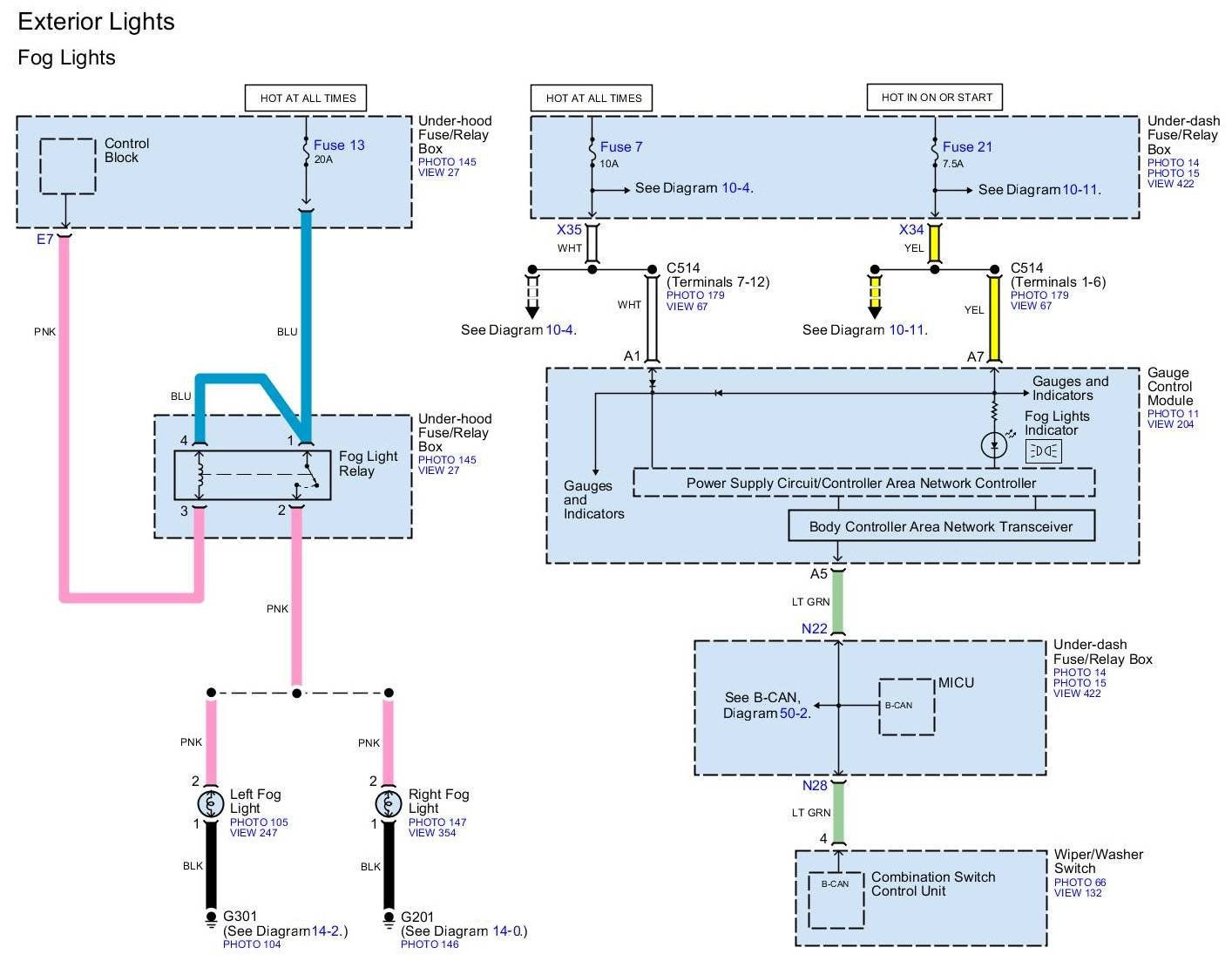

Diagram 110-1:

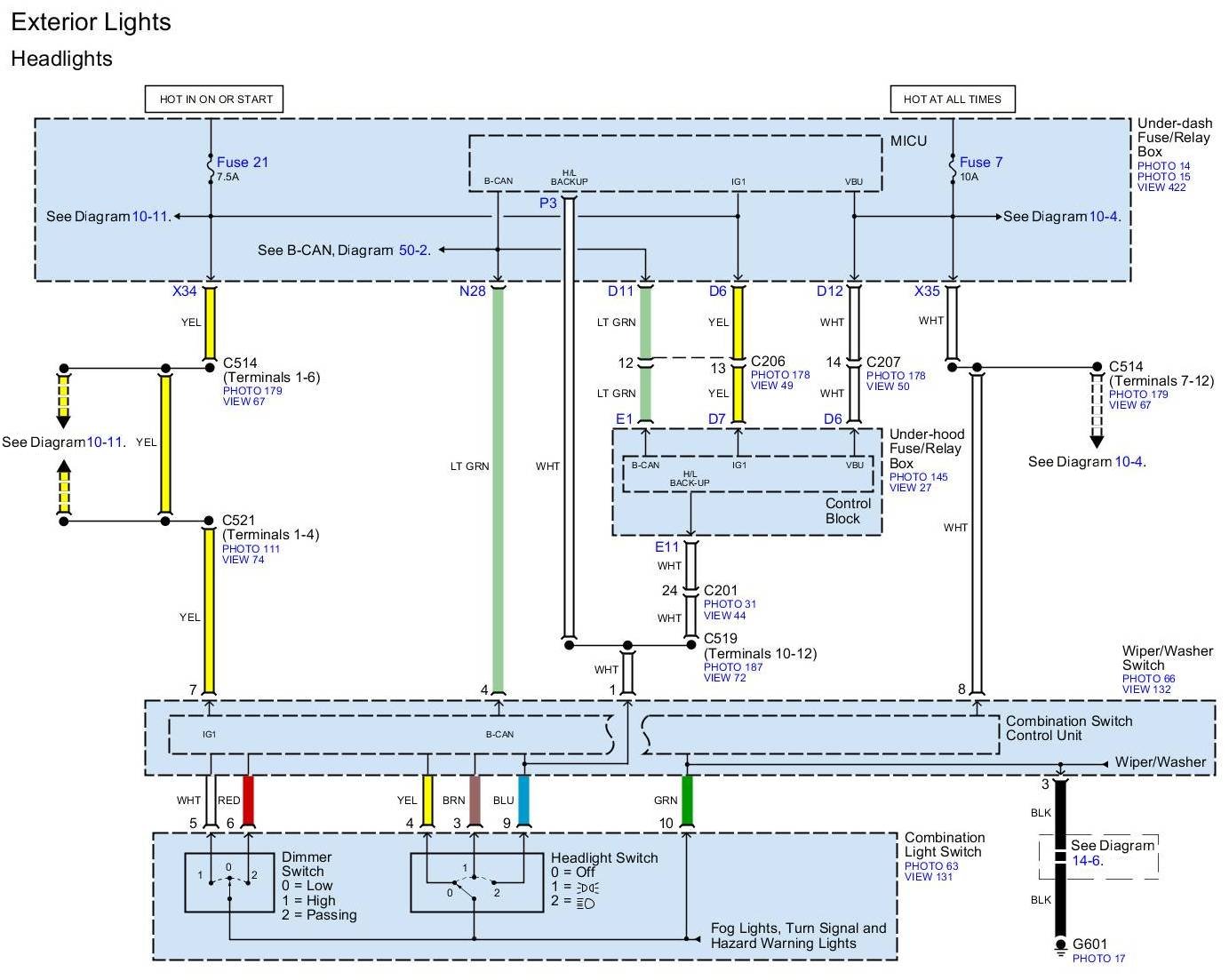

Diagram 110-2:

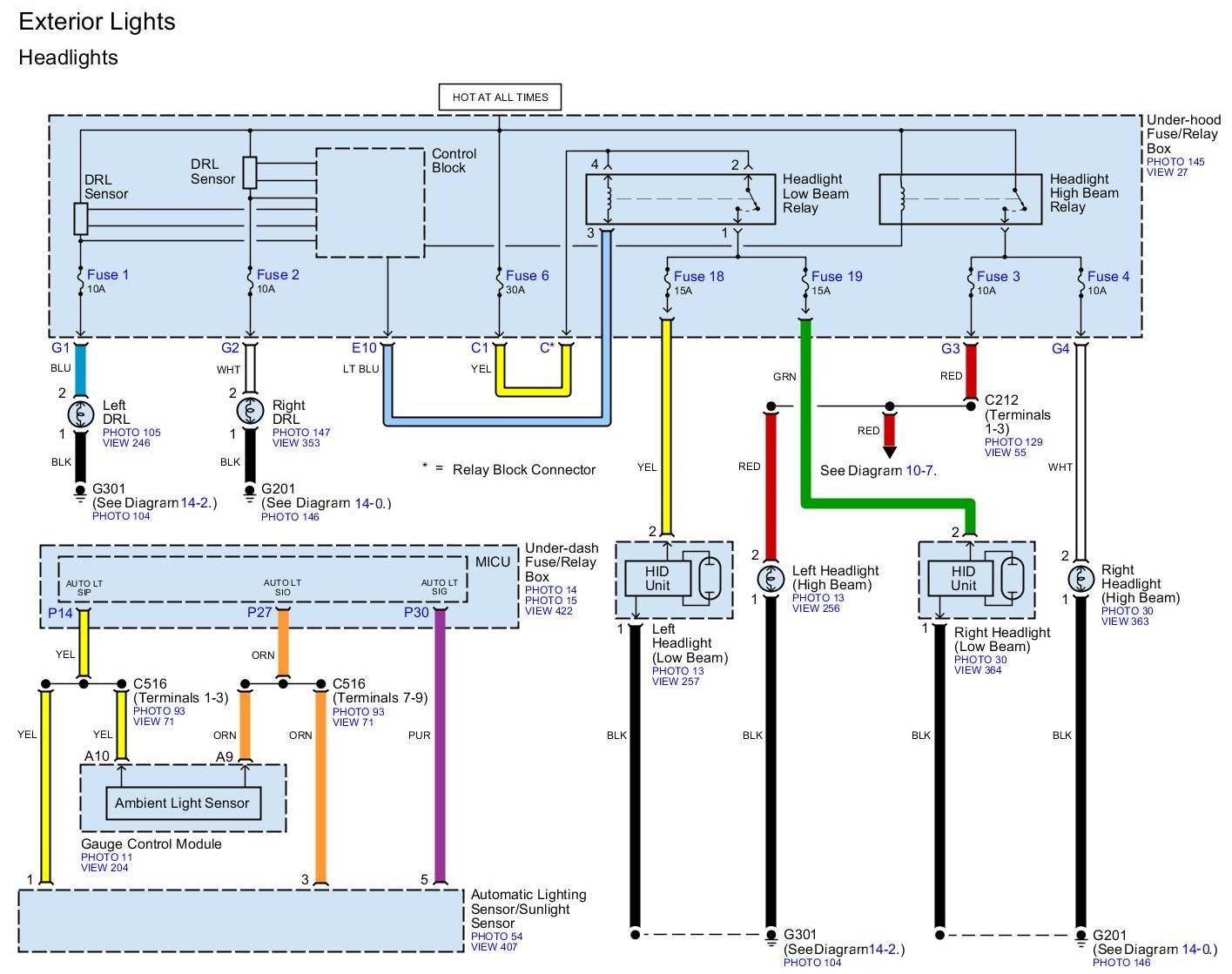

Diagram 110-5:

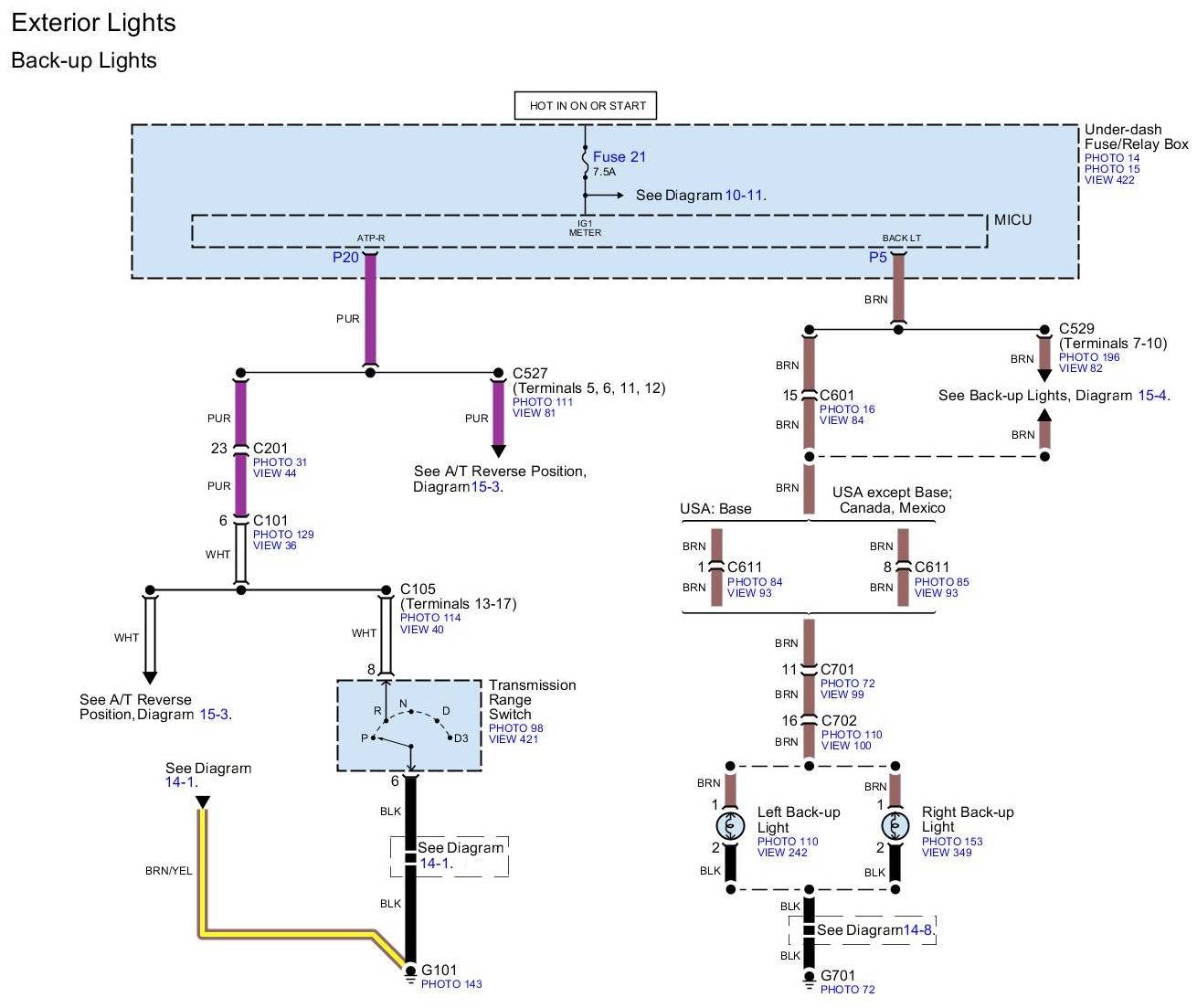

Diagram 110-6:

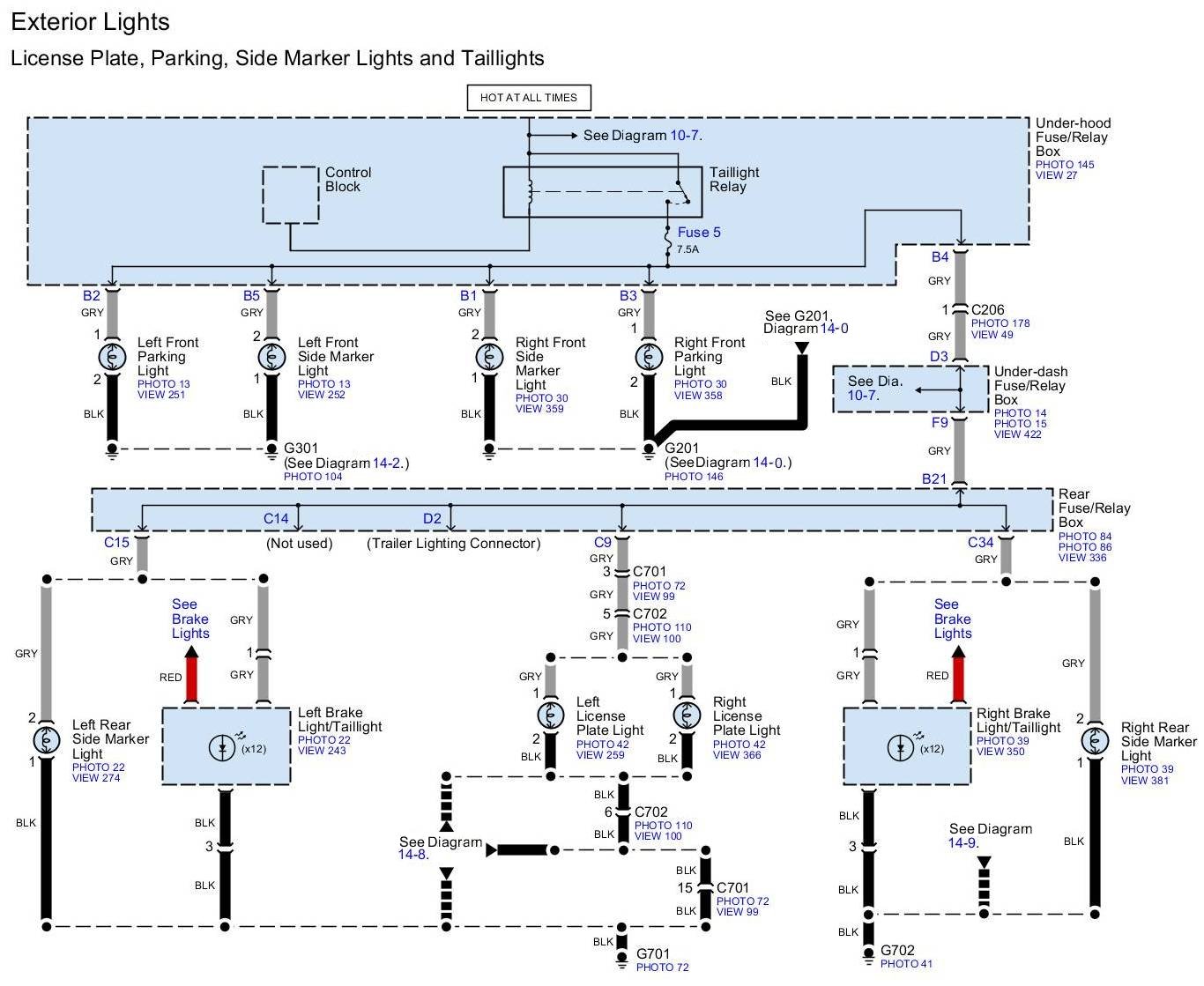

Diagram 110-7:

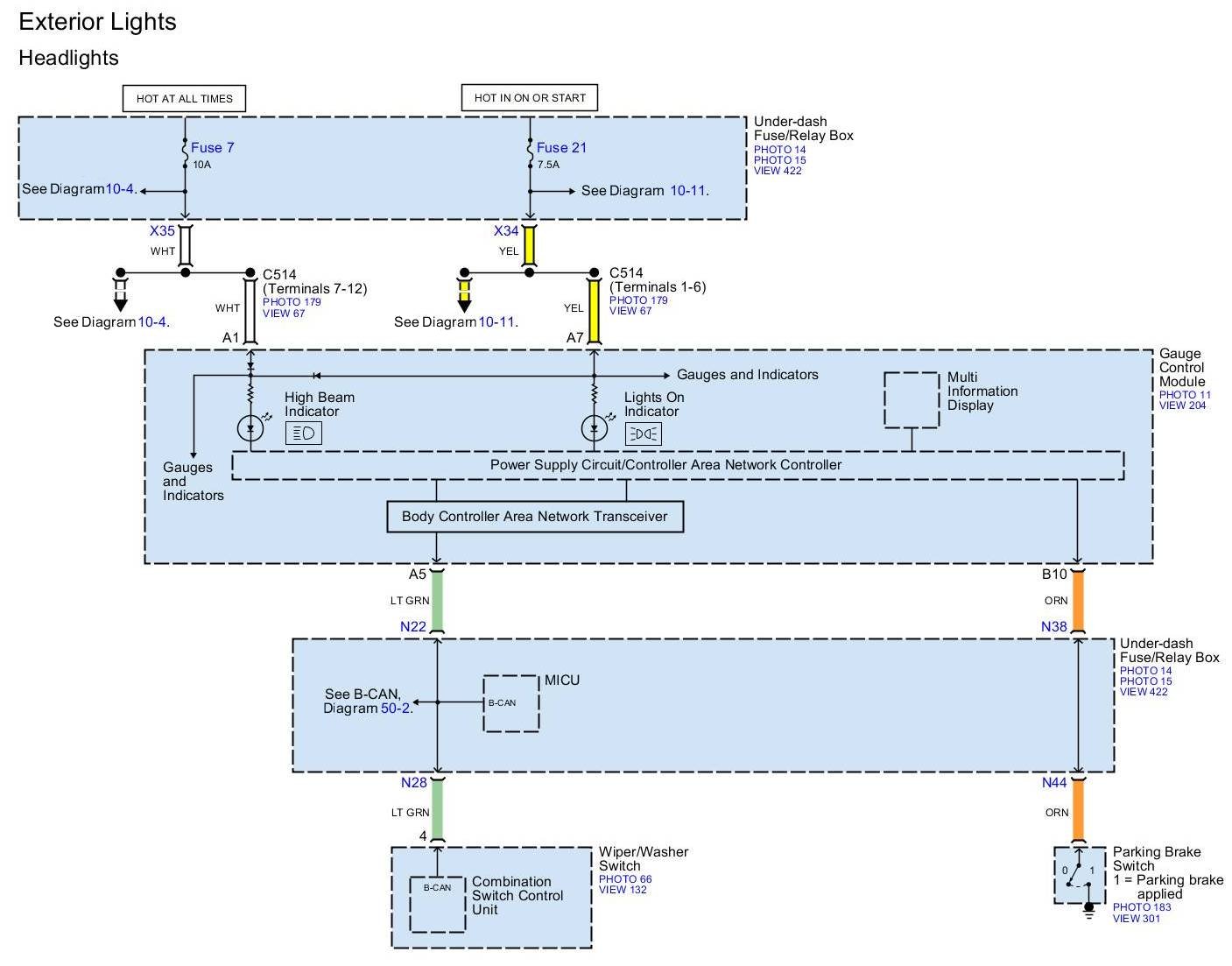

Diagram 110-8:

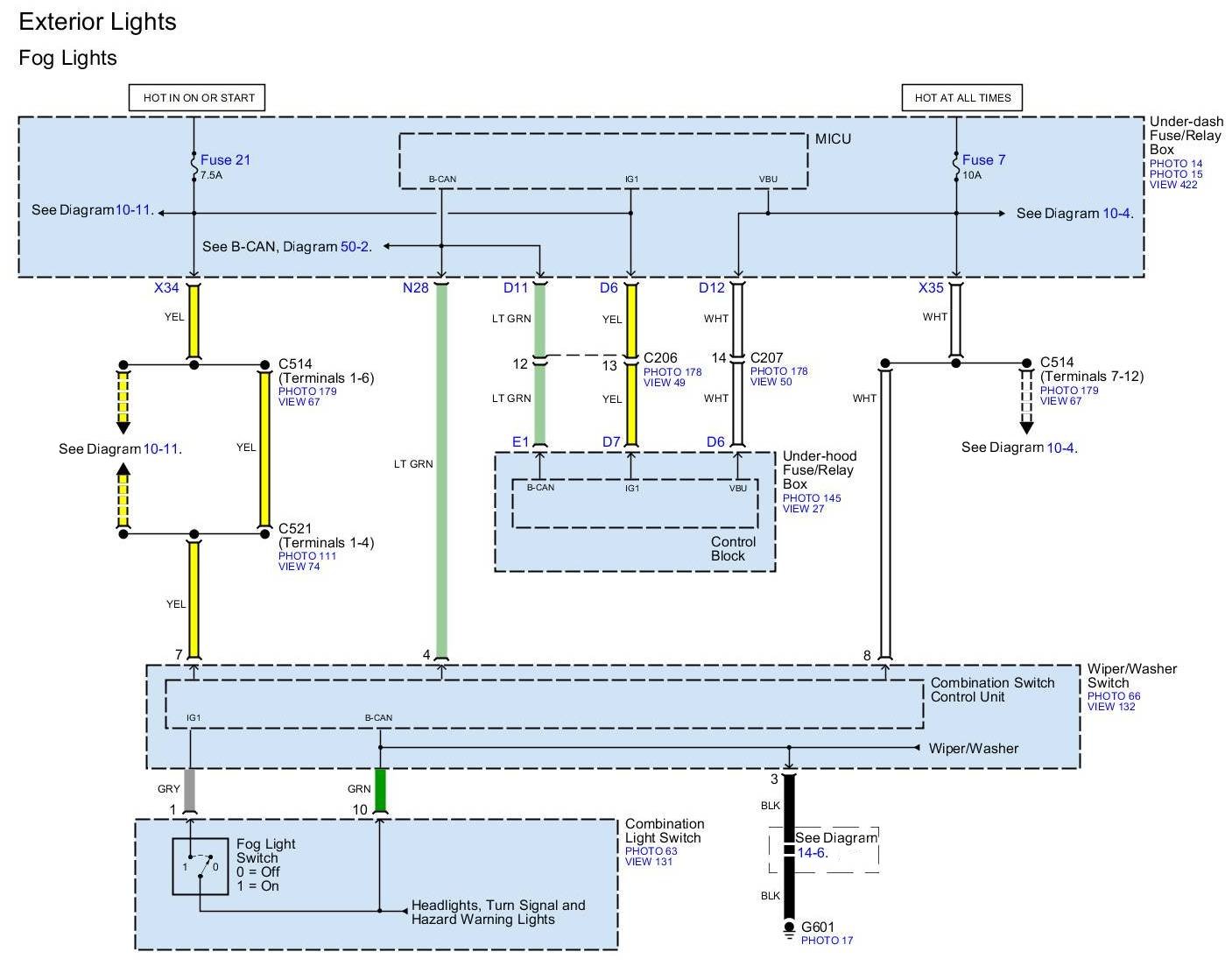

Diagram 110-9:



Diagram 110-10:



Diagram 110-11:



Diagram 110-12:



Diagram 110-13:



Diagram 110-14:
