Diagram Set 10 (Power Distribution)

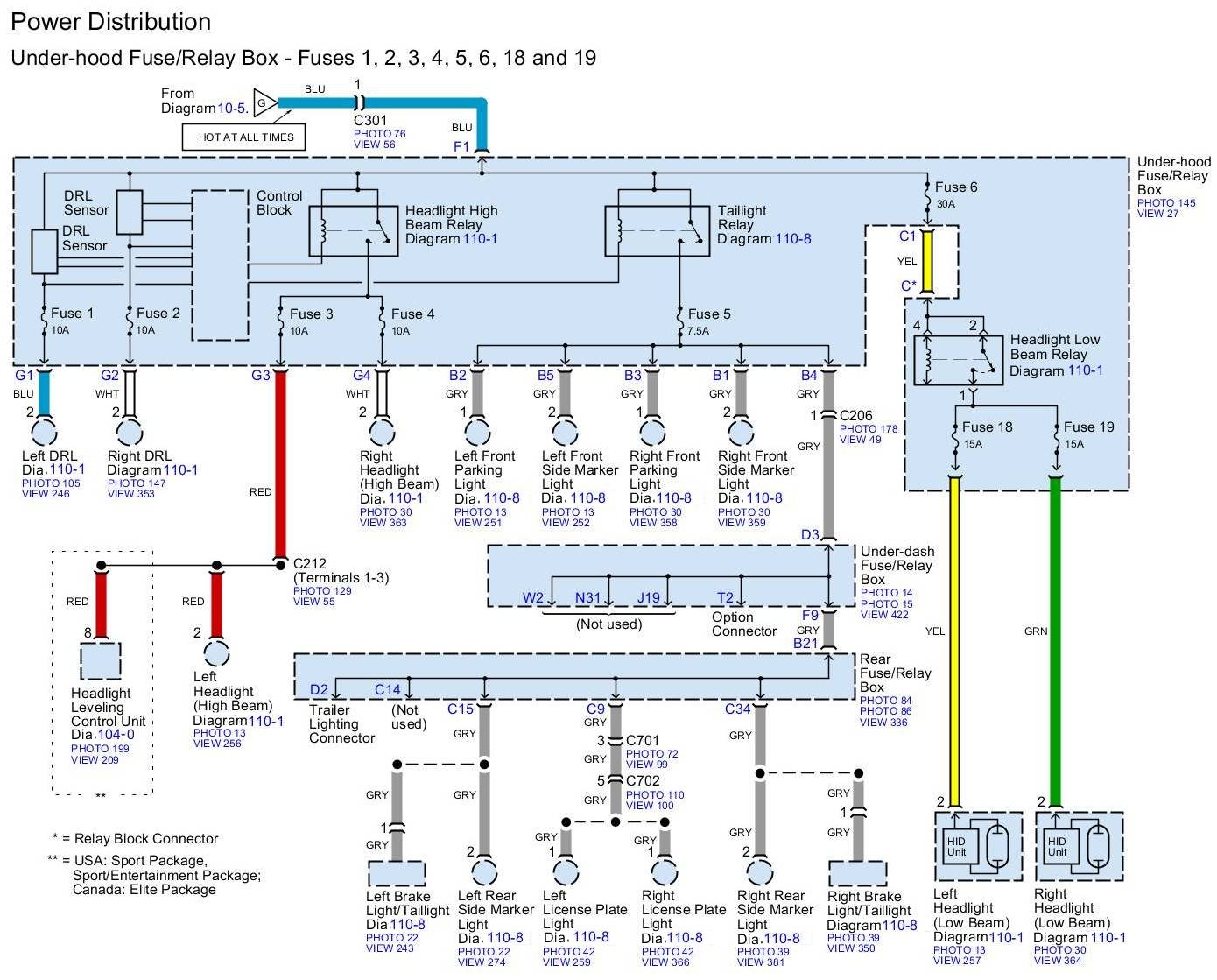

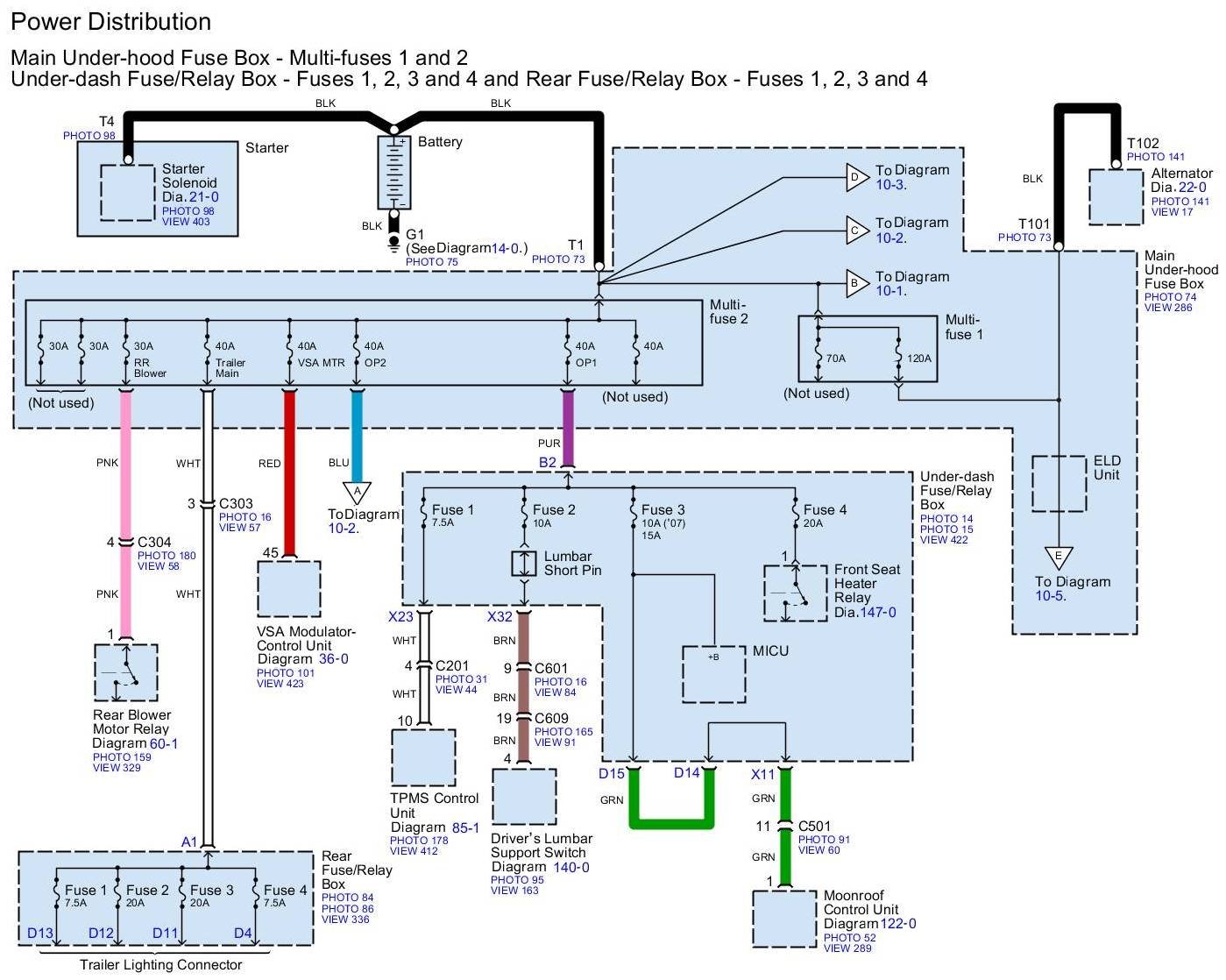

Diagram 10-0:

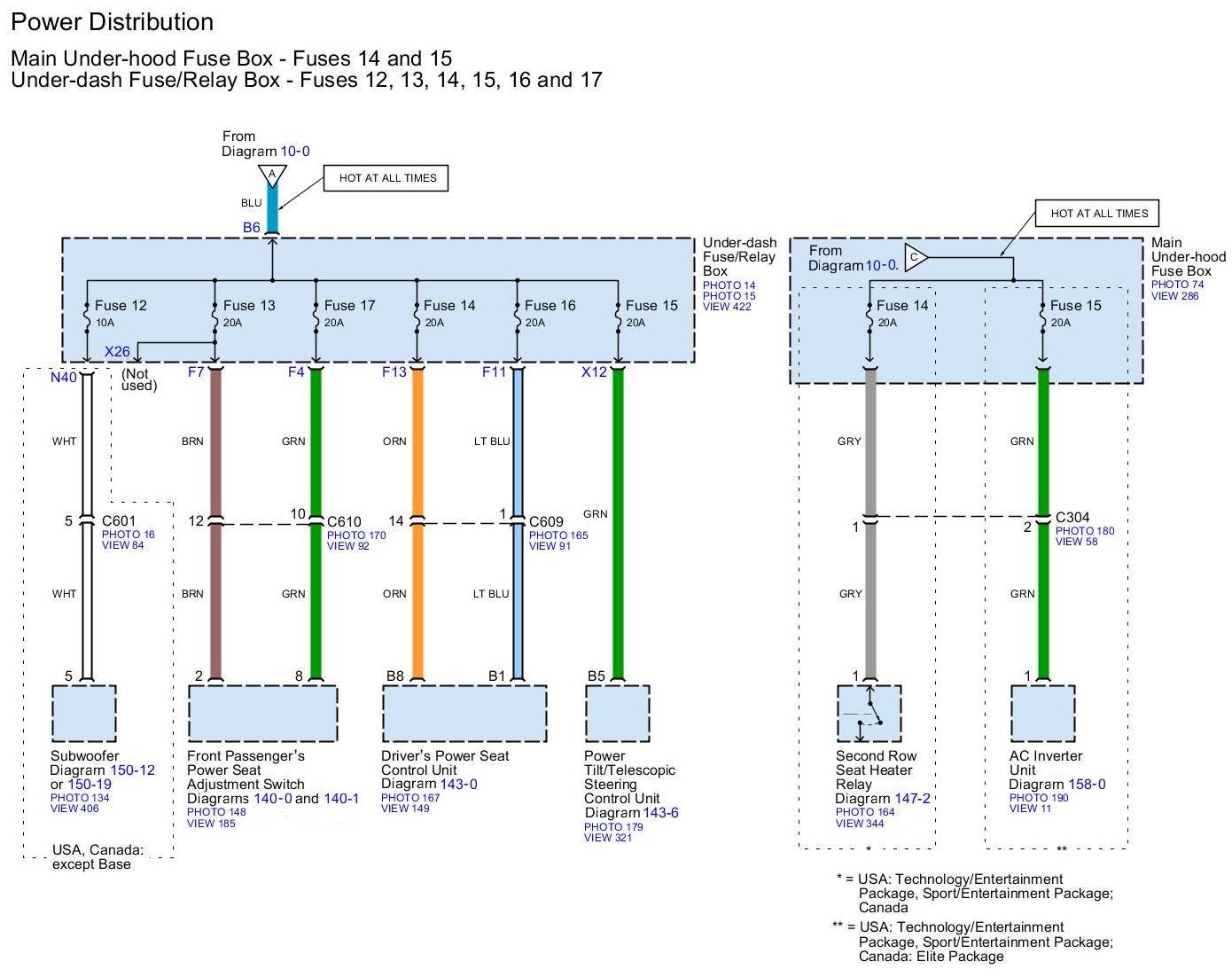

Diagram 10-1:

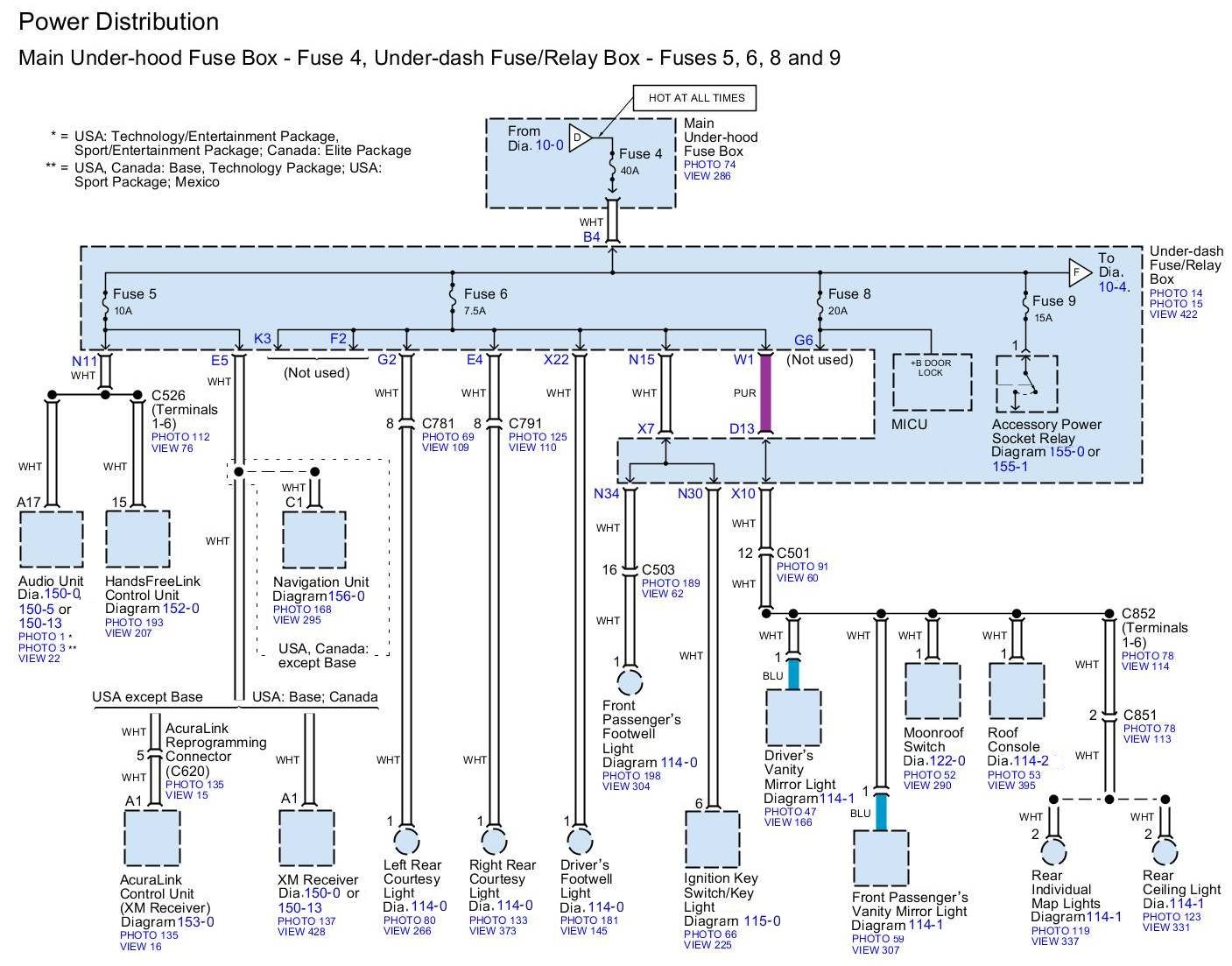

Diagram 10-2:

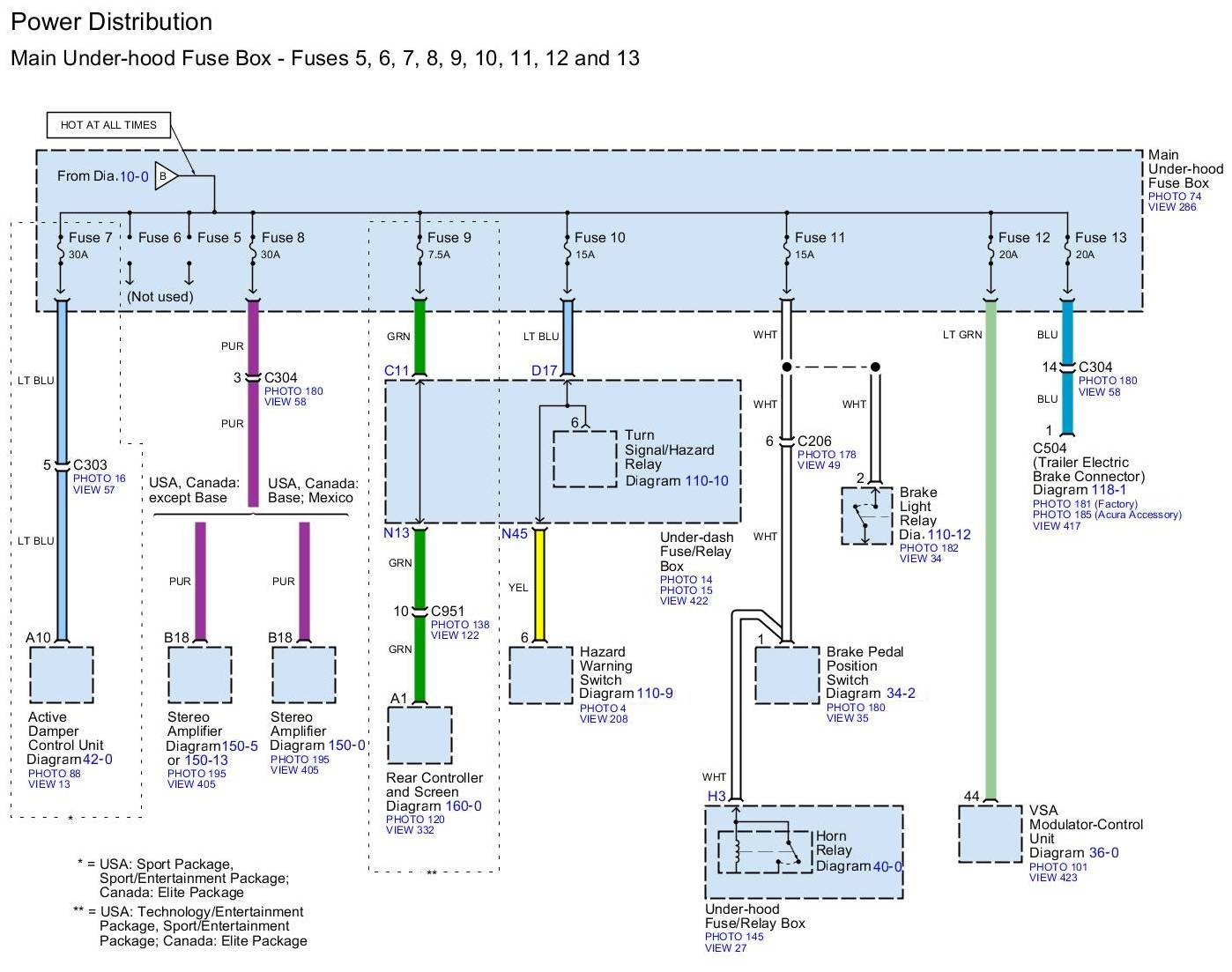

Diagram 10-3:

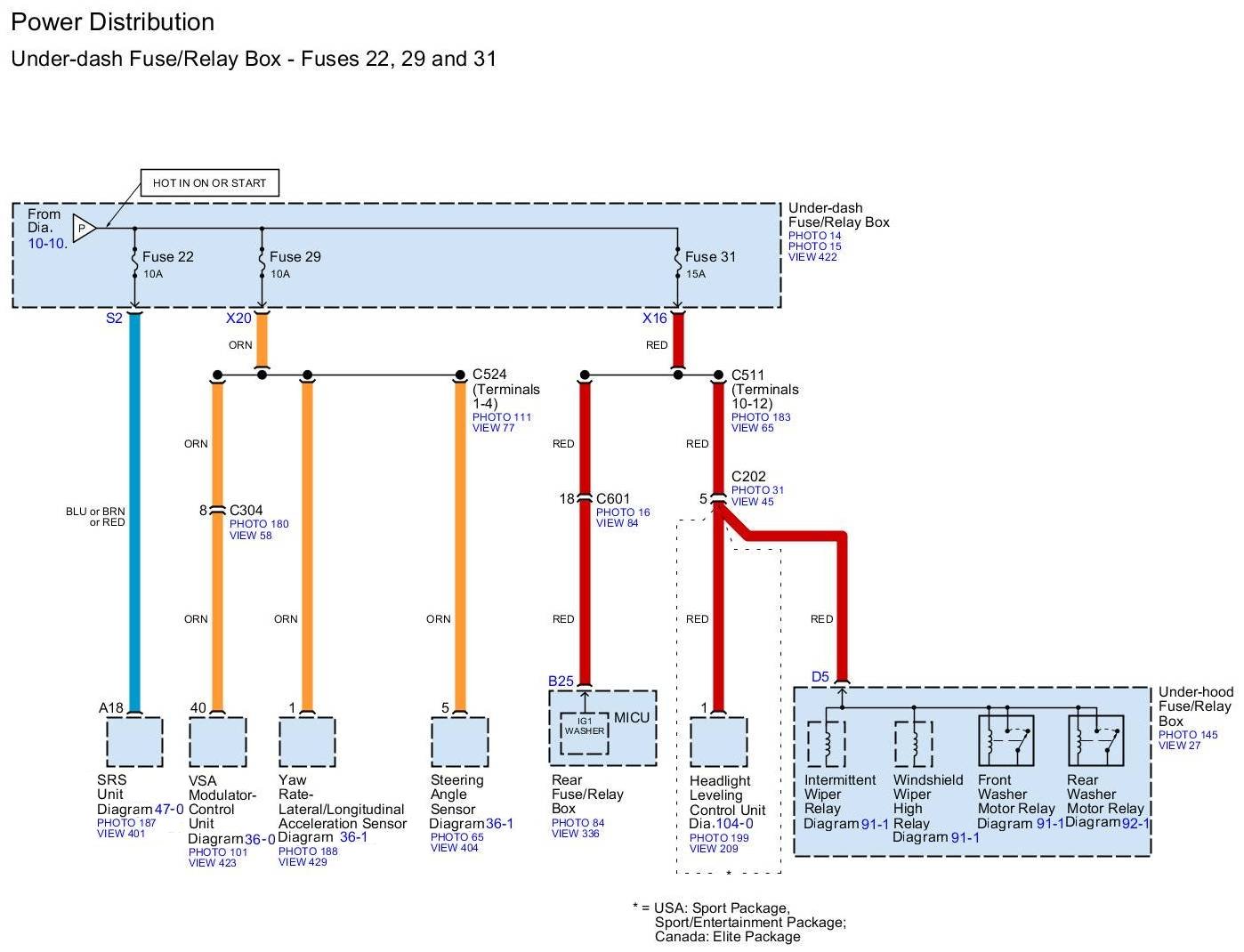

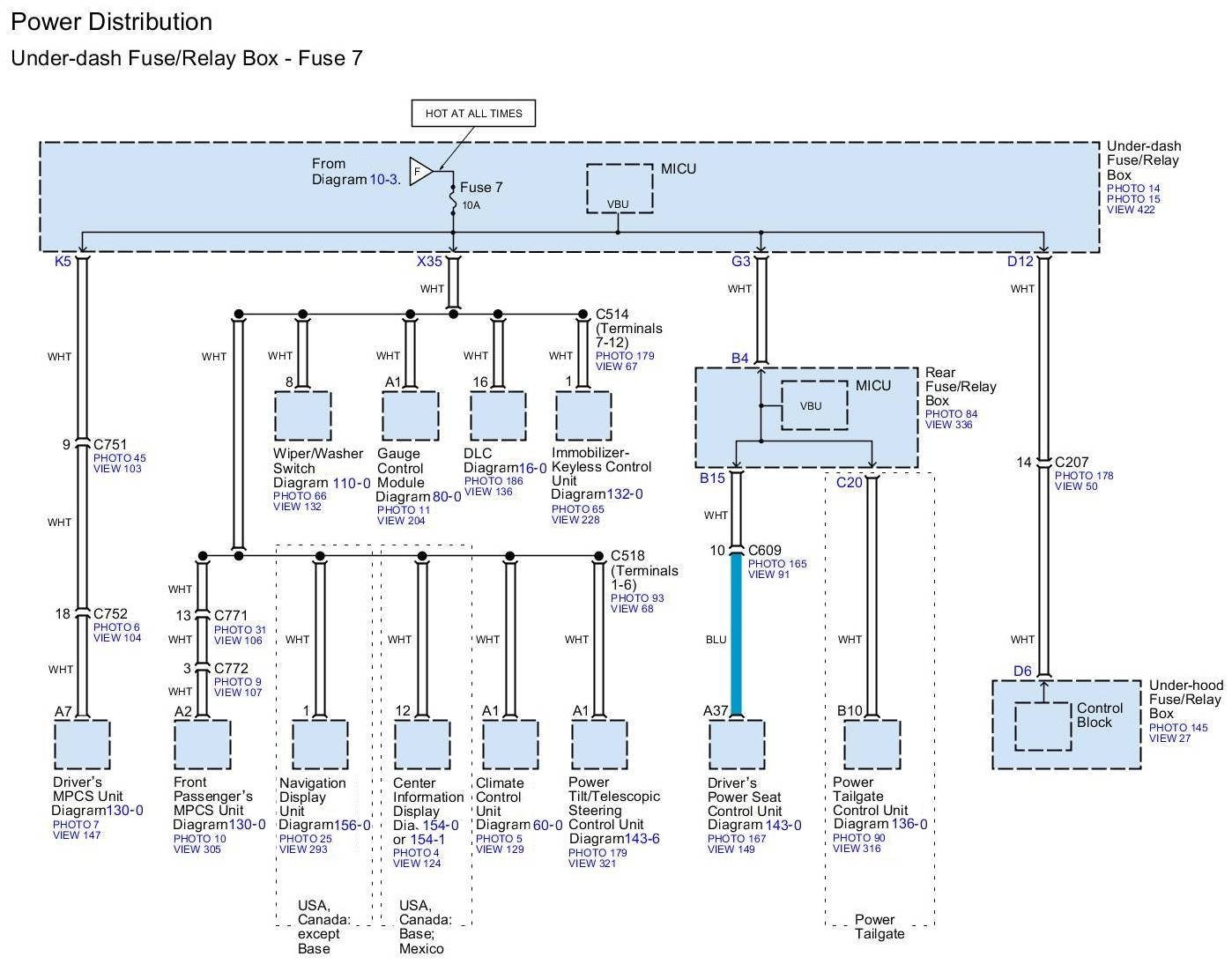

Diagram 10-4:



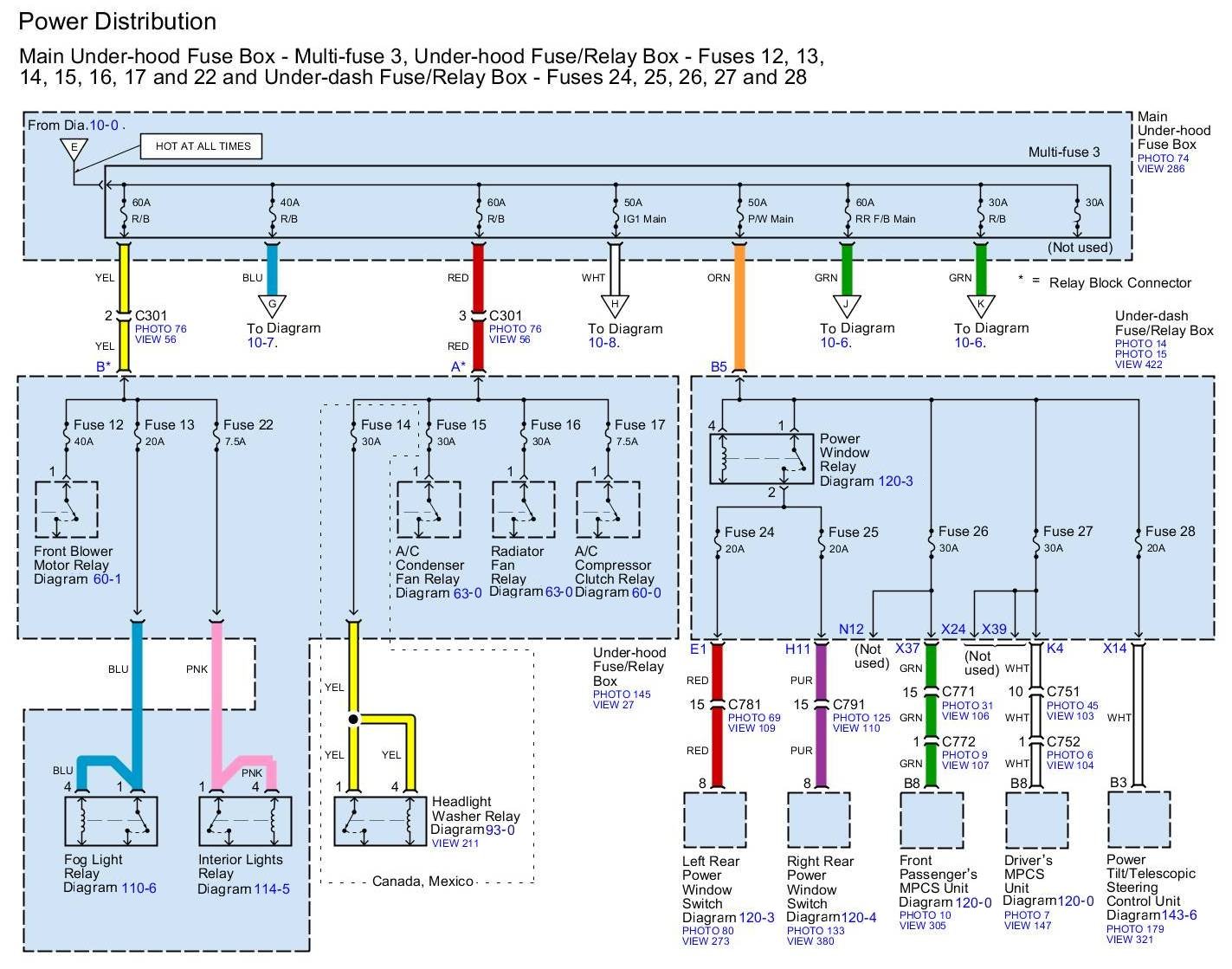

Diagram 10-5:



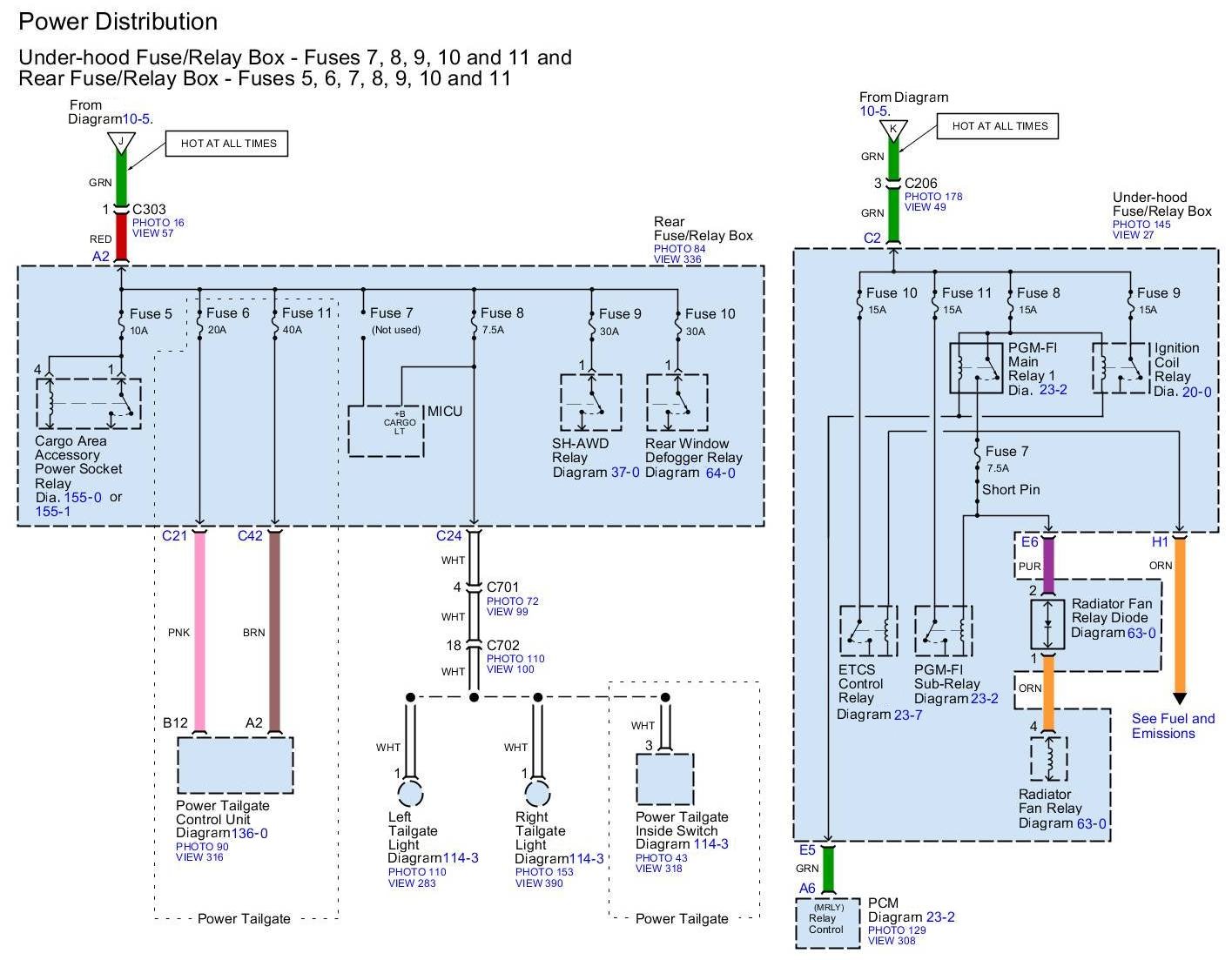

Diagram 10-6:



Diagram 10-7:



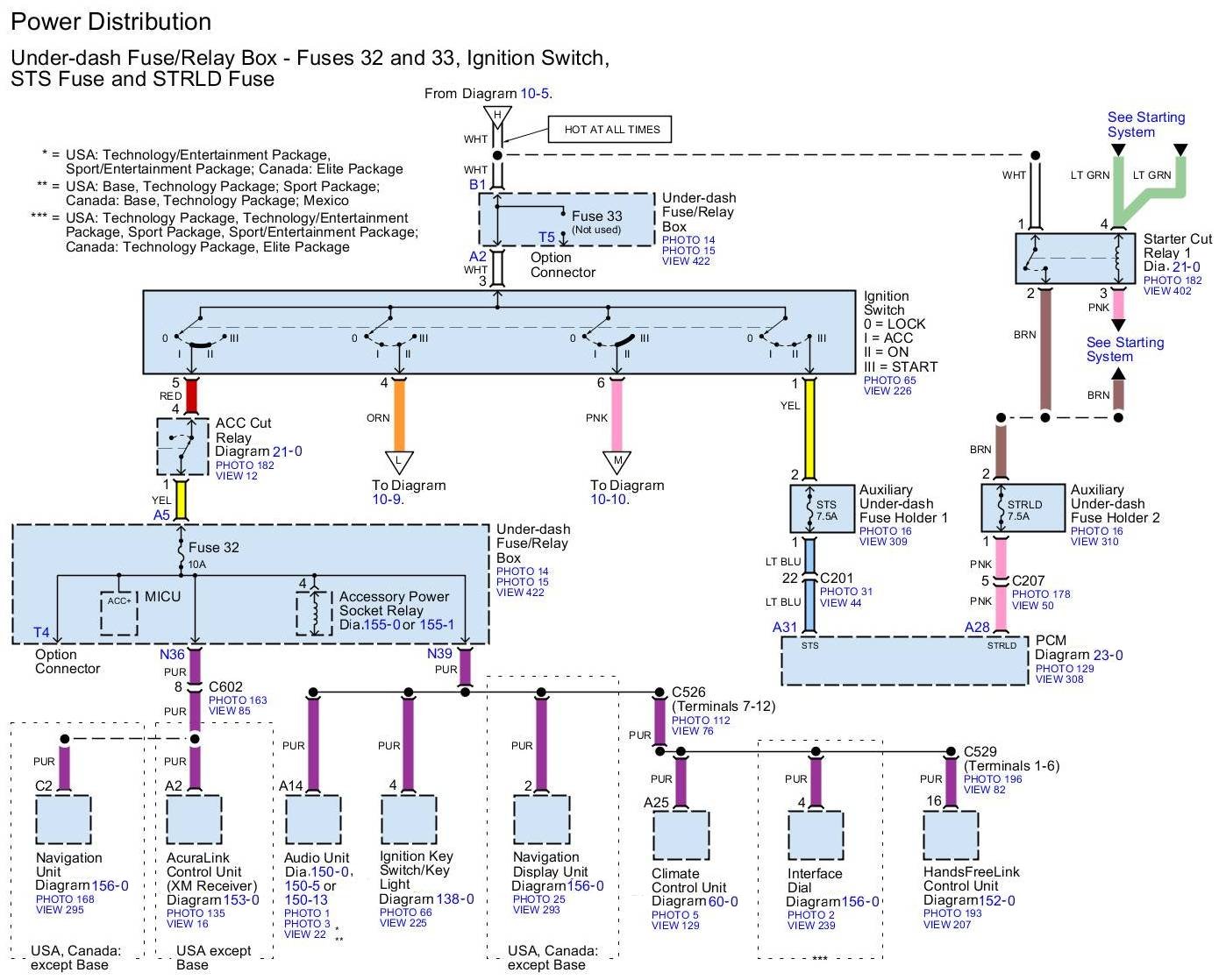

Diagram 10-8:



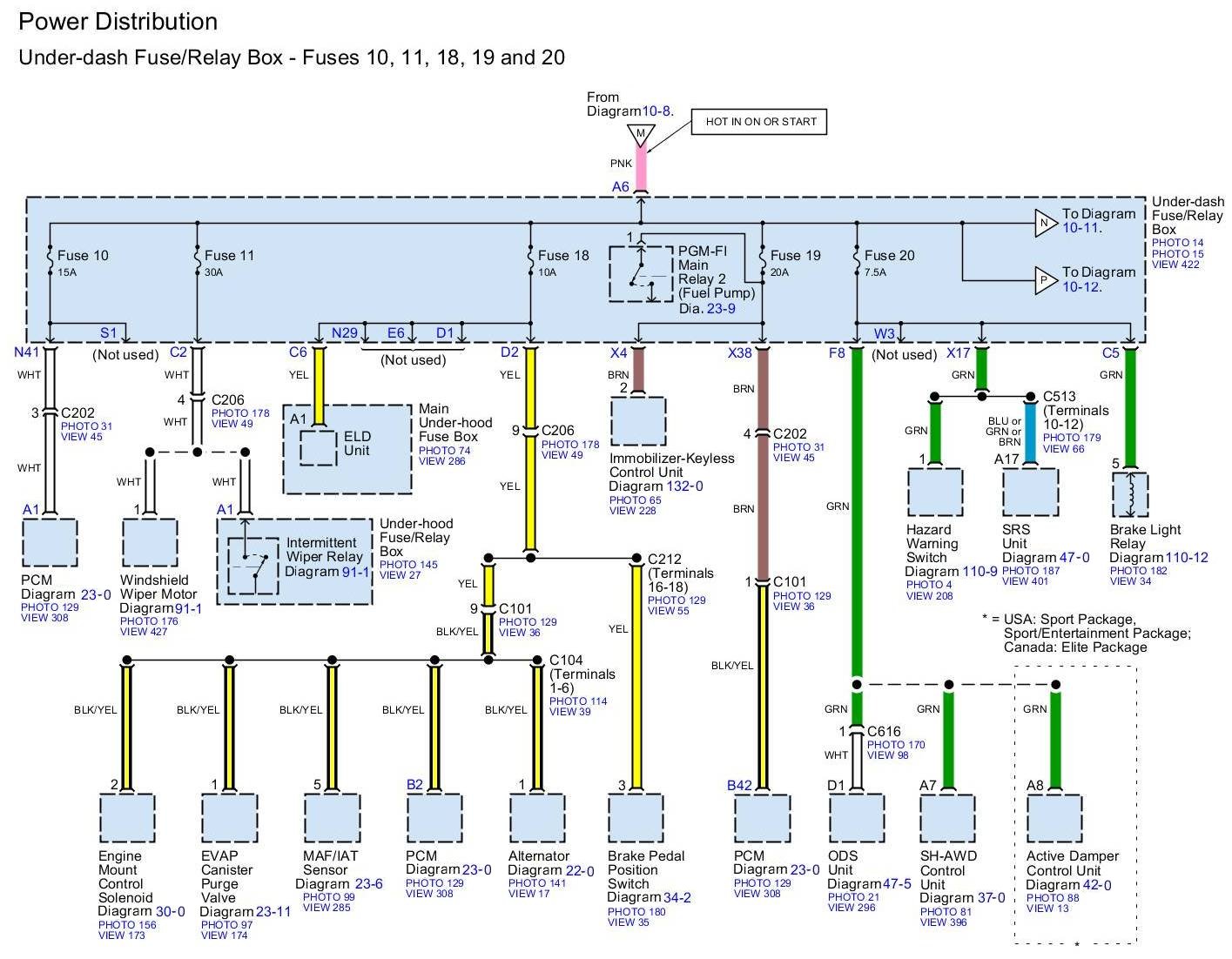

Diagram 10-9:



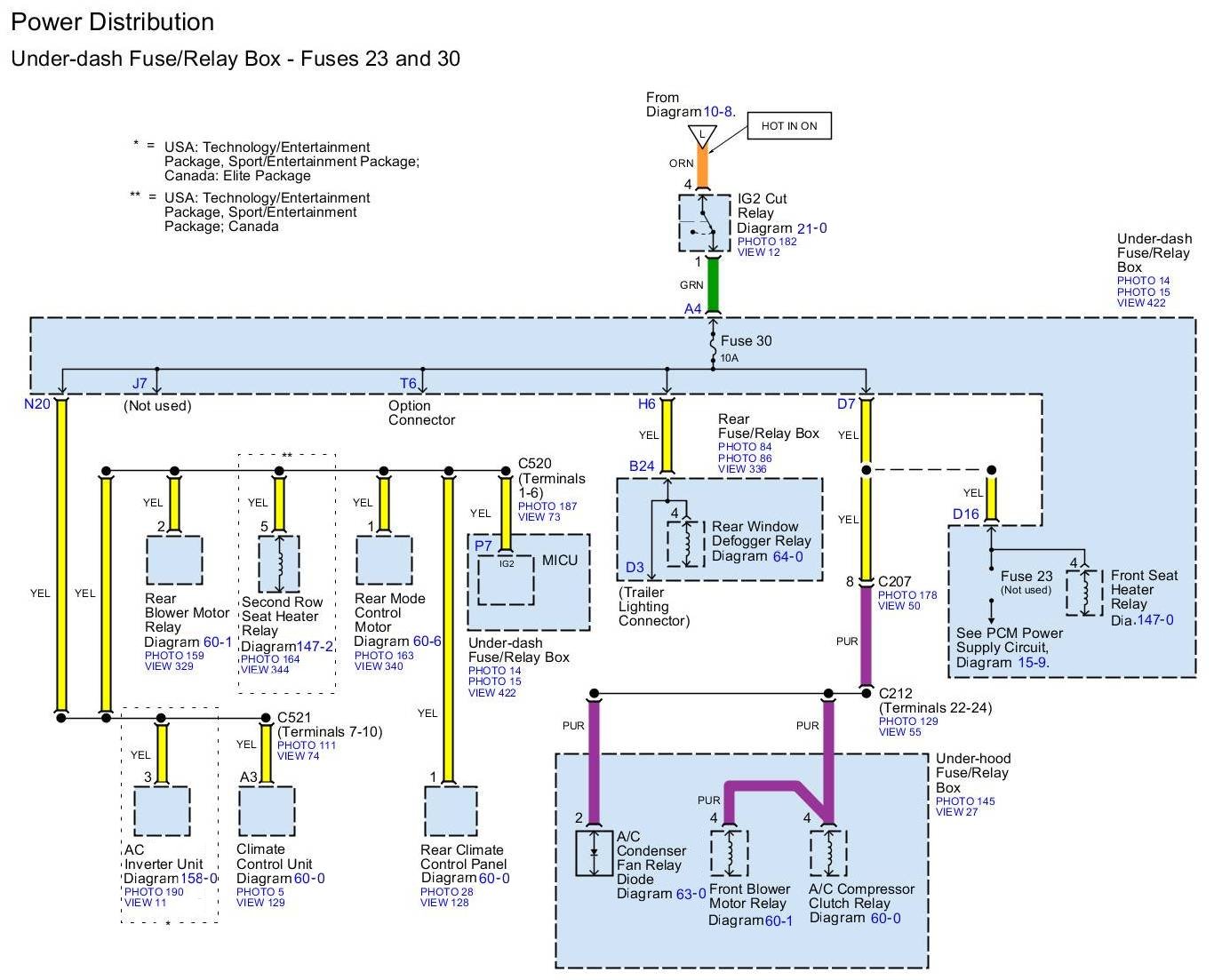

Diagram 10-10:



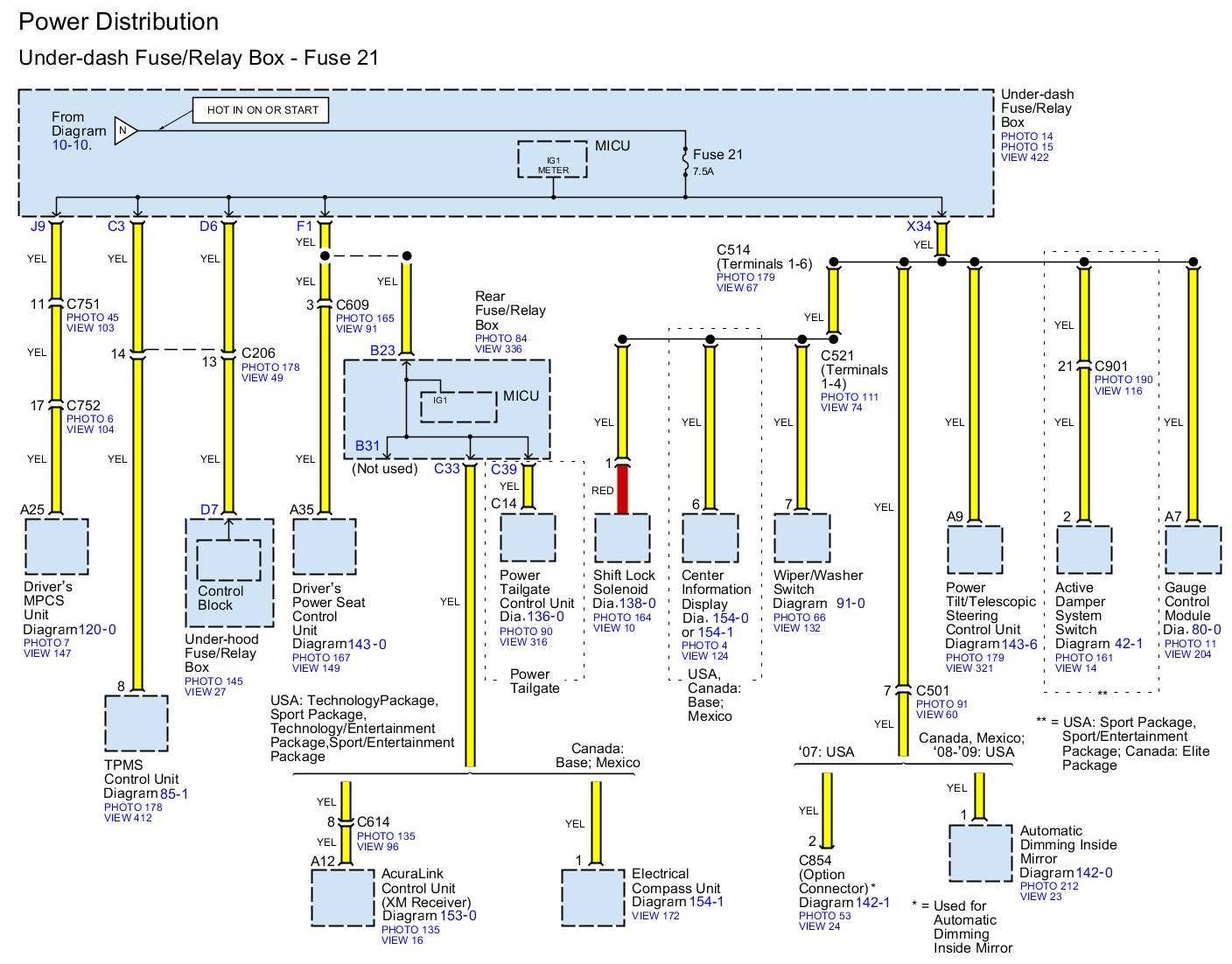

Diagram 10-11:



Diagram 10-12:
