Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 305 Front Passenger's MPCS Unit Connector View

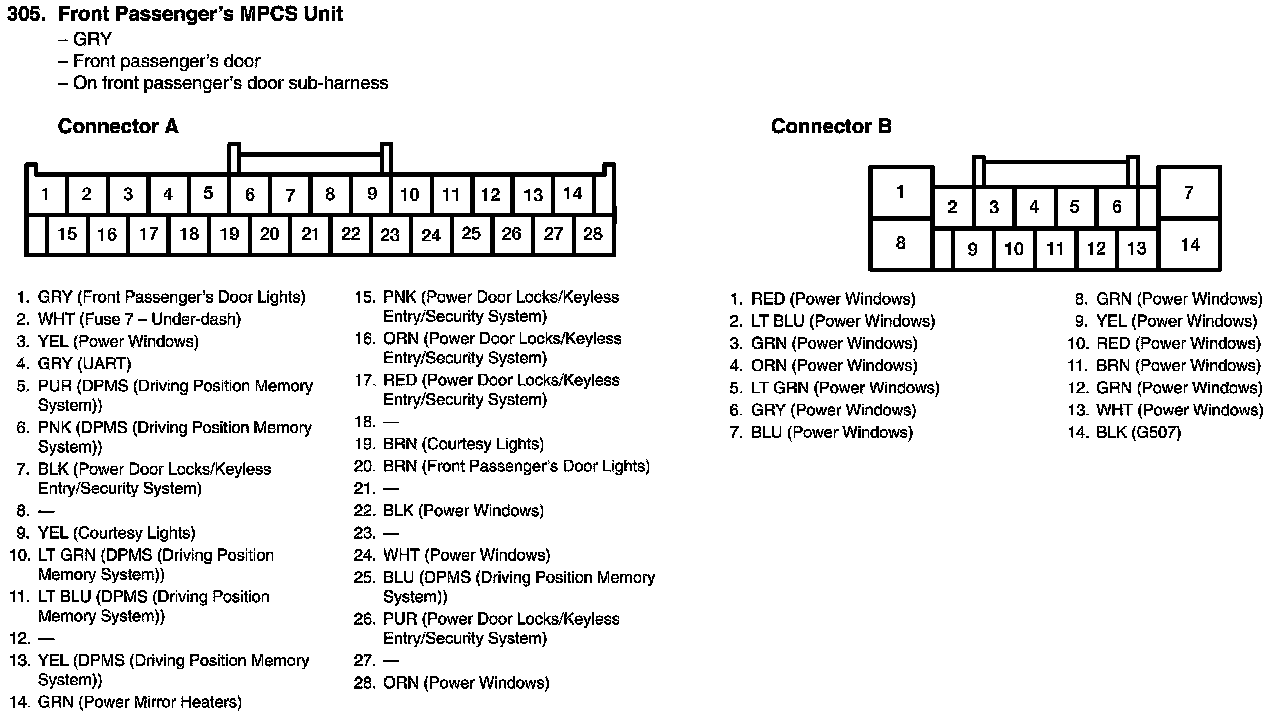

View 305 Front Passenger's MPCS Unit Connector View
