SRS (Supplemental Restraint System)
>>
Component Location Index
Component Location Index

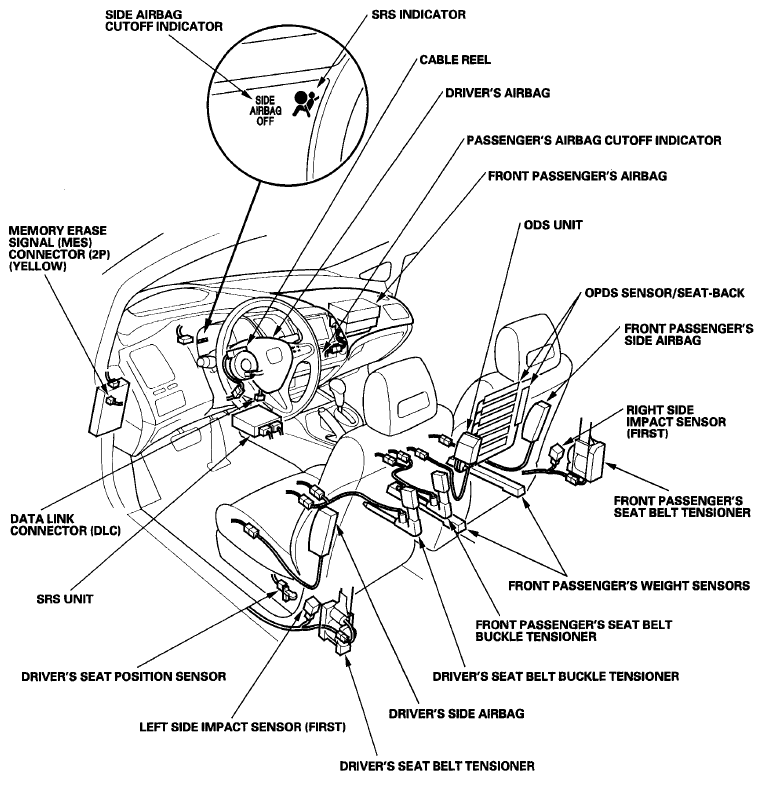

Fig 1: Identifying SRS (Supplemental Restraint System) Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

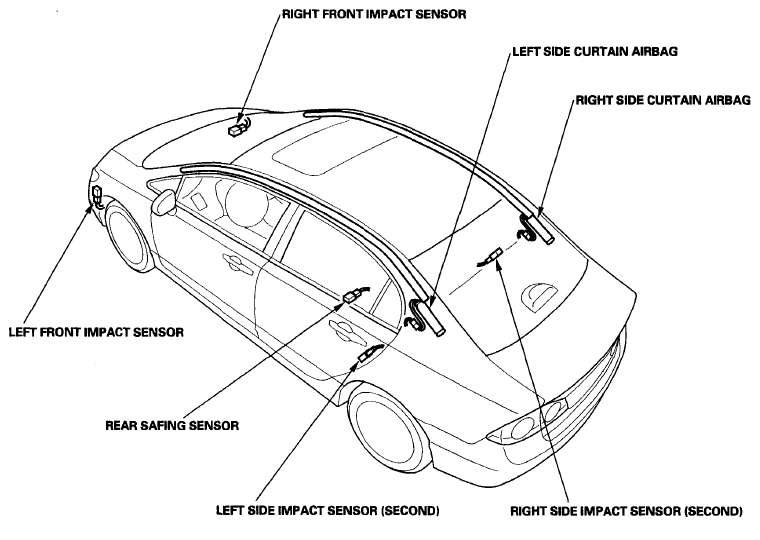

Fig 2: Identifying SRS (Supplemental Restraint System) Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
