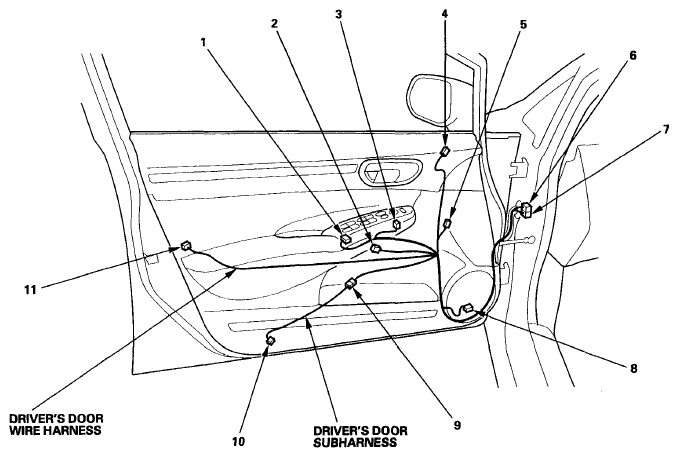

Driver's Door Subharness
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Driver's door courtesy light |
10 |
2 |
Driver's door |
|
|
| C754 |
9 |
2 |
Driver's door |
Driver's door wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
