Cylinder Head Cover Removal

  1. Remove the engine cover.
    Fig 1: Identifying Engine Cover
    G06265561Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the four ignition coils (see IGNITION COIL REMOVAL/INSTALLATION ).
  3. Disconnect the evaporative emission (EVAP) canister purge valve connector.
  4. Remove the dipstick (A) and the breather hose (B).
    Fig 2: Removing Dipstick And Breather Hose
    G06265562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove two bolts (C) securing the evaporative emission (EVAP) canister purge valve bracket.
  6. Remove the cylinder head cover.

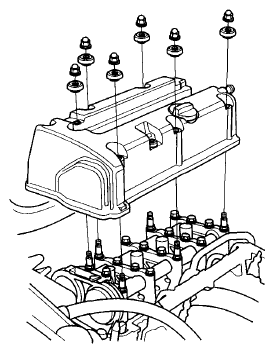

Fig 3: Identifying Cylinder Head Cover
G06265563Courtesy of AMERICAN HONDA MOTOR CO., INC.
