Circuit Diagram - Gauge Control Module (Tach)

Touring and Premium models

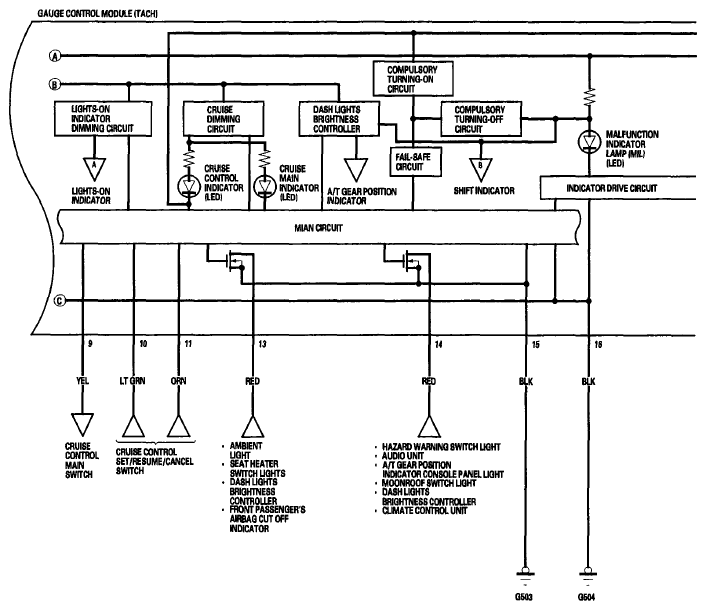

Fig 1: Gauge Control Module (Touring And Premium Models) - Circuit Diagram (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

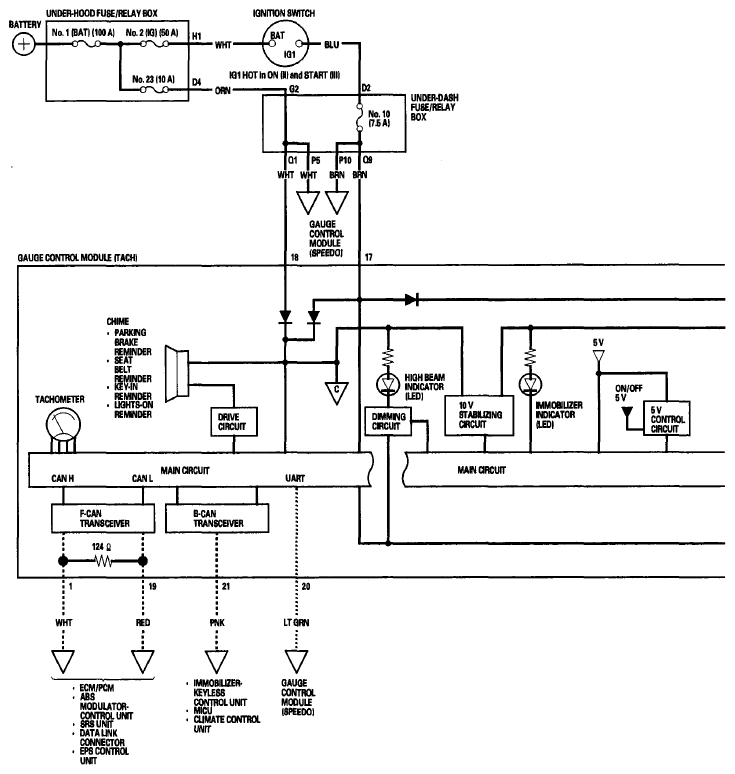

Fig 2: Gauge Control Module (Touring And Premium Models) - Circuit Diagram (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

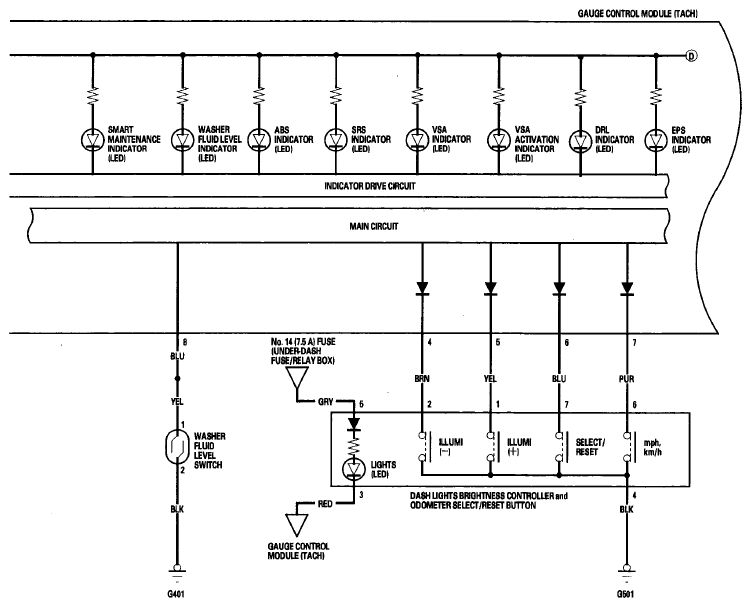

Fig 3: Gauge Control Module (Touring And Premium Models) - Circuit Diagram (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

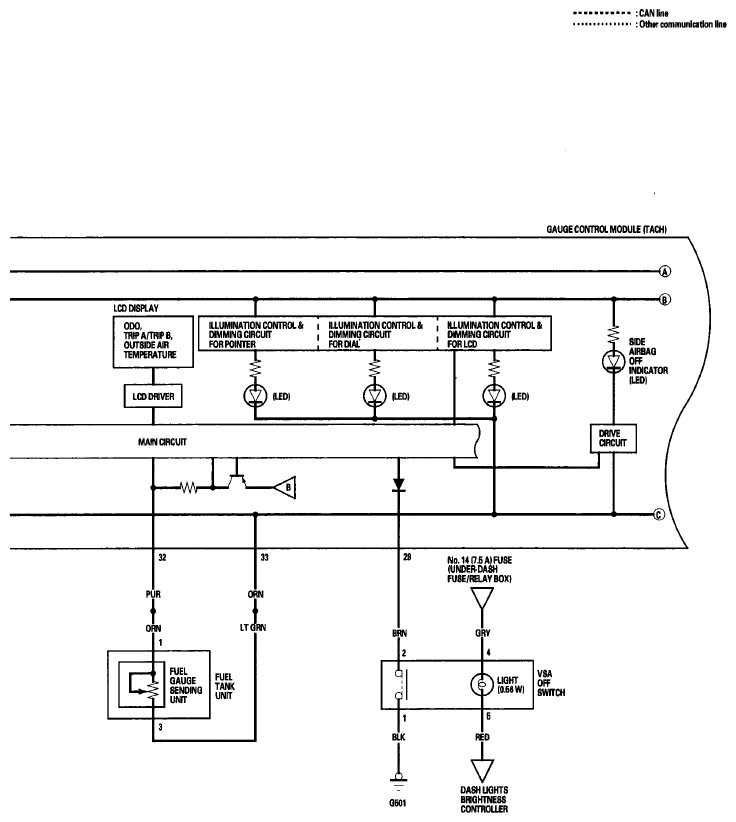

Fig 4: Gauge Control Module (Touring And Premium Models) - Circuit Diagram (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

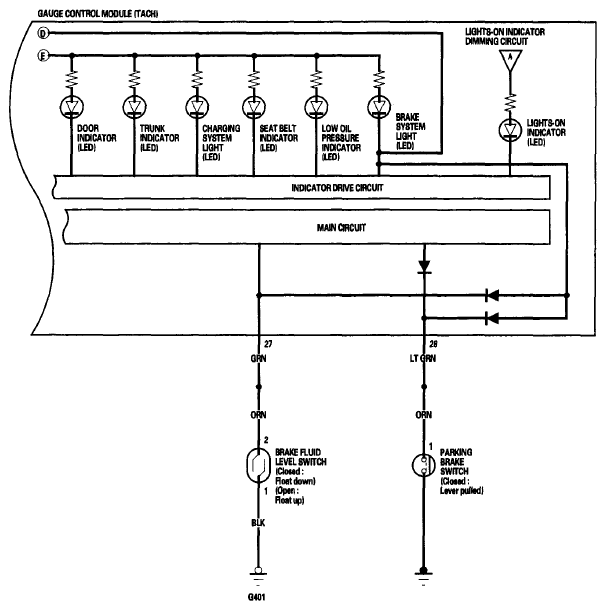

Fig 5: Gauge Control Module (Touring And Premium Models) - Circuit Diagram (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TYPE S model

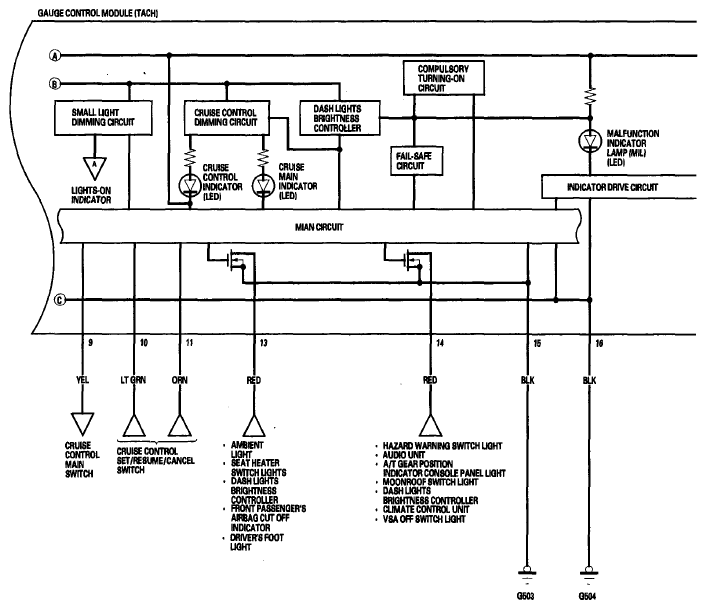

Fig 6: Gauge Control Module (Type S Model) - Circuit Diagram (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

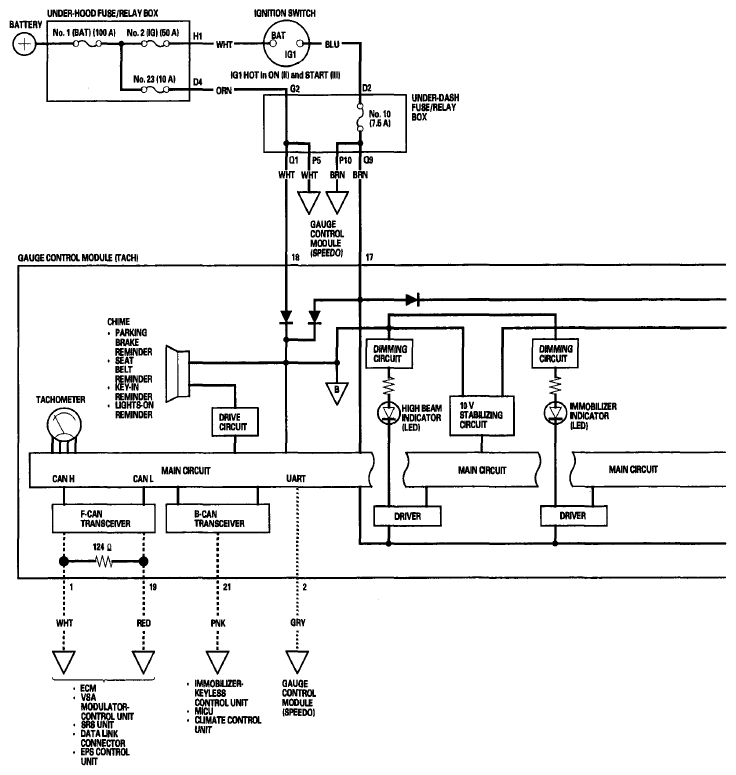

Fig 7: Gauge Control Module (Type S Model) - Circuit Diagram (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Gauge Control Module (Type S Model) - Circuit Diagram (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Gauge Control Module (Type S Model) - Circuit Diagram (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Gauge Control Module (Type S Model) - Circuit Diagram (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
