Circuit Diagram - Gauge Control Module (Speedo)

Premium and Touring models

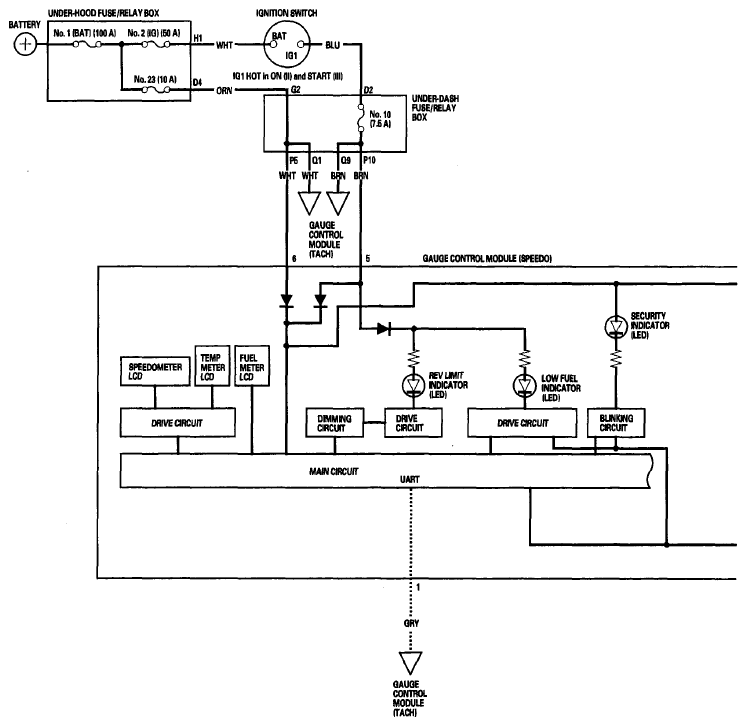

Fig 1: Gauge Control Module (Speedo) - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

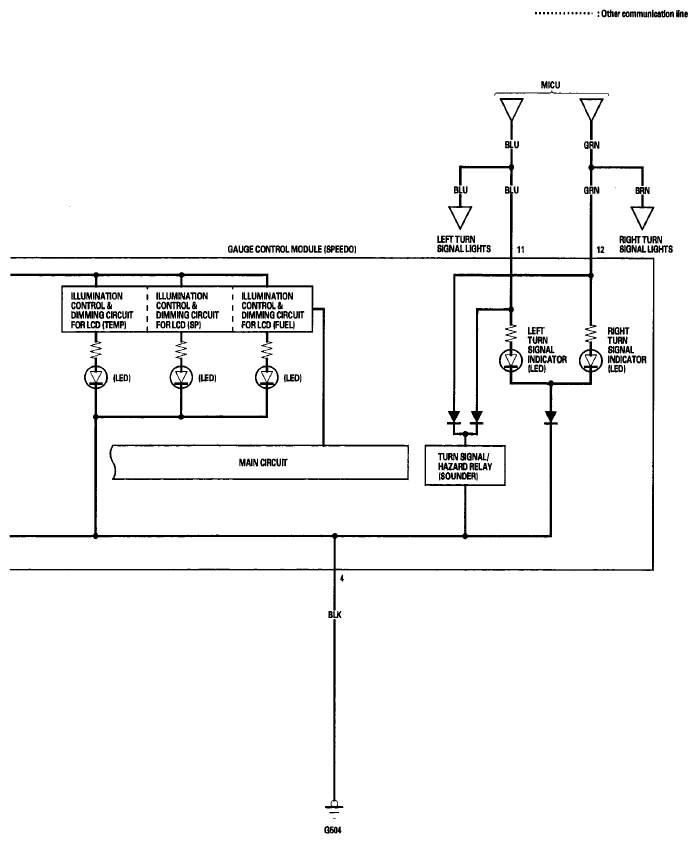

Fig 2: Gauge Control Module (Speedo) - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TYPE S model

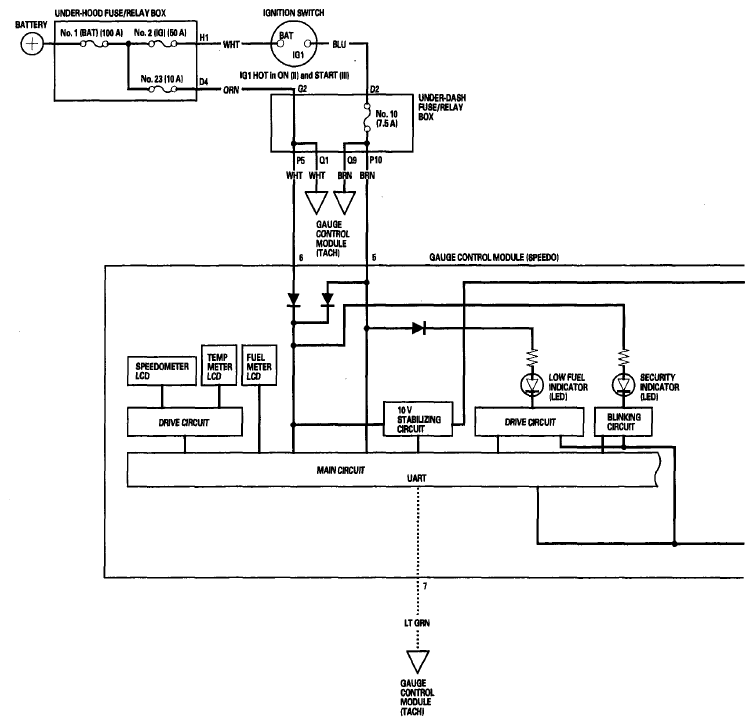

Fig 3: Gauge Control Module (Type S Model) - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Gauge Control Module (Type S Model) - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
