Turn Signal/Hazard Warning Lights
>>
Circuit Diagram
Circuit Diagram

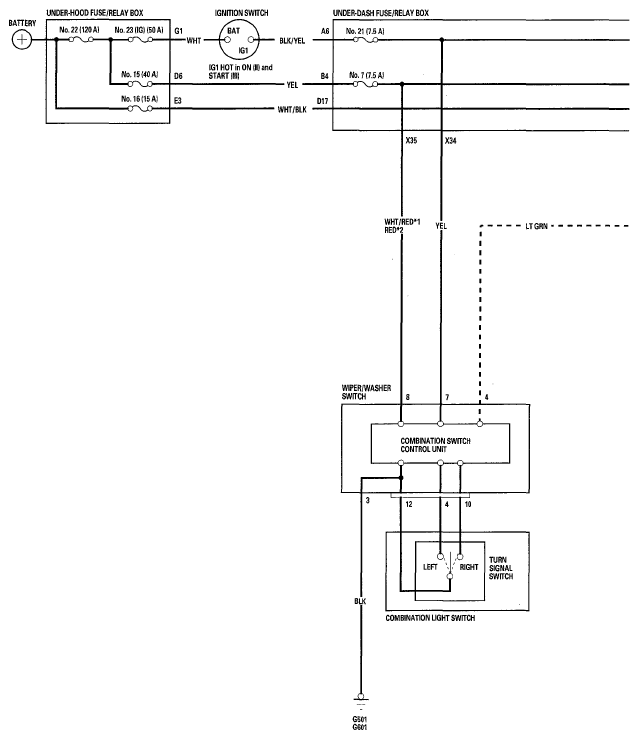

Fig 1: Turn Signal/Hazard Warning Lights - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

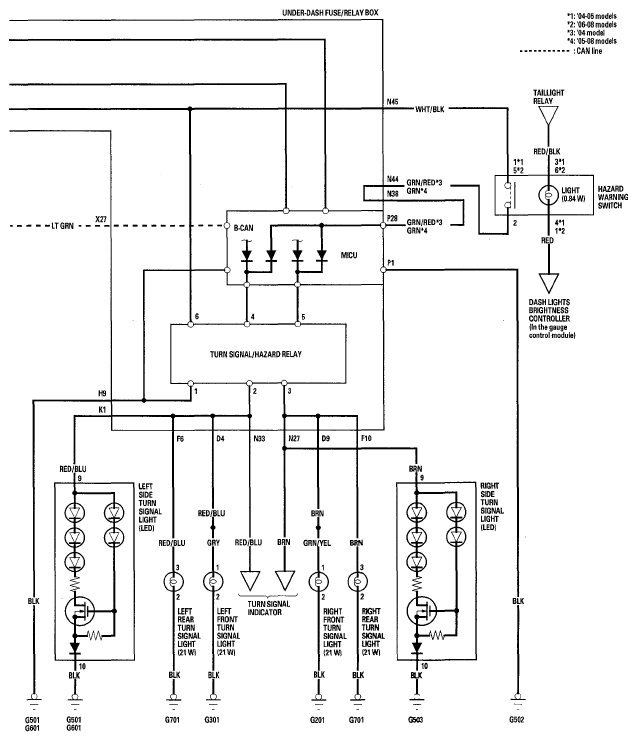

Fig 2: Turn Signal/Hazard Warning Lights - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
