Circuit Diagram - Brake Lights

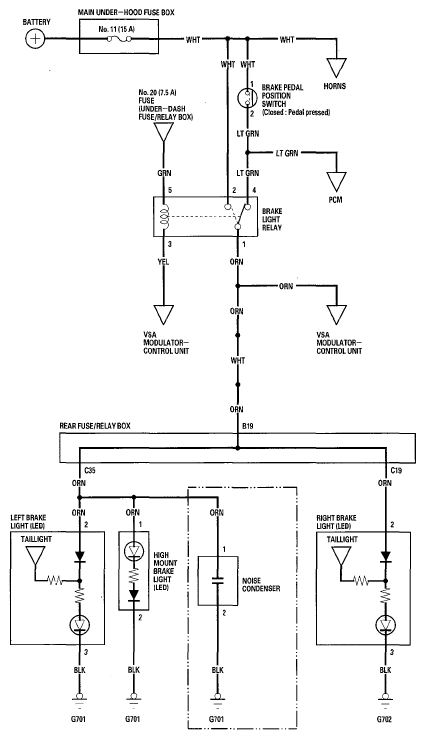

Fig 1: Brake Lights - Circuit Diagram

G05487924

Courtesy of AMERICAN HONDA MOTOR CO., INC.
