Automatic Transmission Circuit Diagram
Circuit Diagram - PCM A/T Control System

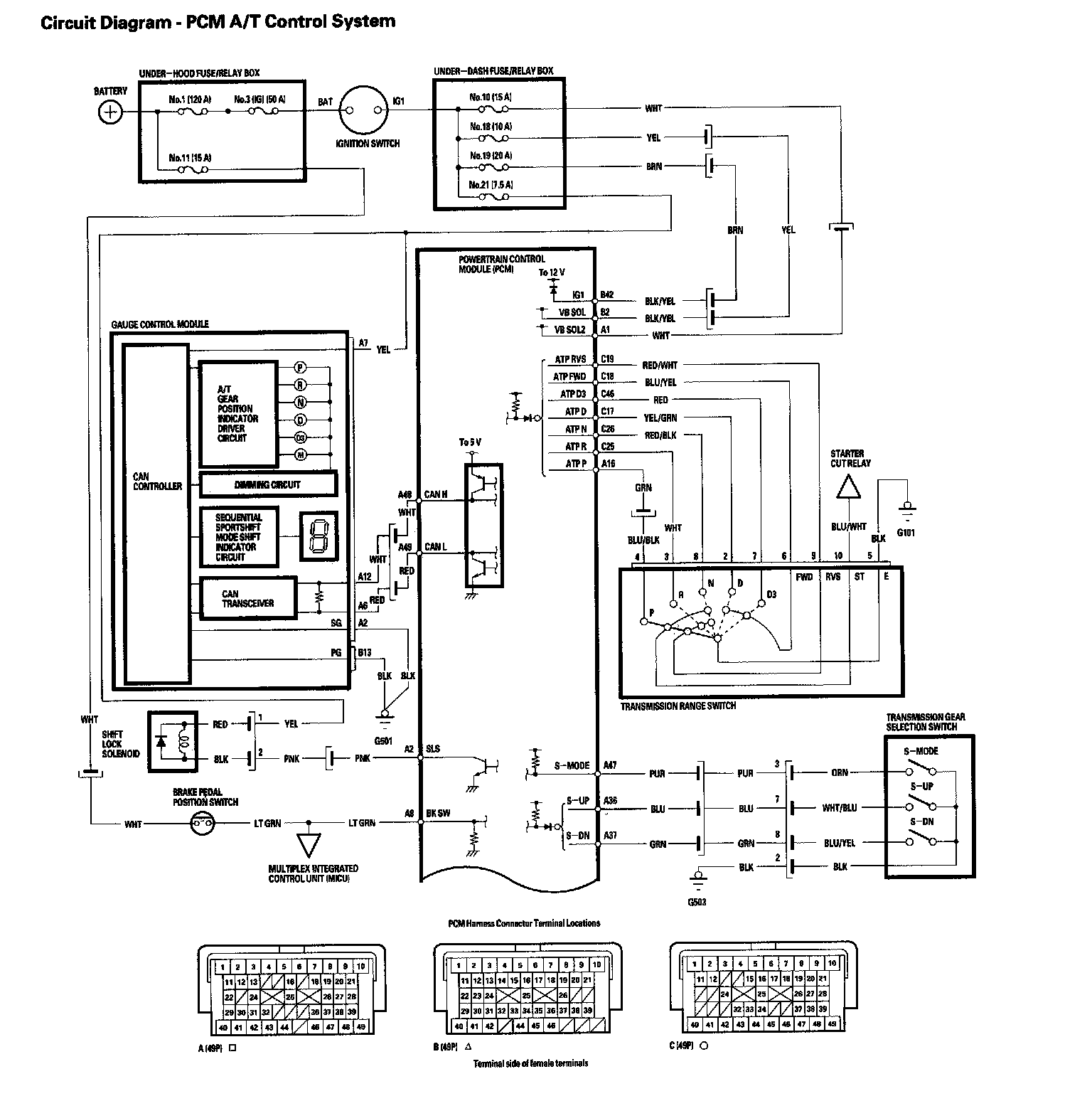

Automatic Transmission Circuit Diagram (Part 1):

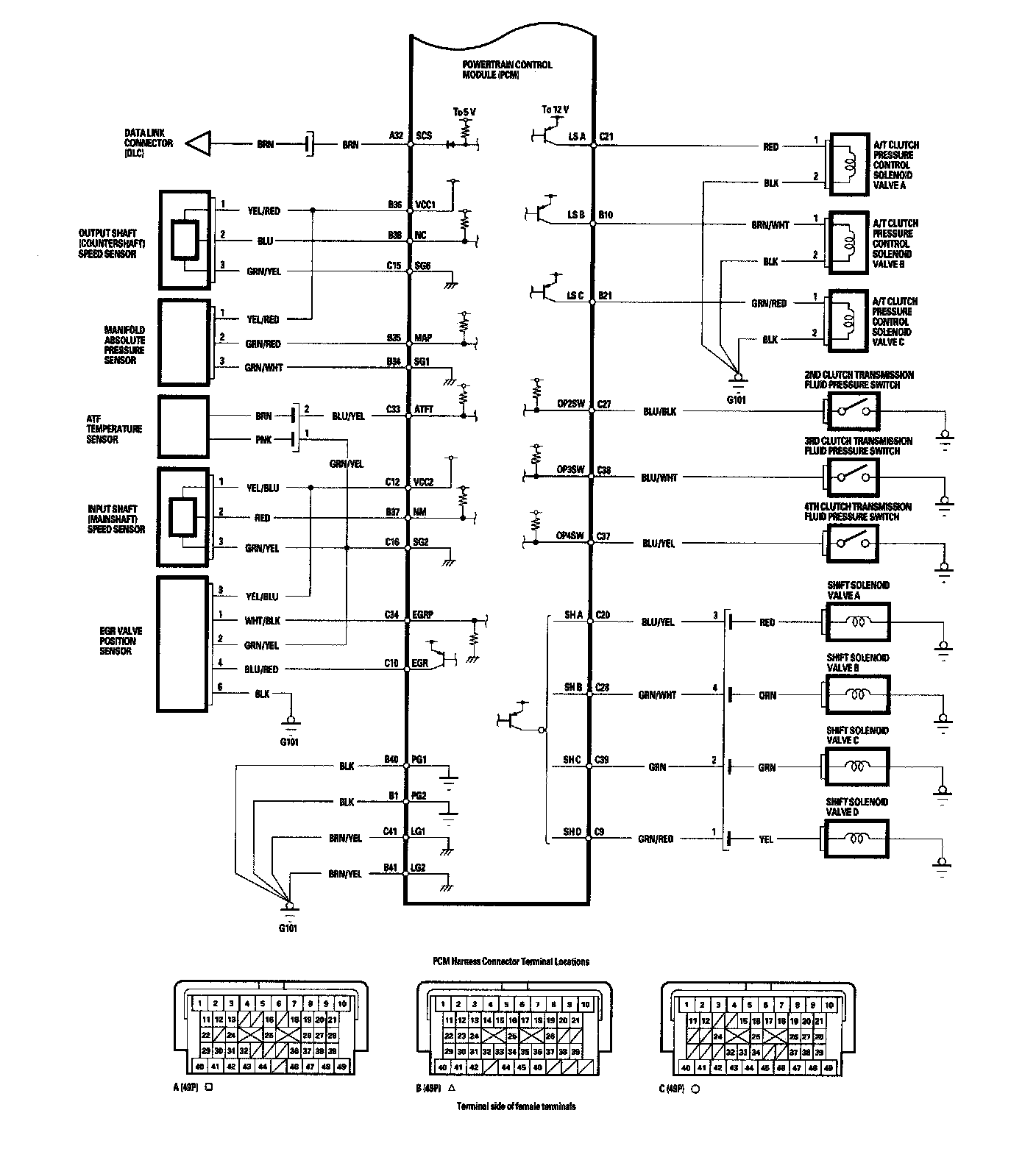

Automatic Transmission Circuit Diagram (Part 2):
