A/T Gear Position Indicator Circuit Diagram
A/T Gear Position Indicator Circuit Diagram
A/T Gear Position Indicator Circuit Diagram

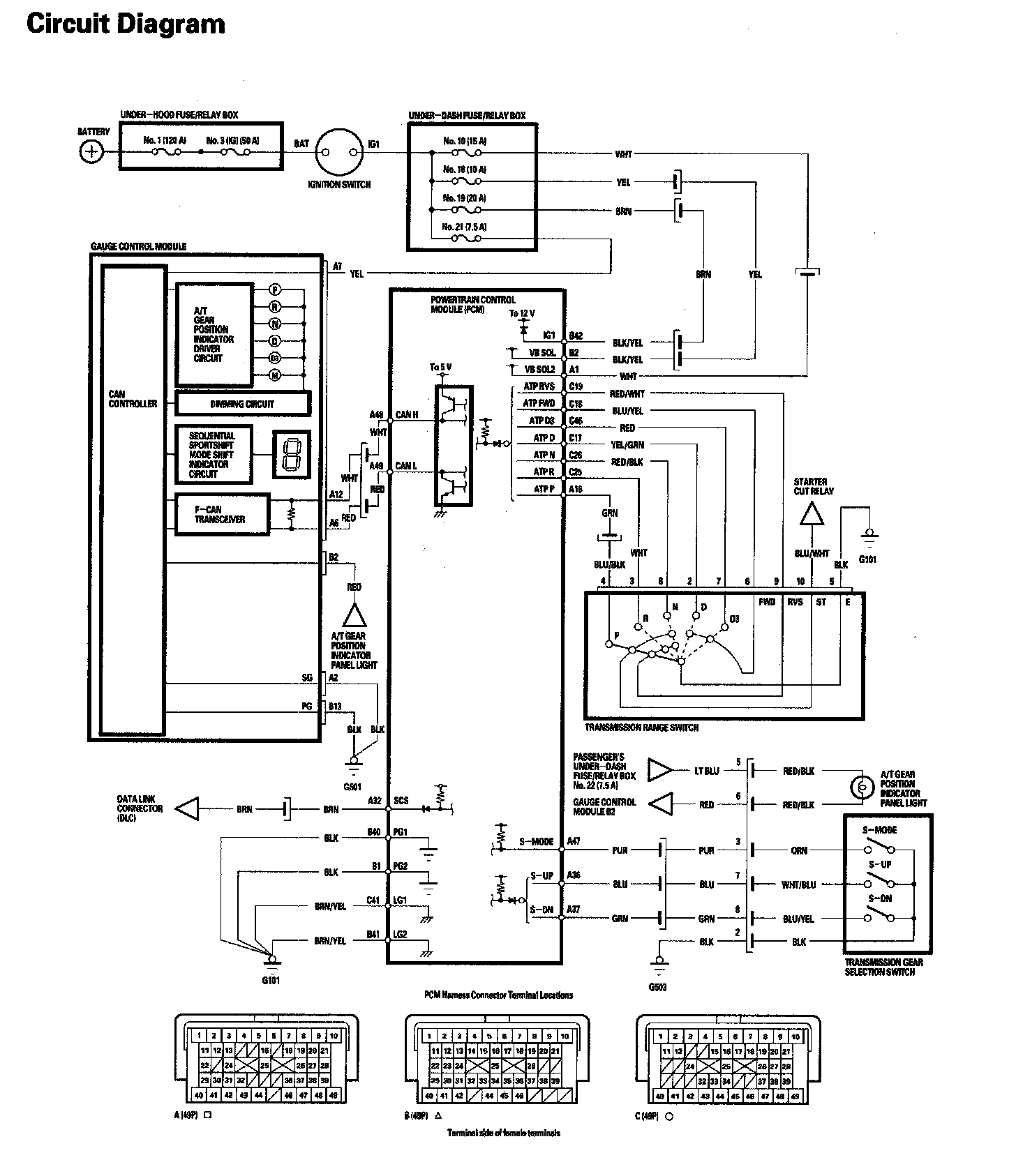

A/T Gear Position Indicator Circuit Diagram:
