Home >> Acura >> 2008 >> MDX V6-3.7L >> Repair and Diagnosis >> Steering and Suspension >> Relays and Modules - Steering and Suspension >> Relays and Modules - Suspension >> Suspension Control Module >> Testing and Inspection

Suspension Control Module: Testing and Inspection

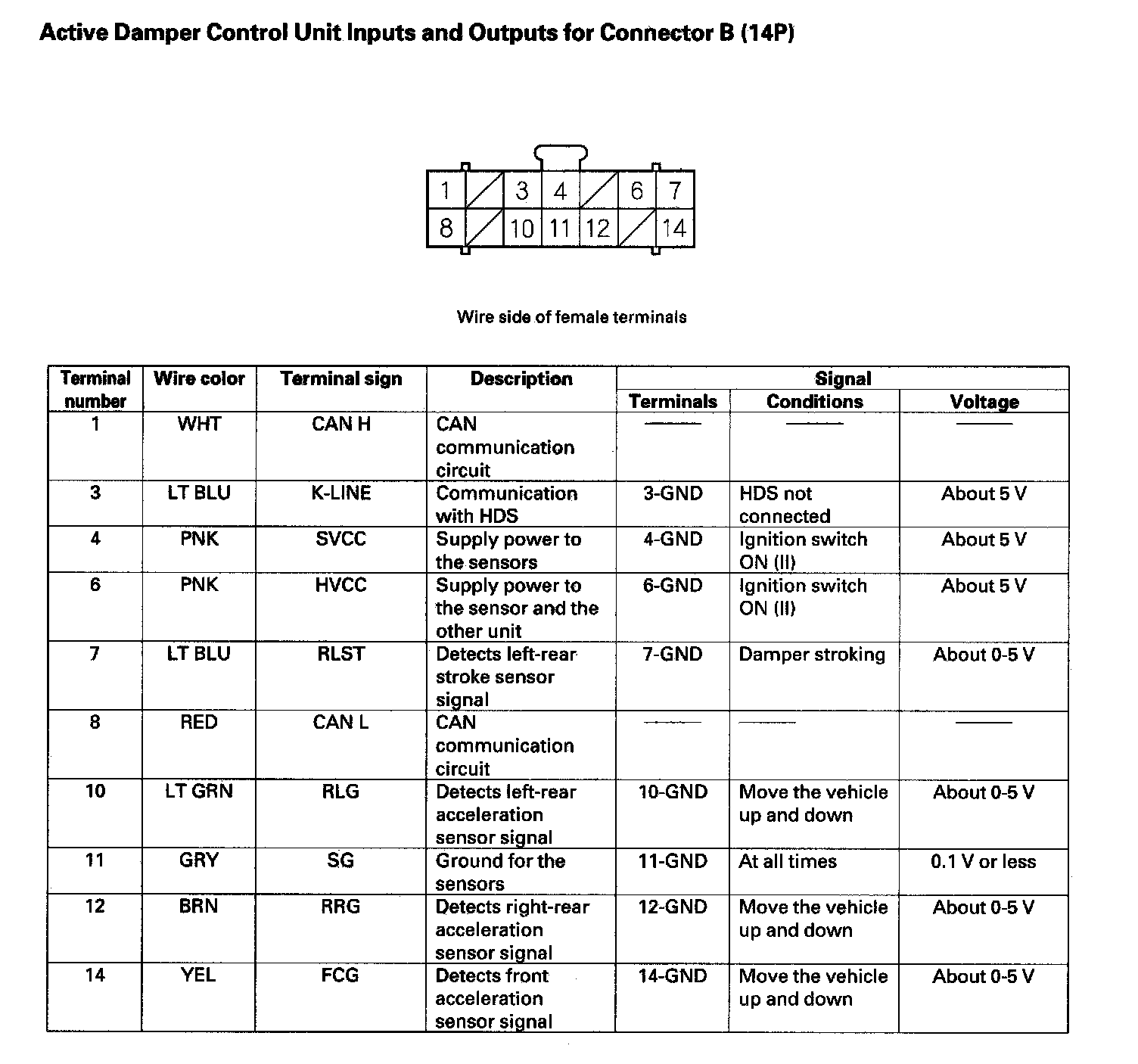

Active Damper Control Unit Inputs And Outputs:

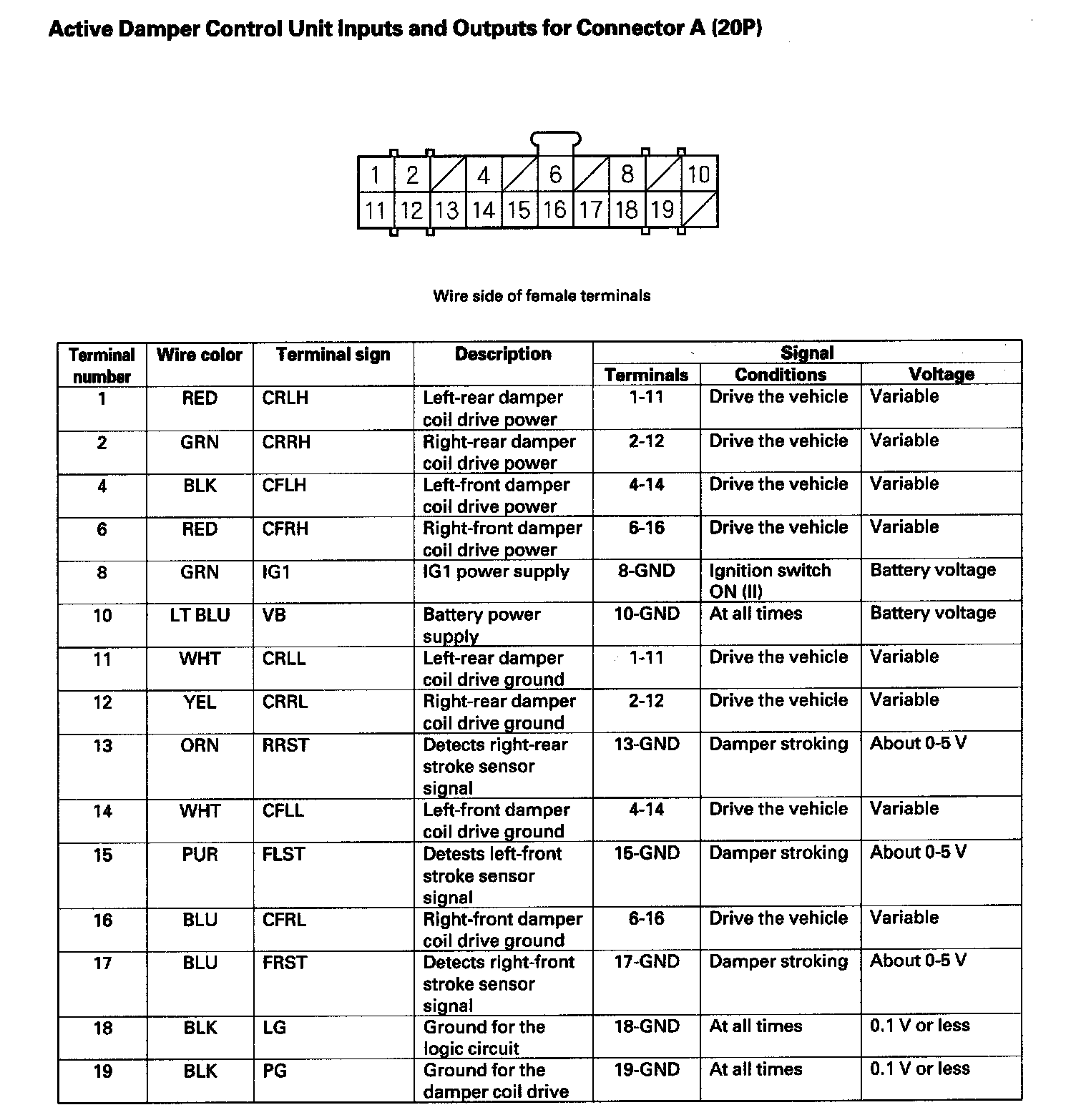

Active Damper Control Unit Inputs And Outputs:
