Standards and Service Limits

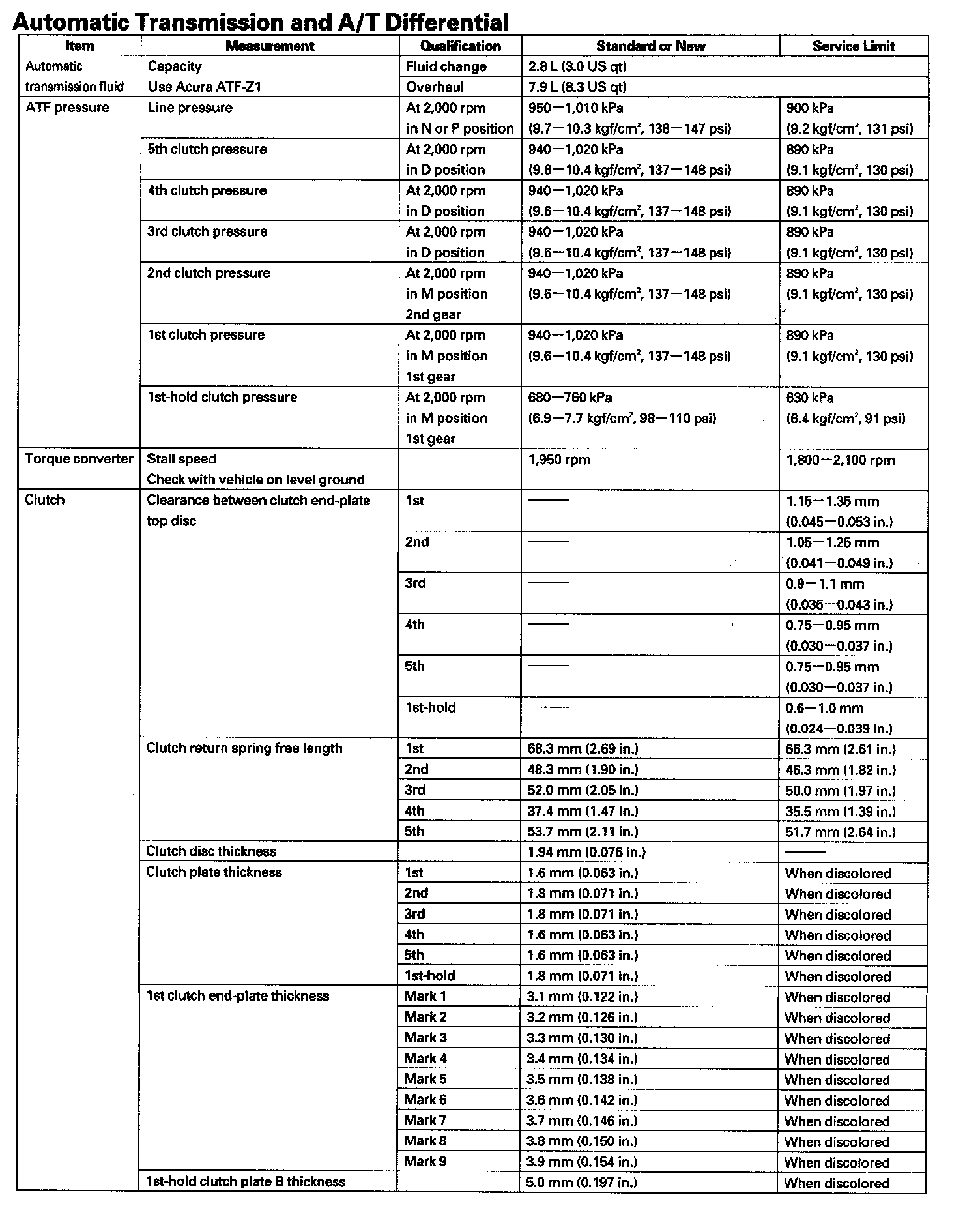

Automatic Transmission and A/T Differential (Part 1):



Automatic Transmission and A/T Differential (Part 2):



Automatic Transmission and A/T Differential (Part 3):



Automatic Transmission and A/T Differential (Part 4):



Automatic Transmission and A/T Differential (Part 5):



Automatic Transmission and A/T Differential (Part 6):



Automatic Transmission and A/T Differential (Part 7):



Automatic Transmission and A/T Differential (Part 8):



Automatic Transmission and A/T Differential (Part 9):
