Roof Subharness
Roof Subharness

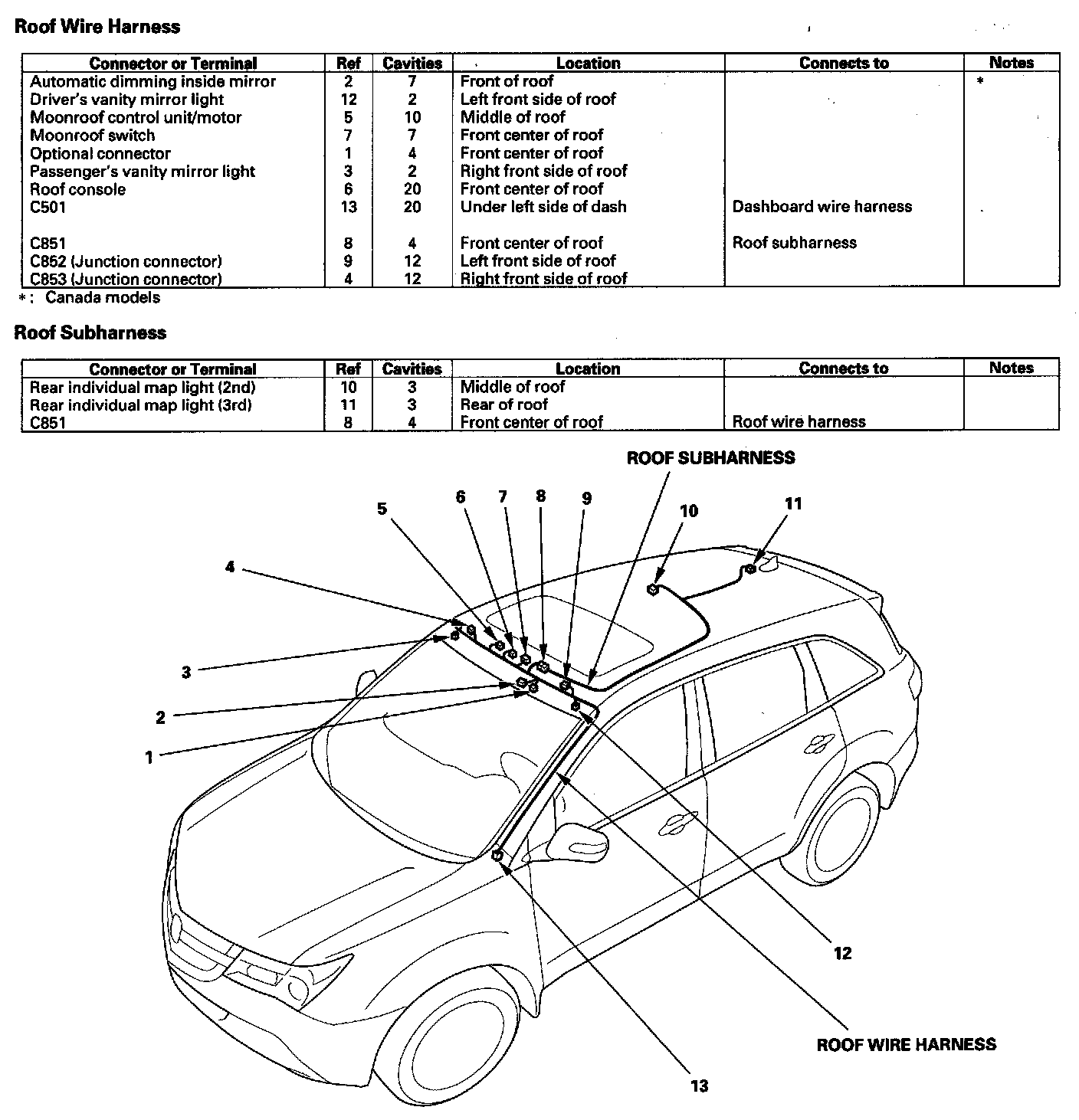

Roof Wire Harness/Roof Subharness:

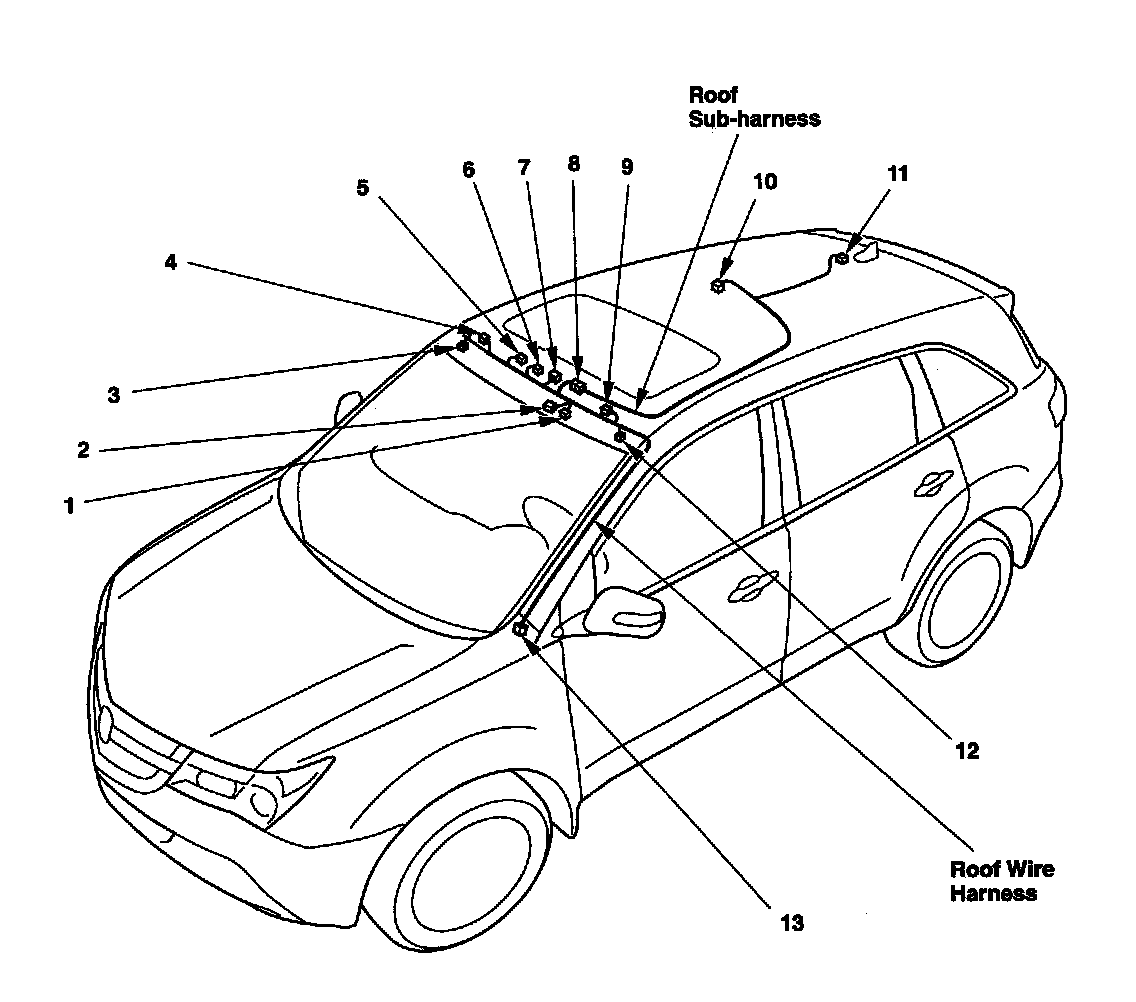

Harness Location View:

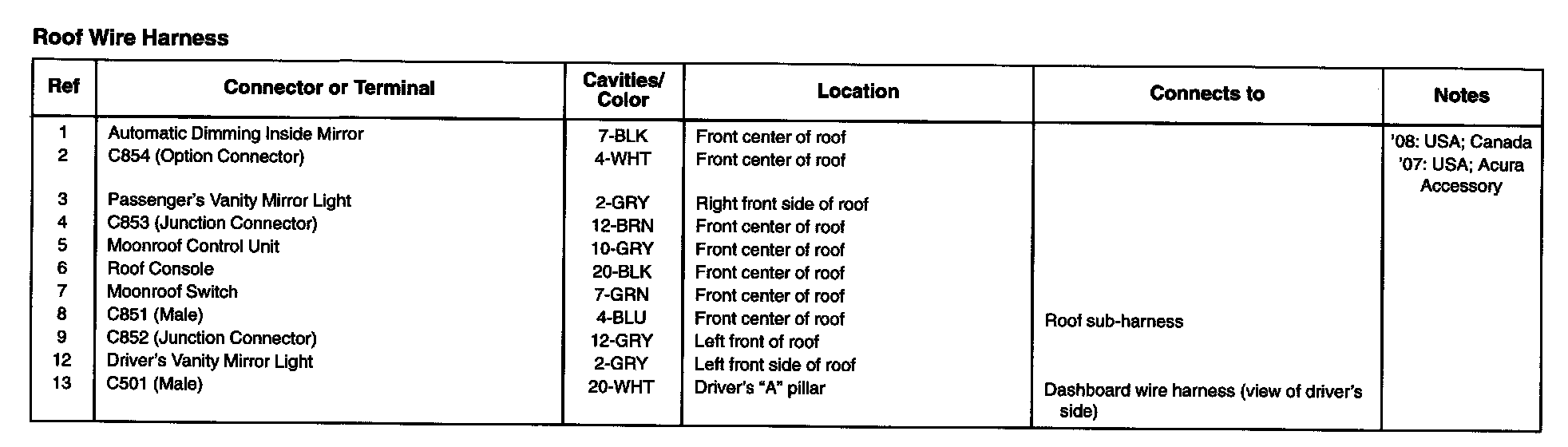

Roof Wire Harness:
