Front Passenger's Power Seat Wire Harness
Front Passenger's Power Seat Wire Harness

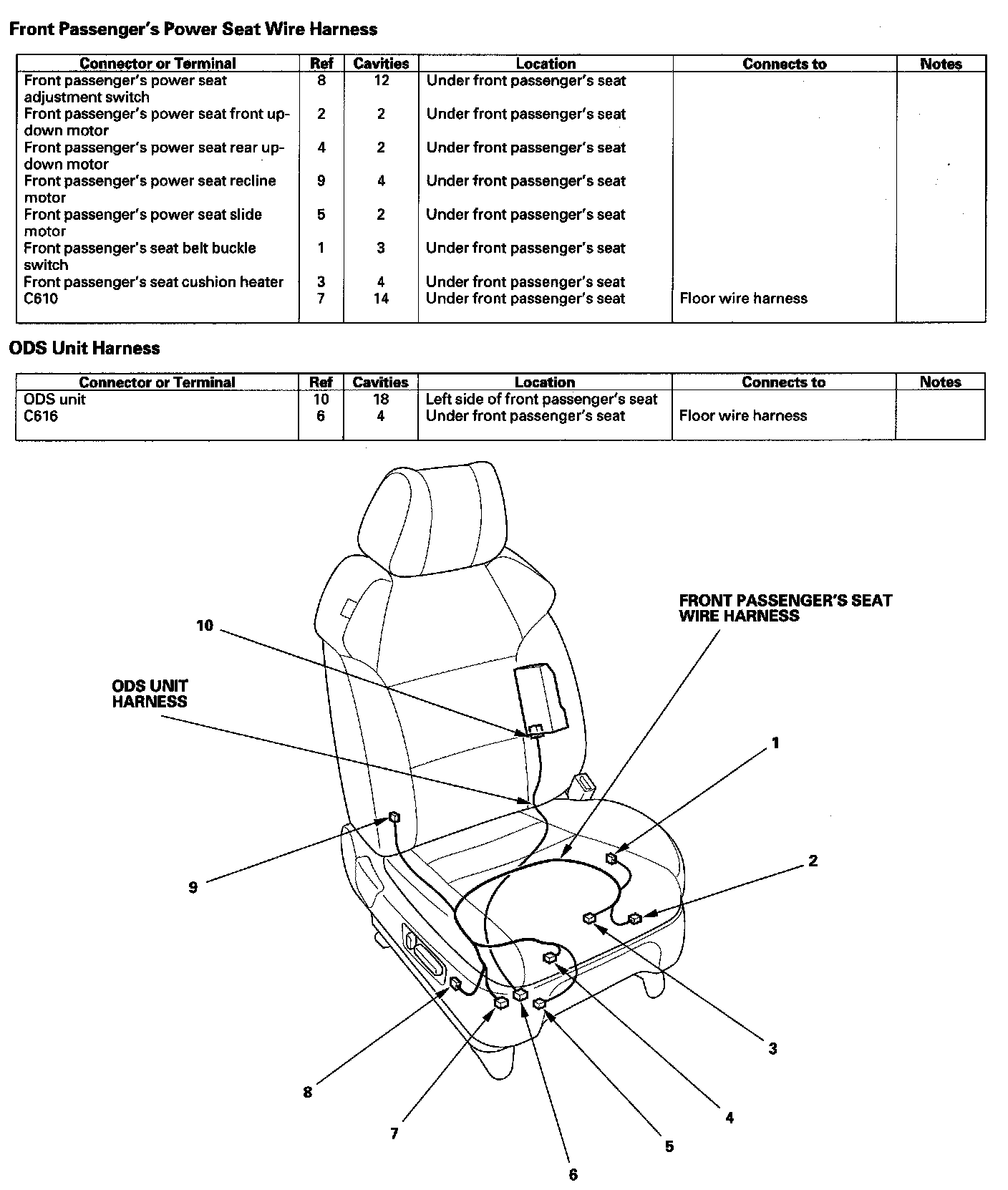

Front Passenger's Power Seat Wire Harness/ODS Unit Harness:

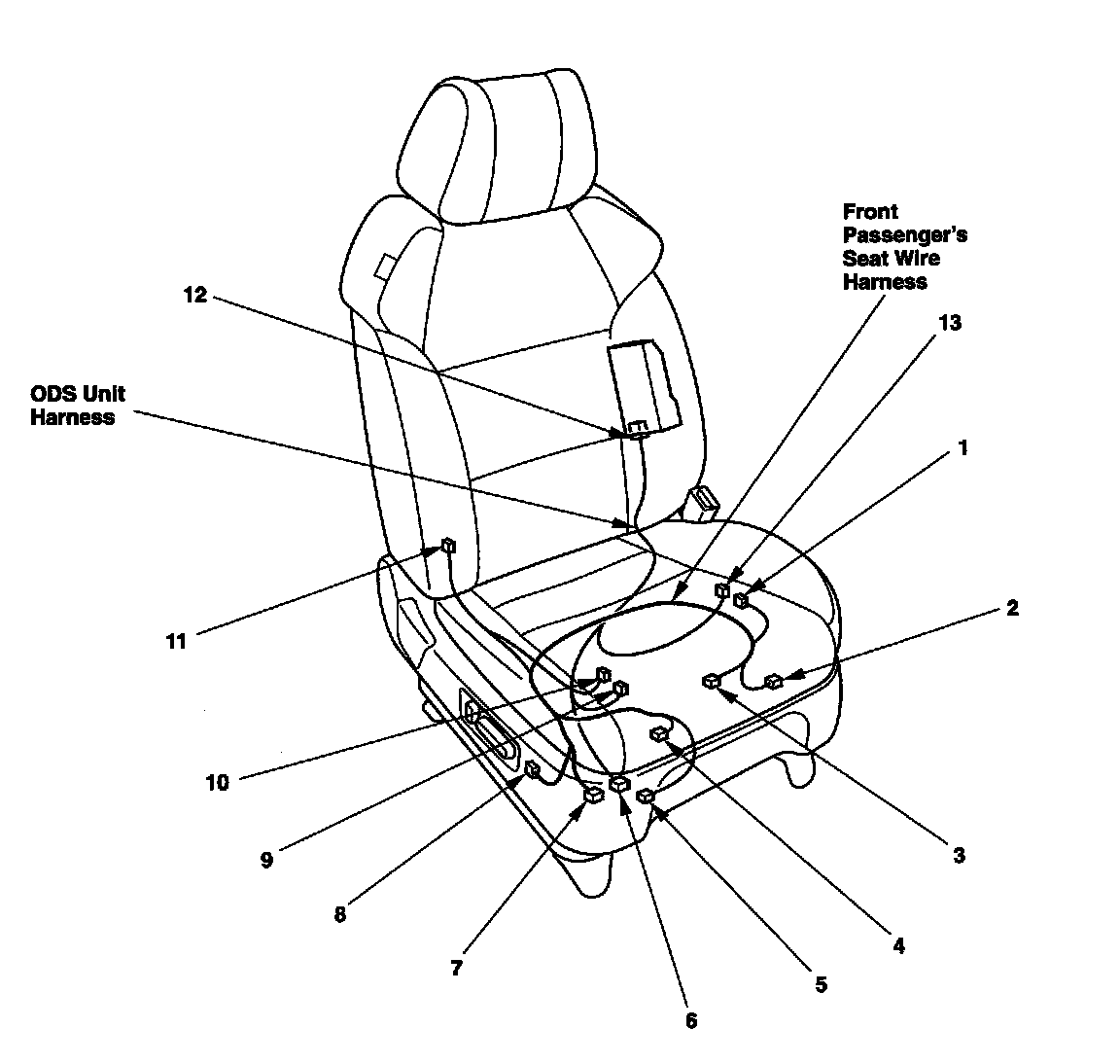

Harness Location View:
ODS Unit Harness:
