Home >> Acura >> 2008 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Dashboard Wire Harness (View of Passenger's Side) >> Connectors and Harnesses

Connectors and Harnesses

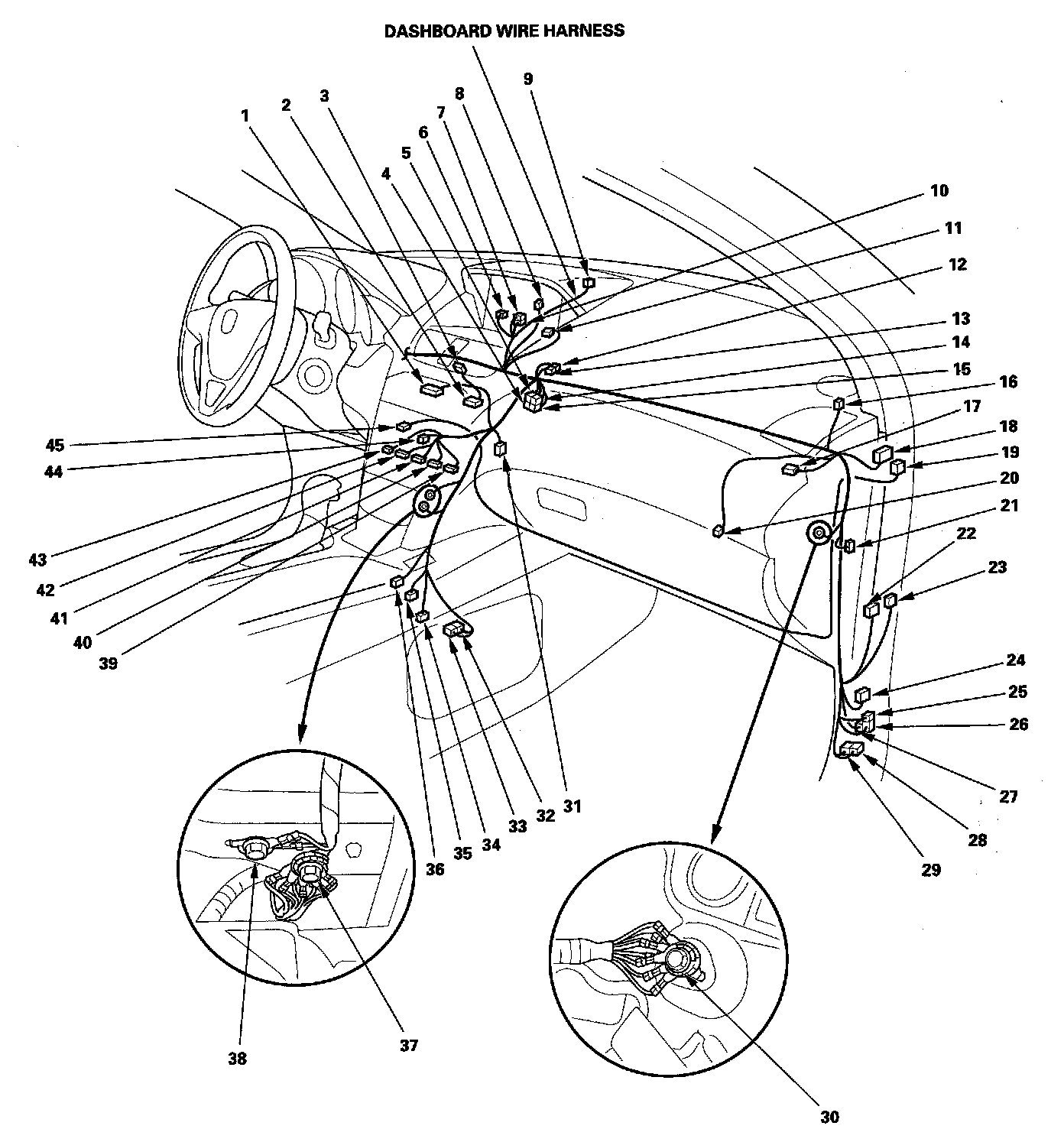

Harness Location View:

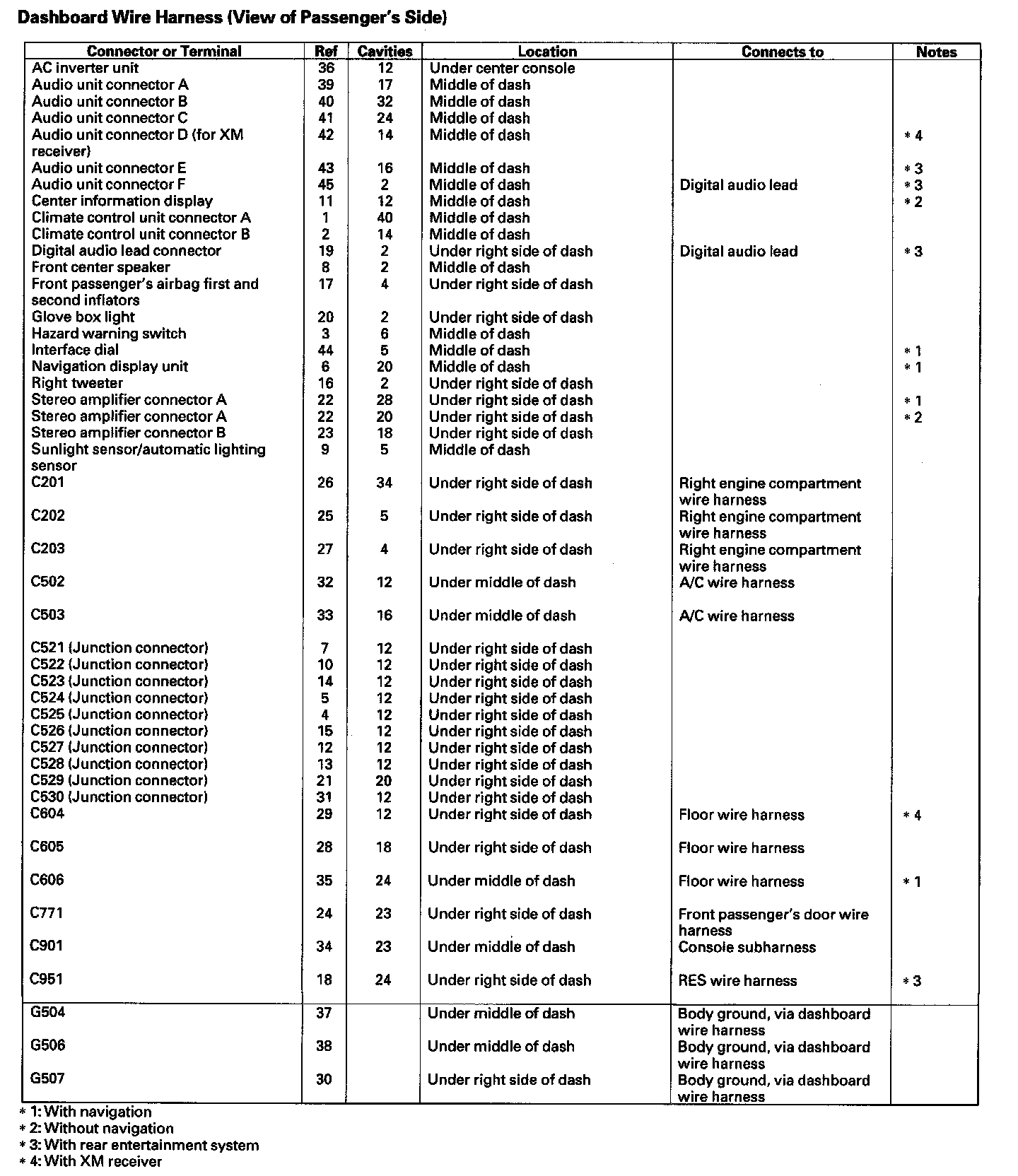

Dashboard Wire Harness (View Of Passenger's Side):
