Part 2 of 2

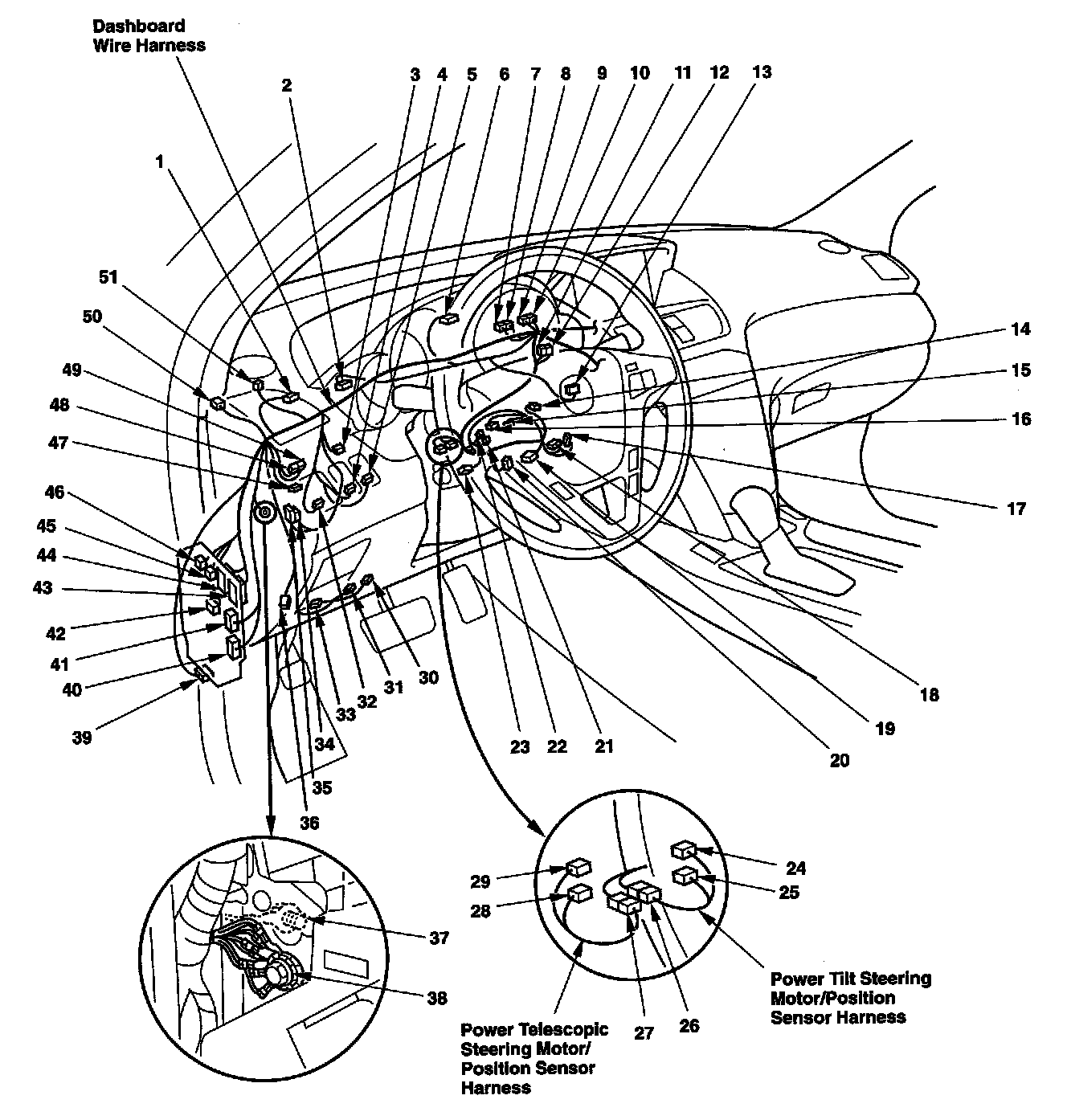

Harness Location View:

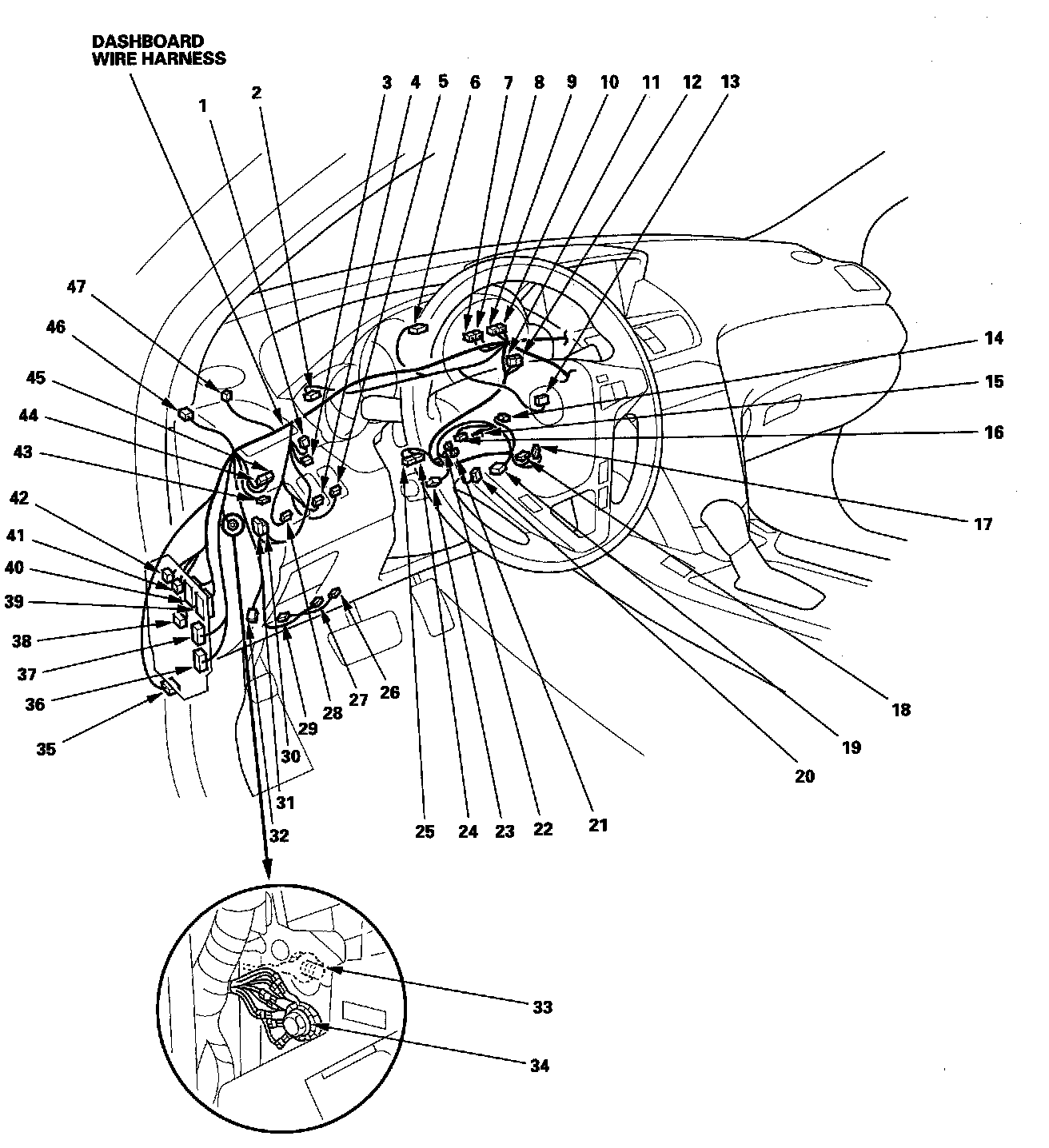

Harness Location View:

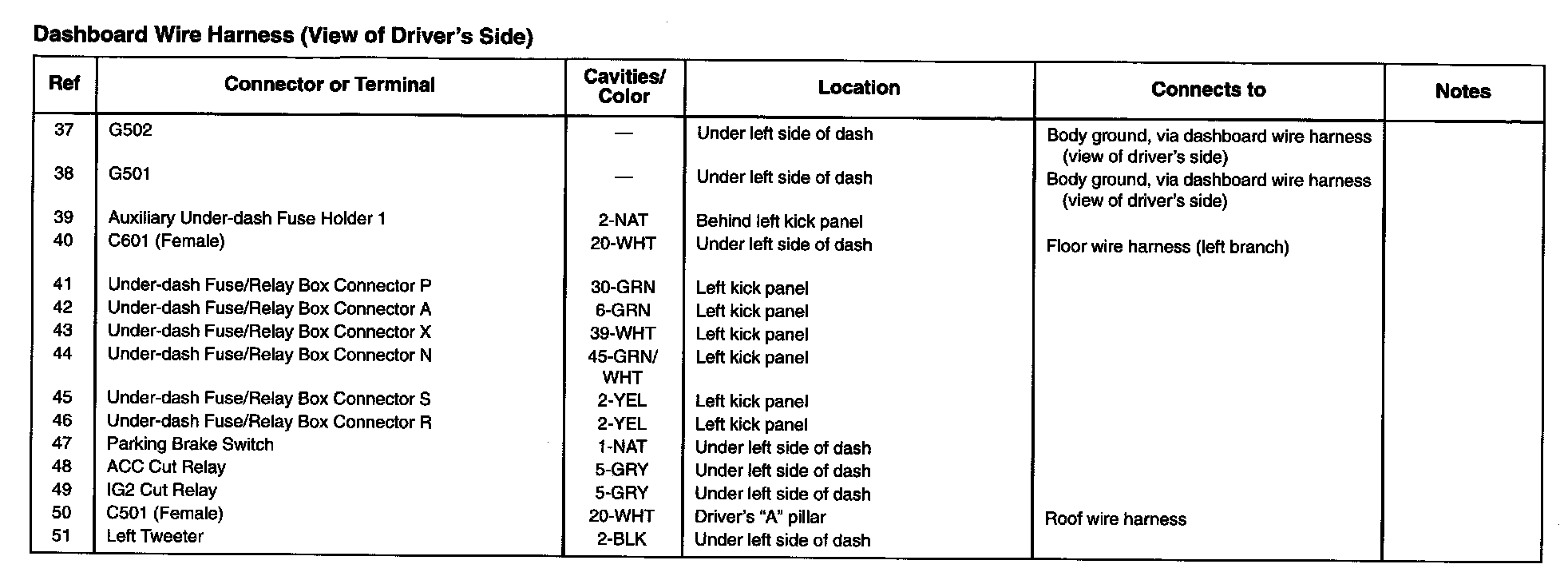

Dashboard Wire Harness (View Of Driver's Side):

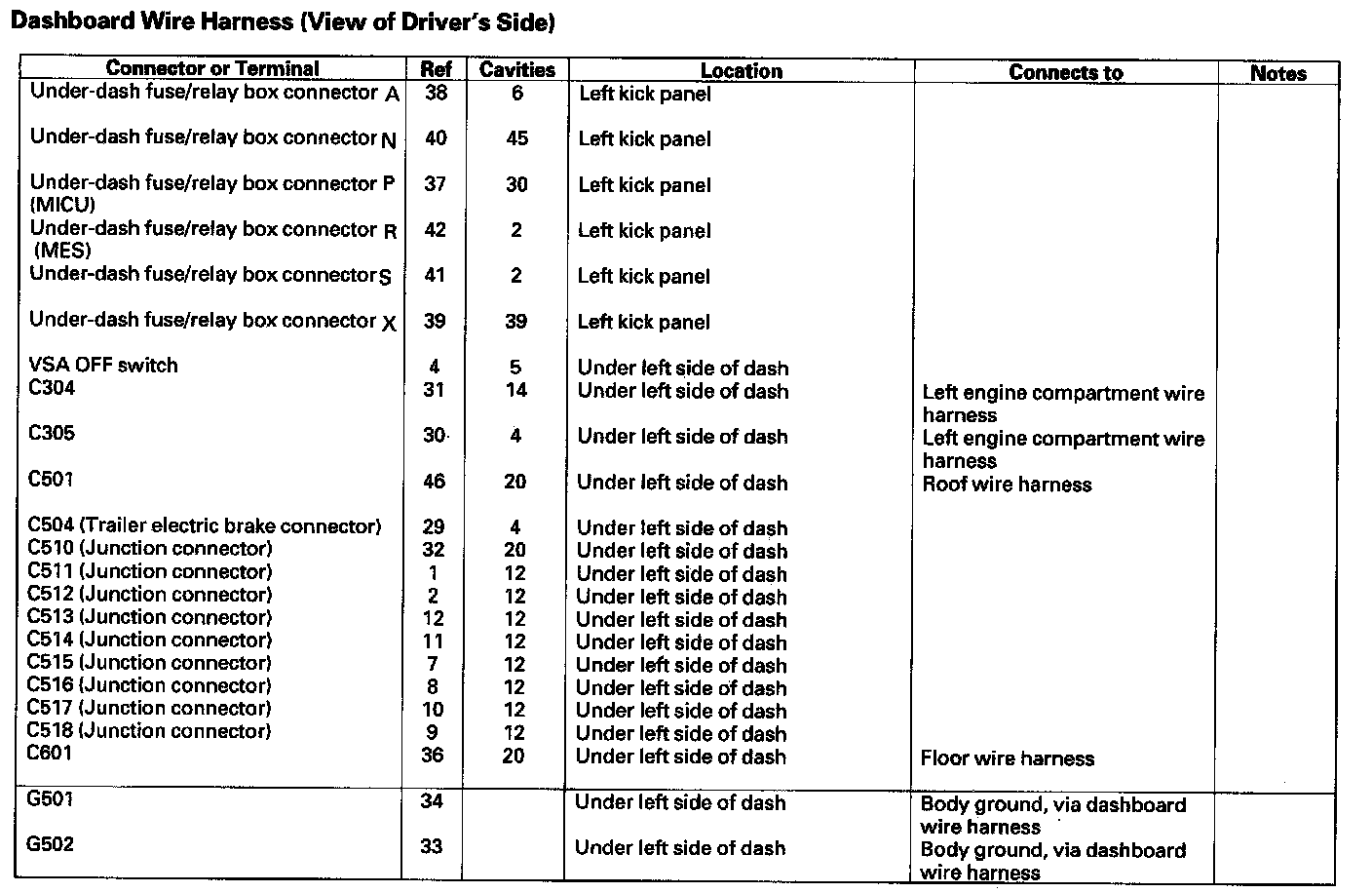

Dashboard Wire Harness (View Of Driver's Side):
