Home
>>
Acura
>>
2008
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connector Location By Connector Number
>>
C702-C951
>>

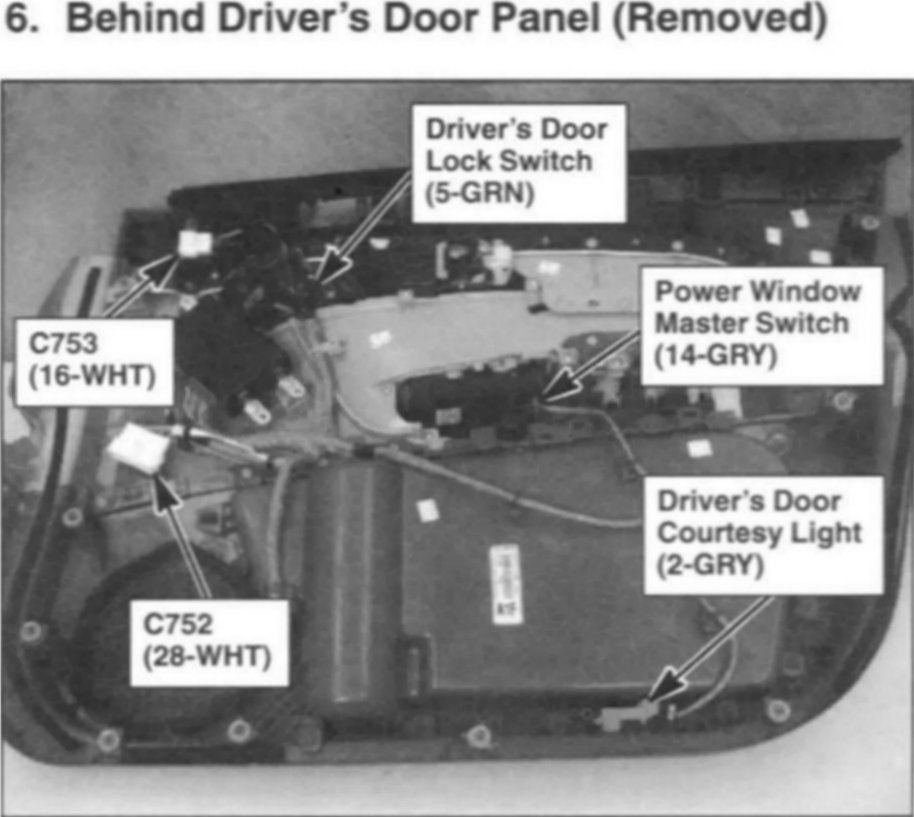

C753
C753

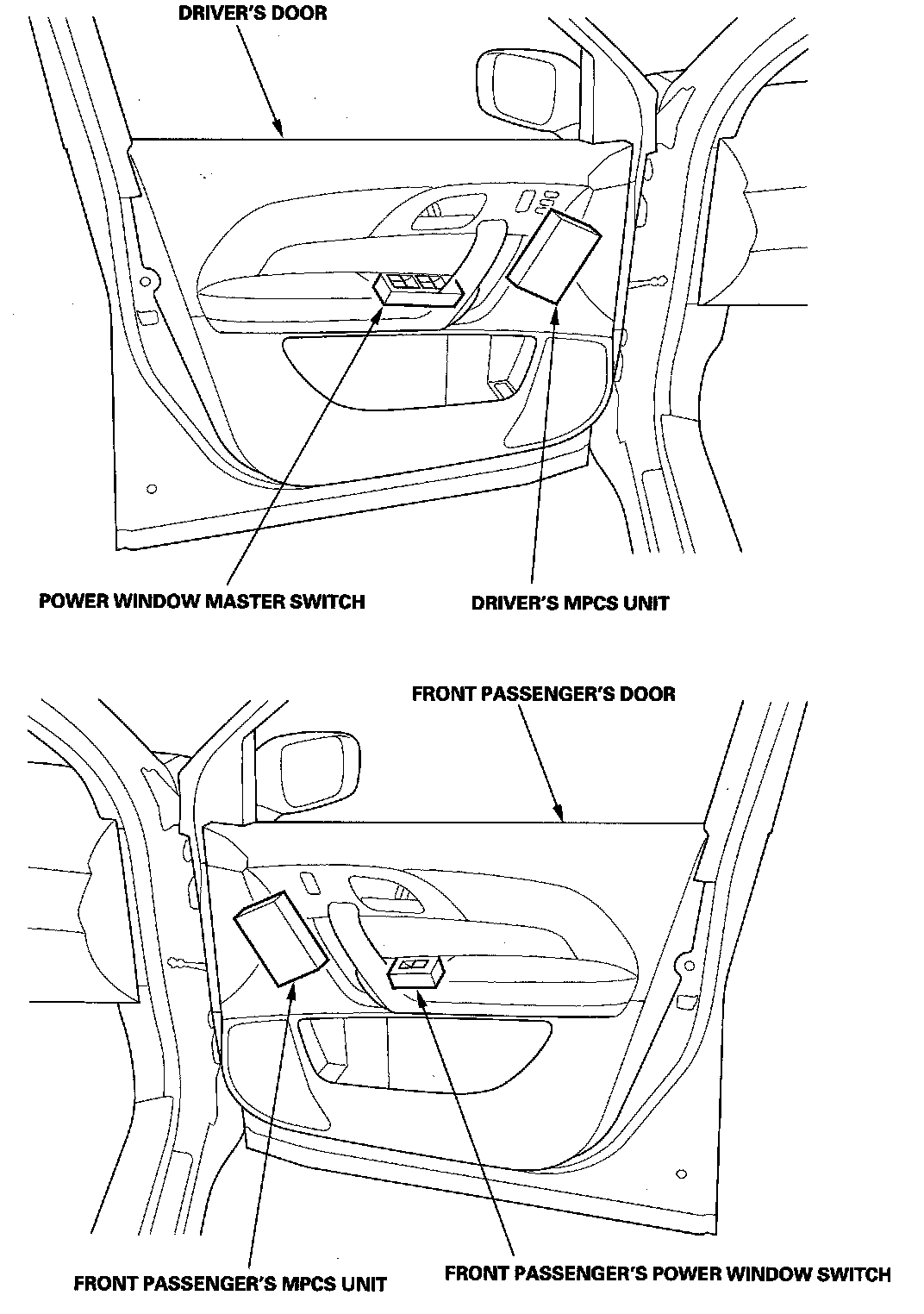

Power Windows Component Location Index:
Power Windows Component Location Index:

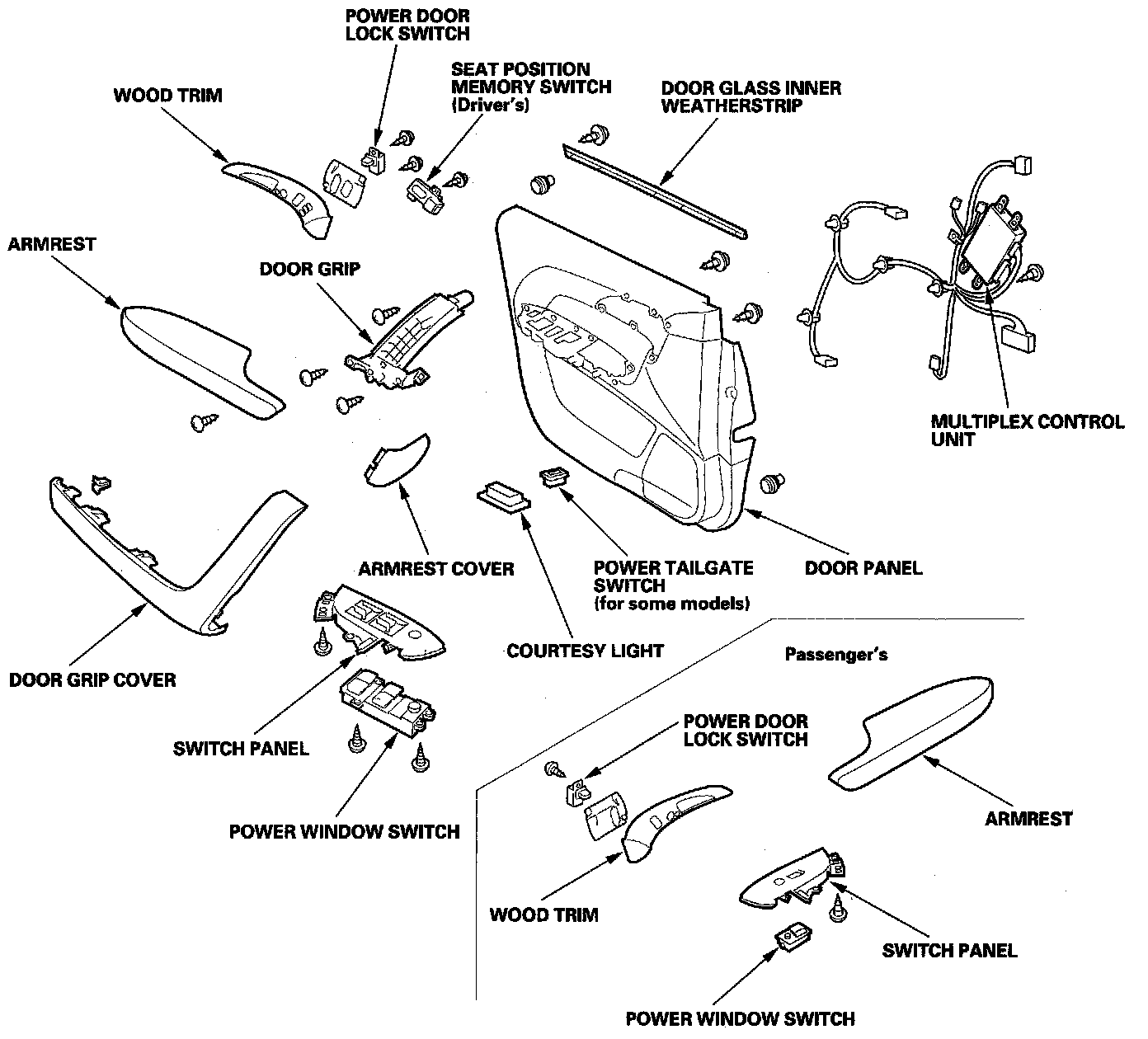

Front Door Component Location Index (Part 1):

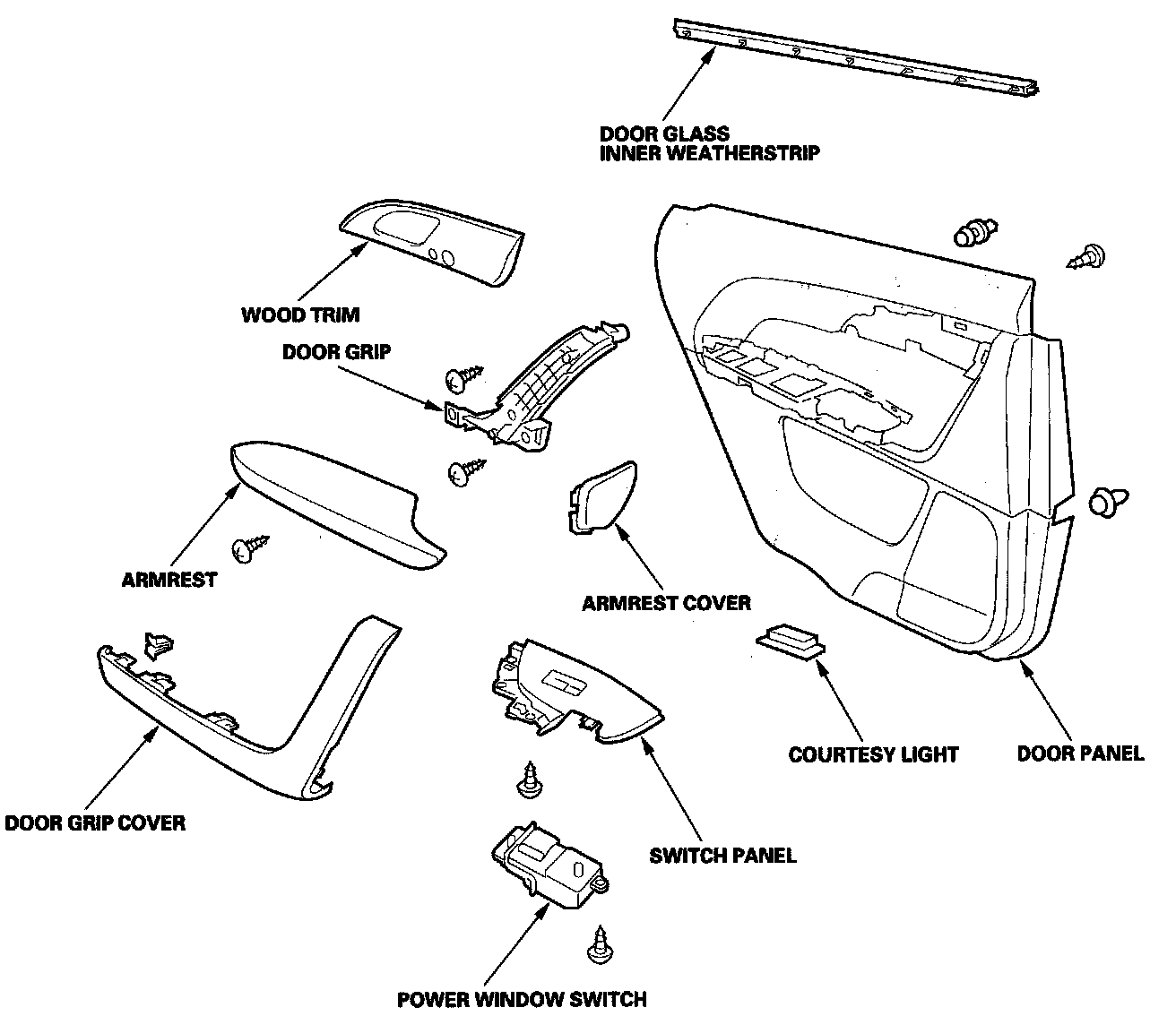

Rear Door Component Location Index (Part 1):
