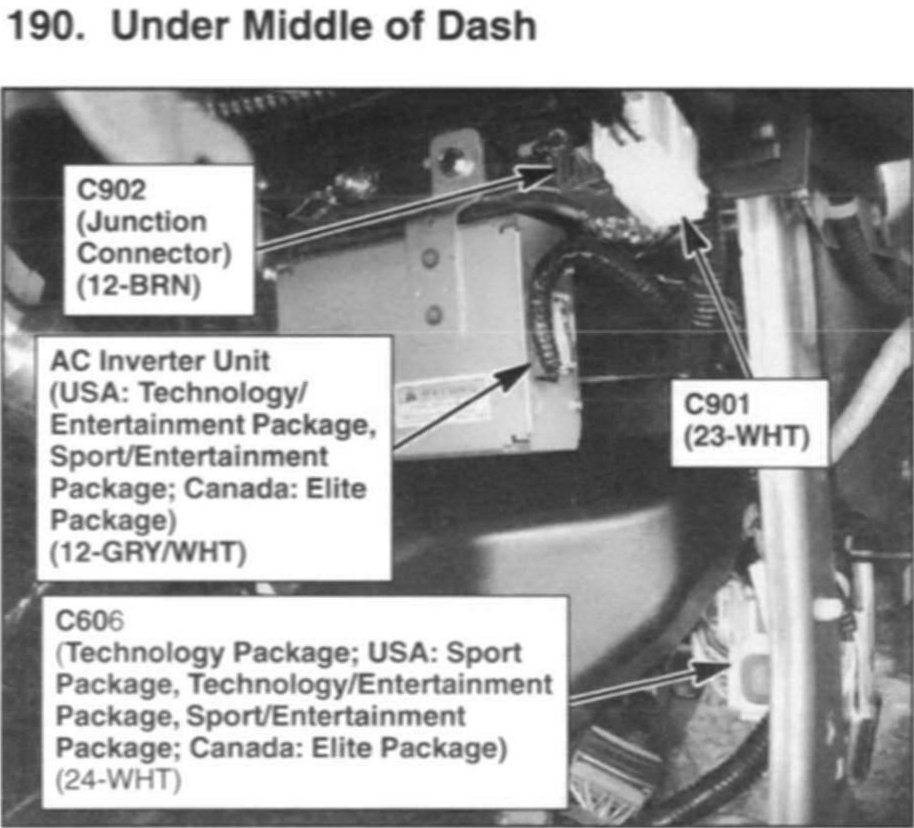

190. Under Middle of Dash

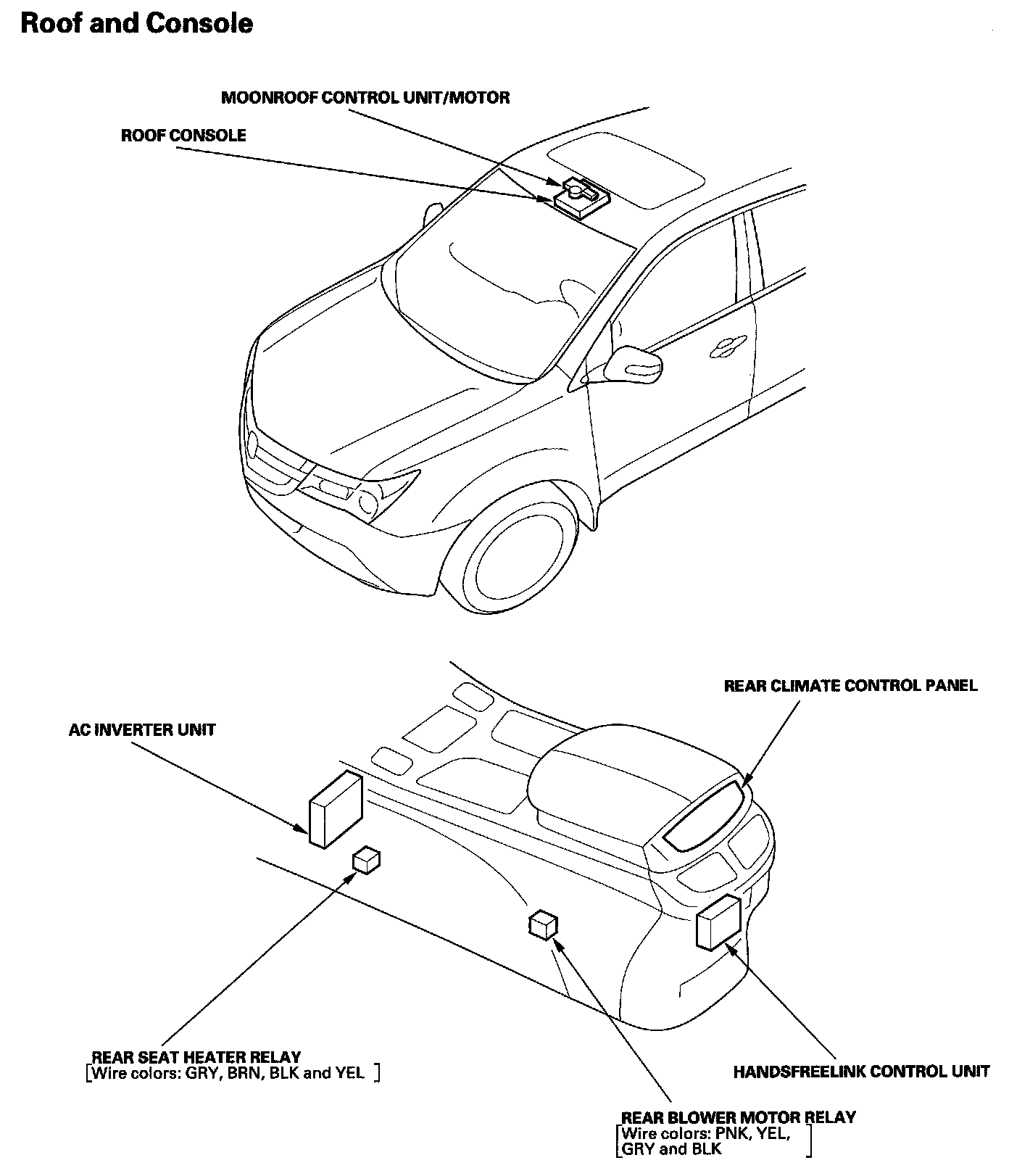

Relay and Control Unit Locations Roof and Console:

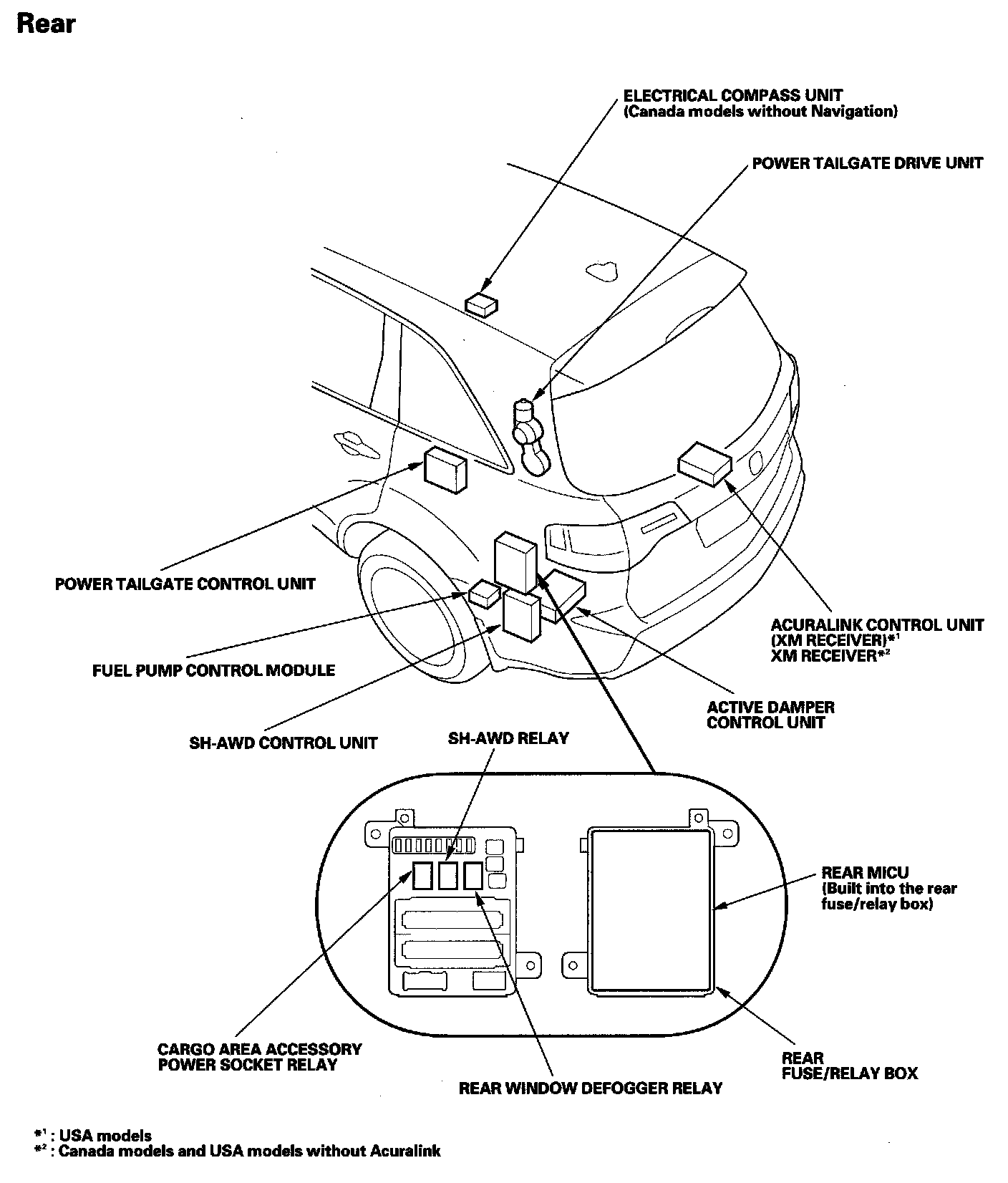

Relay and Control Unit Locations Rear:

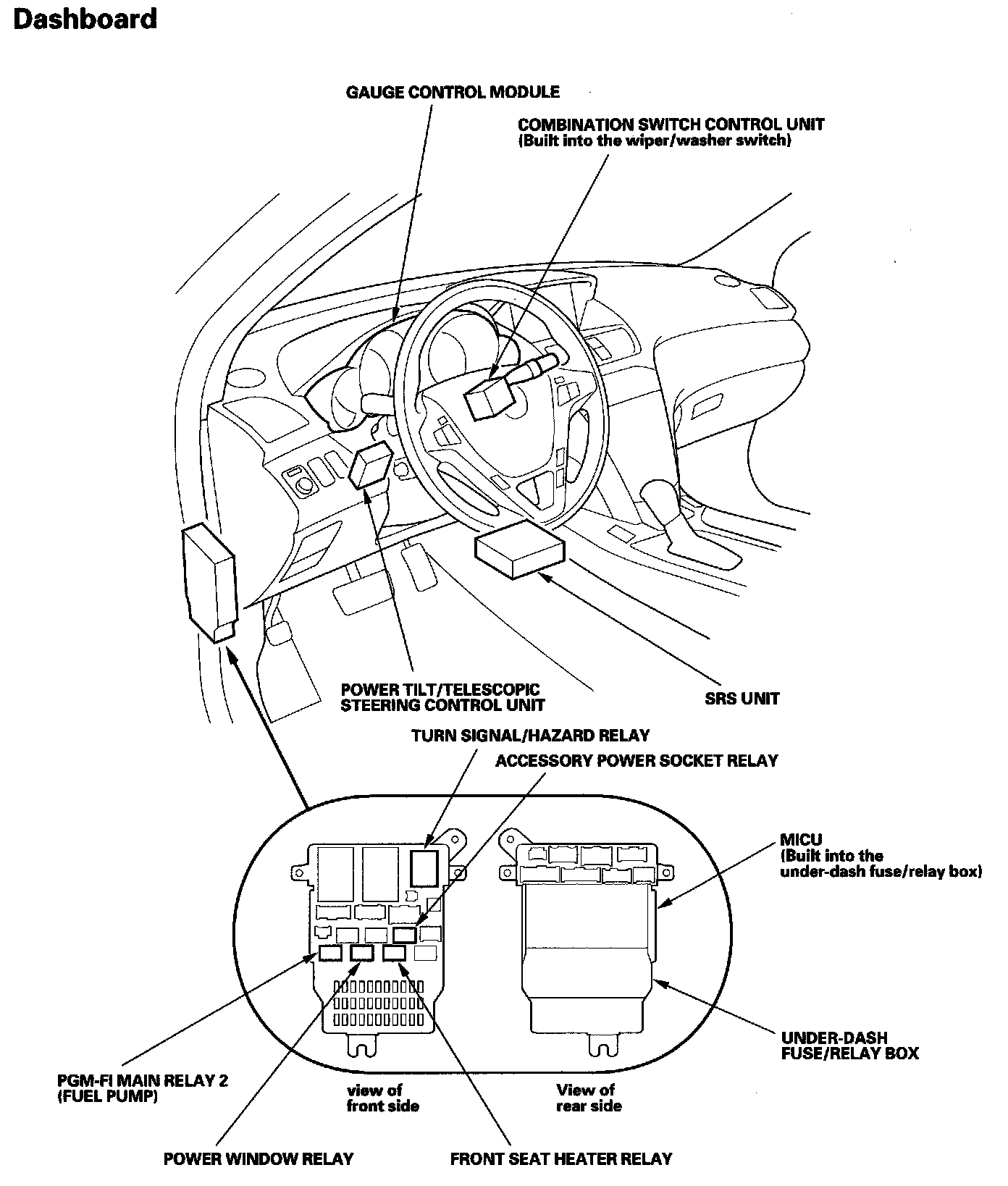

Relay and Control Unit Locations Dashboard:

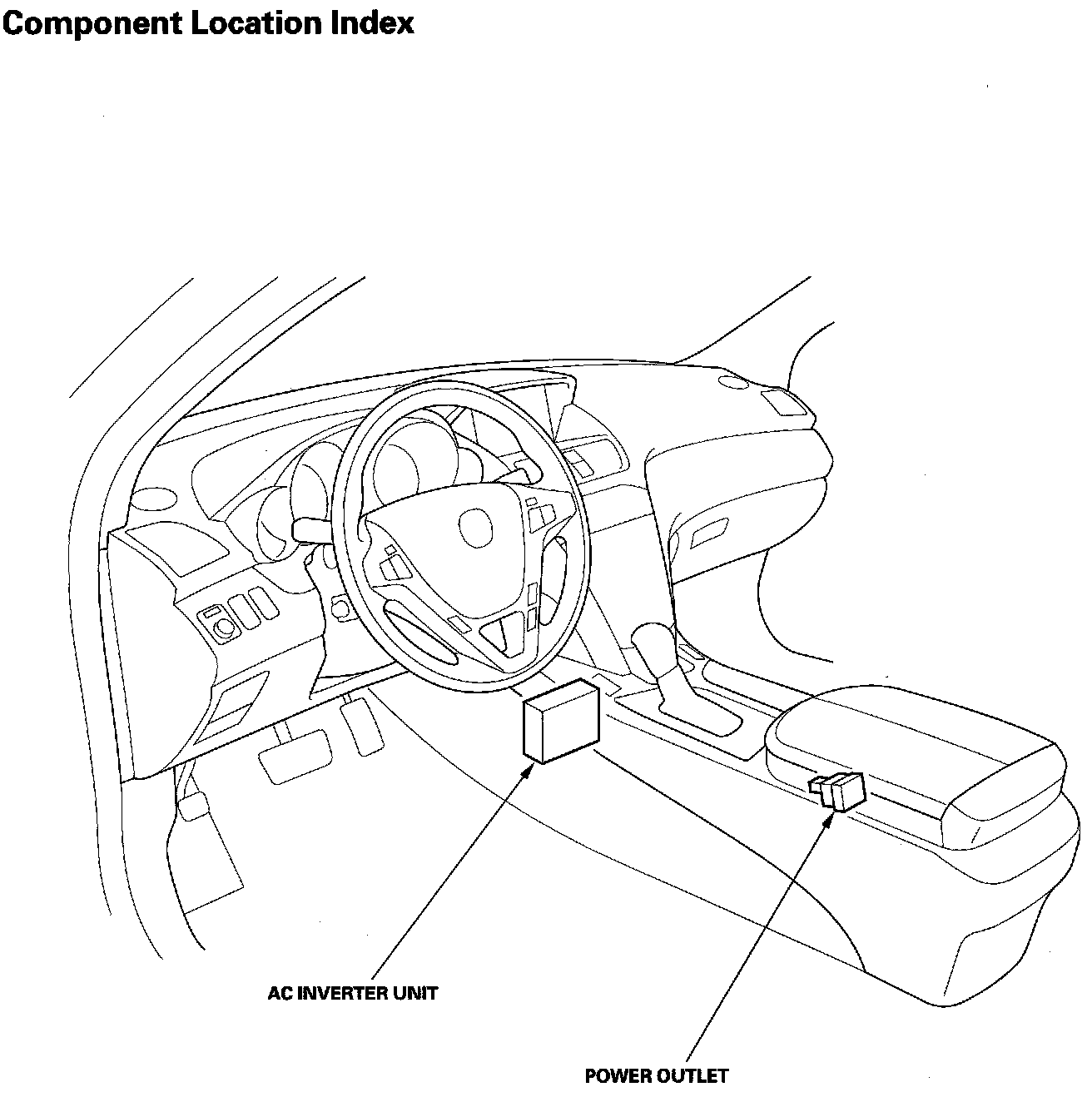

AC Power Outlet Component Location Index:
