Acura
>>
2008
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Locations By Photo Number
>>
Location Photos 151-175
>>

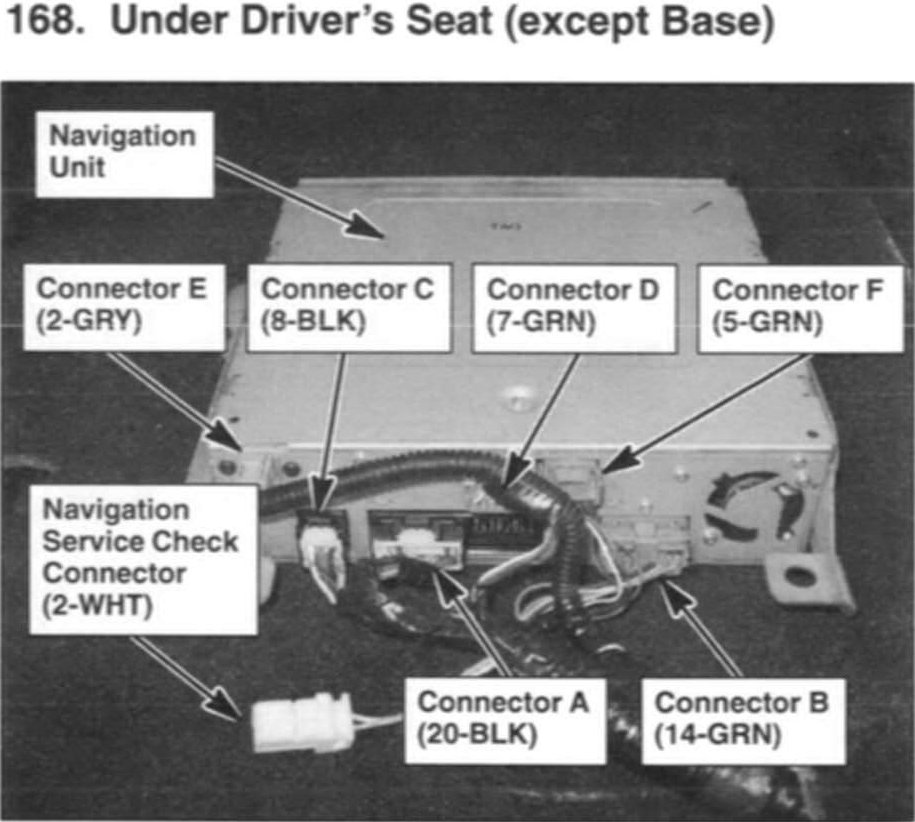

168. Under Driver's Seat (except Base)
168. Under Driver's Seat (except Base)

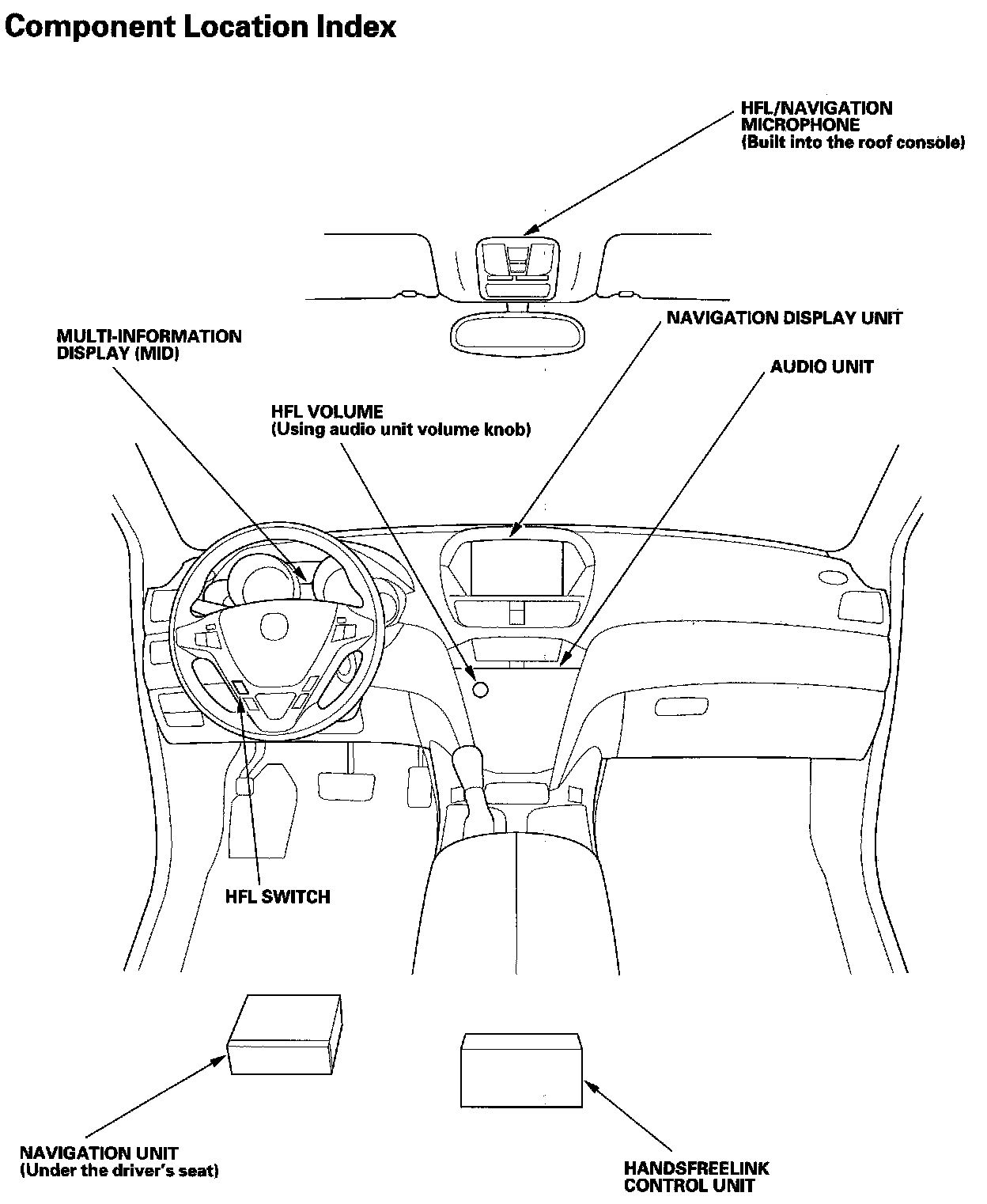

HandsFreeLink System Component Location Index:

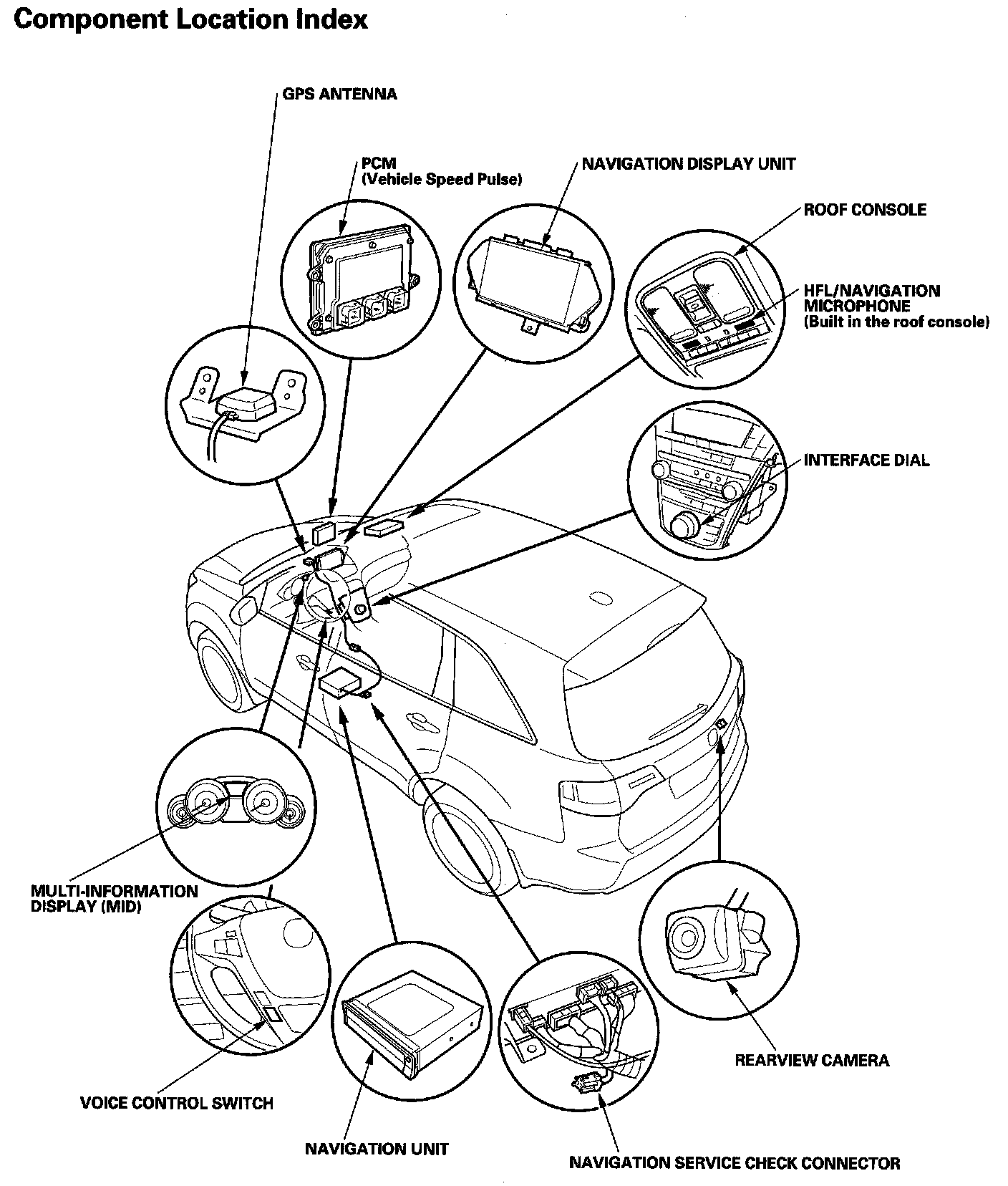

Navigation System Component Location Index:

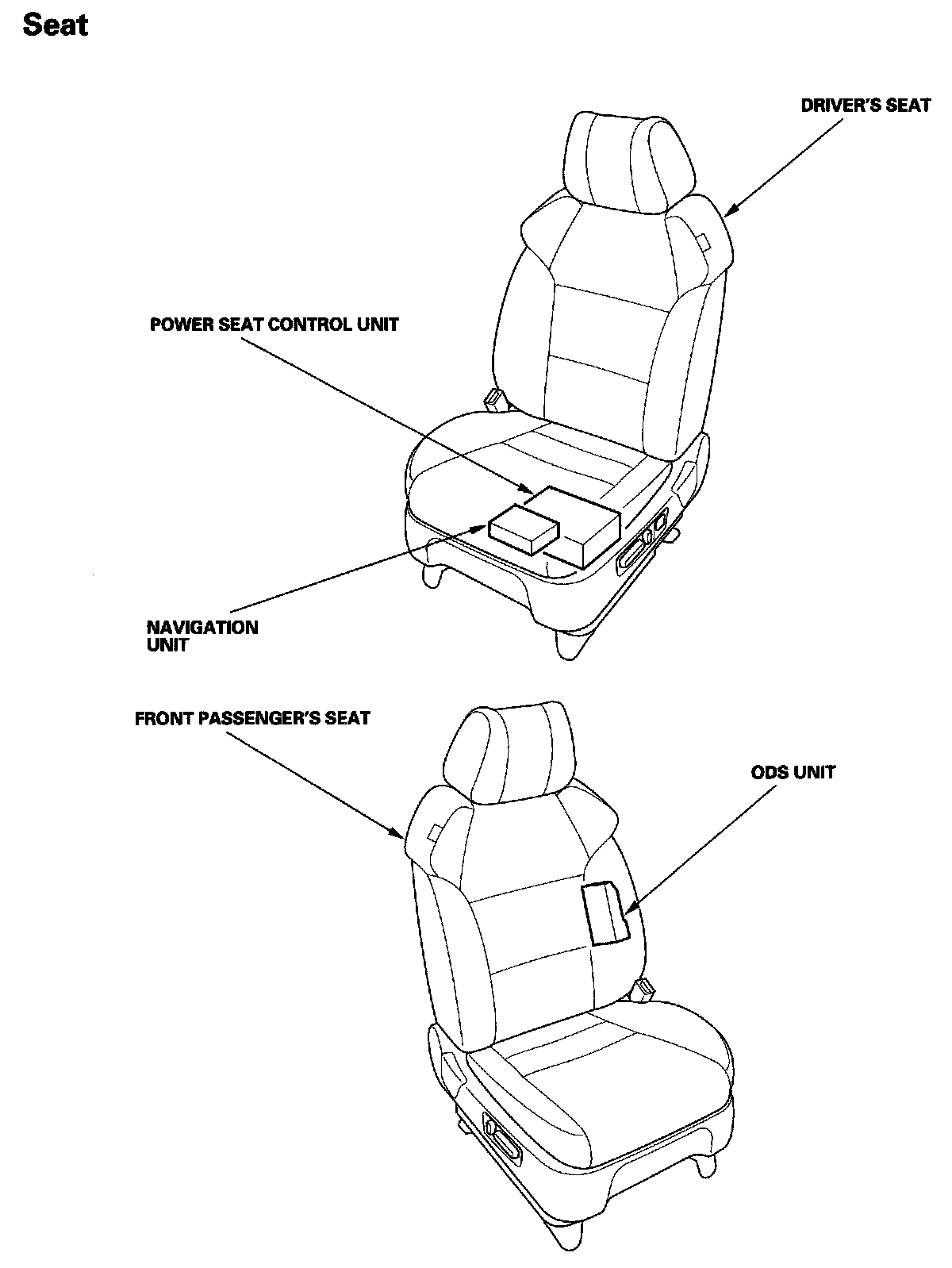

Relay and Control Unit Locations Seat:
