Entry Lights Control System Circuit Diagram
Entry Lights Control System Circuit Diagram

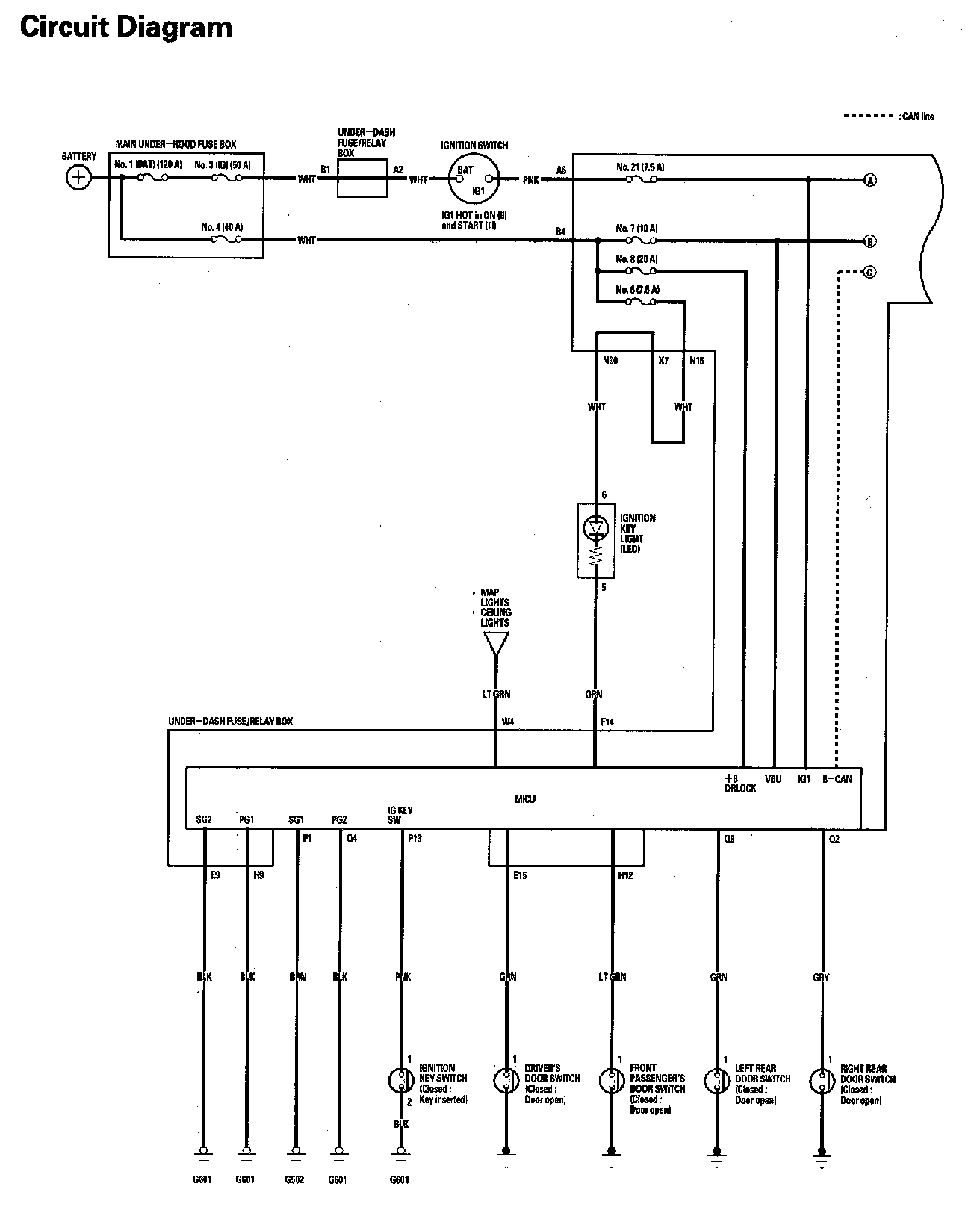

Entry Lights Control System Circuit Diagram (Part 1):

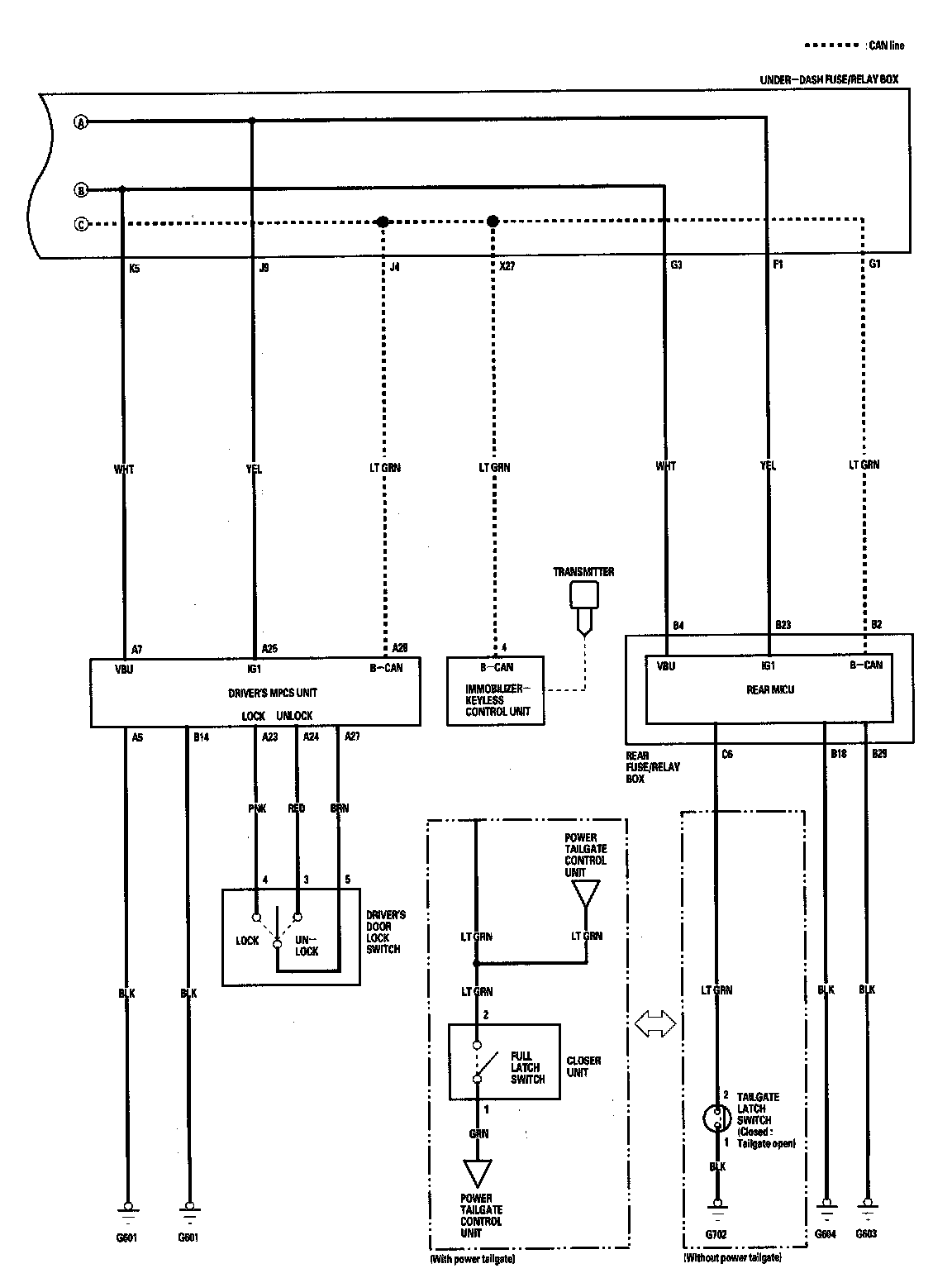

Entry Lights Control System Circuit Diagram (Part 2):
