Reminder Systems Circuit Diagram

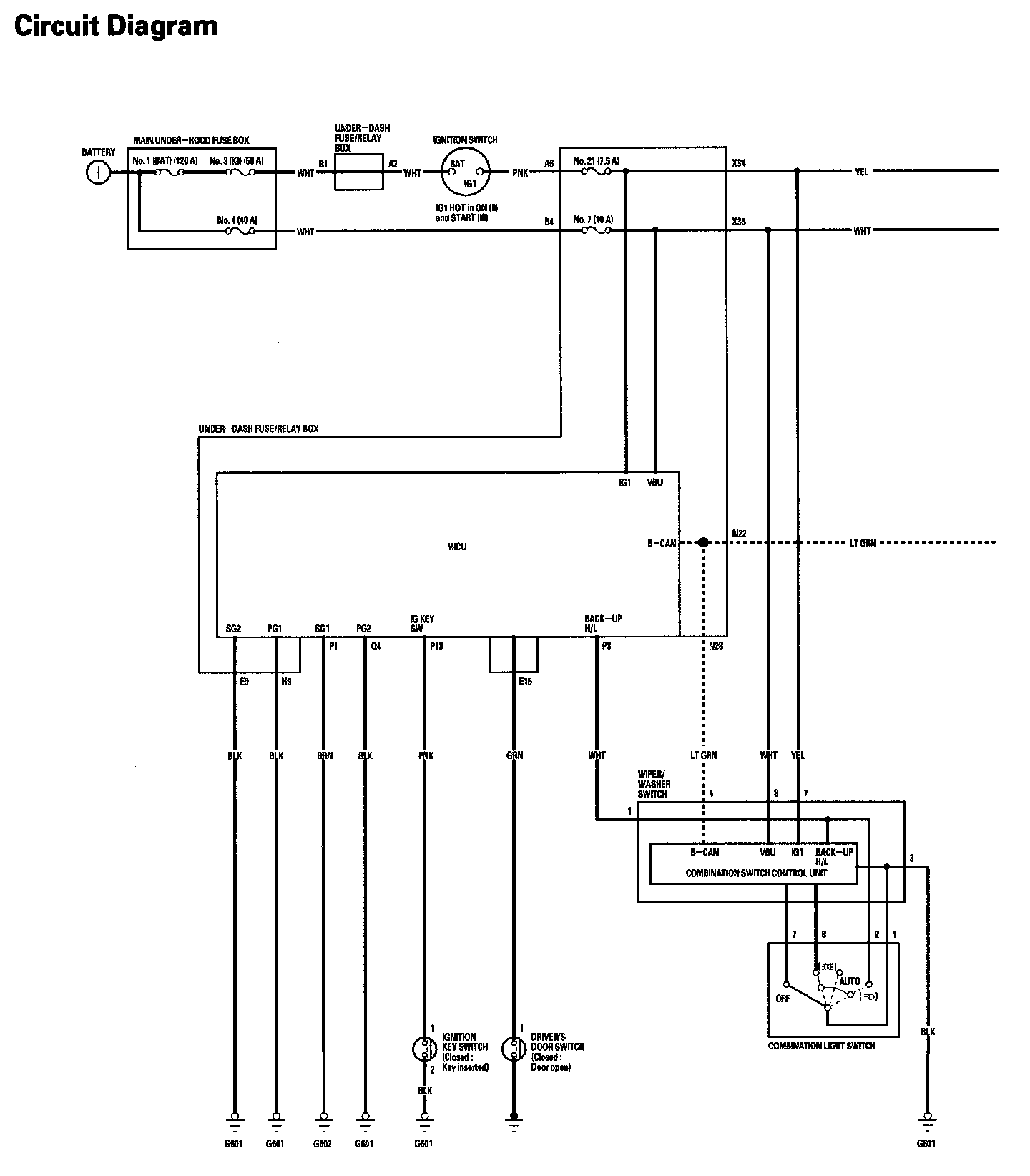

Reminder Systems Circuit Diagram (Part 1):

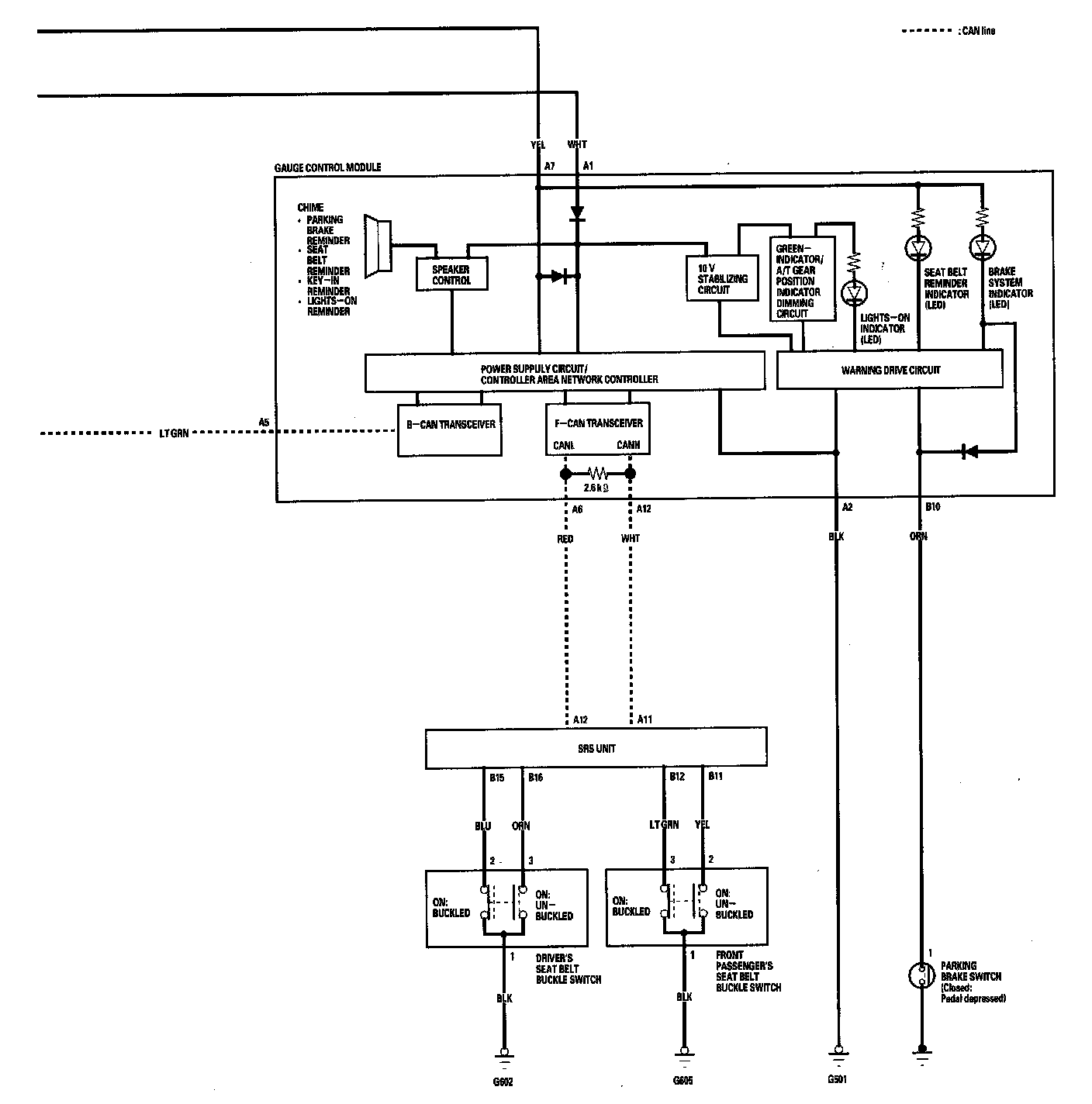

Reminder Systems Circuit Diagram (Part 2):
