General Troubleshooting Information
General Troubleshooting InformationHow to Check for DTCs with the HDS
1. Make sure the ignition switch is LOCK (0).
2. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the climate control unit. If it doesn't, troubleshoot the DLC circuit.
5. Select HVAC/CLIMATE CONTROL in the BODY ELECTRICAL menu.
6. Select DTCs in the HVAC/CLIMATE CONTROL menu.
7. Check for DTCs. If any DTCs are indicated, write down the DTCs, then go to the indicated DTC troubleshooting. If no DTCs are indicated, refer to symptom troubleshooting. Symptom Related Diagnostic Procedures
NOTE:
- After troubleshooting, clear the DTCs with the HDS.
- For specific operations, refer to the user's manual that came with the HDS.
How to Use the Self-diagnostic Function with the HDS
1. Make sure the ignition switch is LOCK (0).
2. Connect the HDS to the data link connector (DLC).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the climate control unit. If it doesn't, troubleshoot the DLC circuit.
5. Select HVAC/CLIMATE CONTROL in the BODY ELECTRICAL menu.
6. Select INSPECTION in the HVAC/CLIMATE CONTROL menu.
7. Select CLIMATE CONTROL SELF TEST in the INSPECTION menu.
8. Check for DTCs. If any DTCs are indicated, write down the DTCs, then go to the indicated DTC troubleshooting.
NOTE:
- After troubleshooting, clear the DTCs with the HDS.
- For specific operations, refer to the user's manual that came with the HDS.
How to Use the Self-diagnostic Function without the HDS
The climate control unit has a self-diagnostic function. To run the self-diagnostic function, do the following:
1. Turn the ignition switch to LOCK (0), and then ON (II).
2. Press and hold the OFF button, then press the RECIRCULATION CONTROL button five times within 10 seconds. Release the OFF and RECIRCULATION CONTROL buttons; then the self-diagnostic begins.
NOTE:
- The blower motor will run at various speeds regardless of what the panel is displaying.
- If there is any problem in the system, the system flashes "88 AUTO WINDSHIELD DEFROST" or alternately flashes "88 AUTO WINDSHIELD DEFROST" and one or more of the 14 segments (A through P). Refer to checking for DTCs.
- If there are no problems detected, the segments will not illuminate, and the system will appear to be turned off.
Canceling the Self-diagnostic Function
3. Turn the ignition switch to LOCK (0), to cancel the self-diagnostic function. After completing the repair work, run the self-diagnostic function again to make sure that there are no other DTCs.
Checking for DTCs

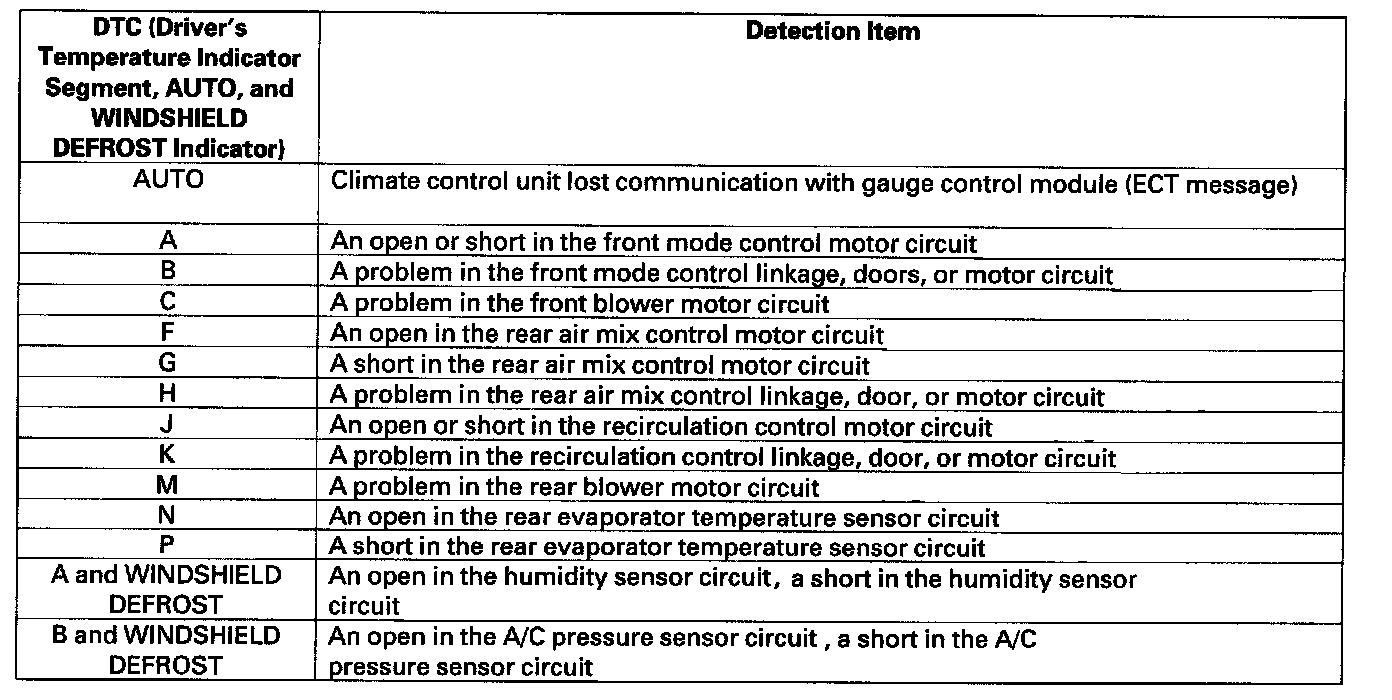

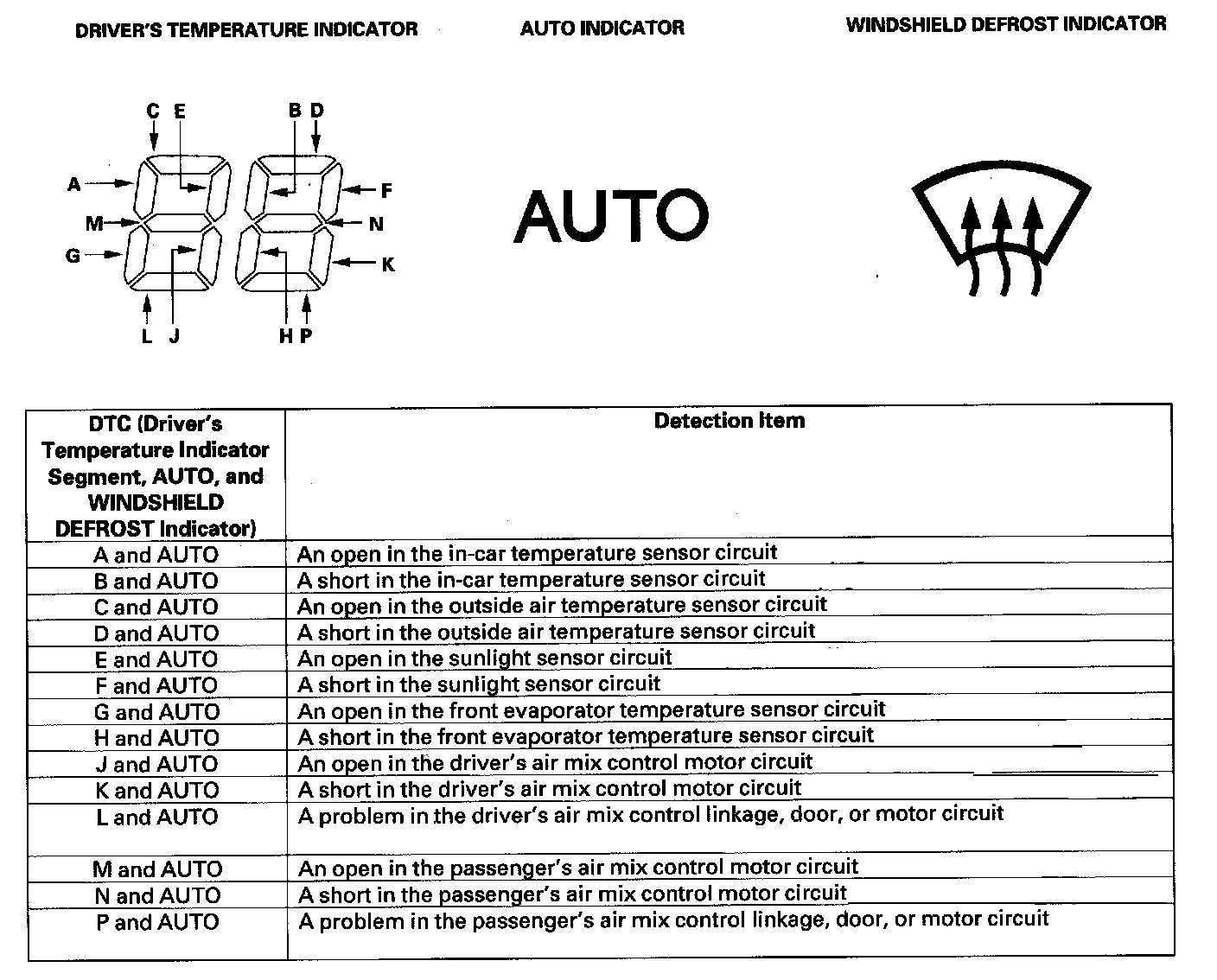

The temperature display indicates single or multiple DTCs. If indicator segments A, B, C, E, G, J, M, N, AUTO, and WINDSHIELD DEFROST are on at the same time, there may be an open in the common ground wire. If no DTCs are present, the indicator remains blank.
