Climate Control Circuit Diagram

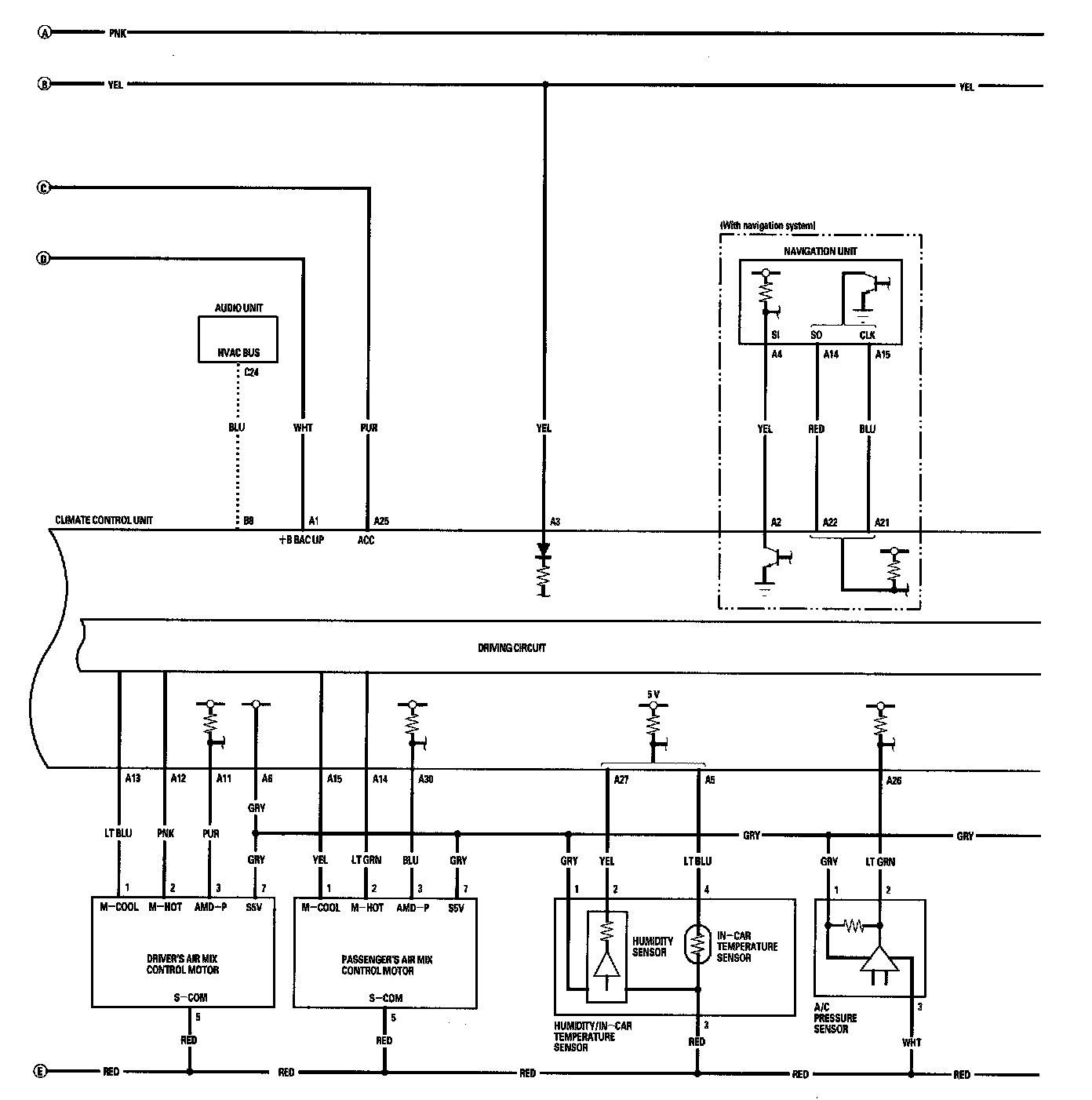

Climate Control Circuit Diagram (Part 1):

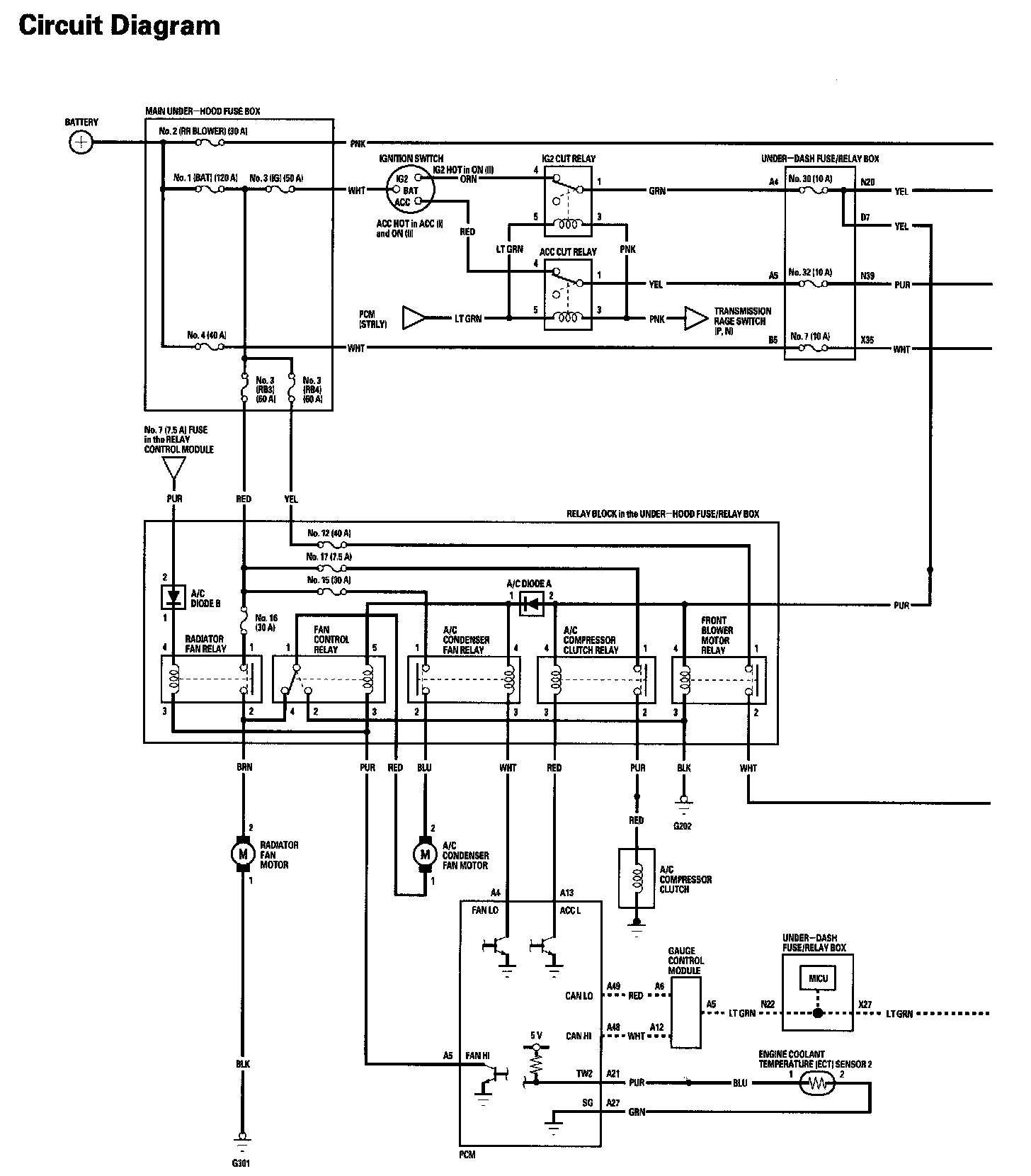

Climate Control Circuit Diagram (Part 2):

Climate Control Circuit Diagram (Part 3):

Climate Control Circuit Diagram (Part 4):
