Drive Belt Auto-Tensioner Replacement

Drive Belt Auto-Tensioner Replacement

1. Remove the drive belt.
2. Remove the splash shield.

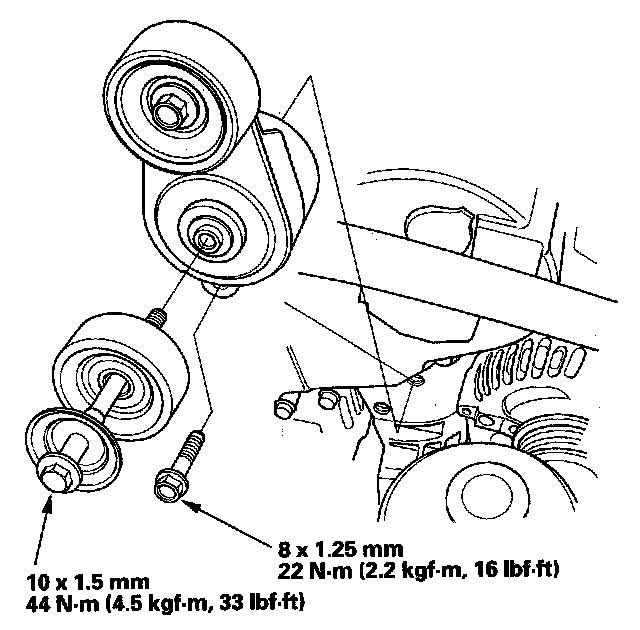

3. Remove the auto-tensioner.






4. Install the auto-tensioner in the reverse order of removal.
