Cylinder Head Assembly: Diagrams

Component Location Index

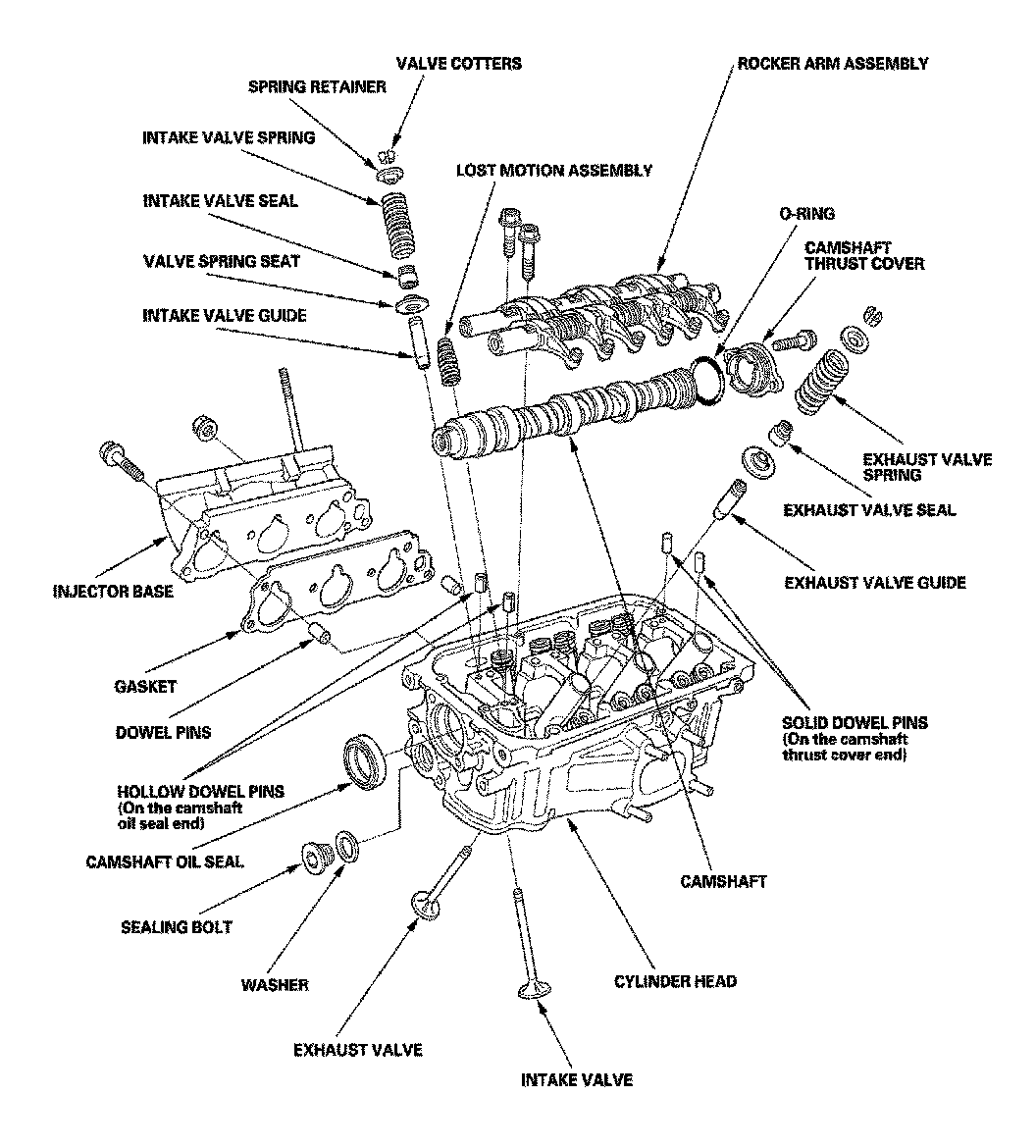

Cylinder Head Component Location Index (Part 1):




Cylinder Head Component Location Index (Part 2):

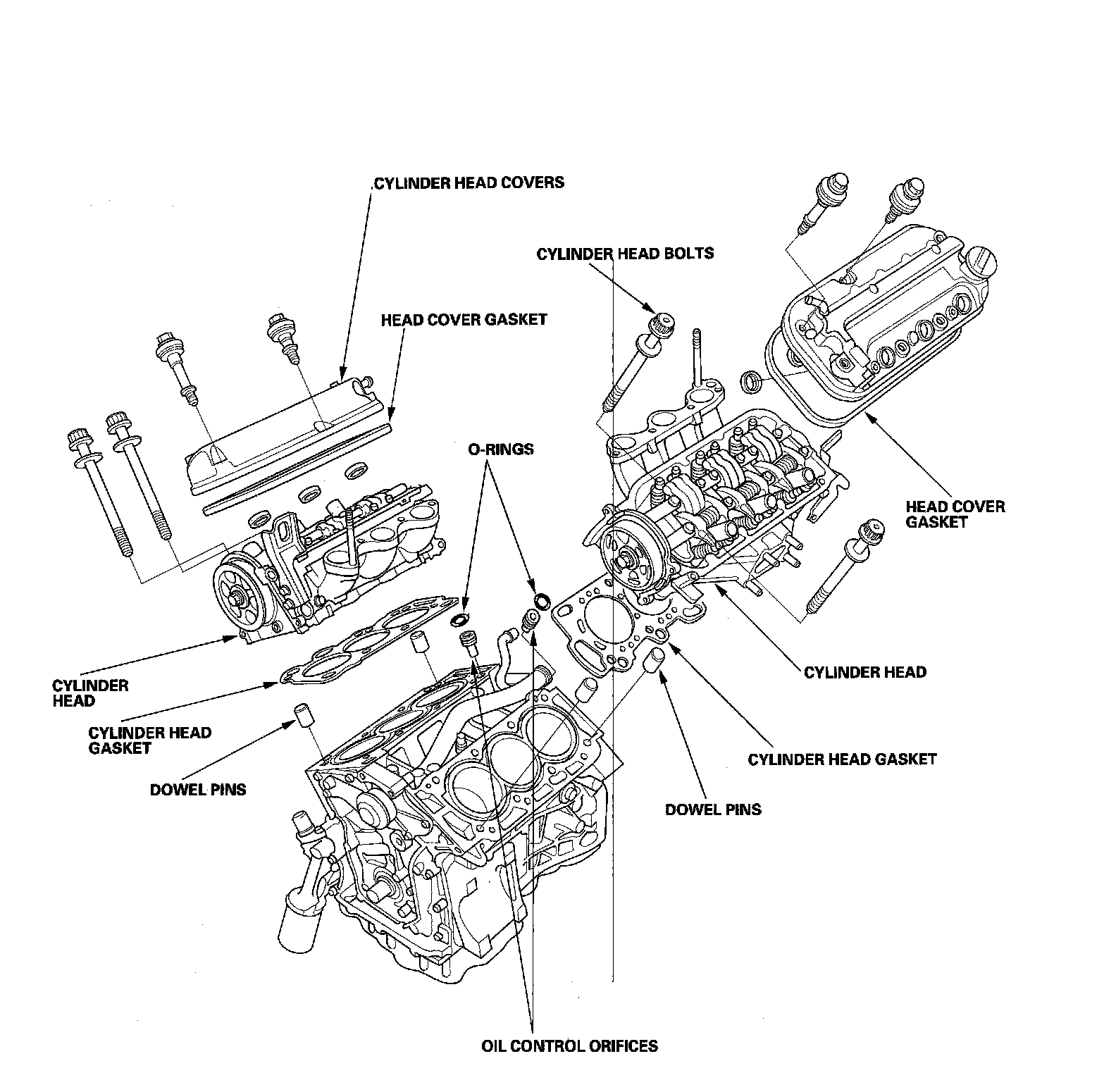

Cylinder Head Component Location Index (Part 3):
