Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
Evaporative Emissions System

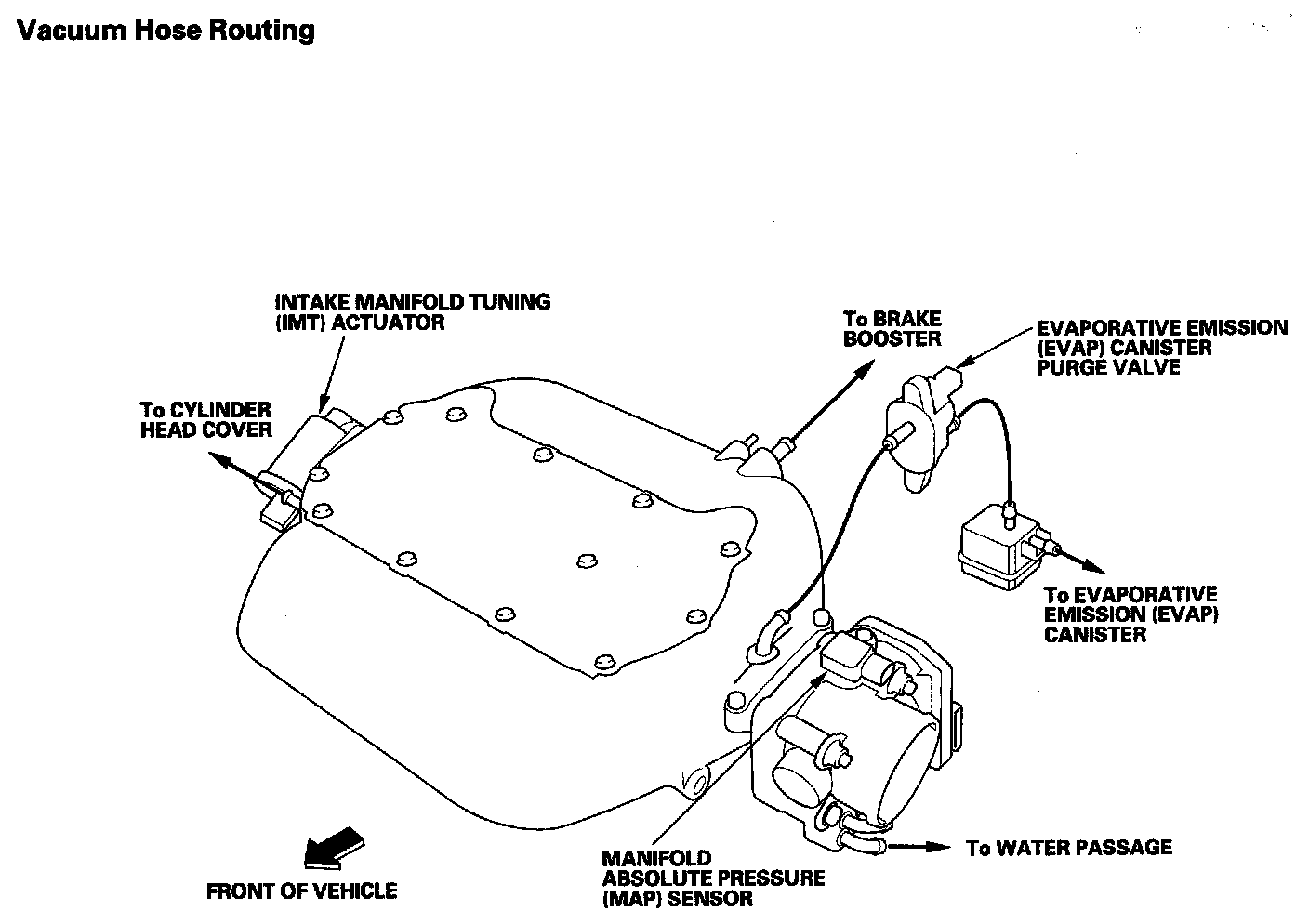

Vacuum Hose Routing:
