Rear Wire Harness
>>
Connectors and Harnesses
Connectors and Harnesses

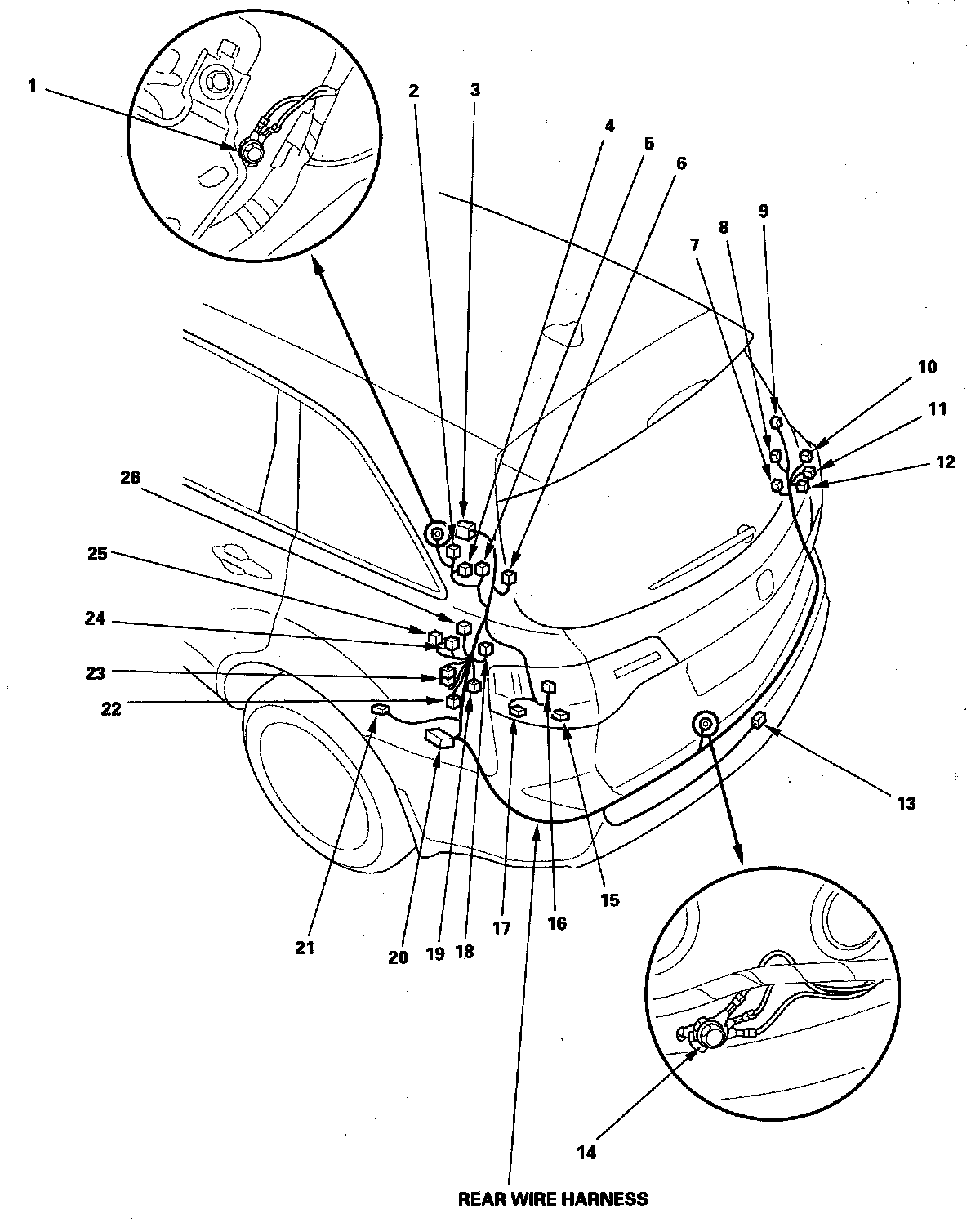

Harness Location View:

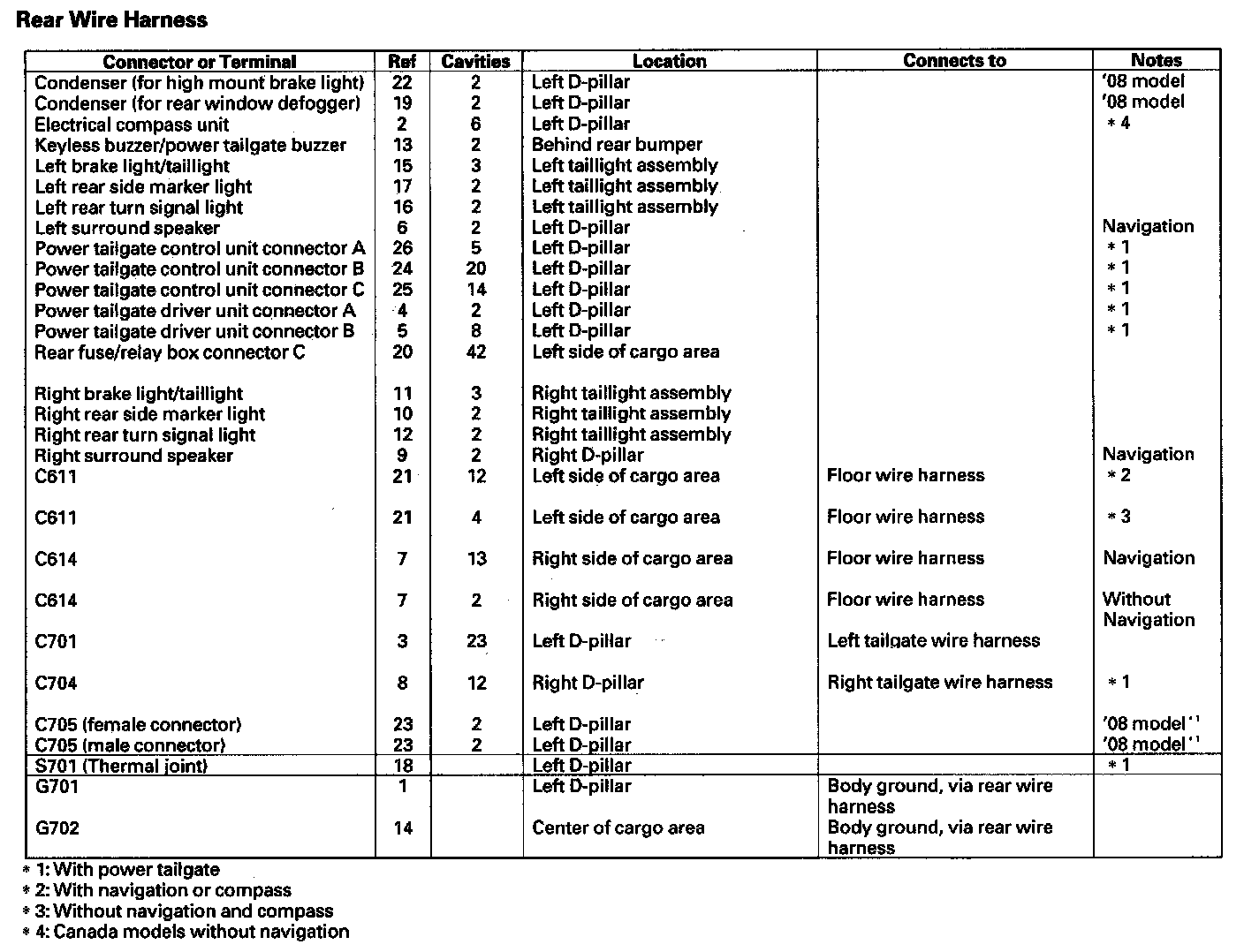

Rear Wire Harness:
