Middle Tailgate Wire Harness
>>
Connector to Harness Locations
>>
Part 2 of 2
Part 2 of 2

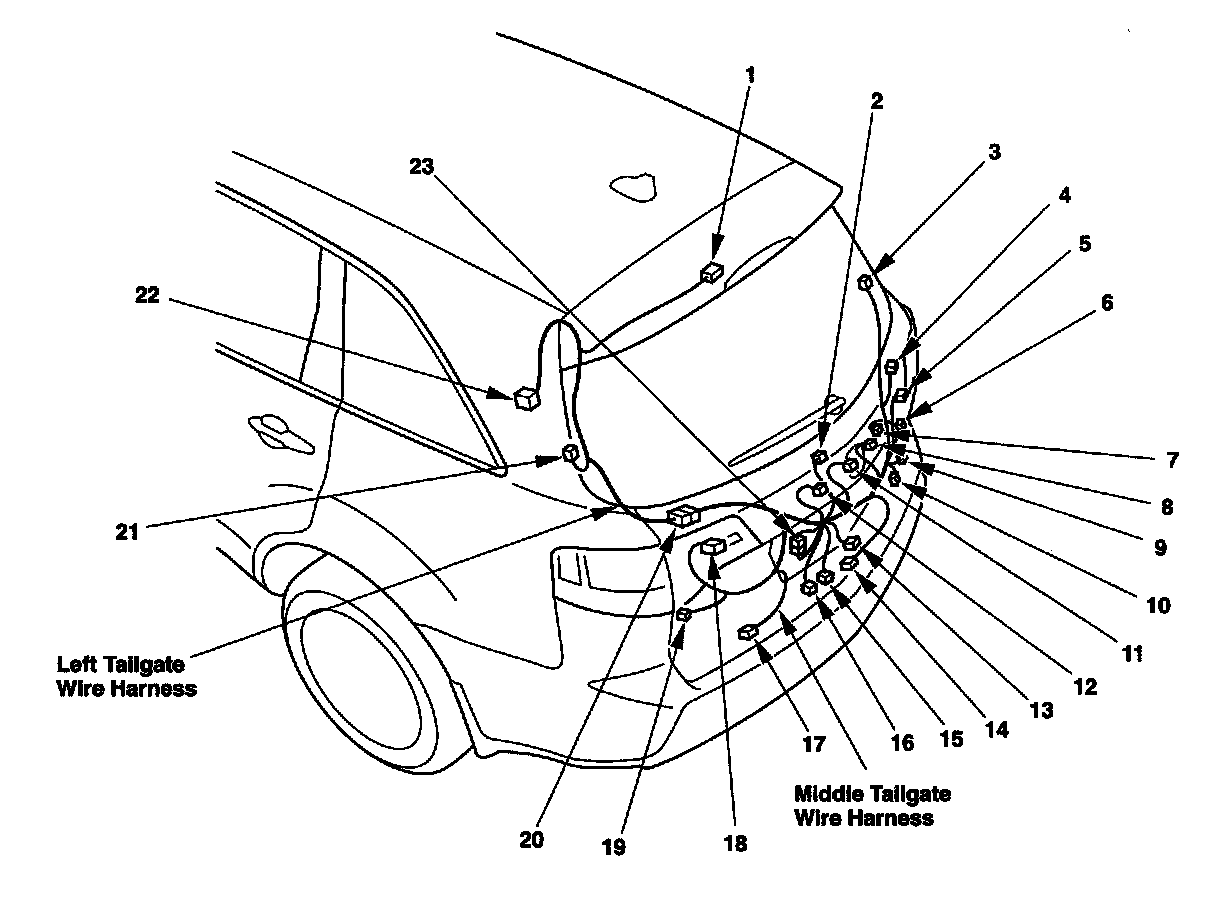

Harness Location View:

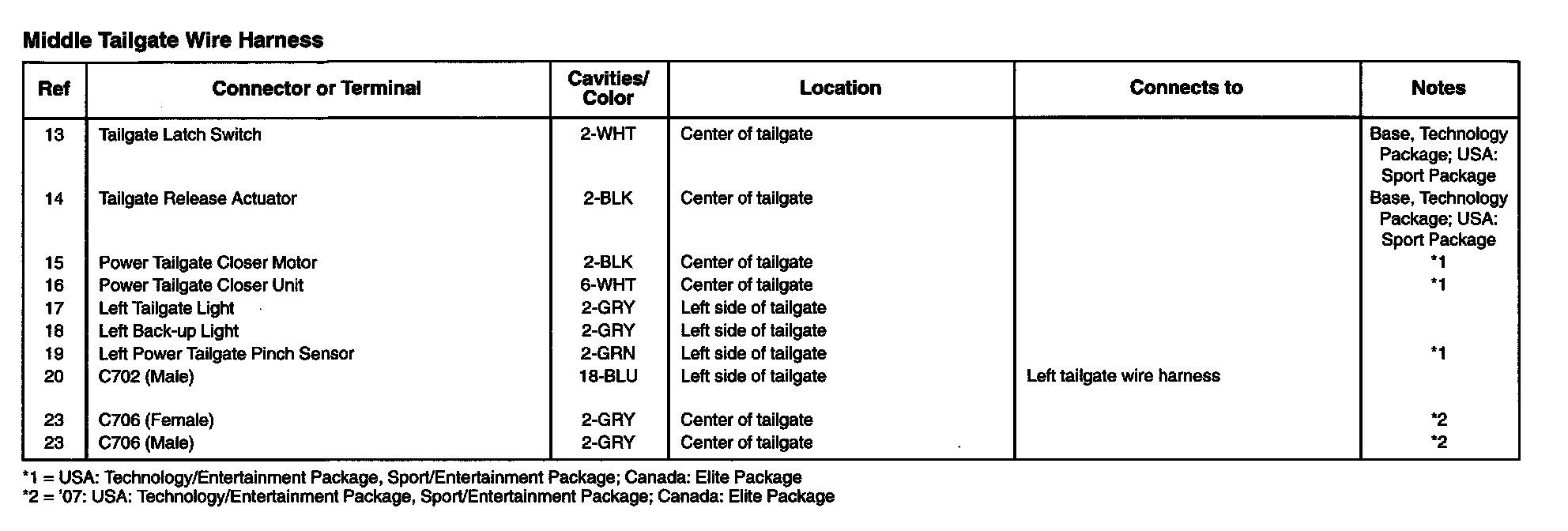

Middle Tailgate Wire Harness:
