Left Rear Door Wire Harness
Left Rear Door Wire Harness

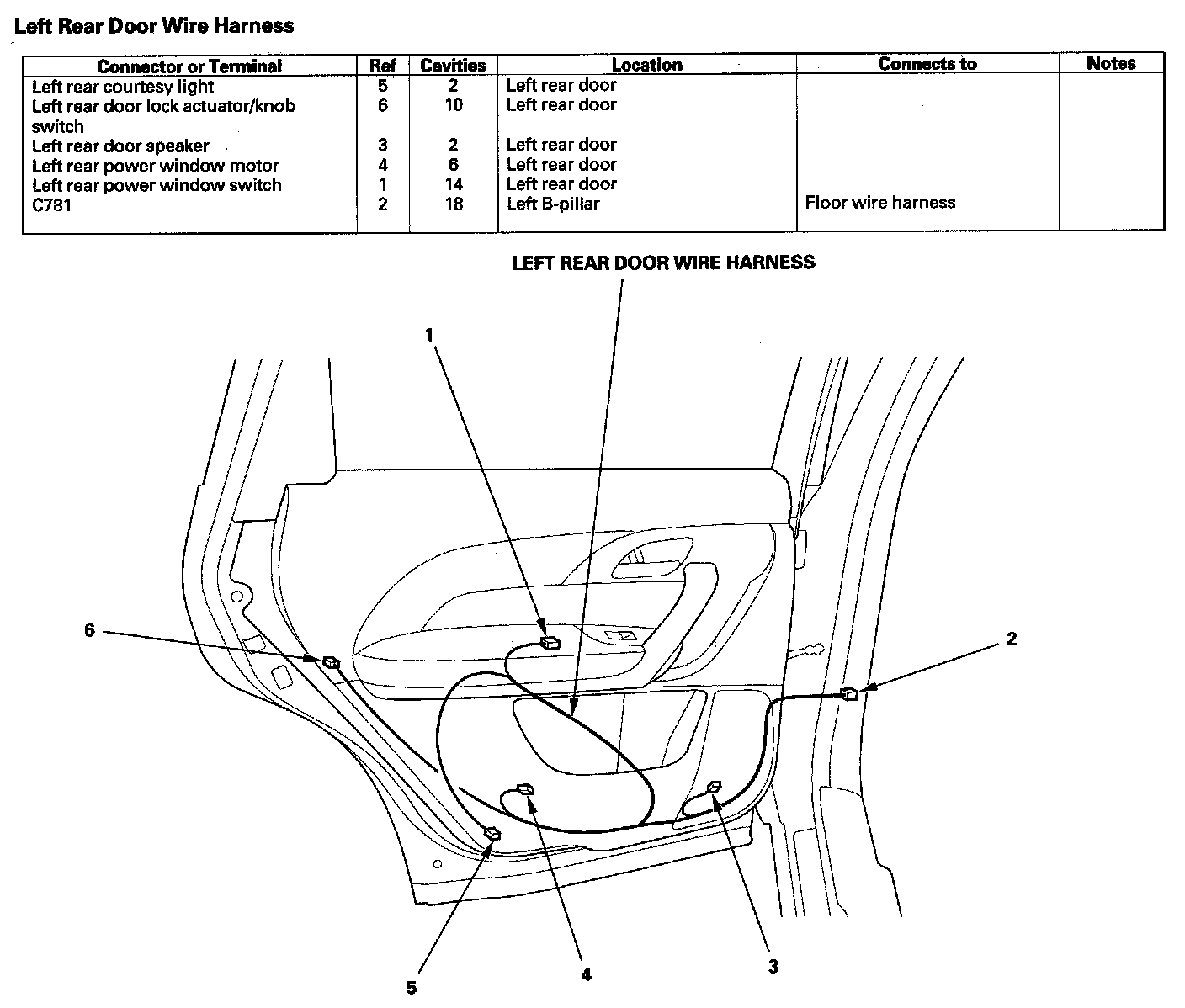

Left Rear Door Wire Harness:

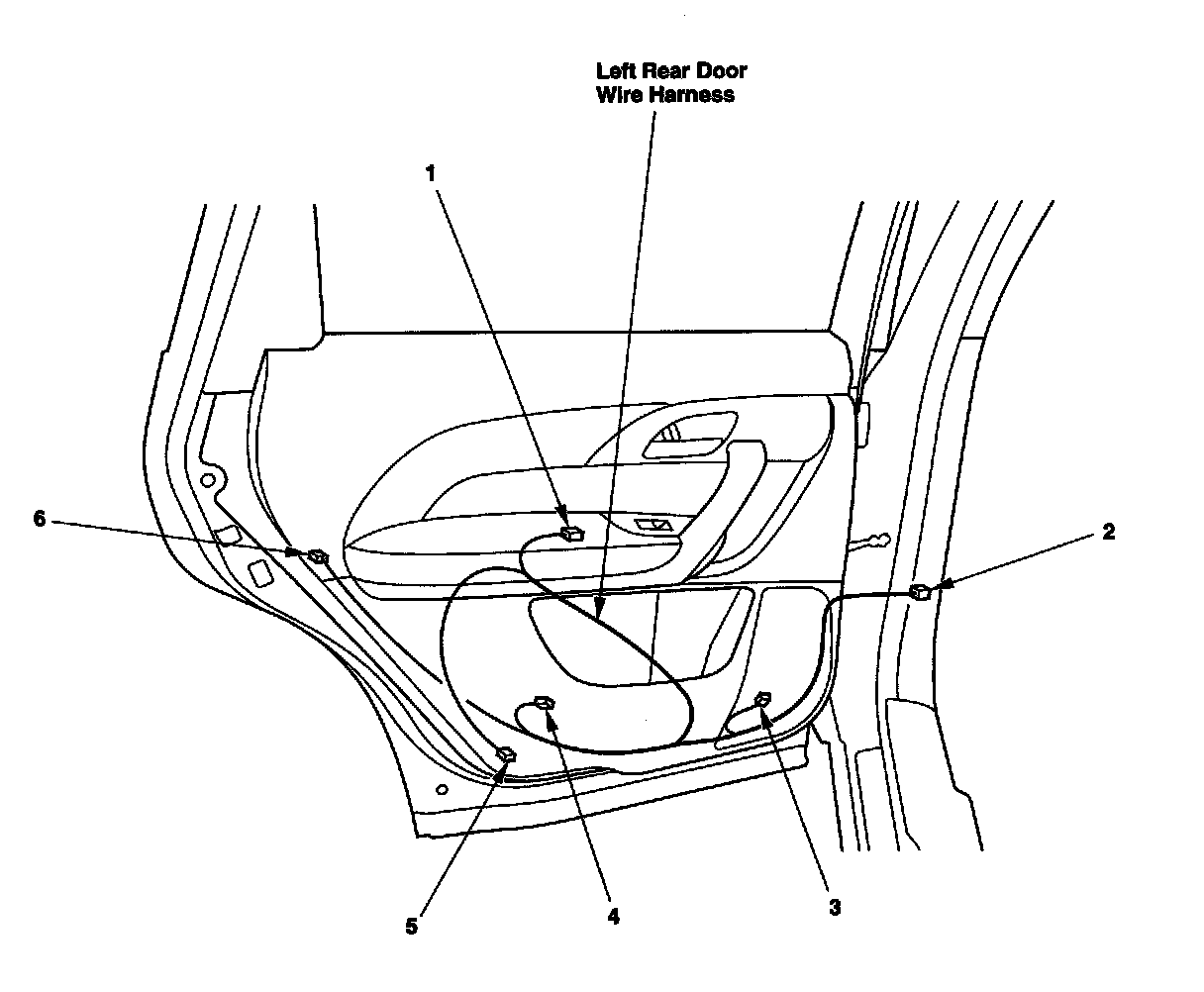

Harness Location View:
Left Rear Door Wire Harness:
