Driver's Seat Wire Harness
Driver's Seat Wire Harness

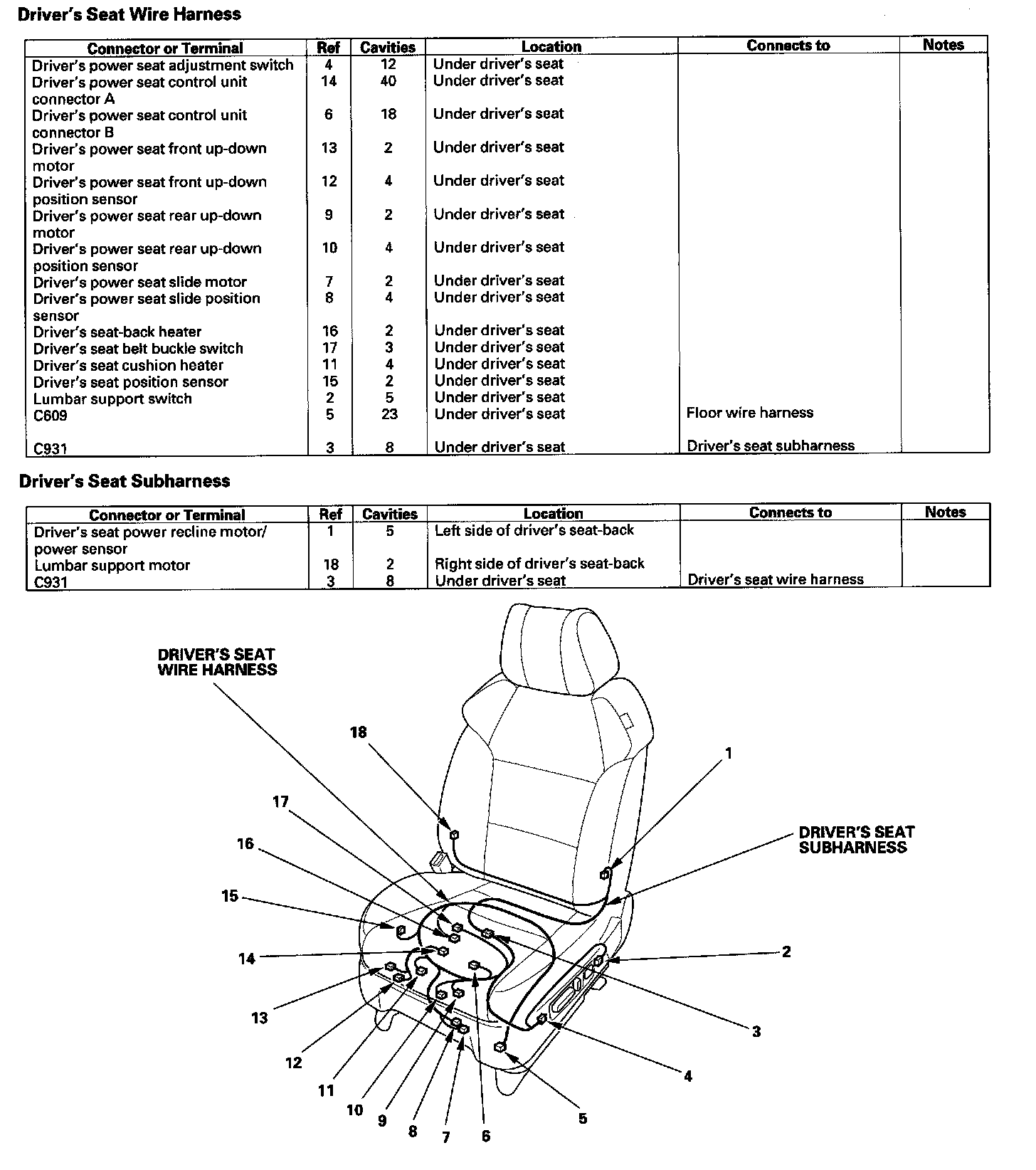

Driver's Seat Wire Harness/Driver's Seat Subharness:

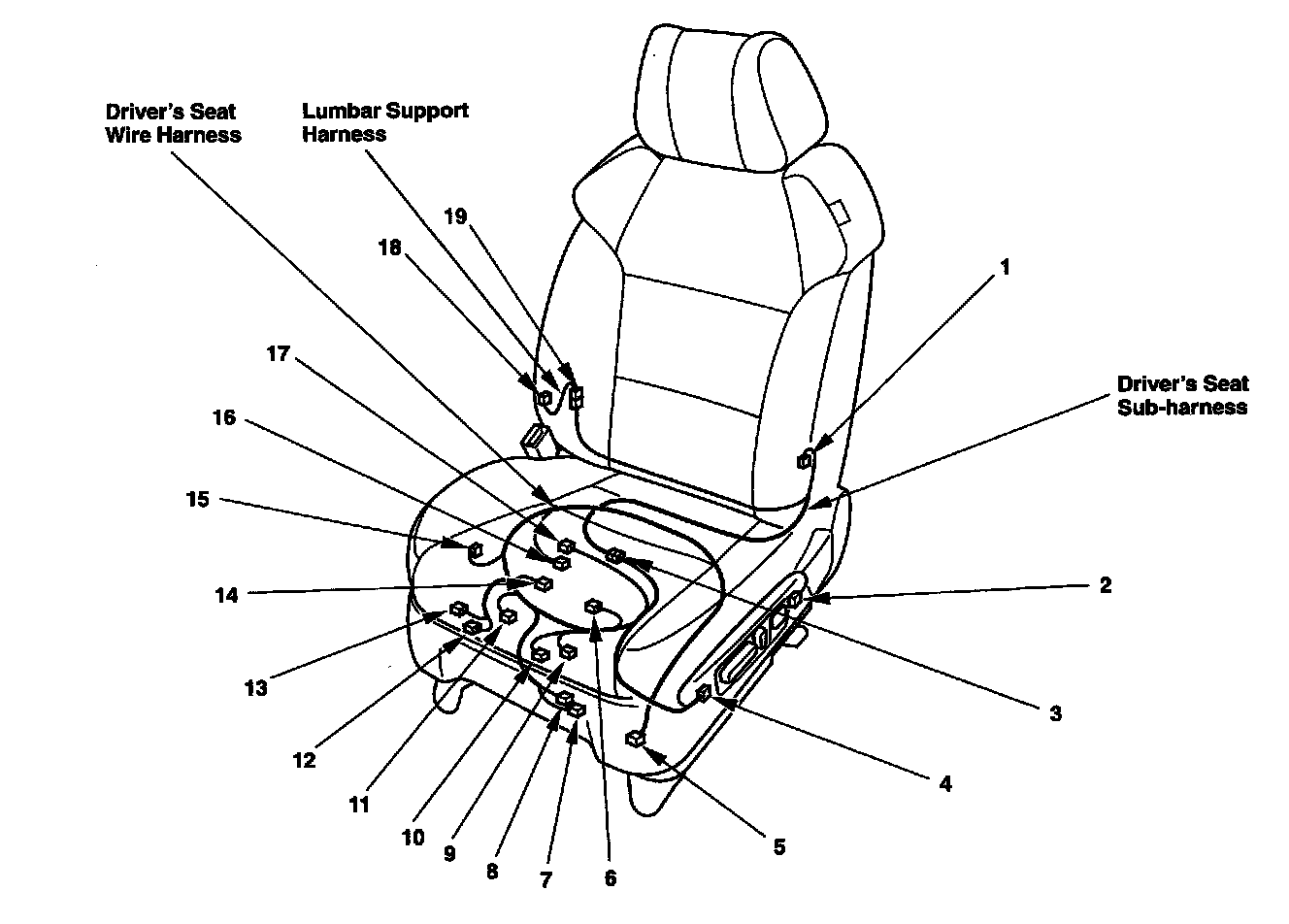

Harness Location View:

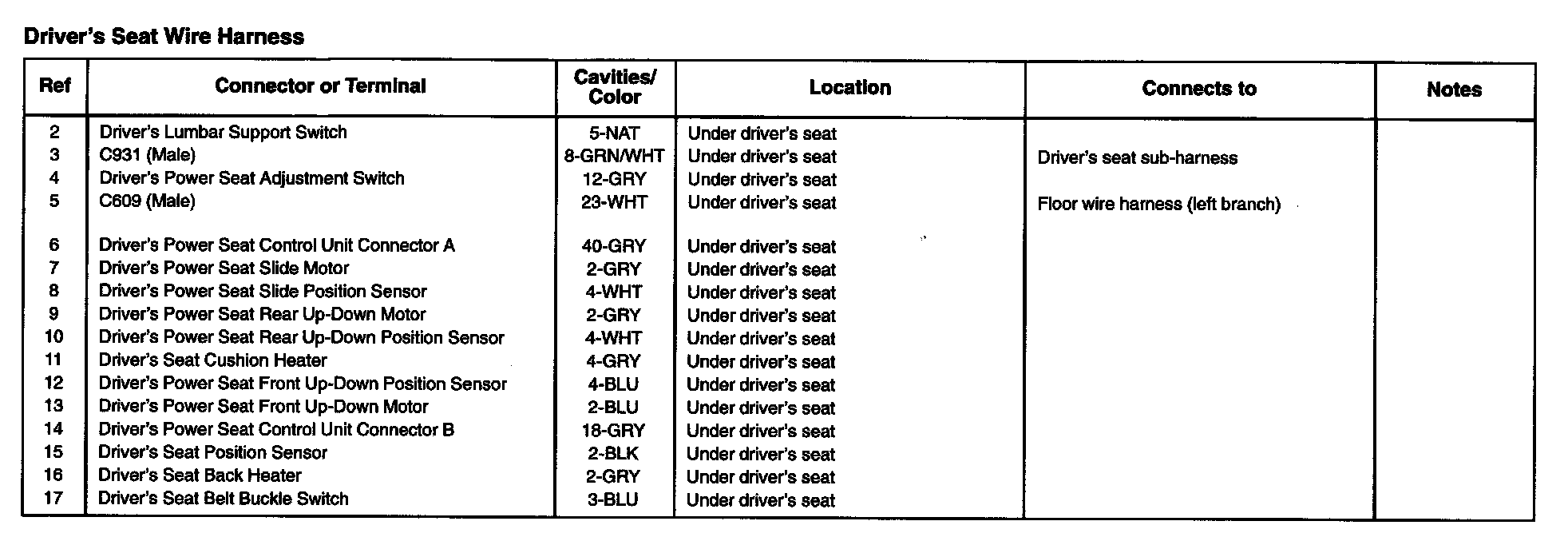

Driver's Seat Wire Harness:
