Power Windows Circuit Diagram

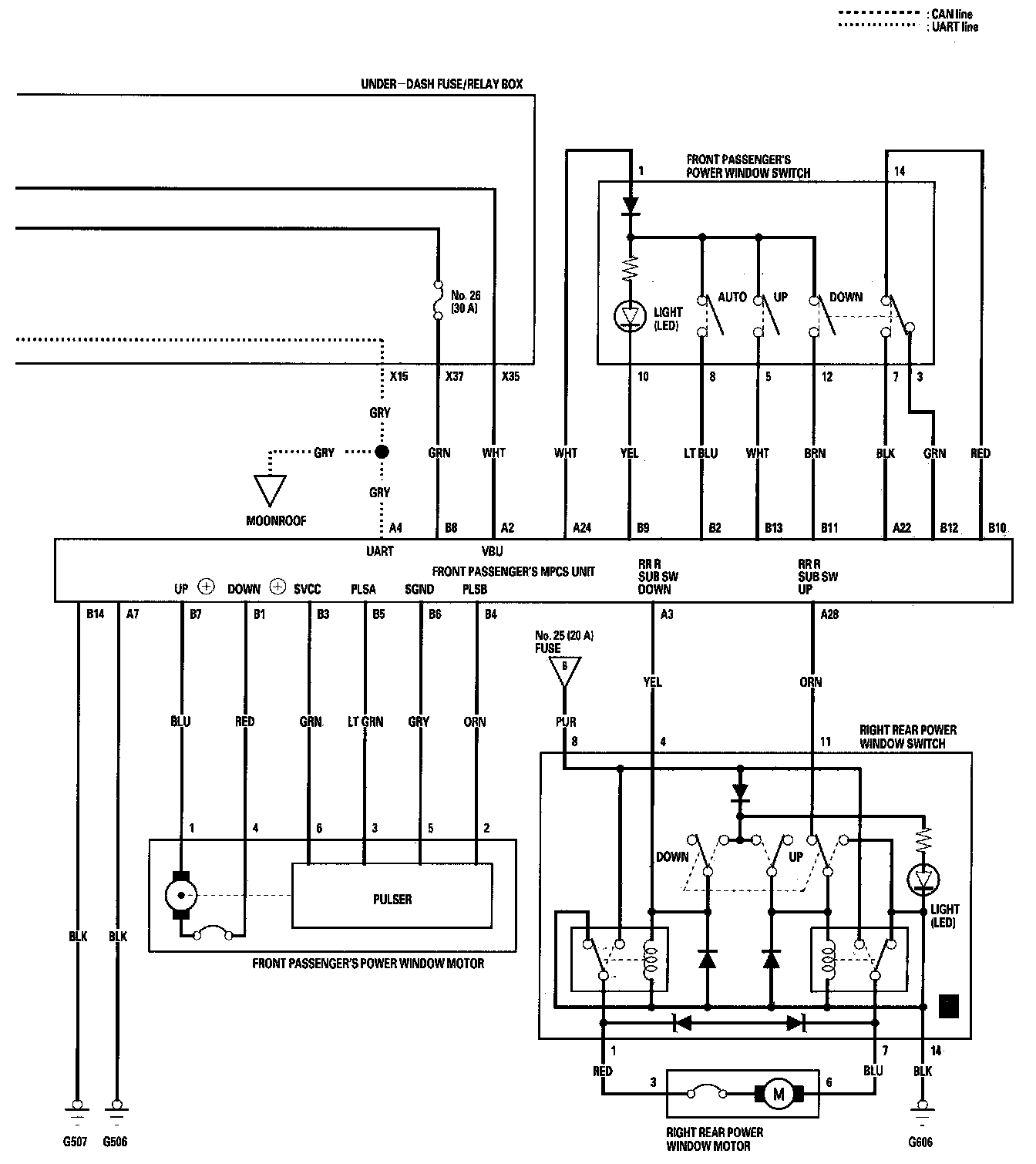

Power Windows Circuit Diagram (Part 1):

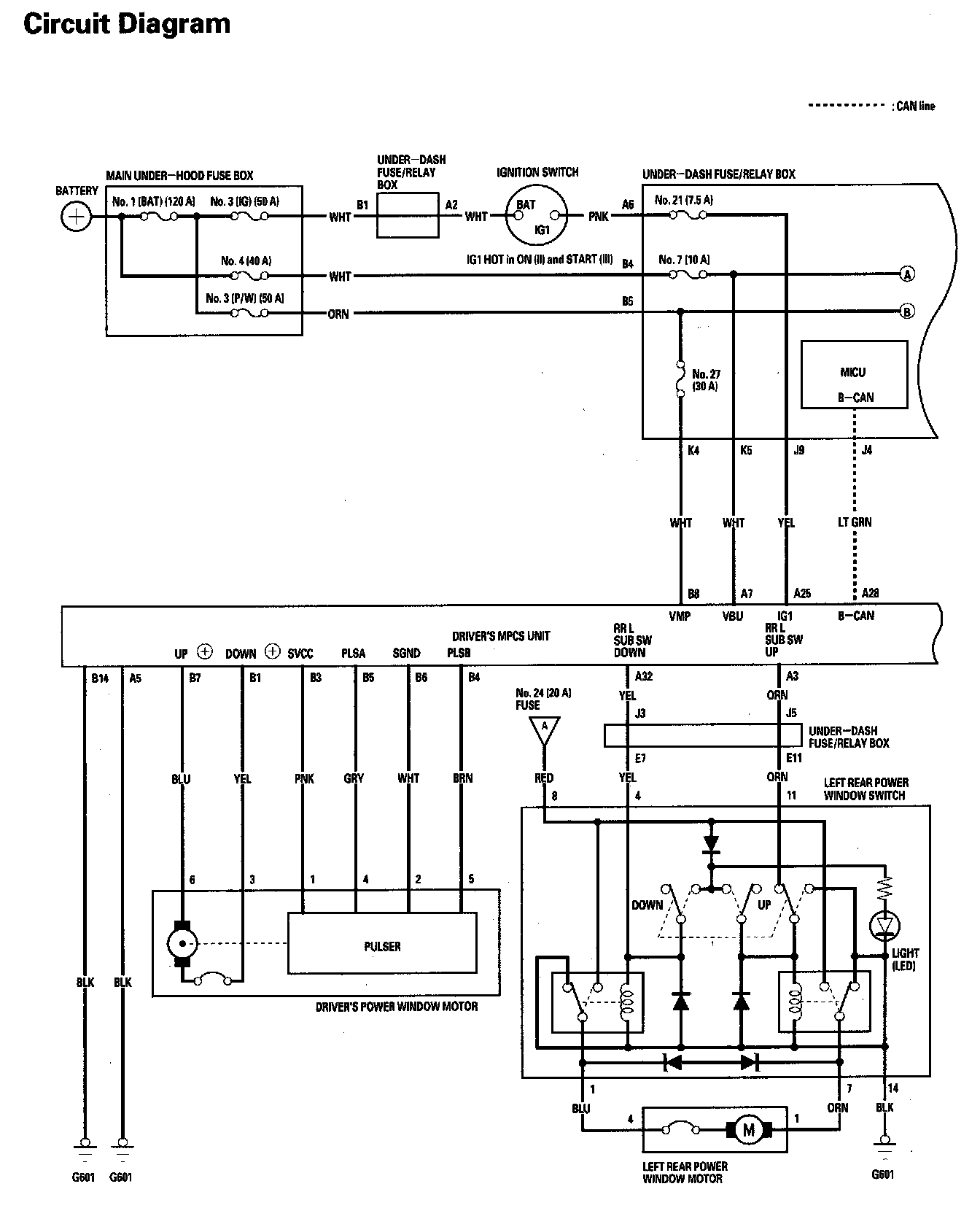

Power Windows Circuit Diagram (Part 2):

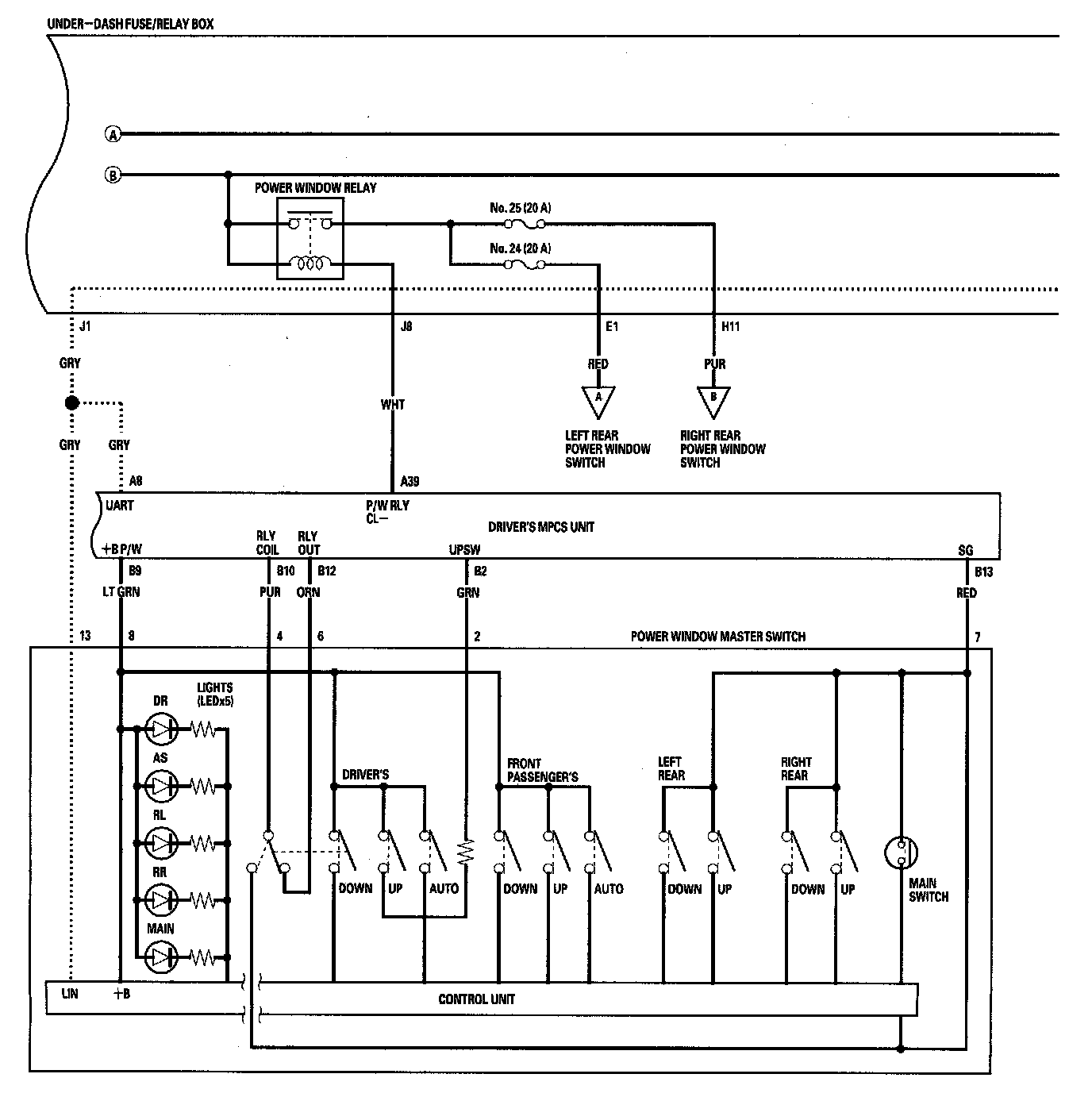

Power Windows Circuit Diagram (Part 3):
