Power Tailgate Circuit Diagram

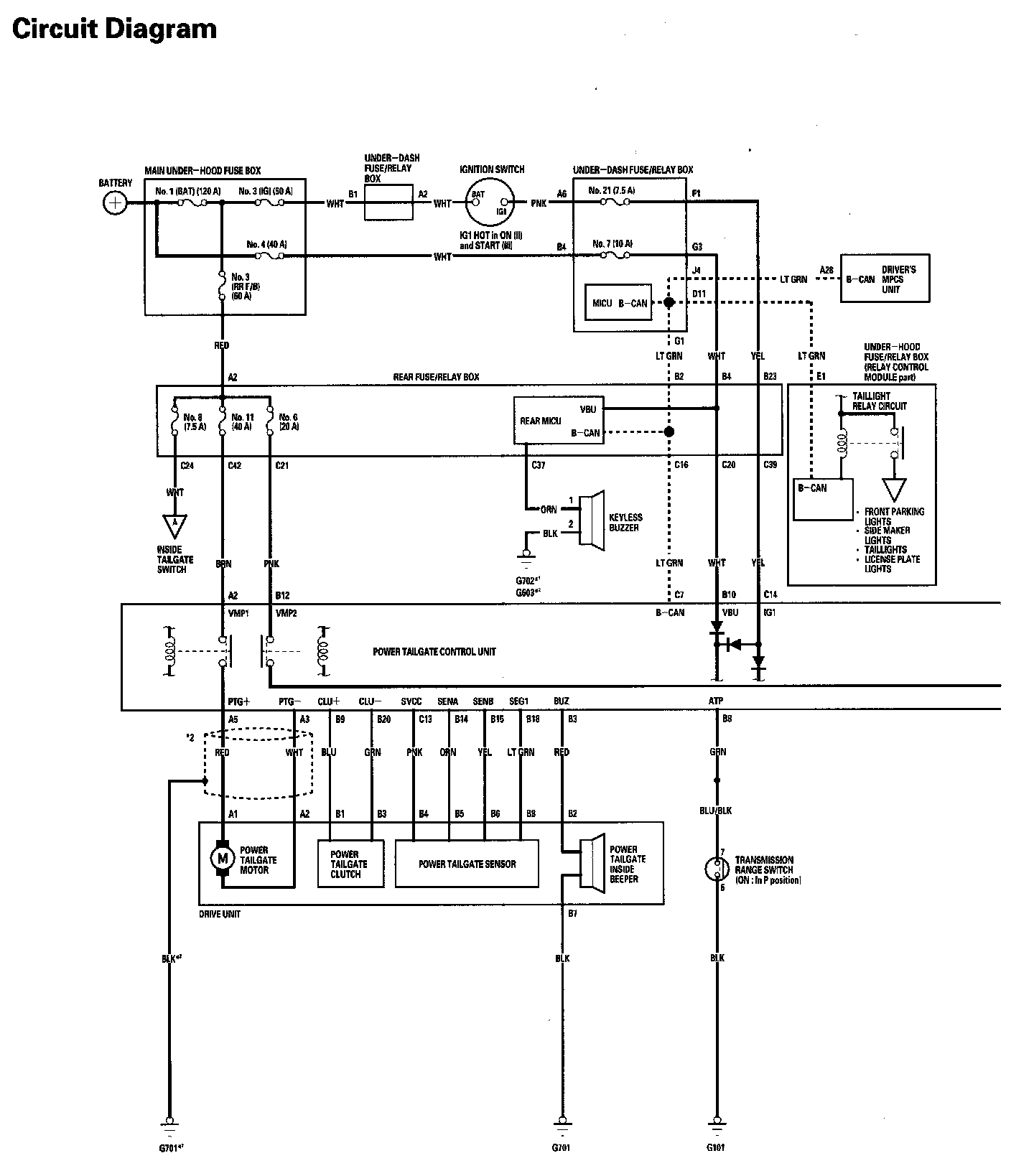

Power Tailgate Circuit Diagram (Part 1):

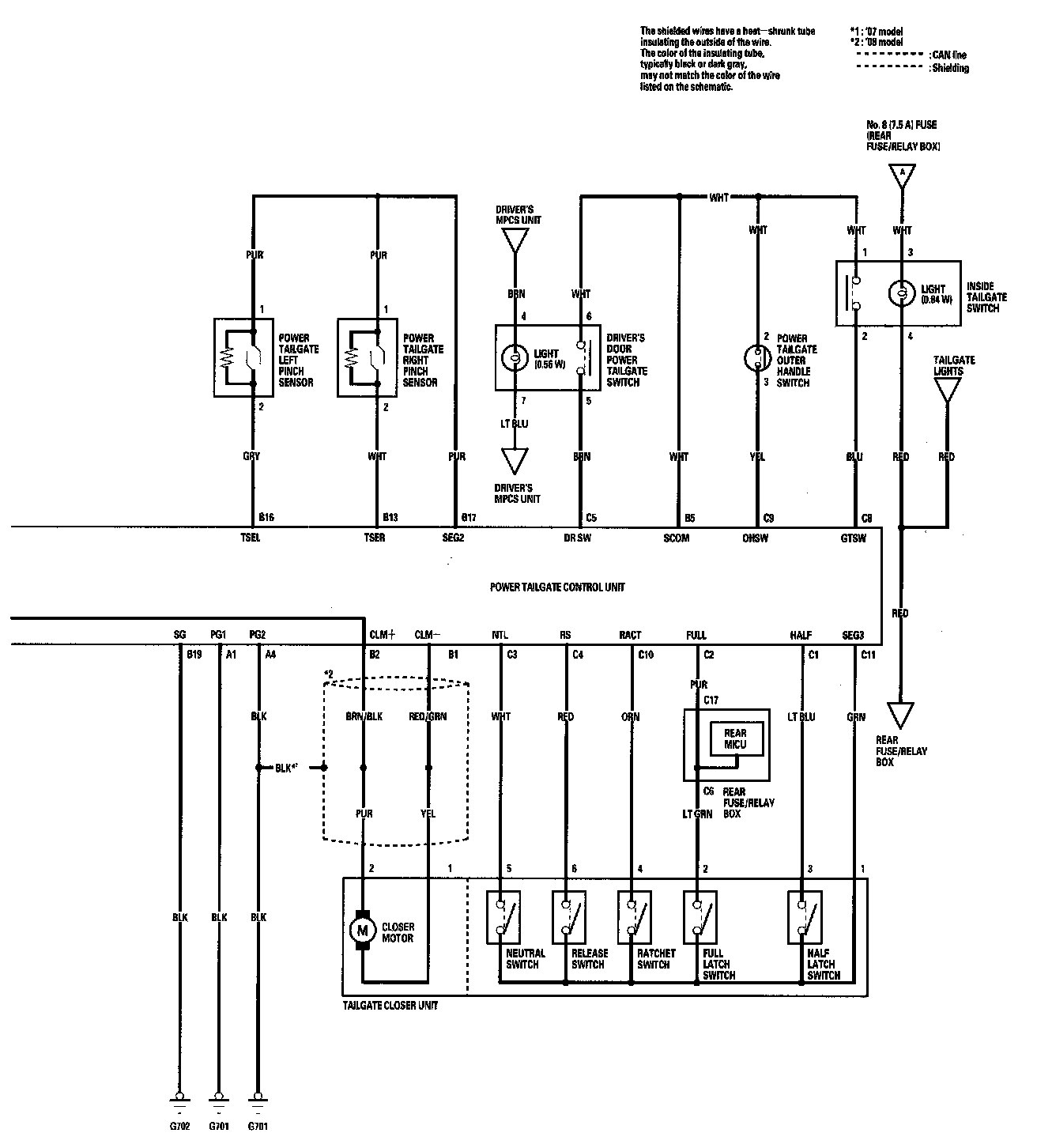

Power Tailgate Circuit Diagram (Part 2):
