TPMS Circuit Diagram

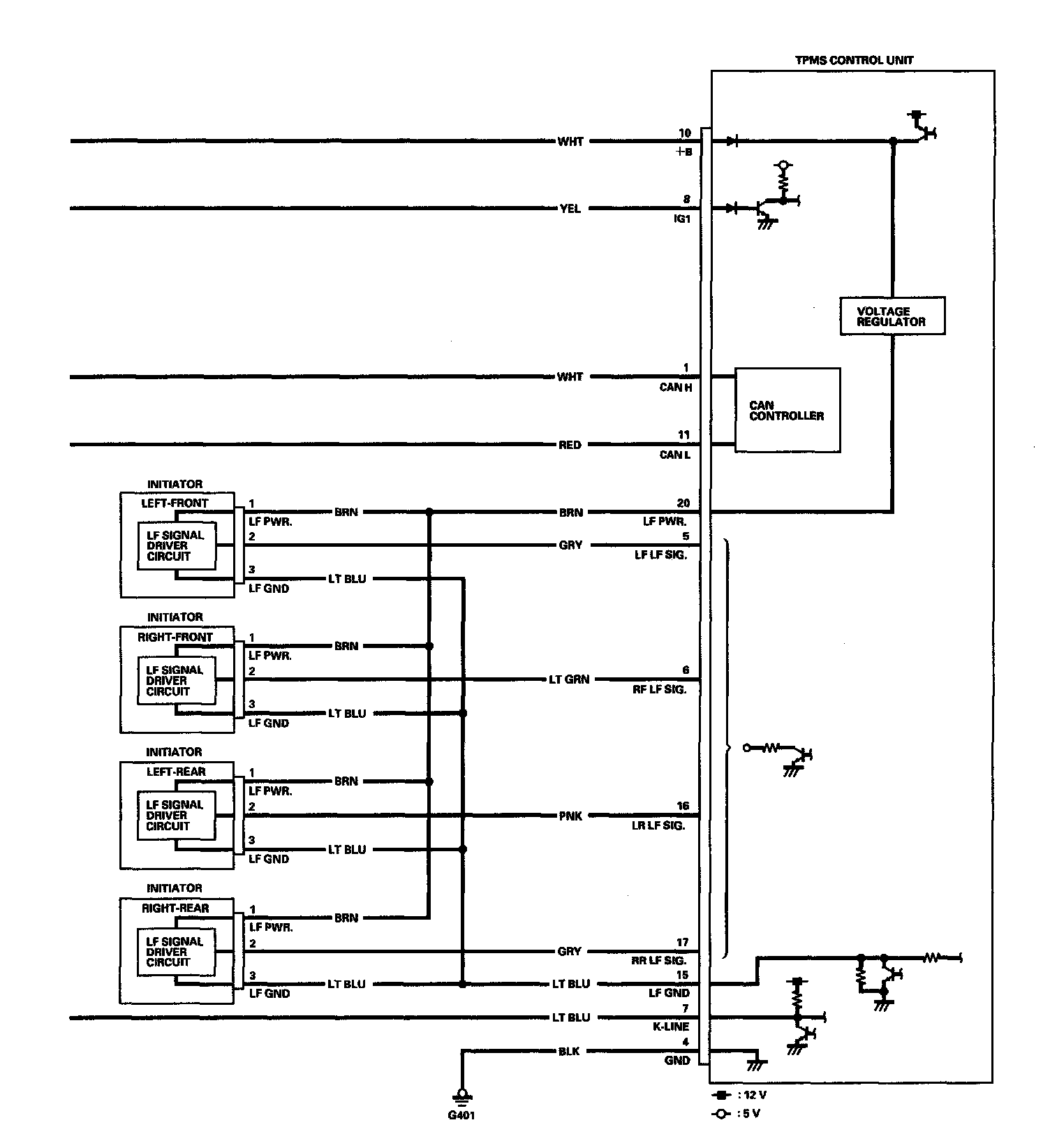

TPMS Circuit Diagram (Part 1):

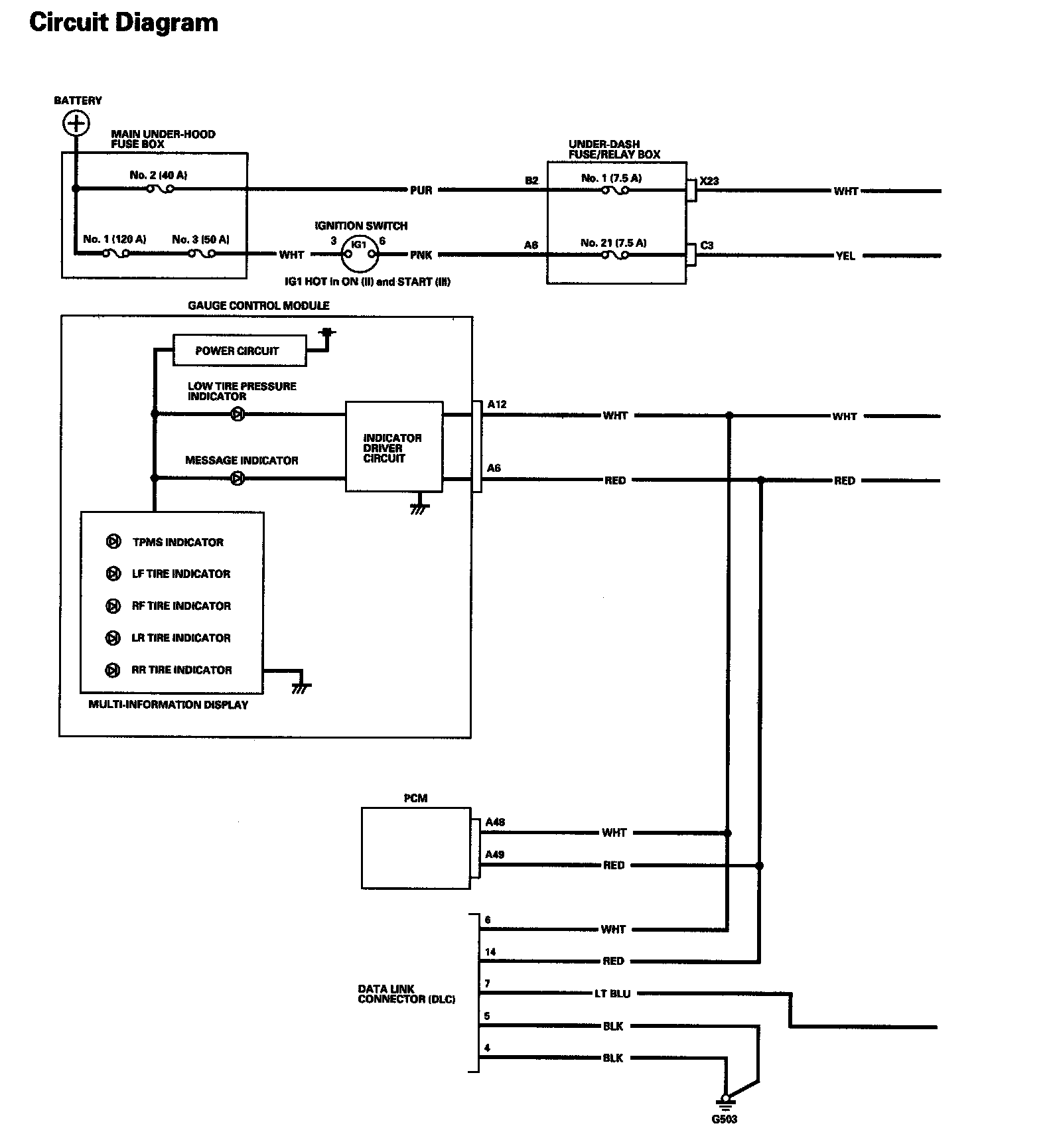

TPMS Circuit Diagram (Part 2):

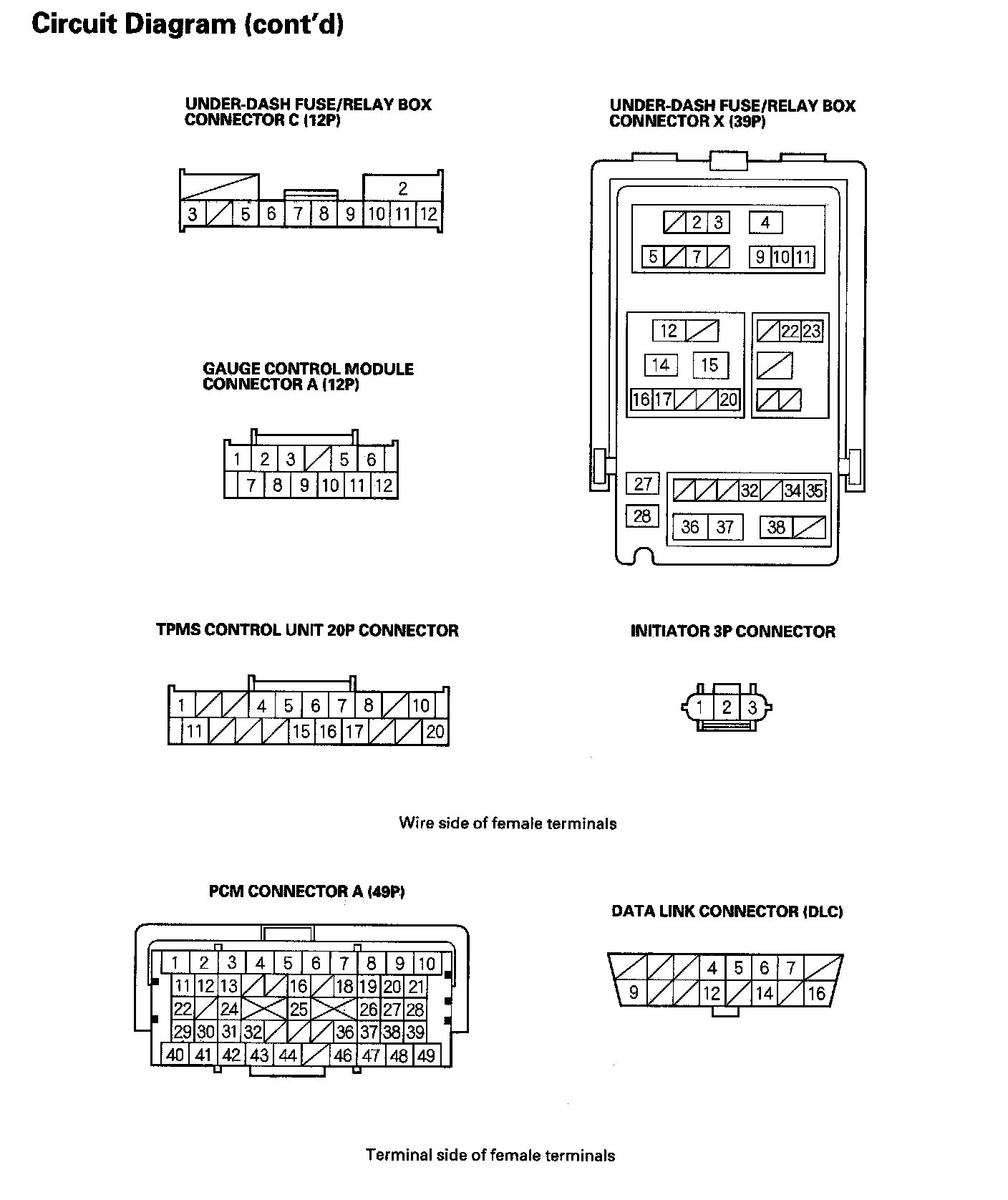

TPMS Circuit Diagram (Part 3):
