Active Damper Circuit Diagram

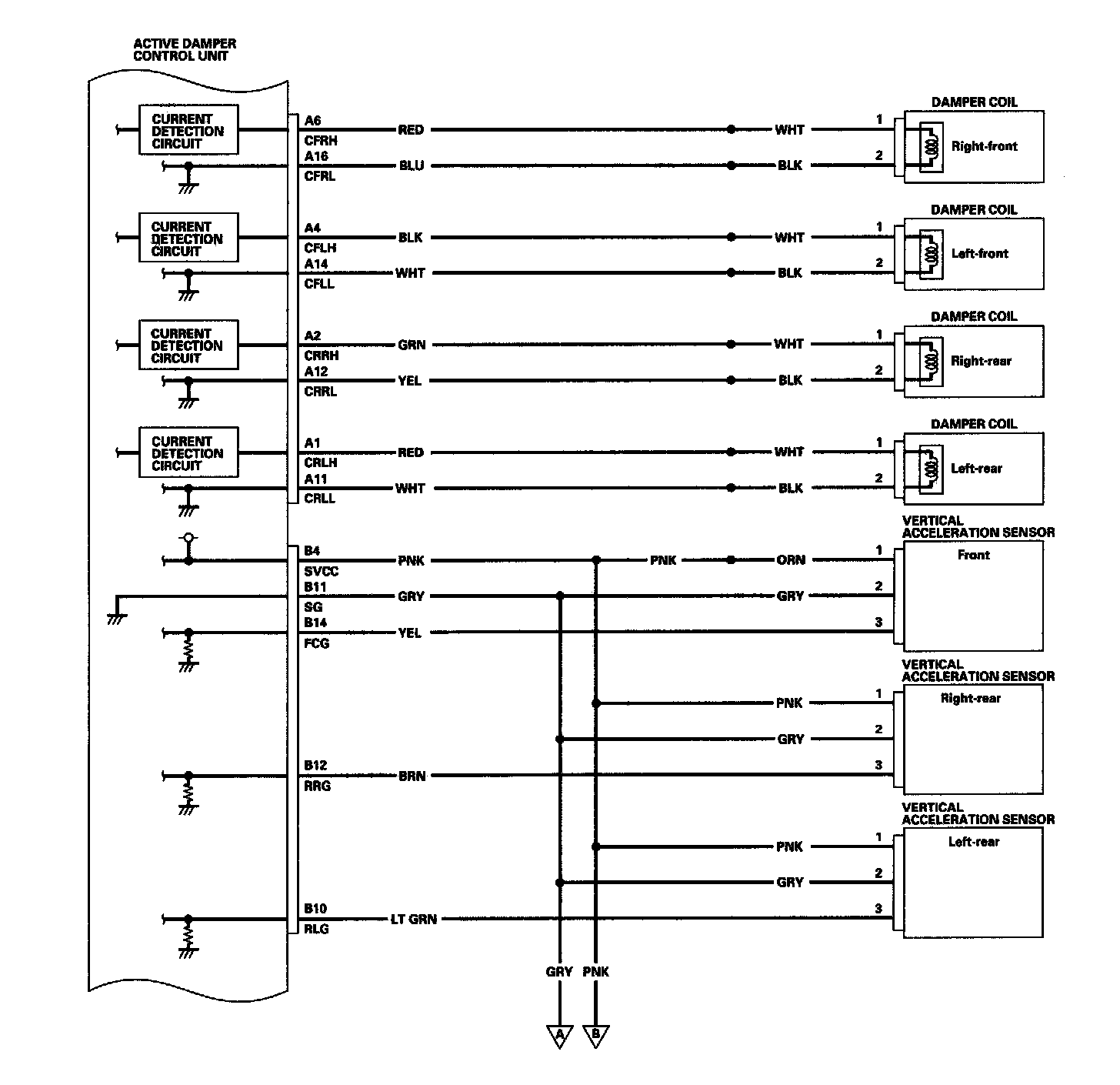

Active Damper Circuit DiagramActive Damper Circuit Diagram (Part 1):

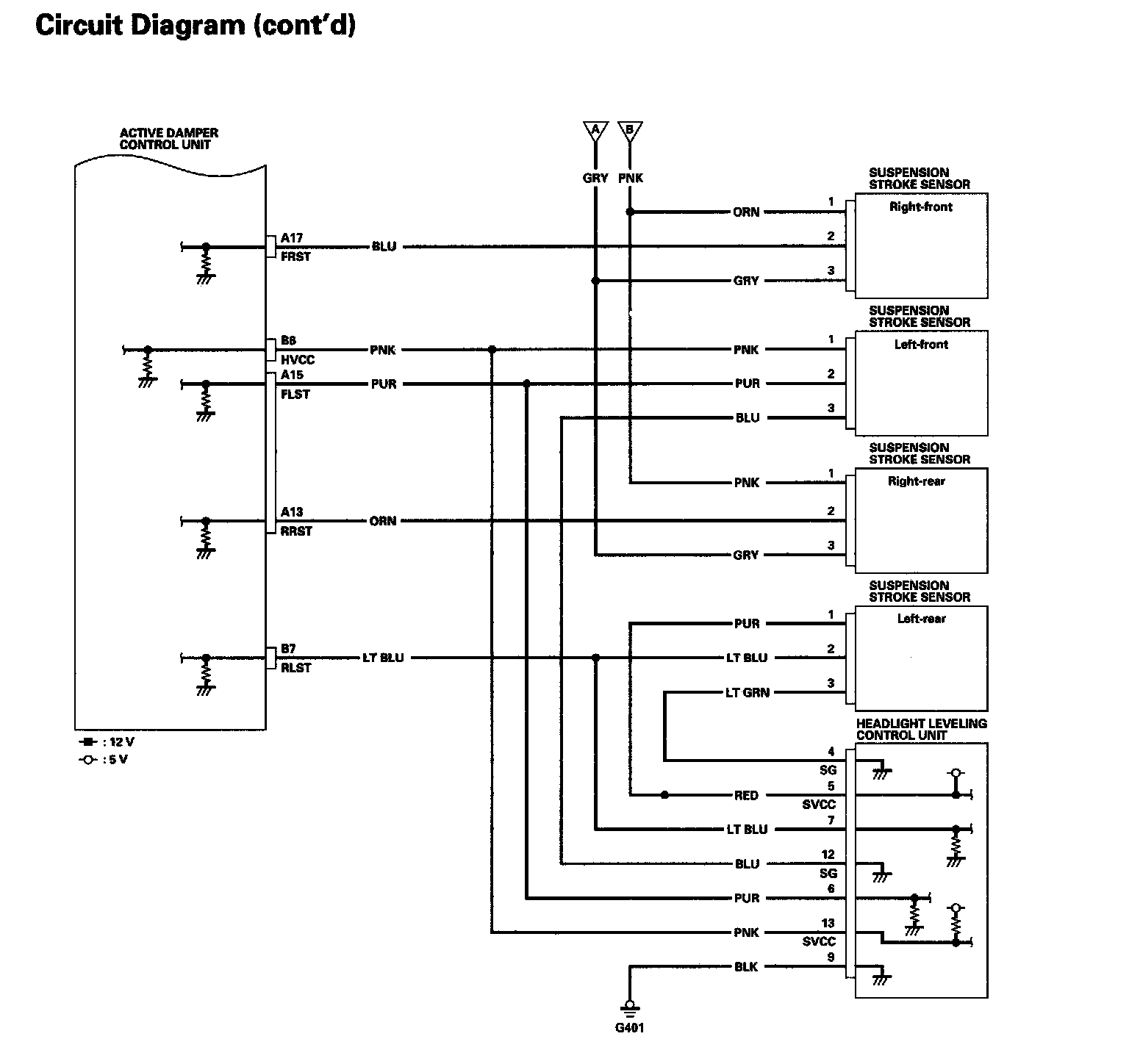

Active Damper Circuit Diagram (Part 2):
Active Damper Circuit Diagram (Part 3):

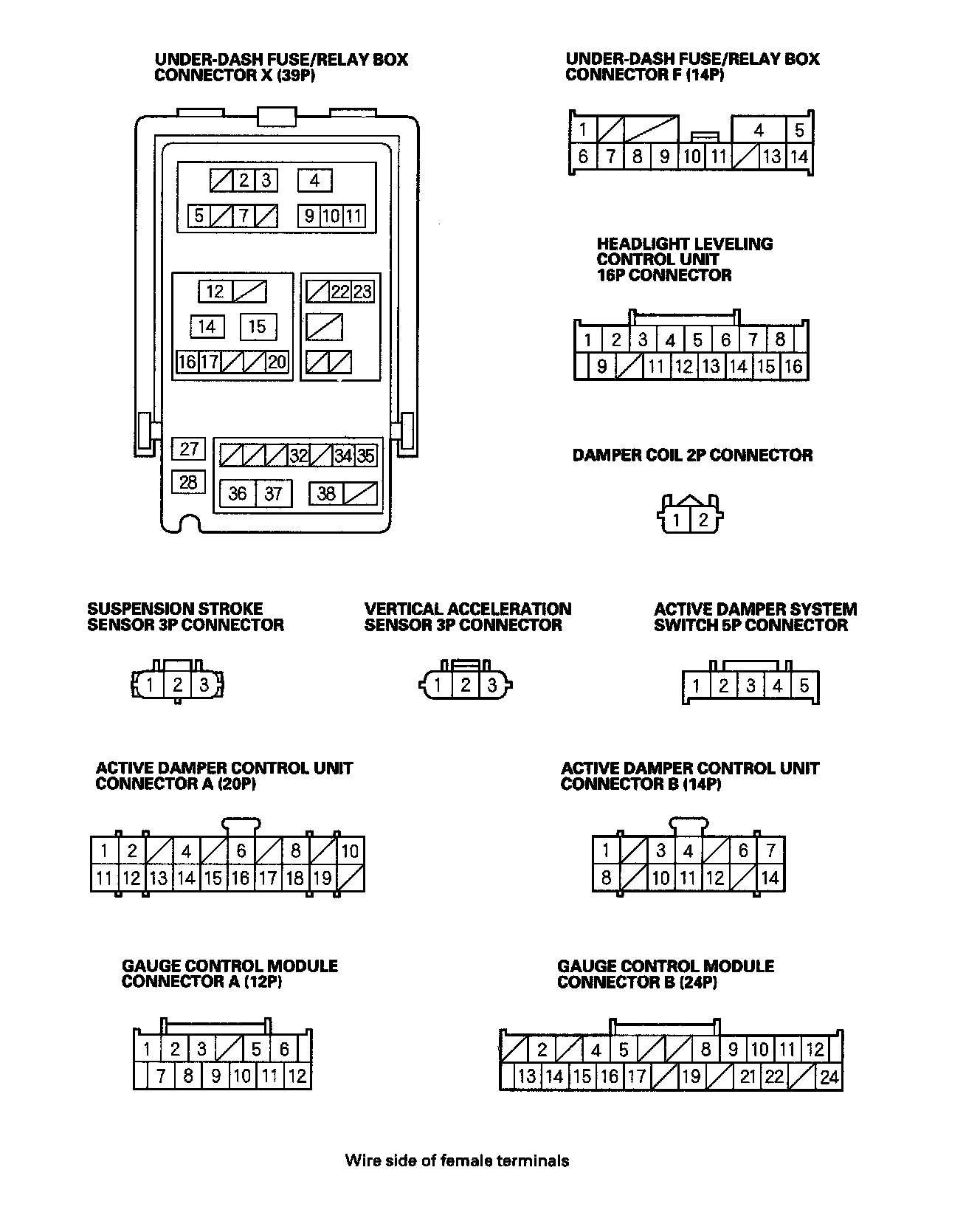

Active Damper Circuit Diagram (Part 4):

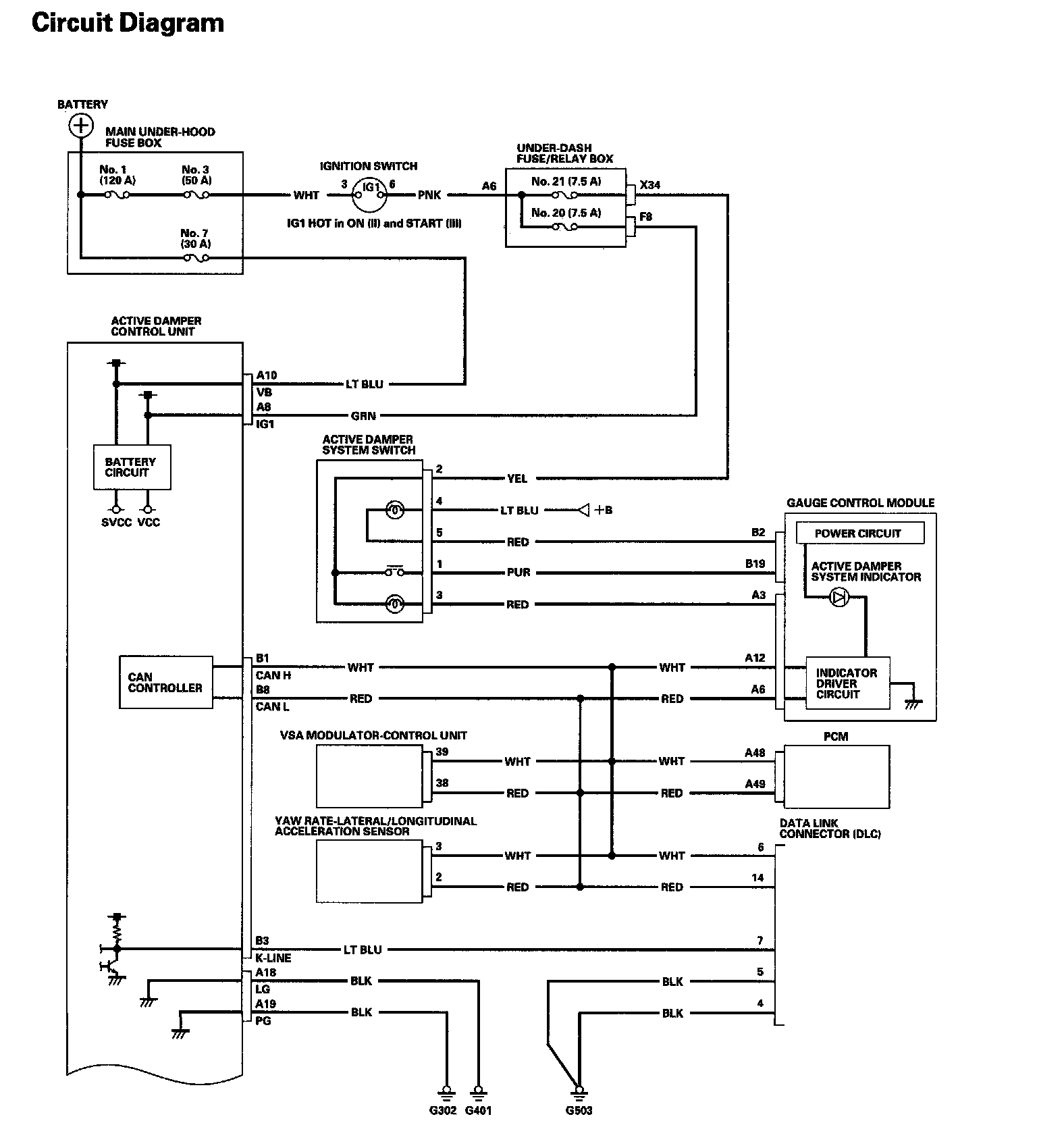

Active Damper Circuit Diagram (Part 5):
