Seat Heaters Circuit Diagram

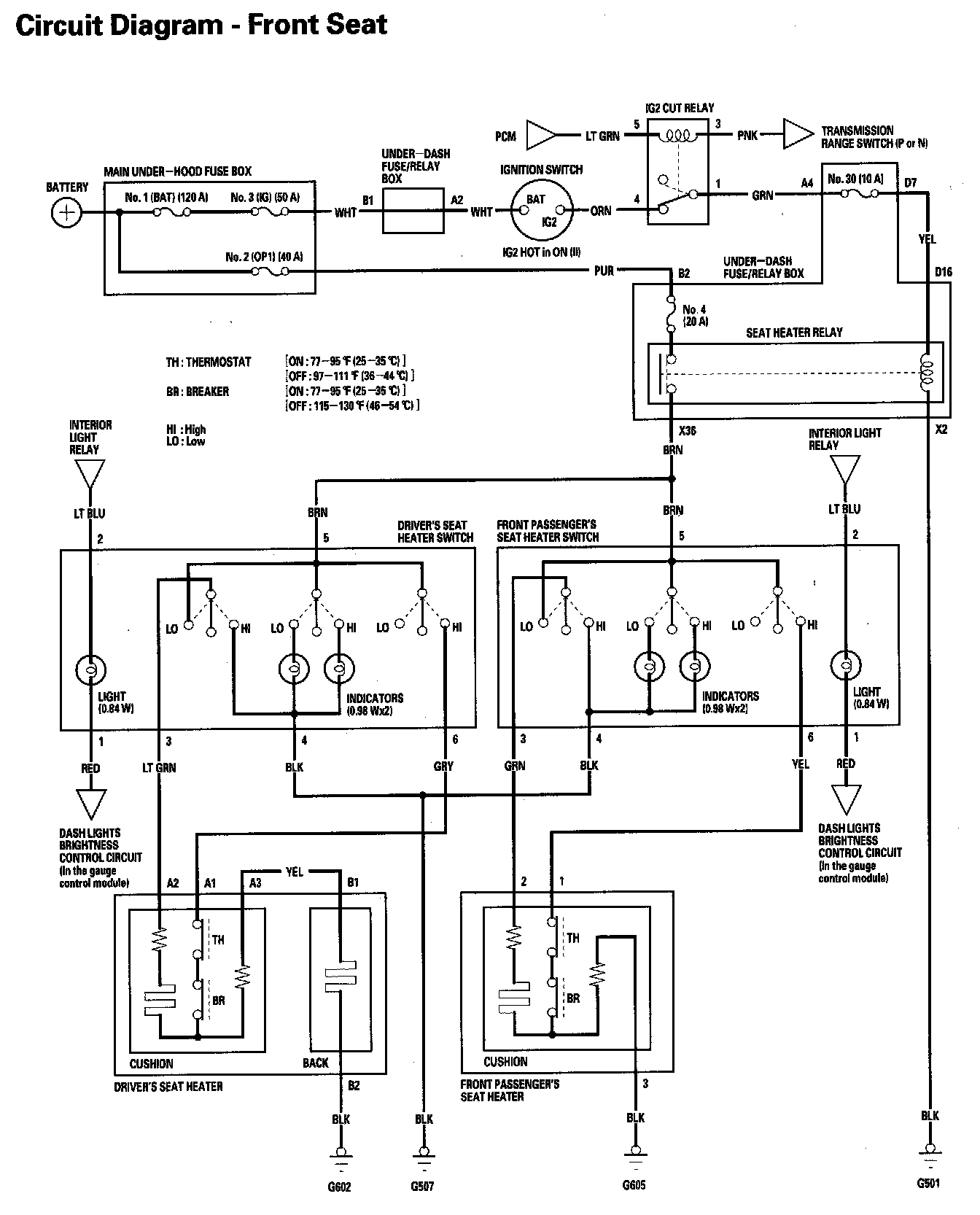

Seat Heaters Circuit Diagram (Part 1):

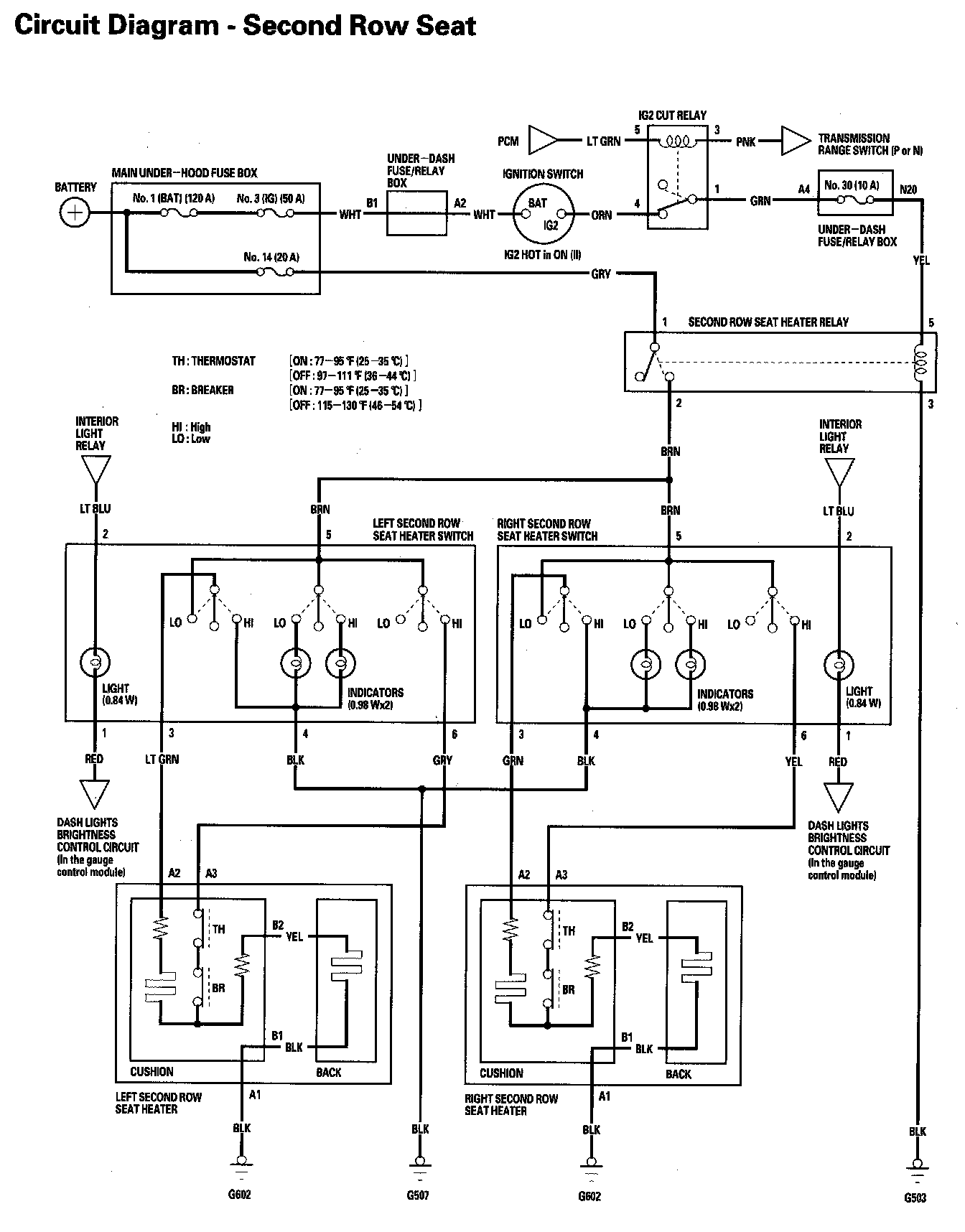

Seat Heaters Circuit Diagram (Part 2):
