Air Bag Systems

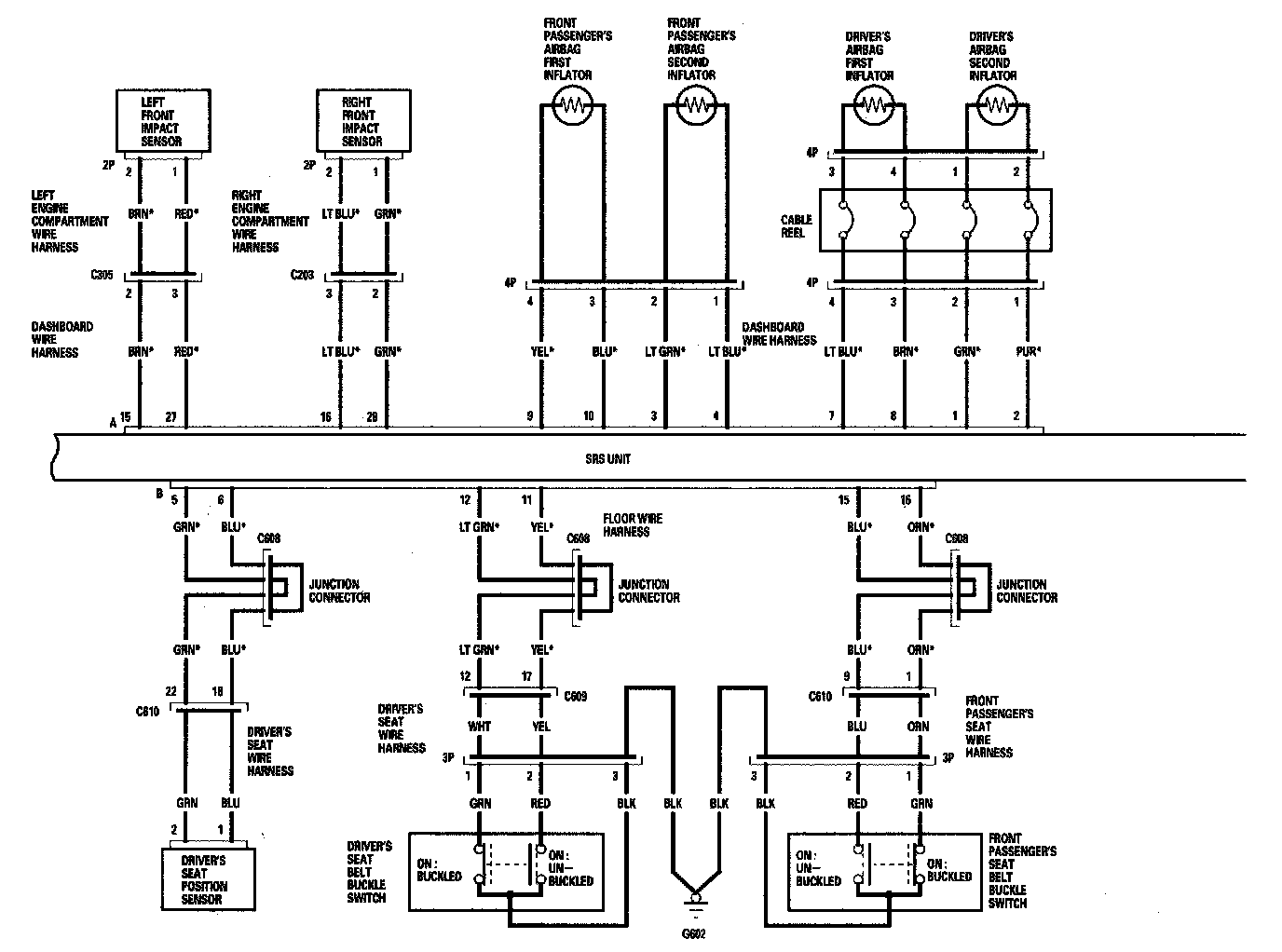

SRS Circuit Diagram (Part 1):

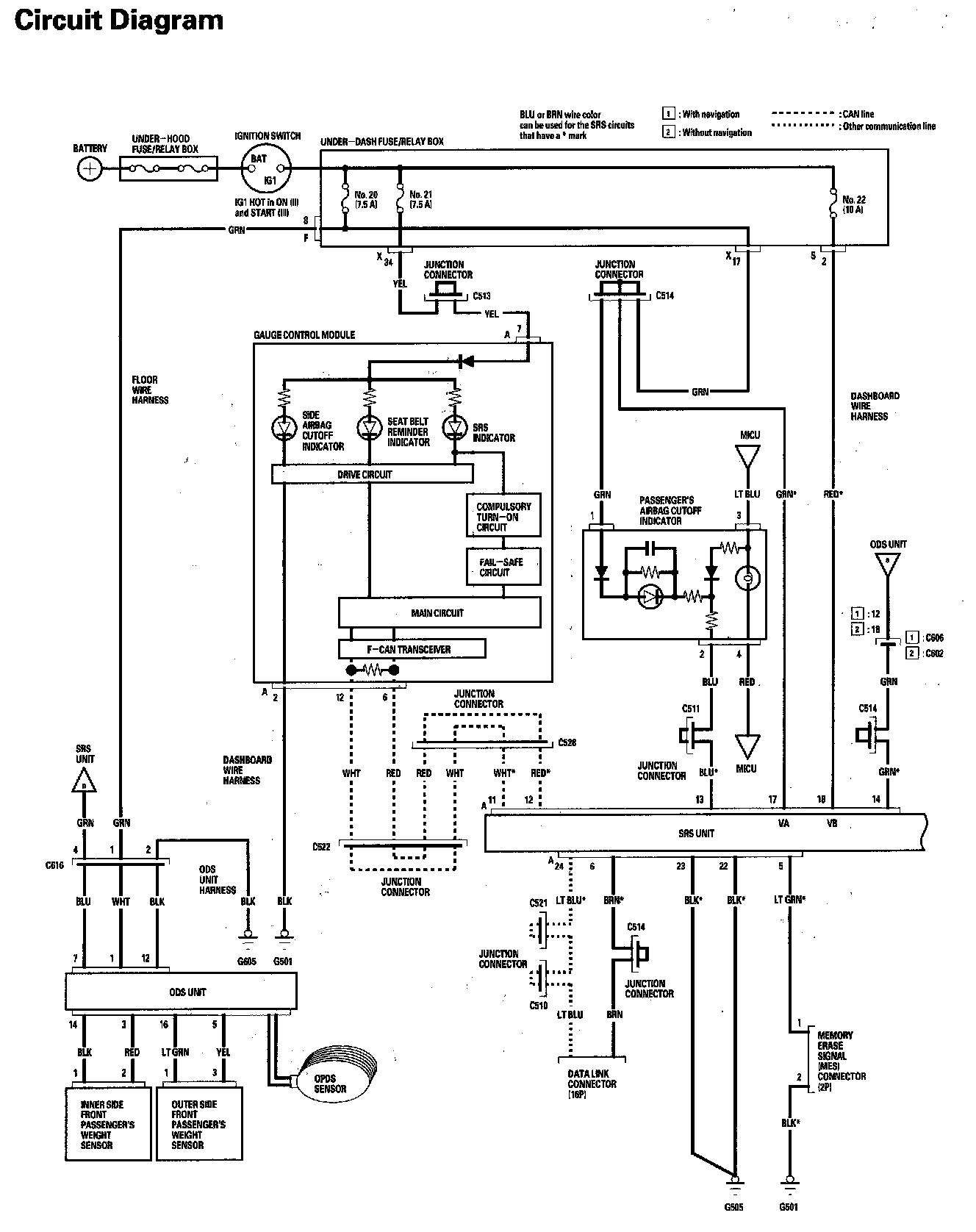

SRS Circuit Diagram (Part 2):
SRS Circuit Diagram (Part 3):
SRS Circuit Diagram (Part 4):
