AcuraLink Circuit Diagram

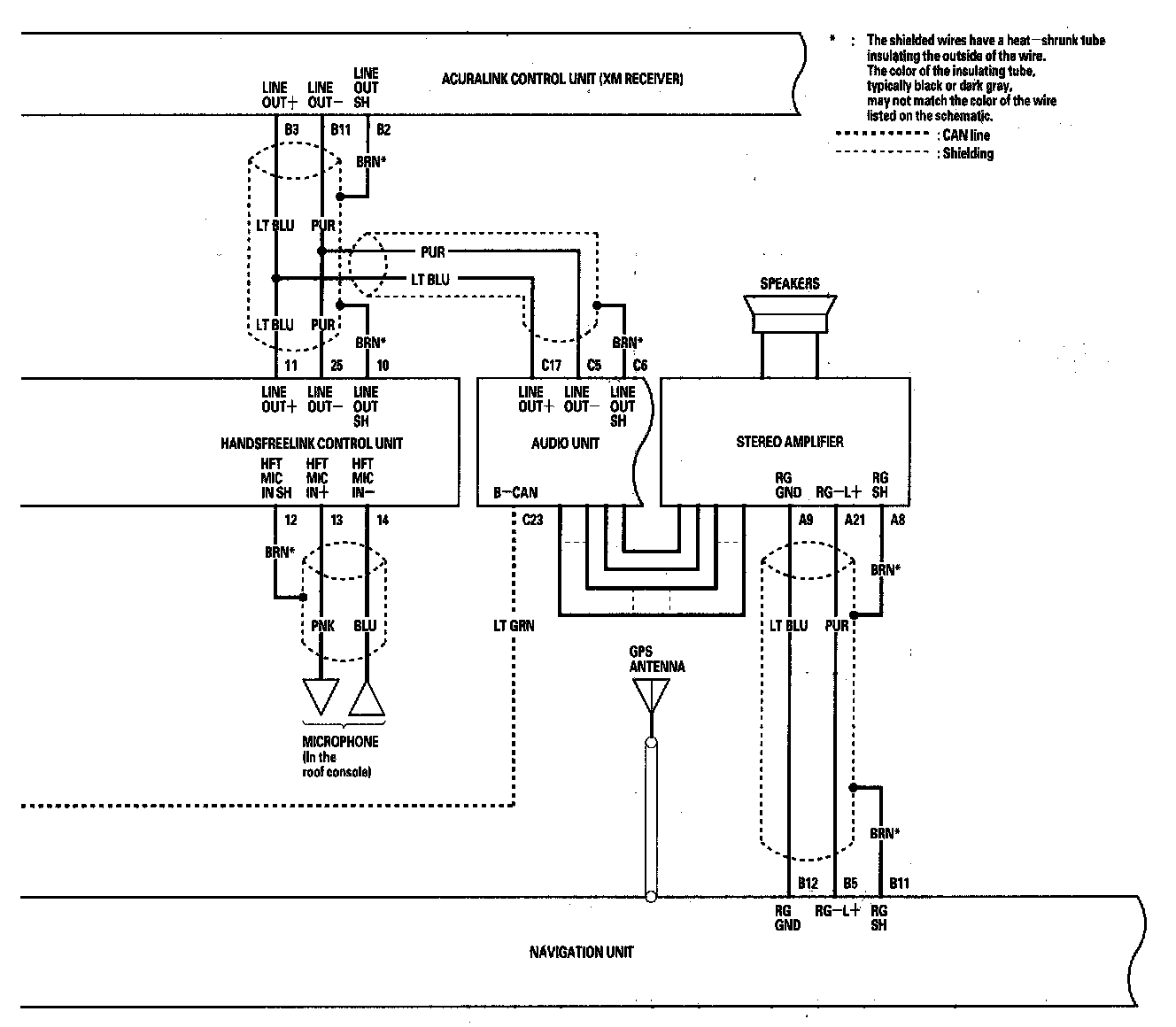

AcuraLink Circuit Diagram (Part 1):



AcuraLink Circuit Diagram (Part 2):

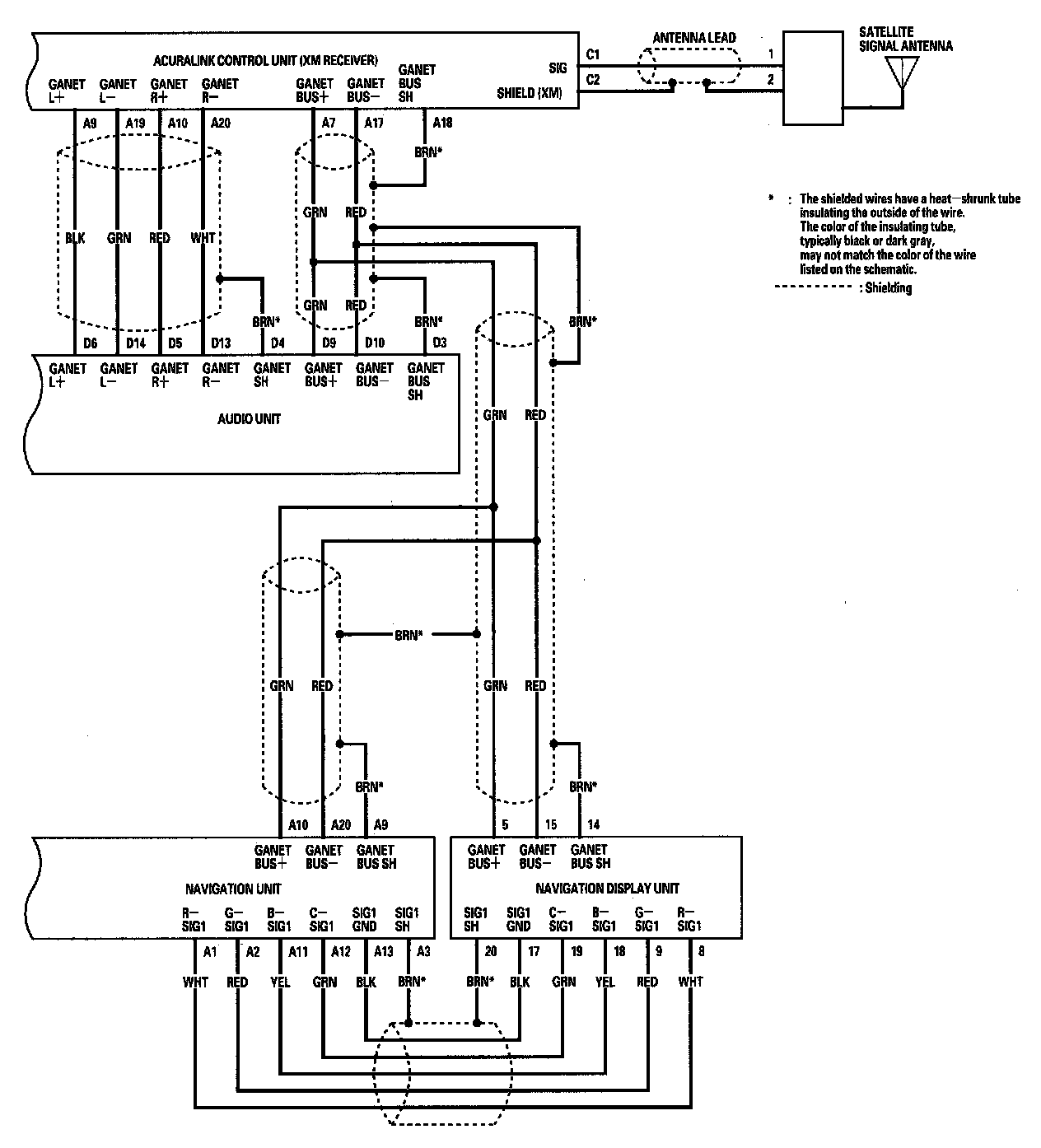

AcuraLink Circuit Diagram (Part 3):
