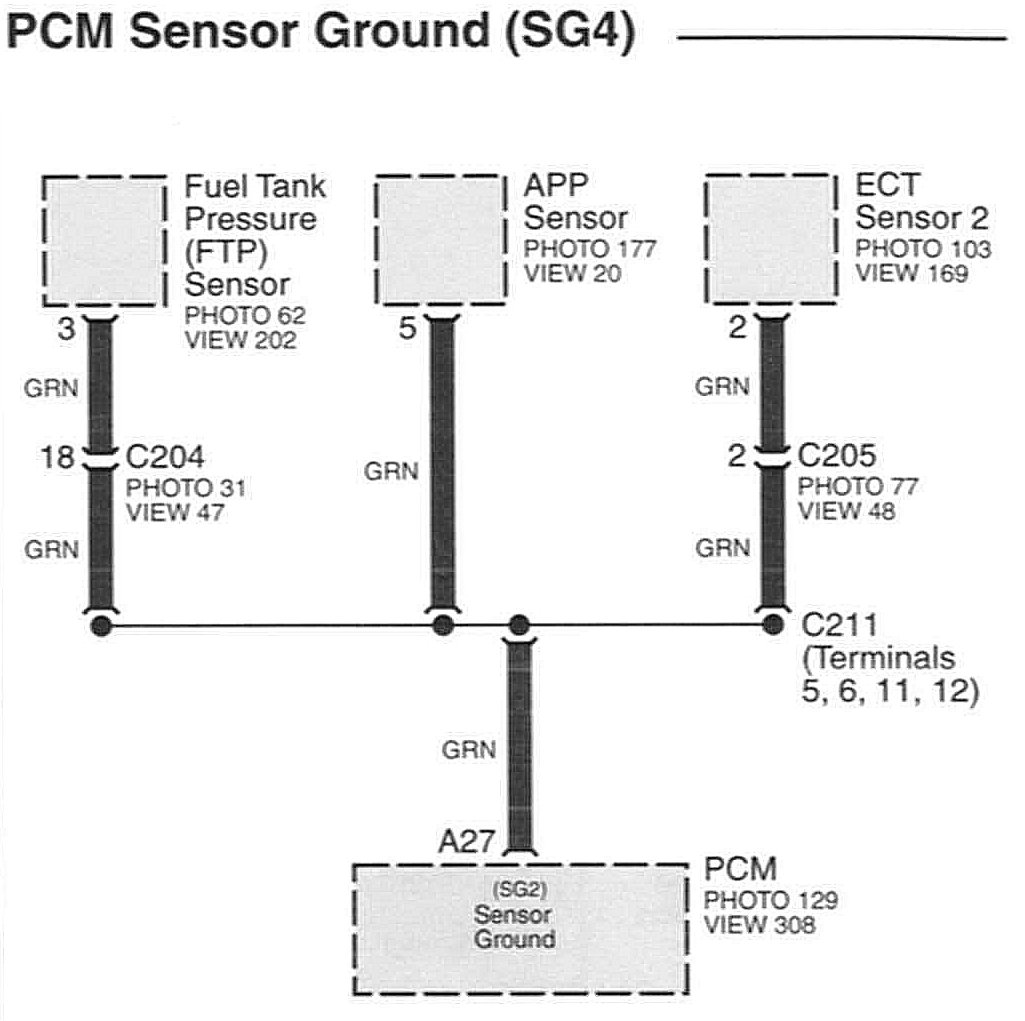

Home >> Acura >> 2008 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Diagram 15-7b
