Turn Signal/Hazard Warning Lights Circuit Diagram

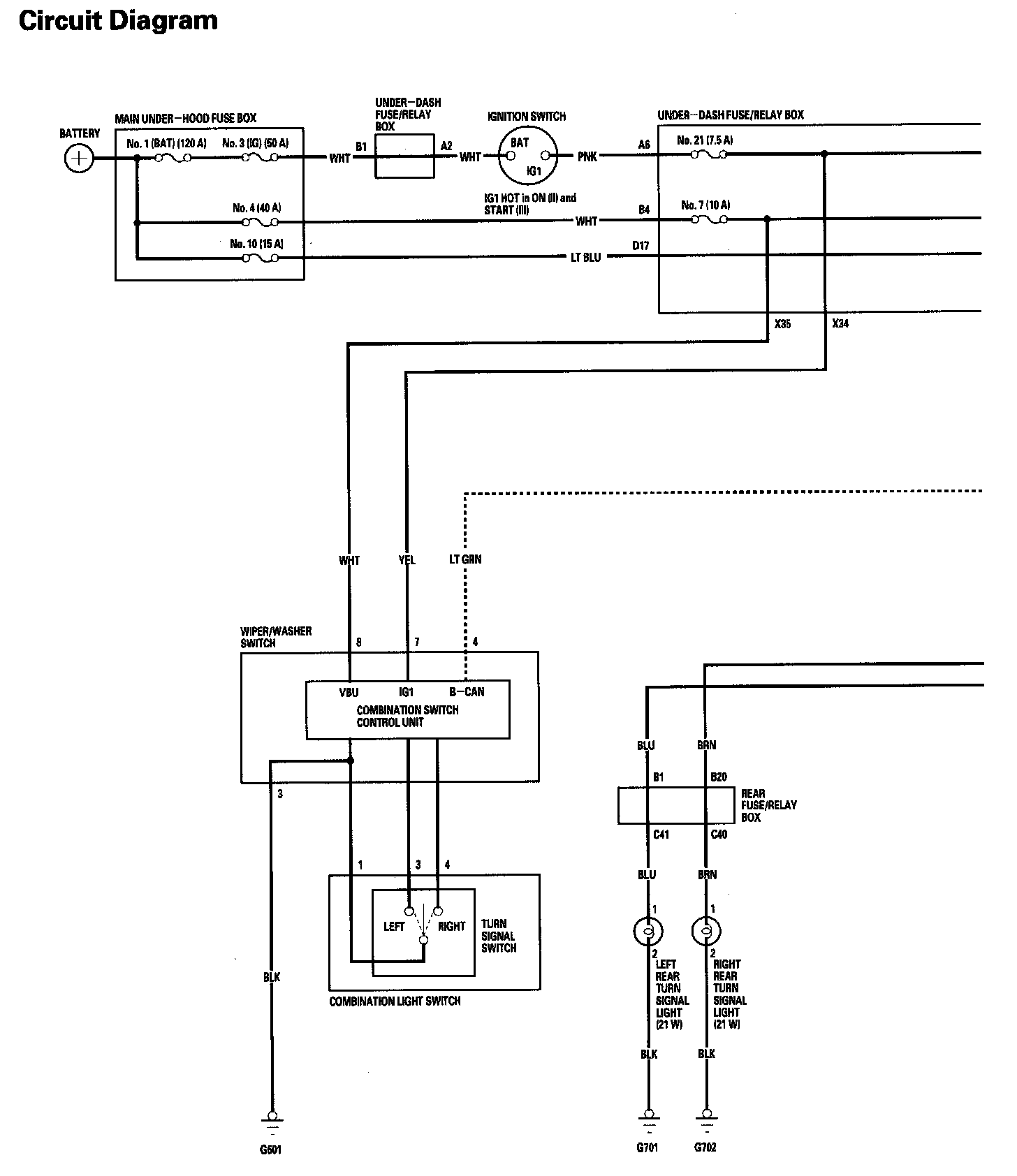

Turn Signal/Hazard Warning Lights Circuit Diagram (Part 1):

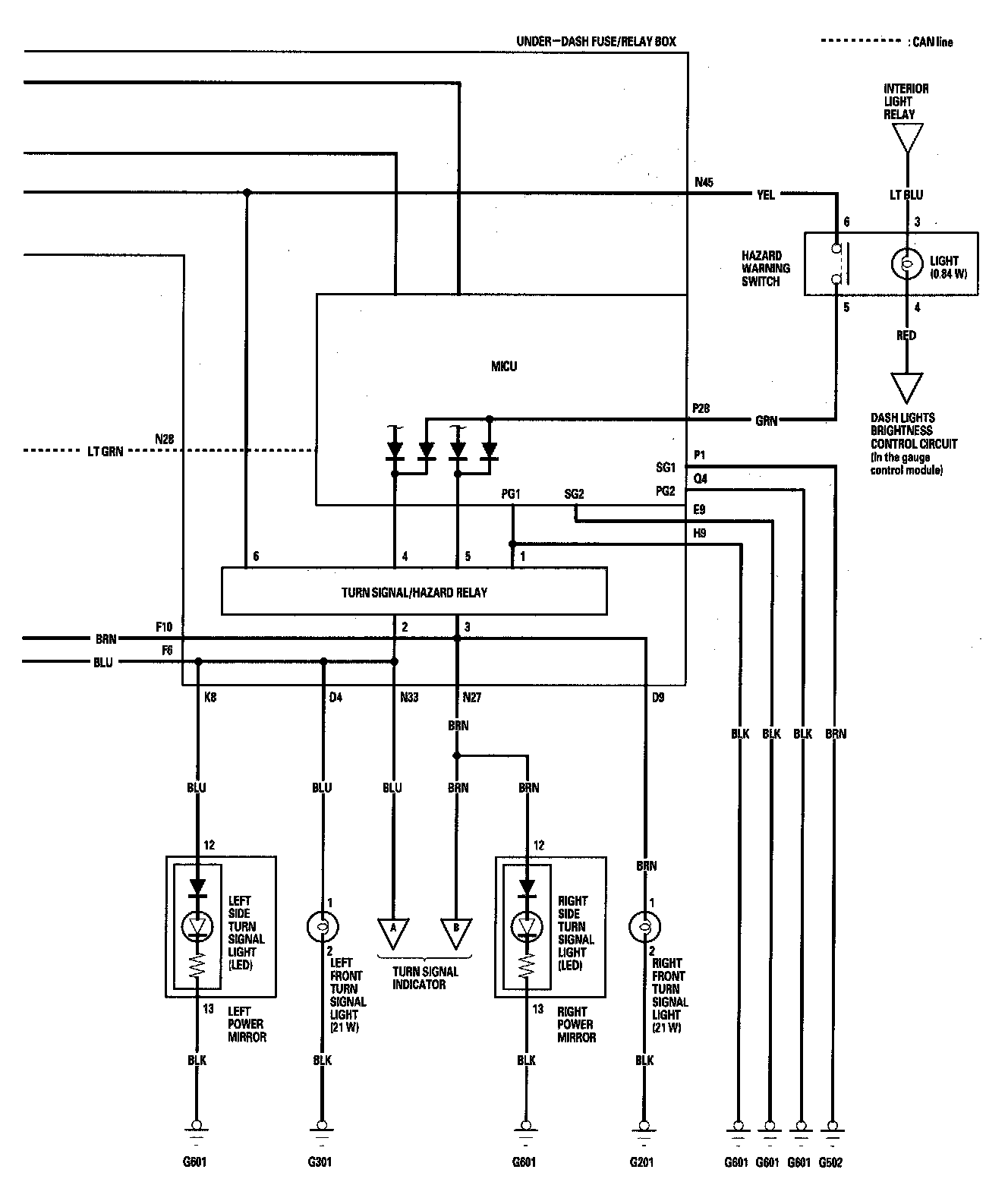

Turn Signal/Hazard Warning Lights Circuit Diagram (Part 2):
