Exterior Lights Circuit Diagram

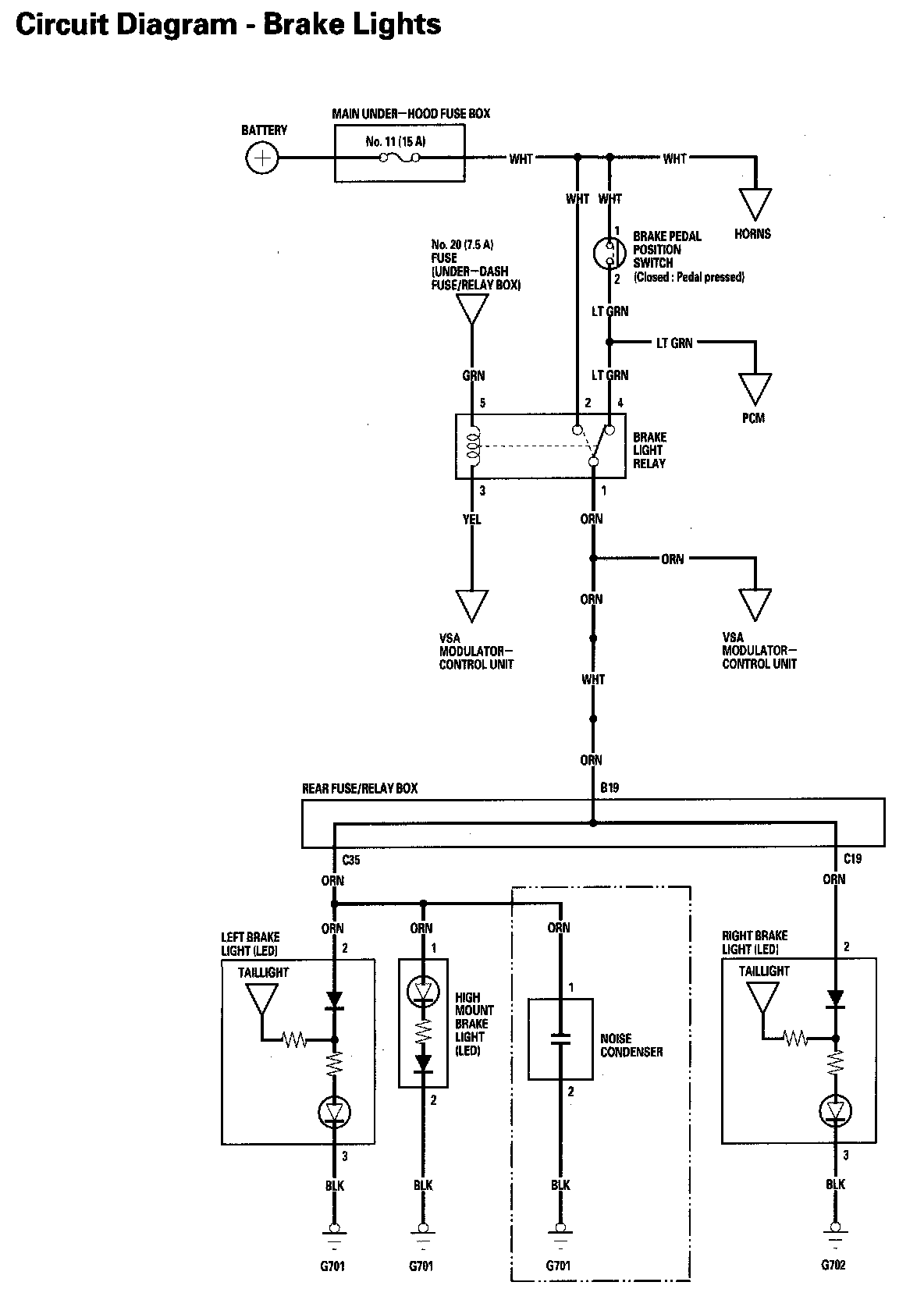

Exterior Lights Circuit Diagram (Part 1):

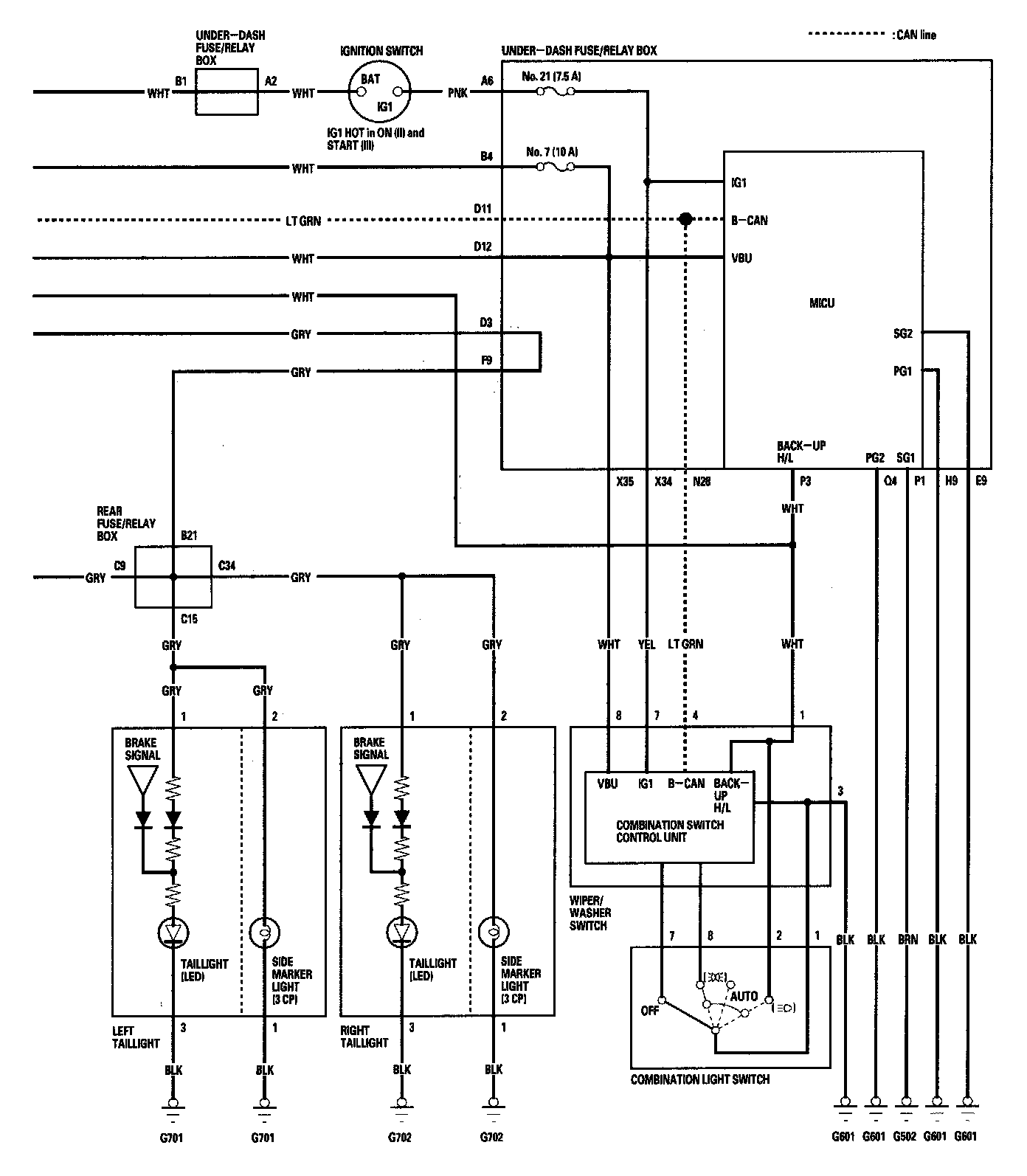

Exterior Lights Circuit Diagram (Part 2):

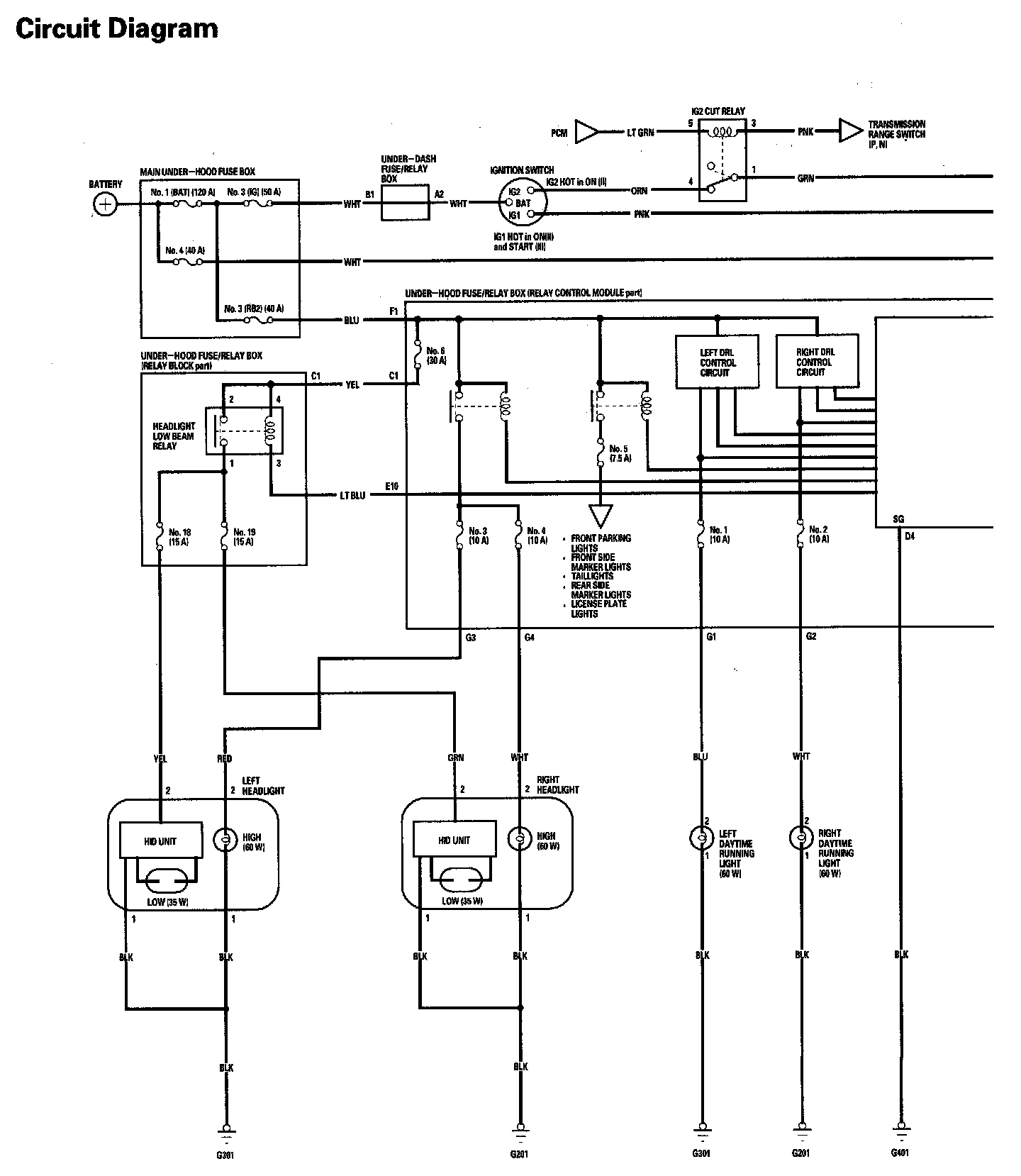

Exterior Lights Circuit Diagram (Part 3):

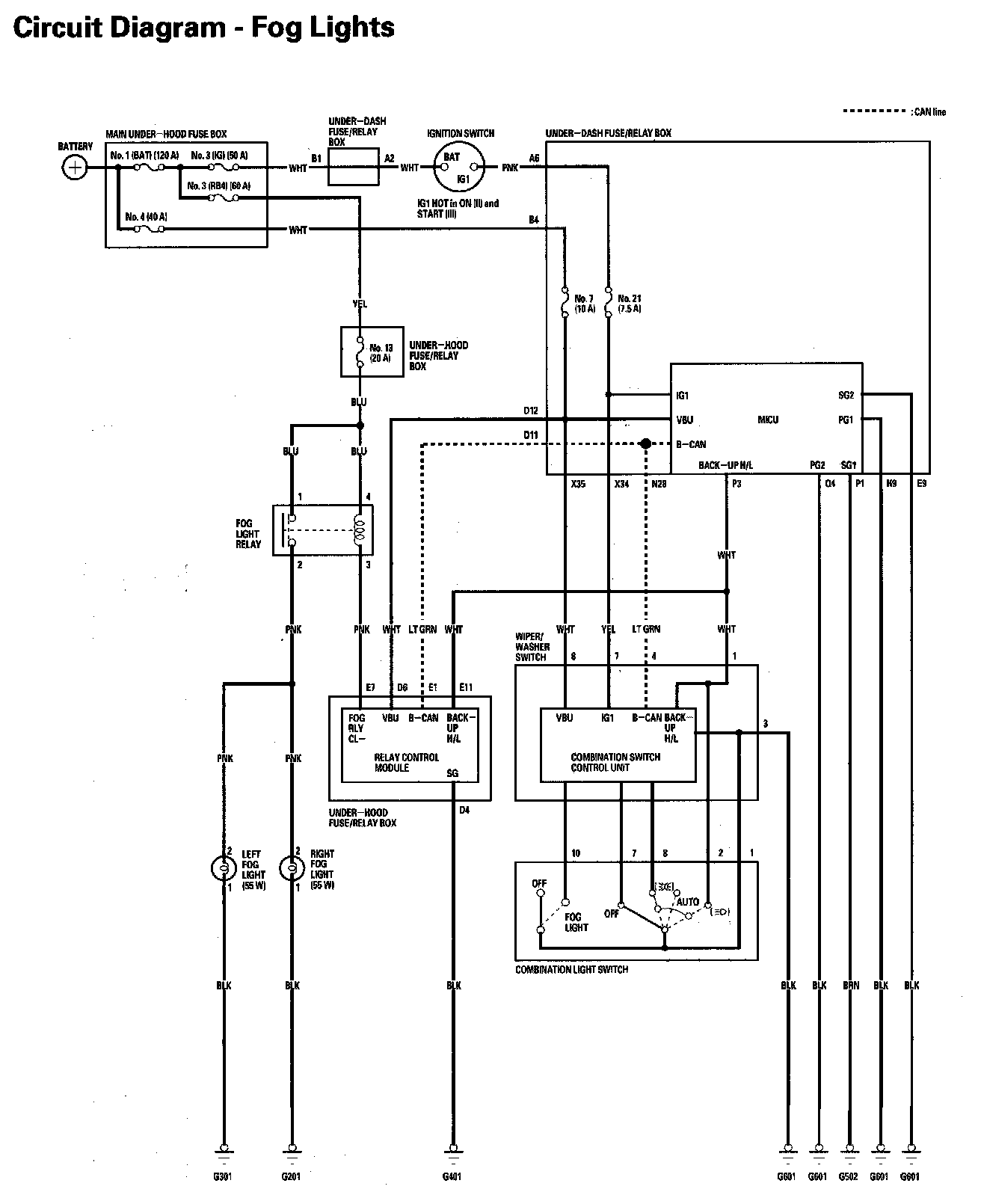

Exterior Lights Circuit Diagram (Part 4):

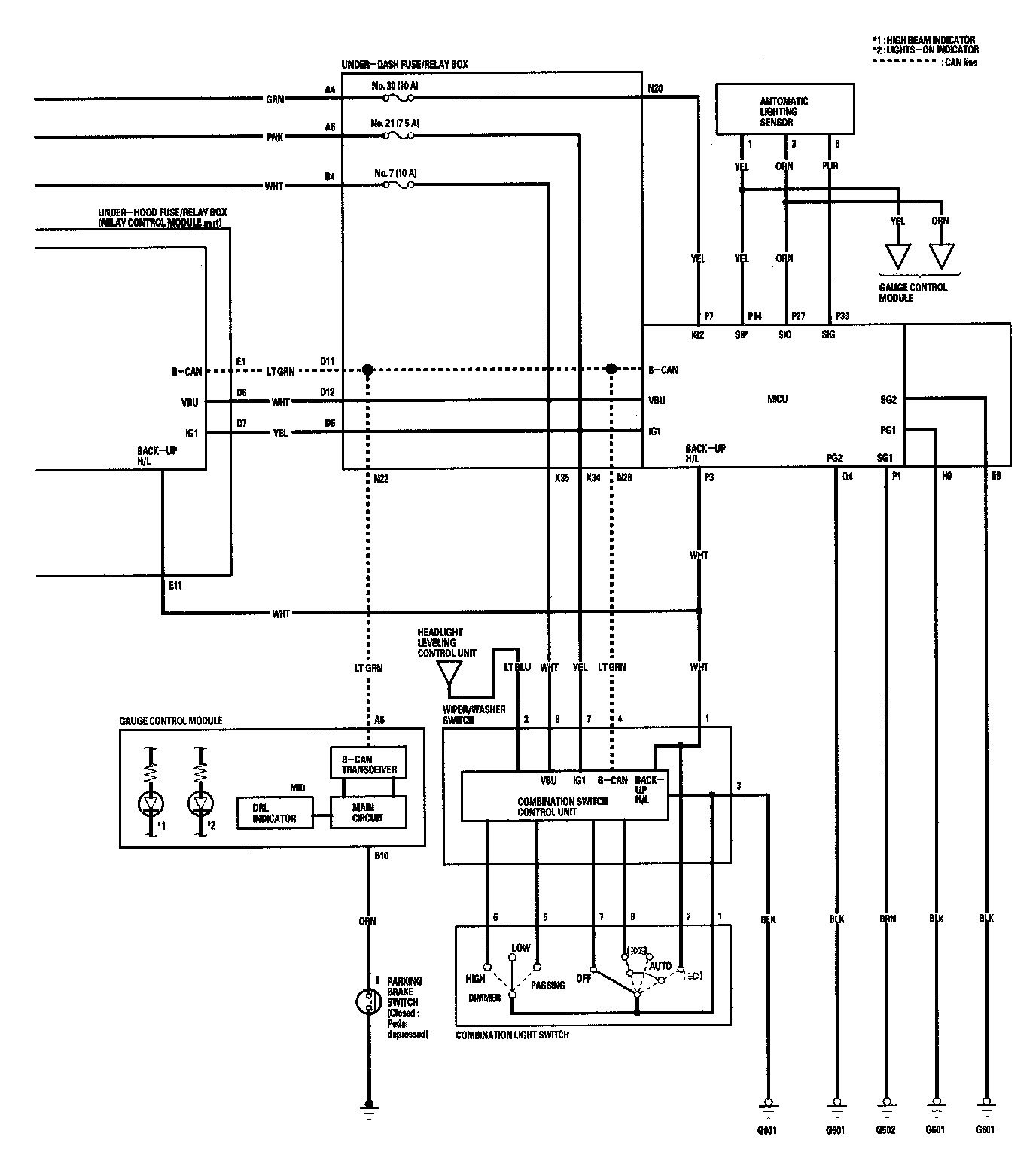

Exterior Lights Circuit Diagram (Part 5):

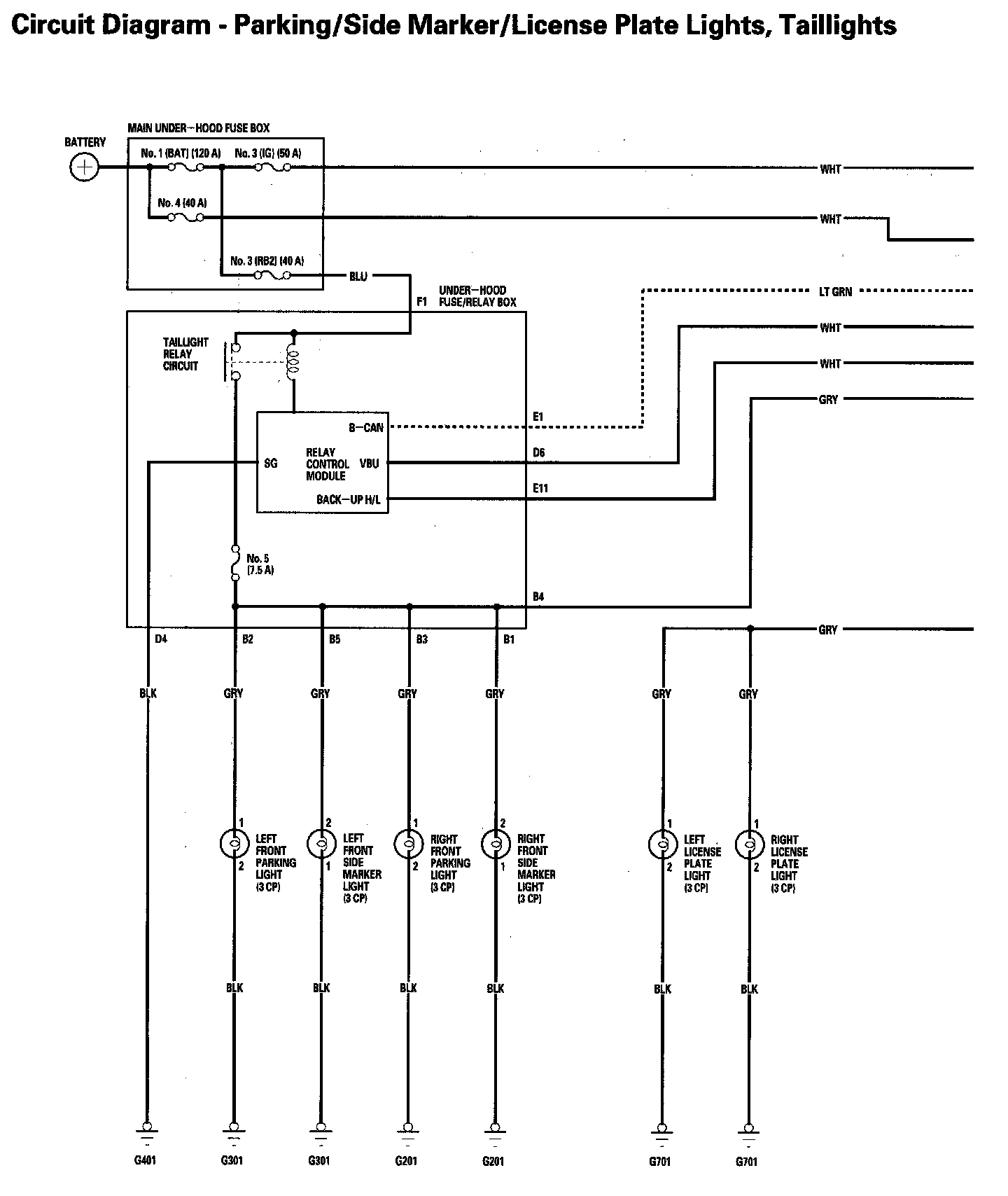

Exterior Lights Circuit Diagram (Part 6):

Exterior Lights Circuit Diagram (Part 7):
